MVH12V2AG3.000MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> MVH12V2AG3.000MHZ

MVH12V2AG3.000MHZ: DescriptionVCXO, Clock, 3MHz Min, 50MHz Max, 3MHz Nom; CategoryPassive components oscillator; File Size51KB，1 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com

Download Datasheet Parametric View All

MVH12V2AG3.000MHZ Overview

VCXO, Clock, 3MHz Min, 50MHz Max, 3MHz Nom

MVH12V2AG3.000MHZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	MtronPTI
package instruction	GWDIP4/8(UNSPEC)
Reach Compliance Code	unknown
Installation features	SURFACE MOUNT
Number of terminals	4
Maximum operating frequency	50 MHz
Minimum operating frequency	3 MHz
Nominal operating frequency	3 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	METAL
Encapsulate equivalent code	GWDIP4/8(UNSPEC)
power supply	5 V
Certification status	Not Qualified
Maximum slew rate	35 mA
Nominal supply voltage	5 V
surface mount	YES

Preview

Download Datasheet

View All

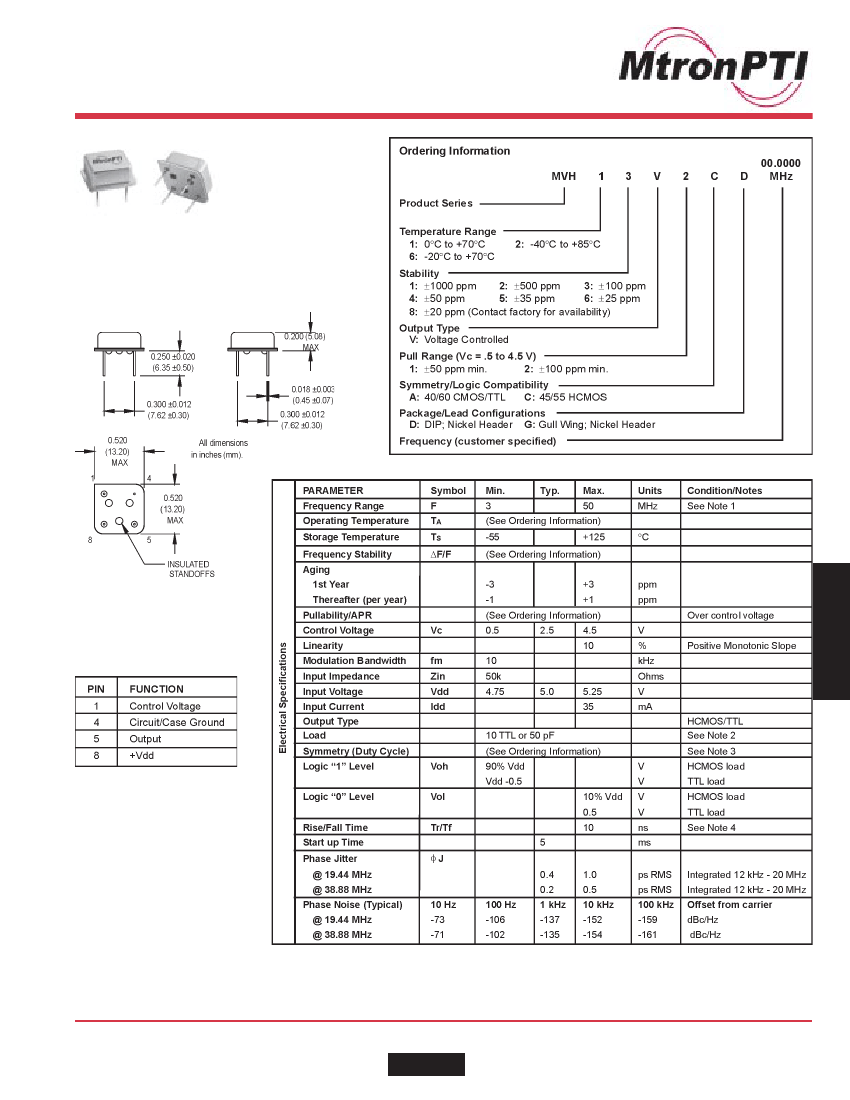

MVH Series

8 DIP, 5.0 Volt, HCMOS/TTL, VCXO

•

General purpose VCXO

for Phase Lock Loops

(PLL), Clock Recovery,

Reference Signal Track-

ing and Synthesizers

•

Frequencies up to 50 MHz

and tri-state option

Pin Connections

Higher frequencies available. Contact factory.

TTL load - see load circuit diagram #1 on page 148. HCMOS load - see load circuit diagram #2 on page 148.

Symmetry is measured at 1.4 V with TTL load, and at 50% with HCMOS load.

Rise/Fall times are measured between 0.5 V and 2.4 V for TTL load, and between 10% Vdd and 90% Vdd for HCMOS load.

MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.

Please see

www.mtronpti.com

for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI

1-800-762-8800.
