R124590303W datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> R124590303W

Preview

R124590303W: DescriptionRF SMA Connector, Female, Receptacle; CategoryThe connector The connector; File Size41KB，1 Pages; ManufacturerRadiall; Websitehttps://www.radiall.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

R124590303W Overview

RF SMA Connector, Female, Receptacle

R124590303W Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Radiall
Reach Compliance Code	unknown
Body/casing type	RECEPTACLE
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	SMA
Plug information	NO
Installation method	STRAIGHT
Options	GENERAL PURPOSE
Panel mounting	NO

Preview

Download Datasheet

View All

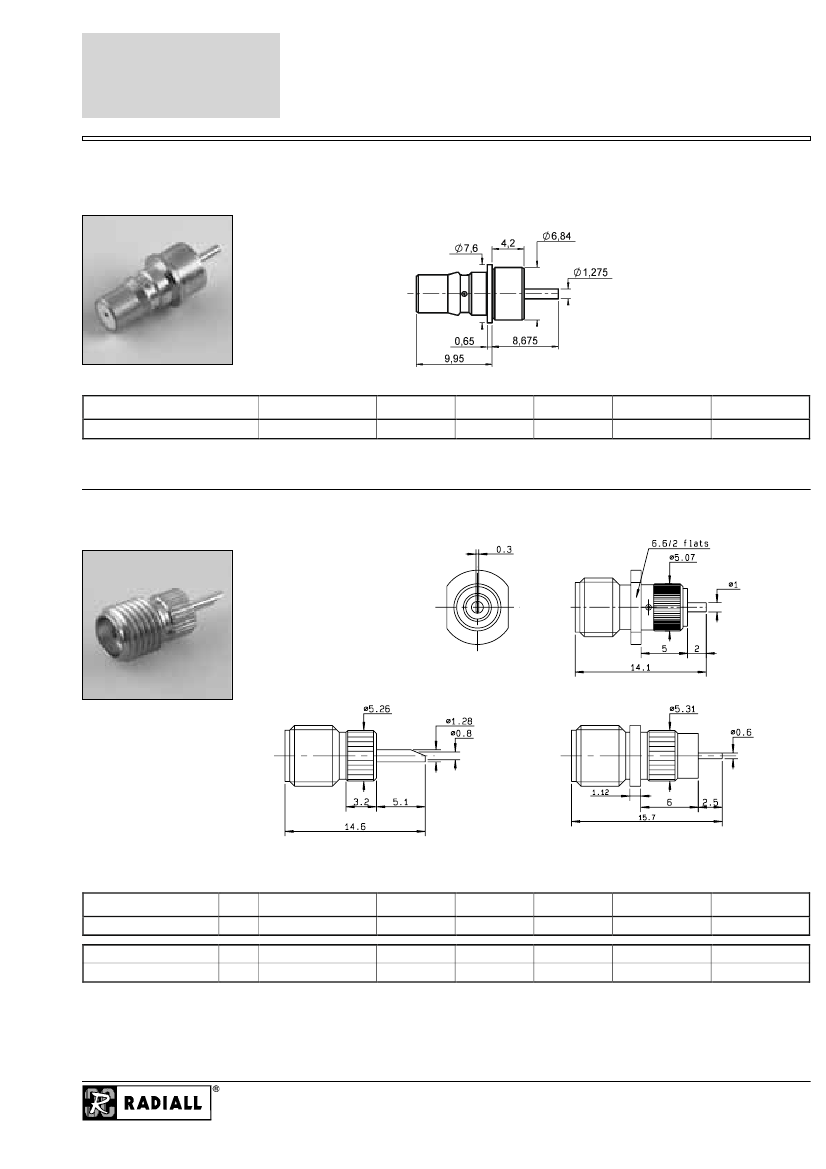

PRESS MOUNT

CONNECTORS

STRAIGHT QMA RECEPTACLE

QMA and SMA series

part number

R123 590 027

center contact

female

cut out

P11

finish

GBR

packaging

100

rear contact

straight terminal

note

front mount

For more information about QMA series, please ask for our catalog

D1 123 CE.

STRAIGHT SMA RECEPTACLES

Fig. 1

R124 :

Commercial SMA (brass)

R125 :

Standard SMA (stainless steel)

part number

R124 590 303

•

R125 590 001

R125 590 221

fig

1

2

3

Fig. 2

Fig. 3

center contact

female

cut out

P05

P14

P09

finish

Gold

Passivated

packaging

100

rear contact

straight terminal

solder pot

straight terminal

note

front mount

For more information about these series, please ask for our catalogs

D1 124 CE

(Commercial SMA series),

D1 125 CE

(SMA series).

For unit packaging, add “W” after the P/N

•

upon request

7

R124590303W Related Products

	R124590303W	R125590001W	R124590303	R125590221W
Description	RF SMA Connector, Female, Receptacle	RF SMA Connector, Female, Solder Terminal, Receptacle	RF SMA Connector, Female, Receptacle	RF SMA Connector, Female, Receptacle
Reach Compliance Code	unknown	unknow	unknown	unknown
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR
Contact to complete cooperation	GOLD	GOLD (51) OVER NICKEL (79)	GOLD	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	BERYLLIUM COPPER	NOT SPECIFIED	NOT SPECIFIED
Coupling type	THREADED	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	SMA	SMA	SMA	SMA
Plug information	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	NO	NO
Is it lead-free?	Lead free	Lead free	Lead free	-
Is it Rohs certified?	conform to	conform to	conform to	-
Maker	Radiall	-	Radiall	Radiall
Contact completed and terminated	GOLD	GOLD (51) OVER NICKEL (79)	GOLD	-
JESD-609 code	e4	e4	e4	-
