TC74HC4053AFN-TP1ELP datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> TC74HC4053AFN-TP1ELP

Preview

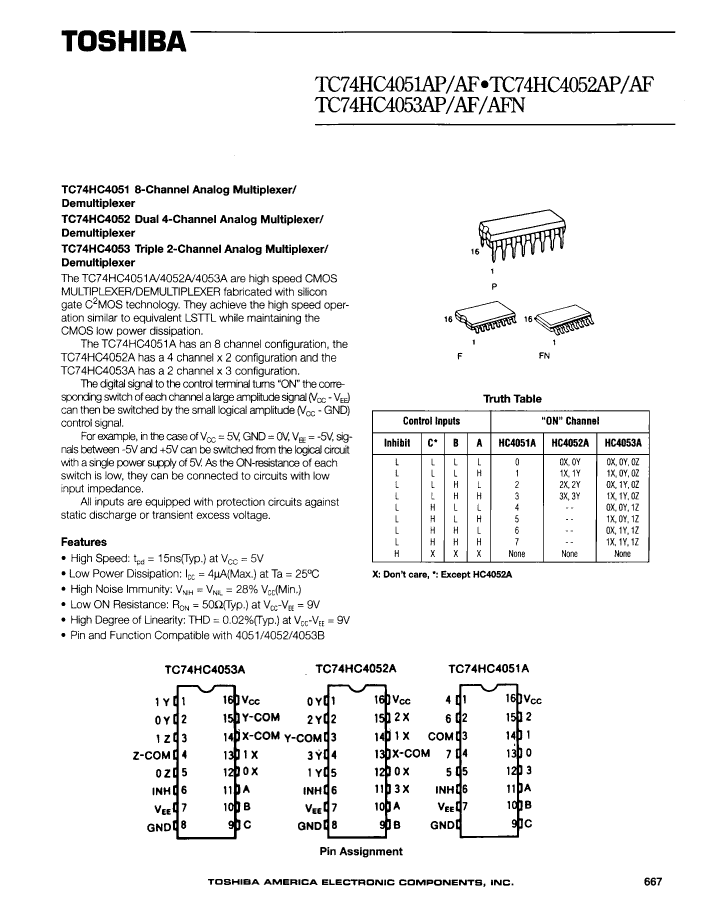

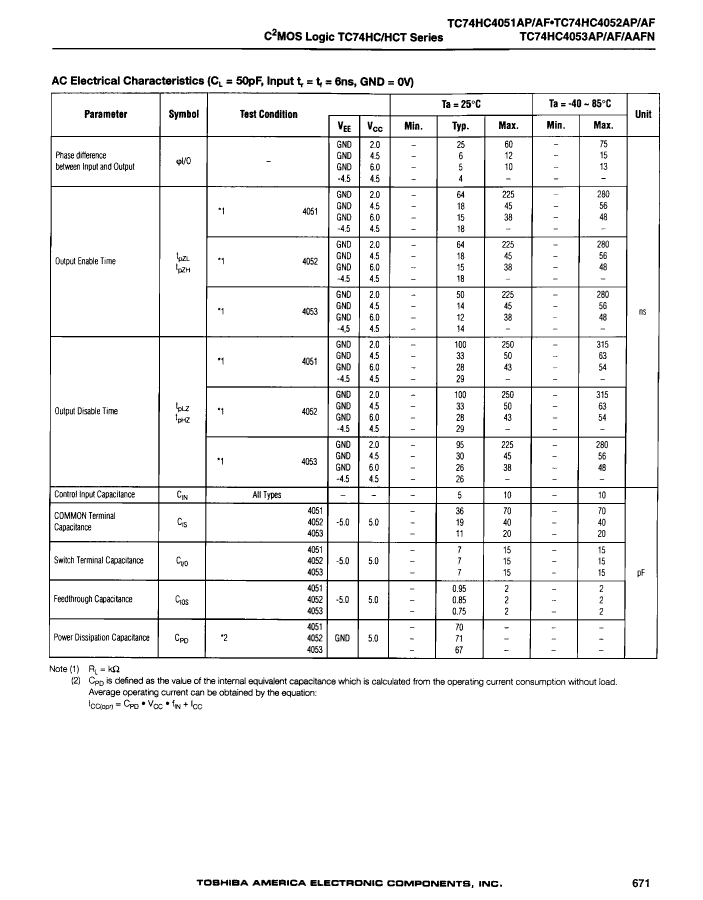

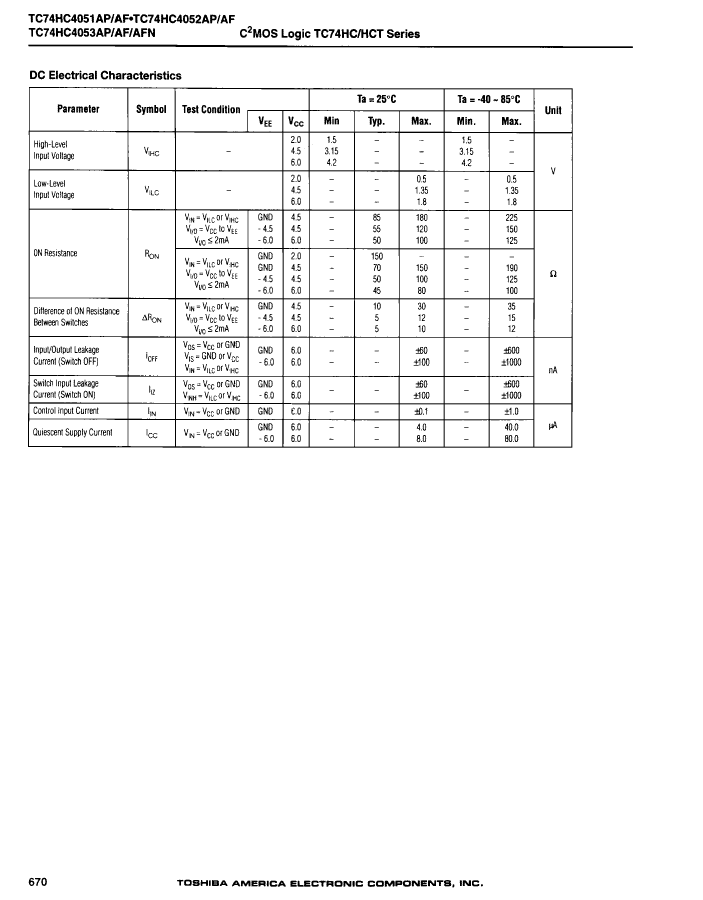

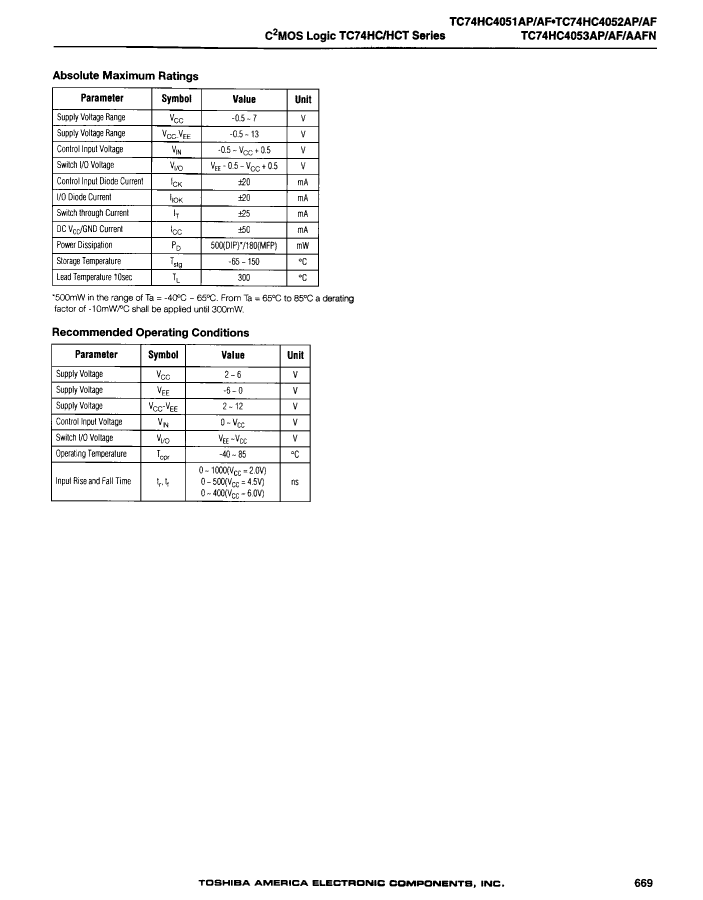

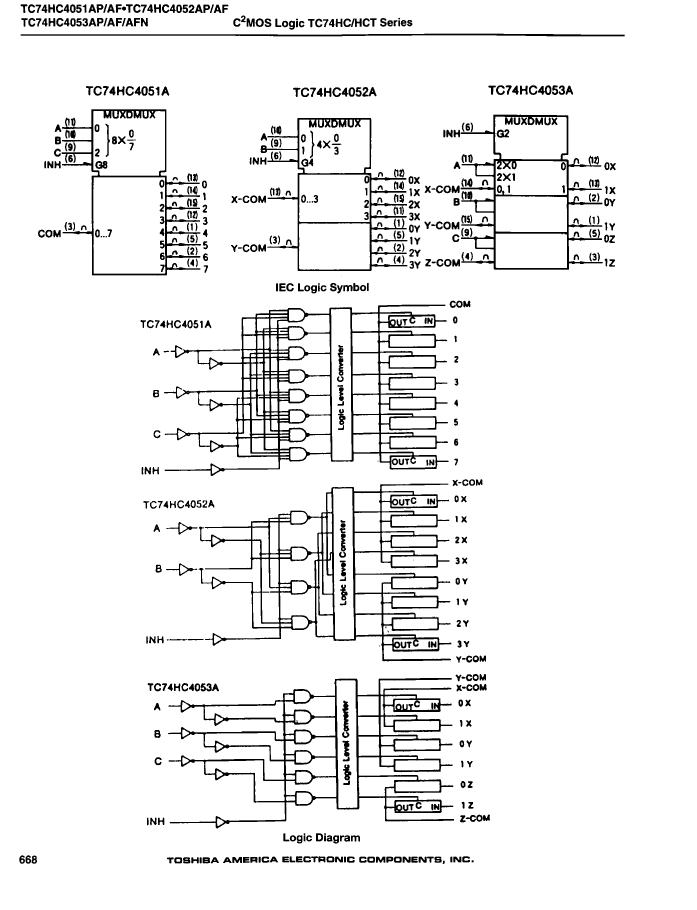

TC74HC4053AFN-TP1ELP: DescriptionIC TRIPLE 2-CHANNEL, SGL ENDED MULTIPLEXER, PDSO16, 0.150 INCH, PLASTIC, SOIC-16, Multiplexer or Switch; CategoryAnalog mixed-signal IC The signal circuit; File Size183KB，8 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TC74HC4053AFN-TP1ELP Overview

IC TRIPLE 2-CHANNEL, SGL ENDED MULTIPLEXER, PDSO16, 0.150 INCH, PLASTIC, SOIC-16, Multiplexer or Switch

TC74HC4053AFN-TP1ELP Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	SOIC
package instruction	0.150 INCH, PLASTIC, SOIC-16
Contacts	16
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-PDSO-G16
length	9.9 mm
Nominal Negative Supply Voltage (Vsup)	-6 V
Number of channels	2
Number of functions	3
Number of terminals	16
Nominal off-state isolation	50 dB
On-state resistance matching specifications	5 Ω
Maximum on-state resistance (Ron)	100 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	240
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply current (Isup)	0.08 mA
Nominal supply voltage (Vsup)	6 V
surface mount	YES
Maximum disconnect time	38 ns
Maximum connection time	38 ns
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	3.9 mm

Preview

Download Datasheet

View All

TC74HC4053AFN-TP1ELP Related Products

	TC74HC4053AFN-TP1ELP	TC74HC4052AF-TP1EL	TC74HC4052AF-TP2EL	TC74HC4051AF-TP1EL	TC74HC4051AF-TP2EL	TC74HC4053AF-TP2EL	TC74HC4053AF-TP1EL	TC74HC4053AFN-TP2ELP
Description	IC TRIPLE 2-CHANNEL, SGL ENDED MULTIPLEXER, PDSO16, 0.150 INCH, PLASTIC, SOIC-16, Multiplexer or Switch	IC 4-CHANNEL, DIFFERENTIAL MULTIPLEXER, PDSO16, 0.300 INCH, PLASTIC, SOIC-16, Multiplexer or Switch	IC 4-CHANNEL, DIFFERENTIAL MULTIPLEXER, PDSO16, 0.300 INCH, PLASTIC, SOIC-16, Multiplexer or Switch	IC 8-CHANNEL, SGL ENDED MULTIPLEXER, PDSO16, 0.300 INCH, PLASTIC, SOIC-16, Multiplexer or Switch	IC 8-CHANNEL, SGL ENDED MULTIPLEXER, PDSO16, 0.300 INCH, PLASTIC, SOIC-16, Multiplexer or Switch	IC TRIPLE 2-CHANNEL, SGL ENDED MULTIPLEXER, PDSO16, 0.300 INCH, PLASTIC, SOIC-16, Multiplexer or Switch	IC TRIPLE 2-CHANNEL, SGL ENDED MULTIPLEXER, PDSO16, 0.300 INCH, PLASTIC, SOIC-16, Multiplexer or Switch	IC TRIPLE 2-CHANNEL, SGL ENDED MULTIPLEXER, PDSO16, 0.150 INCH, PLASTIC, SOIC-16, Multiplexer or Switch
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC
package instruction	0.150 INCH, PLASTIC, SOIC-16	SOP,	SOP,	SOP,	SOP,	0.300 INCH, PLASTIC, SOIC-16	0.300 INCH, PLASTIC, SOIC-16	0.150 INCH, PLASTIC, SOIC-16
Contacts	16	16	16	16	16	16	16	16
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER	DIFFERENTIAL MULTIPLEXER	DIFFERENTIAL MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16
length	9.9 mm	10.3 mm	10.3 mm	10.3 mm	10.3 mm	10.3 mm	10.3 mm	9.9 mm
Nominal Negative Supply Voltage (Vsup)	-6 V	-6 V	-6 V	-6 V	-6 V	-6 V	-6 V	-6 V
Number of channels	2	4	4	8	8	2	2	2
Number of functions	3	1	1	1	1	3	3	3
Number of terminals	16	16	16	16	16	16	16	16
Nominal off-state isolation	50 dB	50 dB	50 dB	50 dB	50 dB	50 dB	50 dB	50 dB
On-state resistance matching specifications	5 Ω	5 Ω	5 Ω	5 Ω	5 Ω	5 Ω	5 Ω	5 Ω
Maximum on-state resistance (Ron)	100 Ω	100 Ω	100 Ω	100 Ω	100 Ω	100 Ω	100 Ω	100 Ω
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP	SOP	SOP	SOP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	240	240	240	240	240	240	240	240
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	1.9 mm	1.9 mm	1.9 mm	1.9 mm	1.9 mm	1.9 mm	1.75 mm
Maximum supply current (Isup)	0.08 mA	0.08 mA	0.08 mA	0.08 mA	0.08 mA	0.08 mA	0.08 mA	0.08 mA
Nominal supply voltage (Vsup)	6 V	6 V	6 V	6 V	6 V	6 V	6 V	6 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
Maximum disconnect time	38 ns	43 ns	43 ns	43 ns	43 ns	38 ns	38 ns	38 ns
Maximum connection time	38 ns	38 ns	38 ns	38 ns	38 ns	38 ns	38 ns	38 ns
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	3.9 mm	5.3 mm	5.3 mm	5.3 mm	5.3 mm	5.3 mm	5.3 mm	3.9 mm
JESD-609 code	-	e0	e0	e0	e0	e0	e0	-
Terminal surface	-	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
