LM317LBZRA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> LM317LBZRA

LM317LBZRA: Description1.2 V-37V ADJUSTABLE POSITIVE REGULATOR, PBCY3, PLASTIC, TO-92, 3 PIN; CategoryPower/power management The power supply circuit; File Size215KB，8 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

LM317LBZRA Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LM317LBZRA	-	-	View	Buy Now

LM317LBZRA Overview

1.2 V-37V ADJUSTABLE POSITIVE REGULATOR, PBCY3, PLASTIC, TO-92, 3 PIN

LM317LBZRA Parametric

Parameter Name	Attribute value
Maker	Motorola ( NXP )
Parts packaging code	TO-92
package instruction	,
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum Differential Input-Output Voltage	40 V
Minimum Differential Input-Output Voltage	3 V
JESD-30 code	O-PBCY-T3
Number of functions	1
Number of terminals	3
Maximum output current 1	0.1 A
Maximum output voltage 1	37 V
Minimum output voltage 1	1.2 V
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Certification status	Not Qualified
Regulator type	ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR
surface mount	NO
technology	BIPOLAR
Terminal form	THROUGH-HOLE
Terminal location	BOTTOM

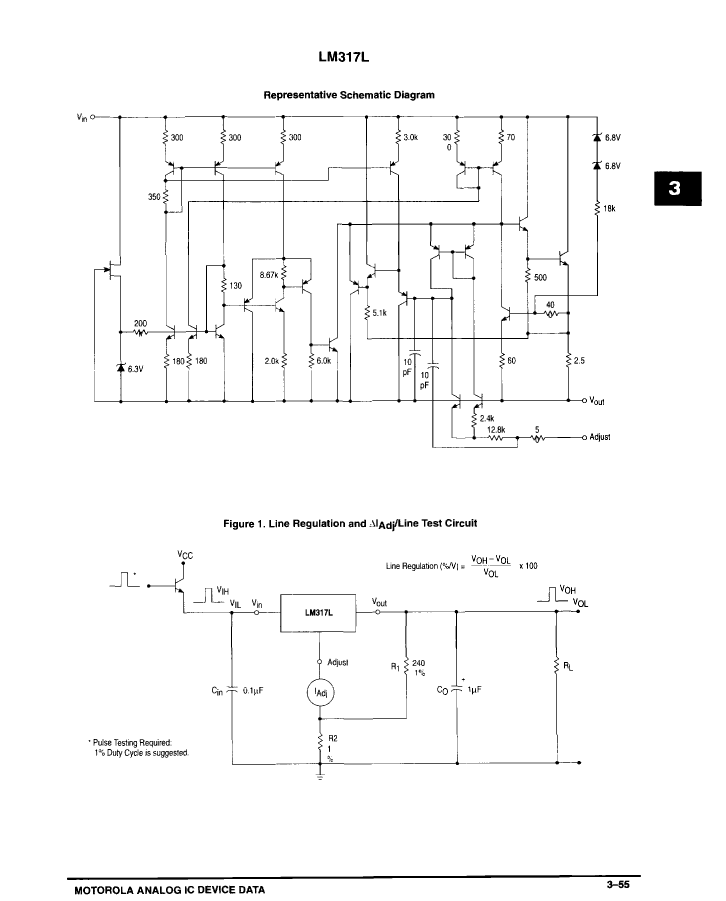

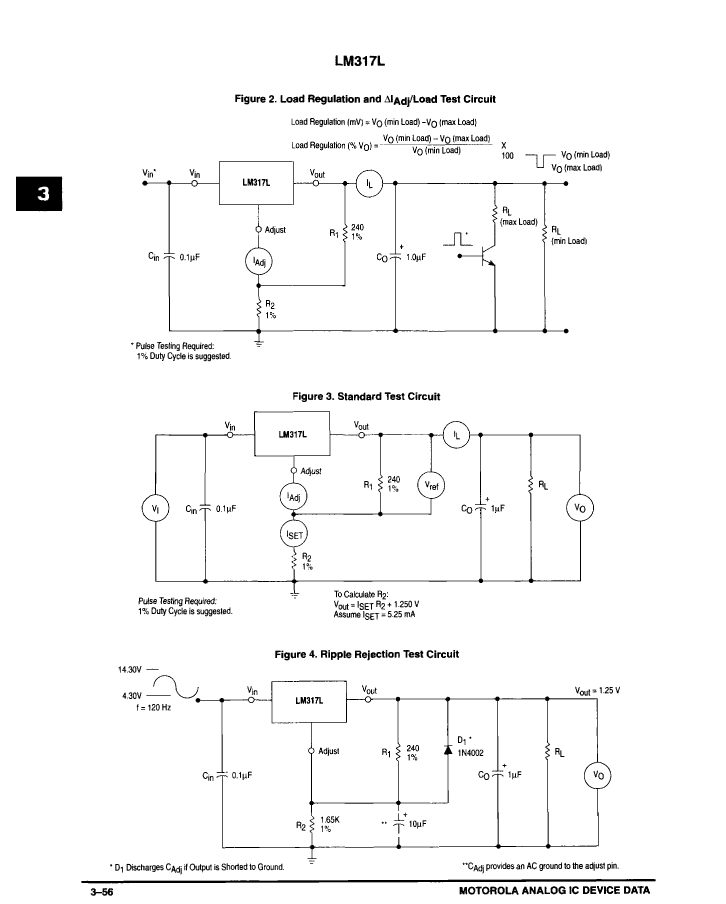

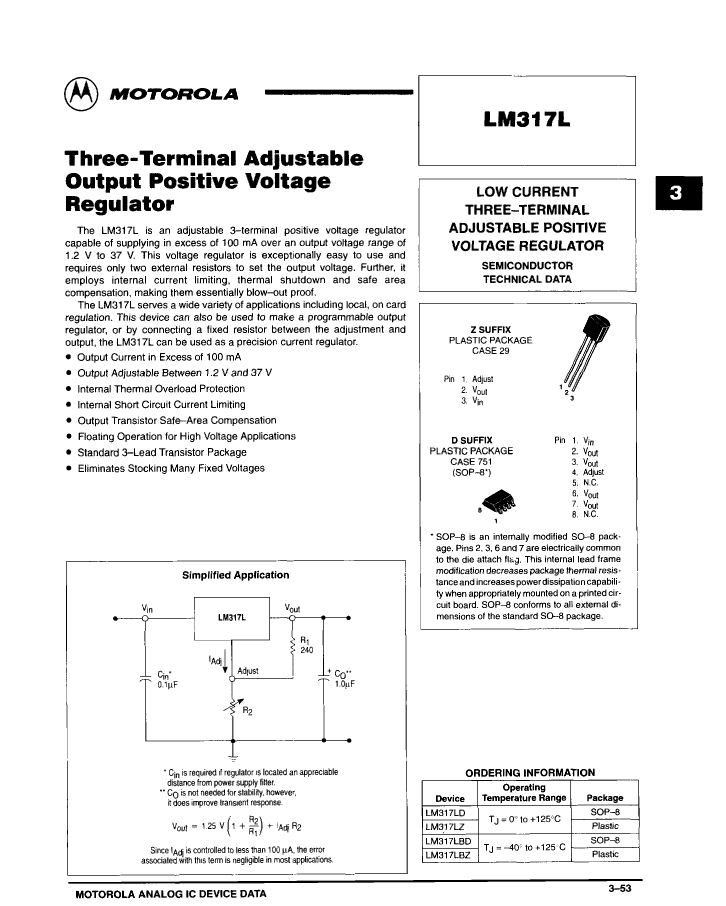

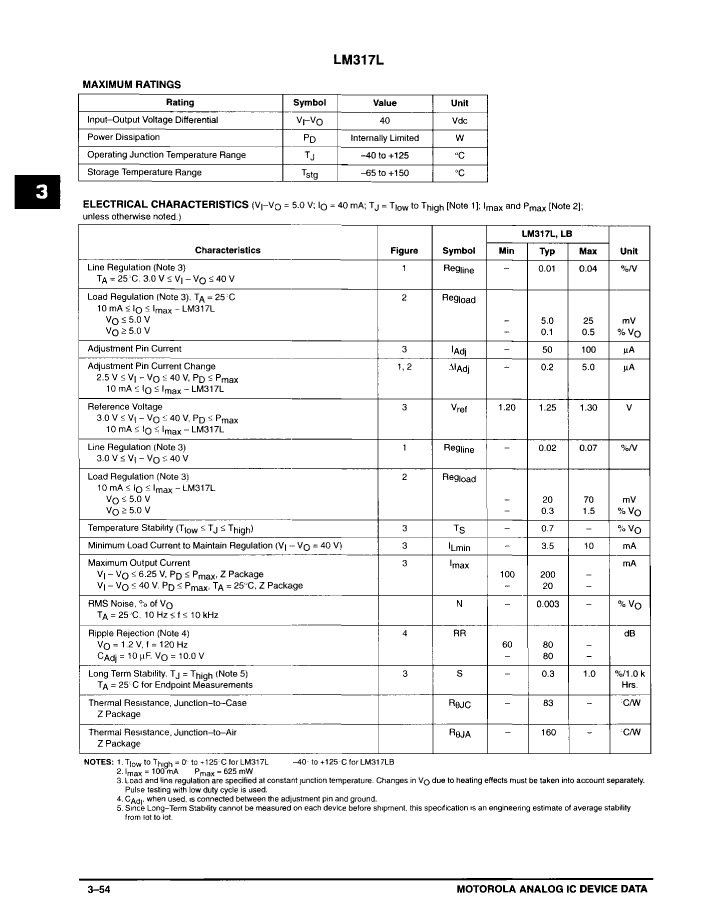

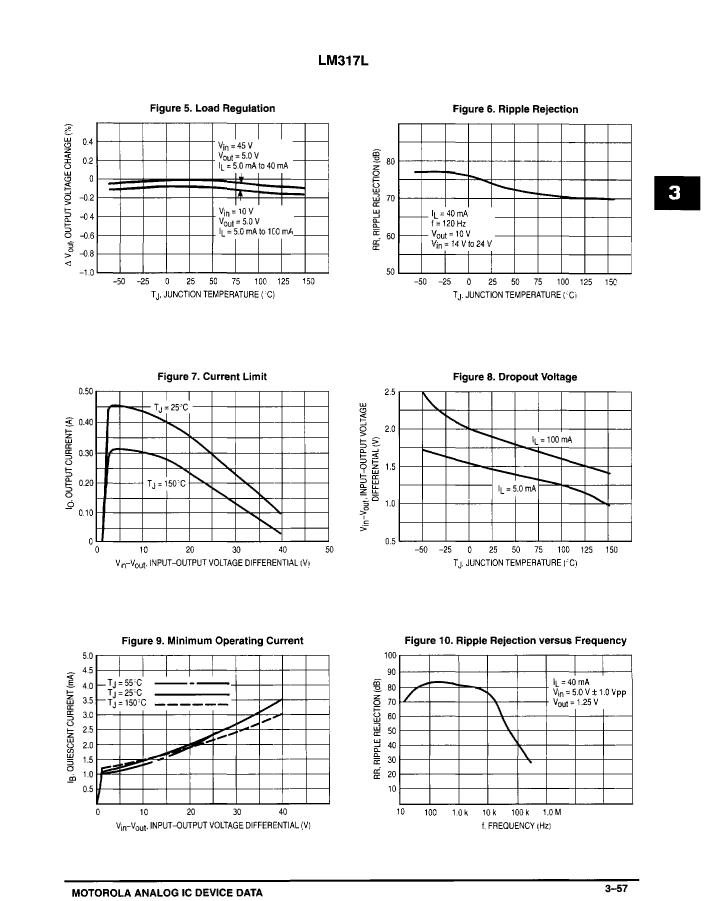

Preview

Download Datasheet

View All

LM317LBZRA Related Products

	LM317LBZRA	LM317LZRM	LM317LZRP	LM317LZRA	LM317LBZRP	LM317LZRE	LM317LBZRM
Description	1.2 V-37V ADJUSTABLE POSITIVE REGULATOR, PBCY3, PLASTIC, TO-92, 3 PIN	1.2 V-37V ADJUSTABLE POSITIVE REGULATOR, PBCY3, PLASTIC, TO-92, 3 PIN	1.2 V-37V ADJUSTABLE POSITIVE REGULATOR, PBCY3, PLASTIC, TO-92, 3 PIN	1.2 V-37V ADJUSTABLE POSITIVE REGULATOR, PBCY3, PLASTIC, TO-92, 3 PIN	1.2 V-37V ADJUSTABLE POSITIVE REGULATOR, PBCY3, PLASTIC, TO-92, 3 PIN	1.2 V-37V ADJUSTABLE POSITIVE REGULATOR, PBCY3, PLASTIC, TO-92, 3 PIN	1.2 V-37V ADJUSTABLE POSITIVE REGULATOR, PBCY3, PLASTIC, TO-92, 3 PIN
Maker	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
Parts packaging code	TO-92	TO-92	TO-92	TO-92	TO-92	TO-92	TO-92
Contacts	3	3	3	3	3	3	3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum Differential Input-Output Voltage	40 V	40 V	40 V	40 V	40 V	40 V	40 V
Minimum Differential Input-Output Voltage	3 V	3 V	3 V	3 V	3 V	3 V	3 V
JESD-30 code	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3
Number of functions	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3
Maximum output current 1	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A
Maximum output voltage 1	37 V	37 V	37 V	37 V	37 V	37 V	37 V
Minimum output voltage 1	1.2 V	1.2 V	1.2 V	1.2 V	1.2 V	1.2 V	1.2 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Regulator type	ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR	ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR	ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR	ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR	ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR	ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR	ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR
surface mount	NO	NO	NO	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
