Semiconductor
2N3906N
PNP Silicon Transistor
Descriptions
•
General small signal application
•
Switching application
Features
•
Low collector-emitter saturation voltage : 0.4V (Max.) @ I
C
=-50mA, I
B
=-5mA
•
Low collector output capacitance : 4.5pF (Max.) @ V
CB
=-5V, I
E
=0, f=1MHz
•
Complementary pair with 2N3904N
Ordering Information
Type NO.
2N3906N
Marking
2N3906
Package Code
T0-92N
Outline Dimensions
4.20~4.40
4.20~4.40
unit :
mm
2.25 Max.
0.52 Max.
13.50~14.50
0.90 Max.
1.27 Typ.
2.14 Typ.
1 2 3
3.55 Typ
3.09~3.29
0.40 Max.
PIN Connections
1. Emitter
2. Base
3. Collector
KSD-T0C039-000
1
2N3906N
Absolute Maximum Ratings
Characteristic
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Collector power dissipation
Junction temperature
Storage temperature range
(Ta=25°C)
Symbol
V
CBO
V
CEO
V
EBO
I
C
P
C
T
J
T
stg
Rating
-40
-40
-5
-200
400
150
-55~150
Unit
V
V
V
mA
mW
°C
°C
Electrical Characteristics
Characteristic
Collector-emitter breakdown voltage
Collector cut-off current
Emitter cut-off current
DC current gain
Collector-emitter saturation voltage
Base-emitter voltage
Transition frequency
Collector output capacitance
Turn on delay time
Rise time
Storage time
Fall Time
Ta=25°C
Symbol
BV
CEO
I
CBO
I
EBO
h
FE
V
CE(sat)
V
BE
f
T
C
ob
t
d
t
r
t
stg
t
f
Test Condition
I
C
=-1mA, I
B
=0
V
CB
=-40V, I
E
=0
V
EB
=-5V, I
C
=0
V
CE
=-1V, I
C
=-10mA
I
C
=-50mA, I
B
=-5mA
V
CE
=-1V, I
C
=-10mA
V
CE
=-20V, I
C
=-10mA
V
CB
=-5V, I
E
=0, f=1MHz
V
CC
=-3V, V
BE(off)
=-0.5V,
I
C
=-10mA, I
B1
=-1mA
V
CC
=-3V, I
C
=-10mA,
I
B1
=I
B2
=-1mA
Min. Typ. Max.
-40
-
-
100
-
-
-
-
-
-
-
-
-
-
-
-
-
-0.73
350
-
-
-
-
-
-
-50
-50
300
-0.4
-0.95
-
4.5
35
35
225
75
Unit
V
nA
nA
-
V
V
MHz
pF
ns
ns
ns
ns
KSD-T0C039-000
2
2N3906N

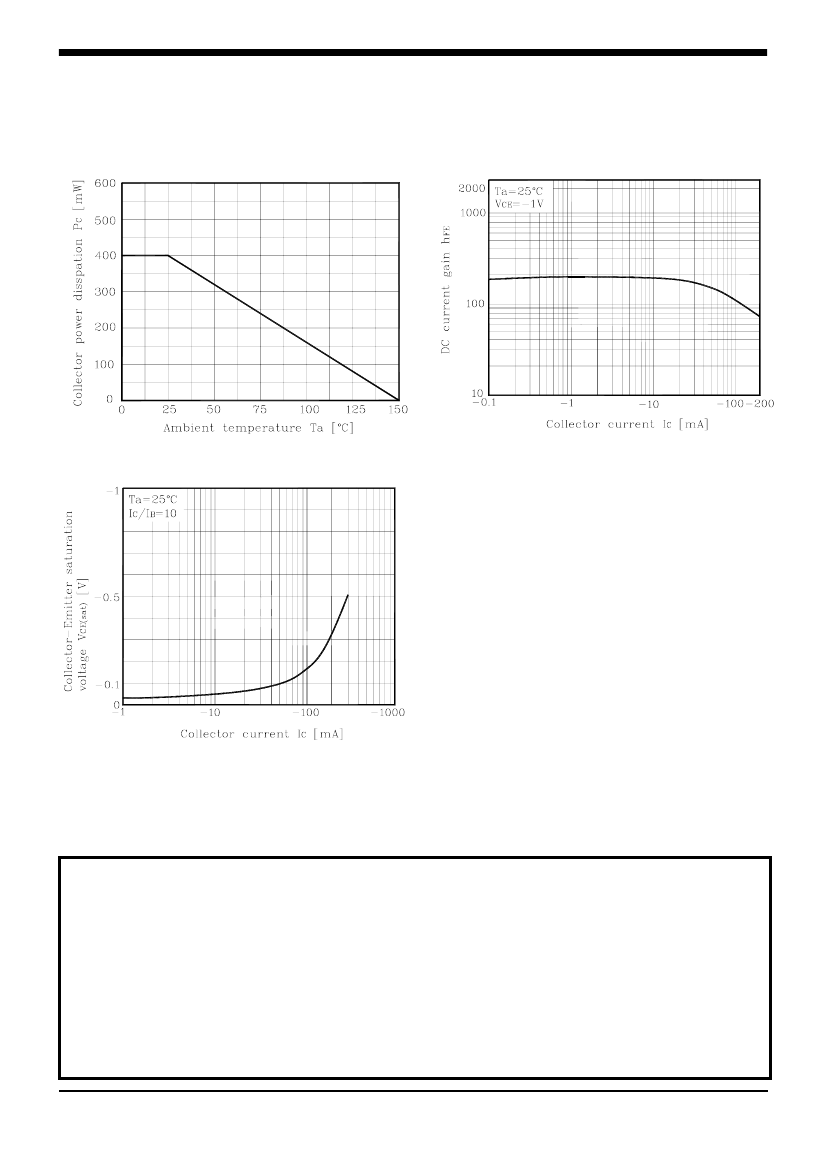

Electrical Characteristic Curves
Fig. 1 Pc - Ta
Fig. 2 h
FE
- I
C
Fig. 3 V
CE(sat)
- I
C
The AUK Corp. products are intended for the use as components in general electronic equipment
(Office and communication equipment, measuring equipment, home appliance, etc.).
Please make sure that you consult with us before you use these AUK Corp. products in equipments
which require high quality and / or reliability, and in equipments which could have major impact to the
welfare of human life(atomic energy control, airplane, spaceship, transportation, combustion control, all
types of safety device, etc.). AUK Corp. cannot accept liability to any damage which may occur in case
these AUK Corp. products were used in the mentioned equipments without prior consultation with AUK
Corp..
Specifications mentioned in this publication are subject to change without notice.
KSD-T0C039-000
3
