91269-106TR datasheet, PDF - EEWORLD Datasheet

91269-106TR: DescriptionBoard Connector, 6 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Cream Insulator, Plug; CategoryThe connector The connector; File Size84KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

91269-106TR Overview

Board Connector, 6 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Cream Insulator, Plug

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	T/R PKG
Board mount options	PEG
body width	0.118 inch
subject depth	0.331 inch
body length	0.472 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	830VAC V
Durability	100 Cycles
maximum insertion force	1.7514 N
Insulation resistance	1000000000 Ω
Insulator color	CREAM
insulator material	THERMOPLASTIC
JESD-609 code	e4
Manufacturer's serial number	91269
Plug contact pitch	0.079 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.1 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	6

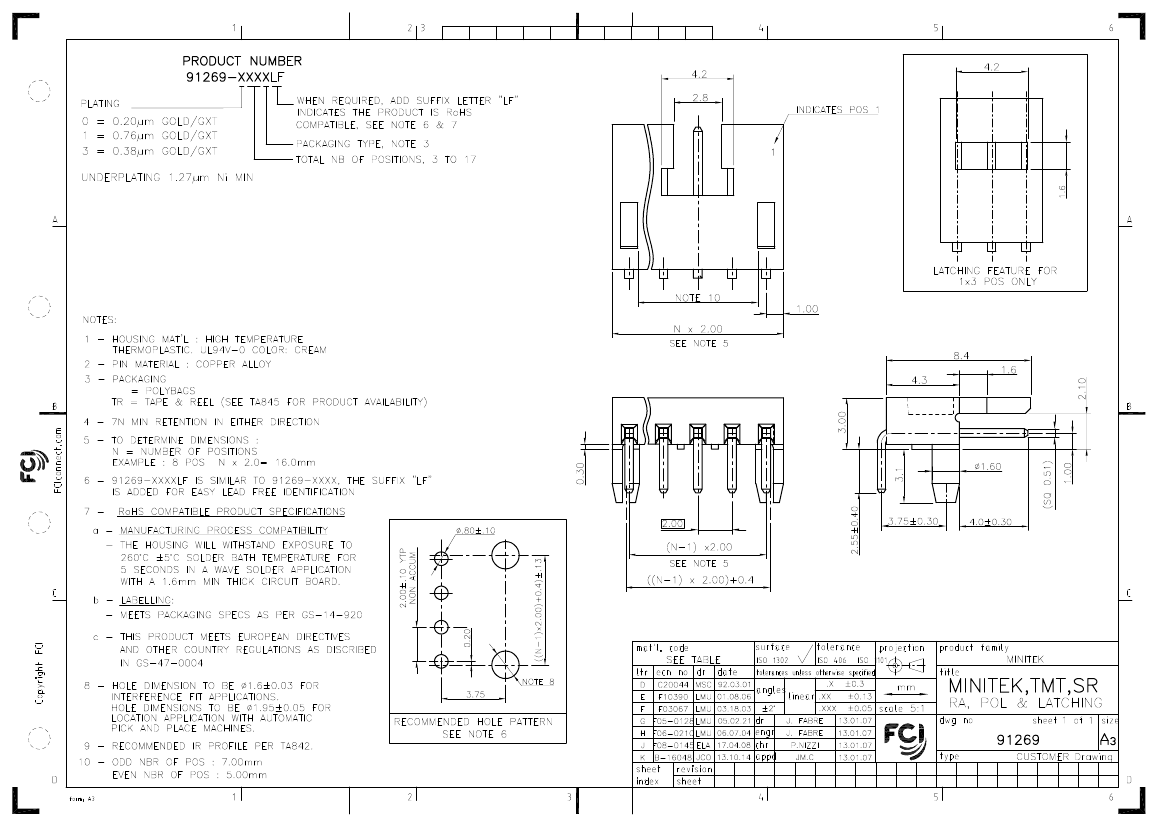

PDS: Rev :B

STATUS:Released

Printed: Oct 15, 2013
