DV74ALS138D datasheet, PDF - EEWORLD Datasheet

DV74ALS138D: DescriptionDecoder/Driver, ALS Series, Inverted Output, TTL, PDSO16, PLASTIC, SOP-16; Categorylogic logic; File Size384KB，3 Pages; ManufacturerAVG [AVG Semiconductors(HITEK)]

Download Datasheet Parametric Compare View All

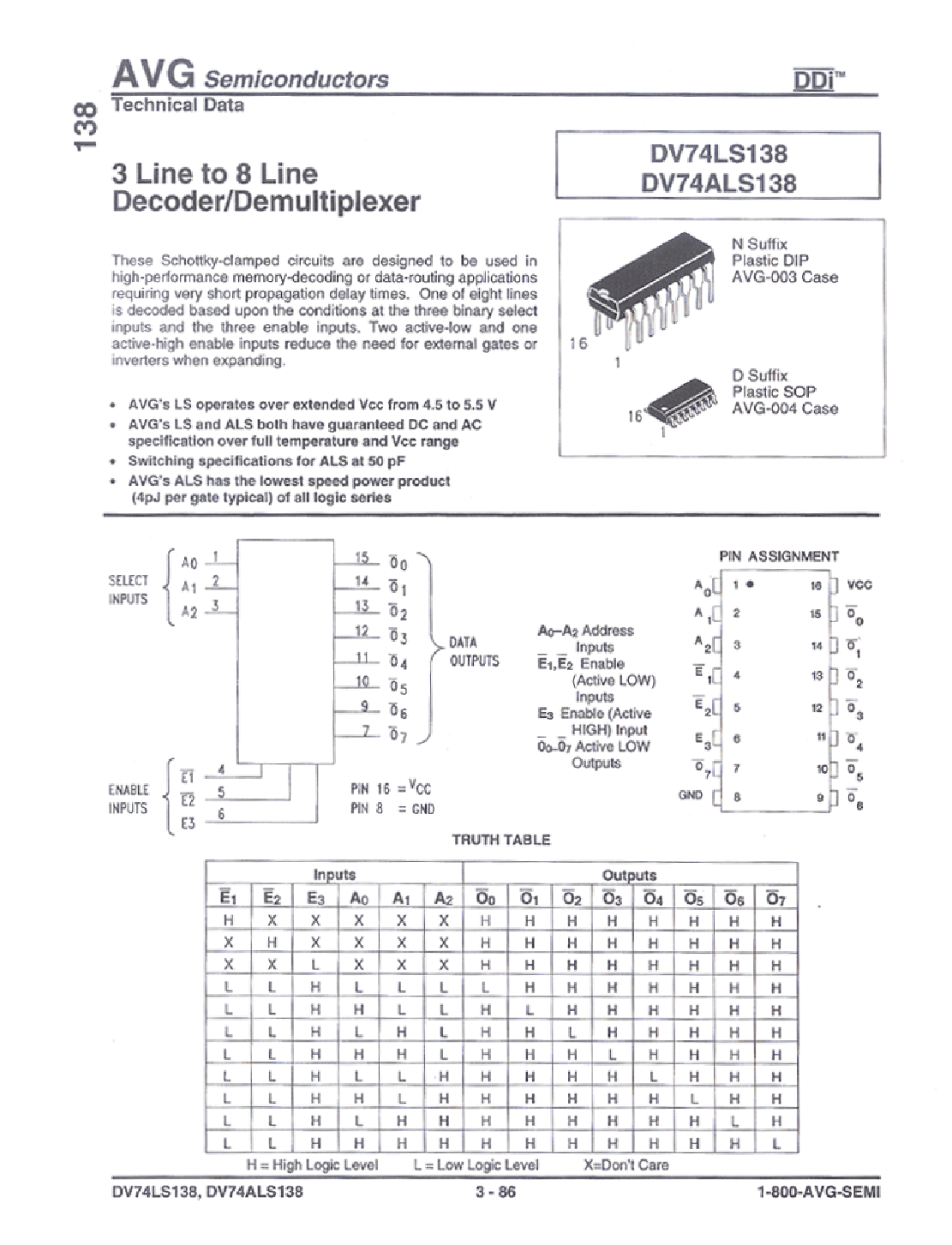

DV74ALS138D Overview

Decoder/Driver, ALS Series, Inverted Output, TTL, PDSO16, PLASTIC, SOP-16

Parameter Name	Attribute value
Maker	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	SOIC
package instruction	PLASTIC, SOP-16
Contacts	16
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	3 ENABLE INPUTS
series	ALS
Input adjustment	STANDARD
JESD-30 code	R-PDSO-G16
length	9.9 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	OTHER DECODER/DRIVER
Number of functions	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE

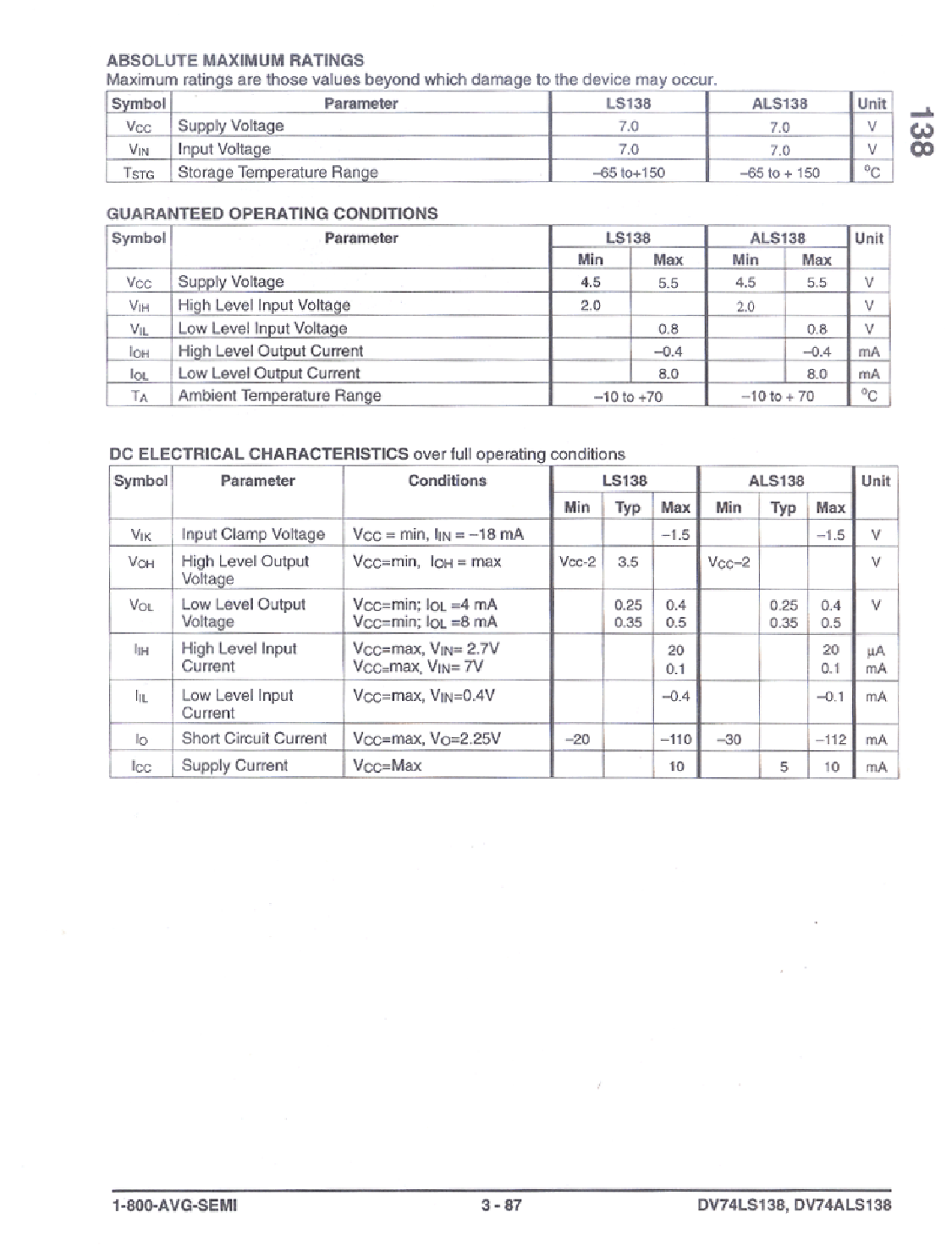

Maximum supply current (ICC)	10 mA

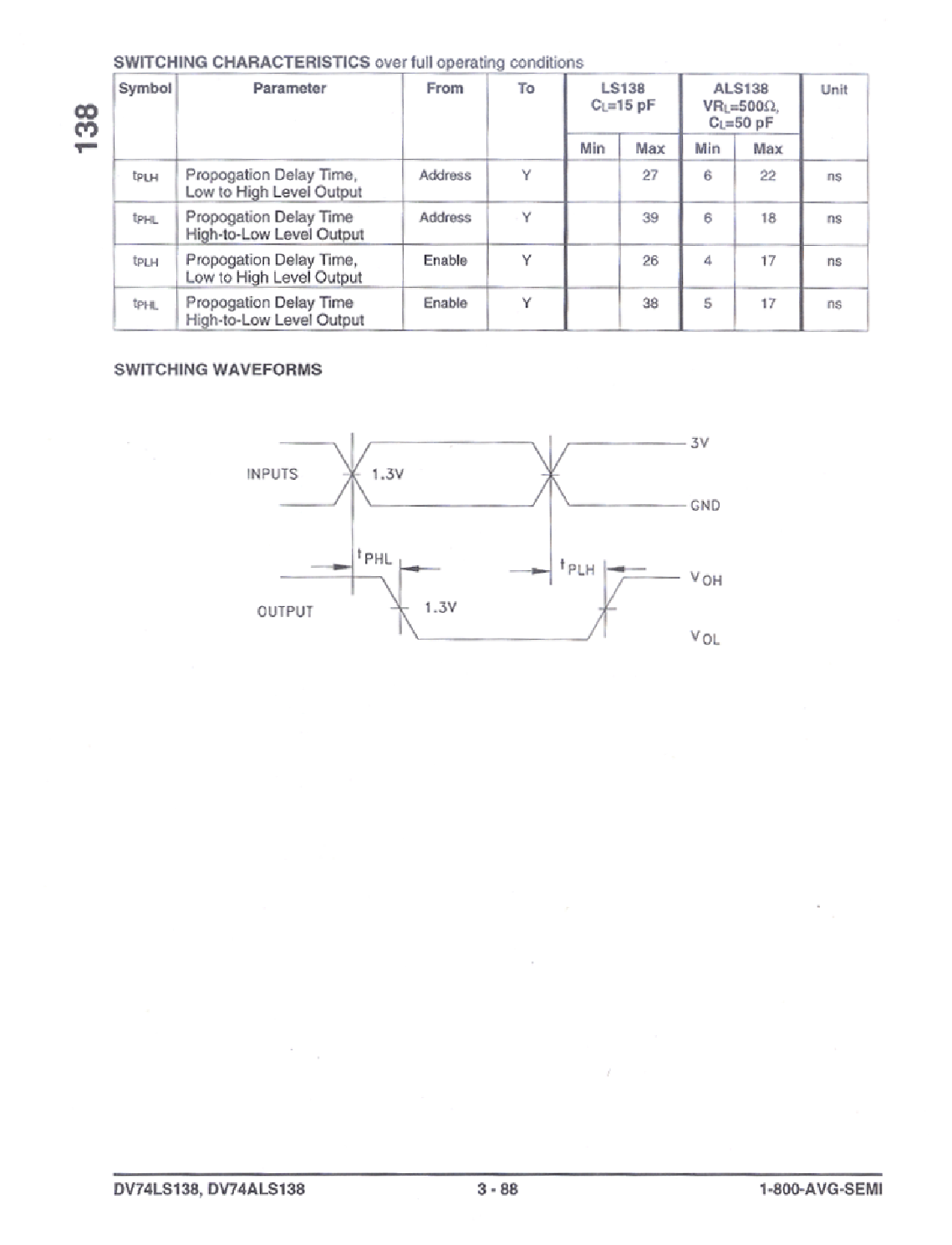

propagation delay (tpd)	22 ns
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.9 mm

	DV74ALS138D	DV74LS138D
Description	Decoder/Driver, ALS Series, Inverted Output, TTL, PDSO16, PLASTIC, SOP-16	Decoder/Driver, LS Series, Inverted Output, TTL, PDSO16, PLASTIC, SOP-16
Maker	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	SOIC	SOIC
package instruction	PLASTIC, SOP-16	SOP,
Contacts	16	16
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
