RTC-4574JE:B0

Description
REAL TIME CLOCK, PDSO20, VSOJ-20
CategoryThe embedded processor and controller    Microcontrollers and processors
File Size289KB,2 Pages
ManufacturerSeiko Epson Corporation
Download Datasheet Parametric View All

RTC-4574JE:B0 Overview

REAL TIME CLOCK, PDSO20, VSOJ-20

RTC-4574JE:B0 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerSeiko Epson Corporation
package instructionSOJ, SSOJ20,.25
Reach Compliance Codecompliant
Information access methodsSERIAL, 3-WIRE
interrupt capabilityY
JESD-30 codeR-PDSO-J20
length7 mm
Number of terminals20
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Package body materialPLASTIC/EPOXY
encapsulated codeSOJ
Encapsulate equivalent codeSSOJ20,.25
Package shapeRECTANGULAR
Package formSMALL OUTLINE
power supply1.8/5 V
Certification statusNot Qualified
Maximum seat height1.5 mm
Maximum supply voltage5.5 V
Minimum supply voltage1.6 V
Nominal supply voltage3 V
surface mountYES
technologyCMOS
Temperature levelINDUSTRIAL
Terminal formJ BEND
Terminal pitch0.65 mm
Terminal locationDUAL
shortest timeSECONDS
VolatileYES
width5.4 mm
uPs/uCs/peripheral integrated circuit typeTIMER, REAL TIME CLOCK
Real time clock module
Product Number (Please contact us)
RTC-4574SA : Q41457452000200
RTC-4574JE : Q41457471000100
RTC-4574NB : Q41457492000100

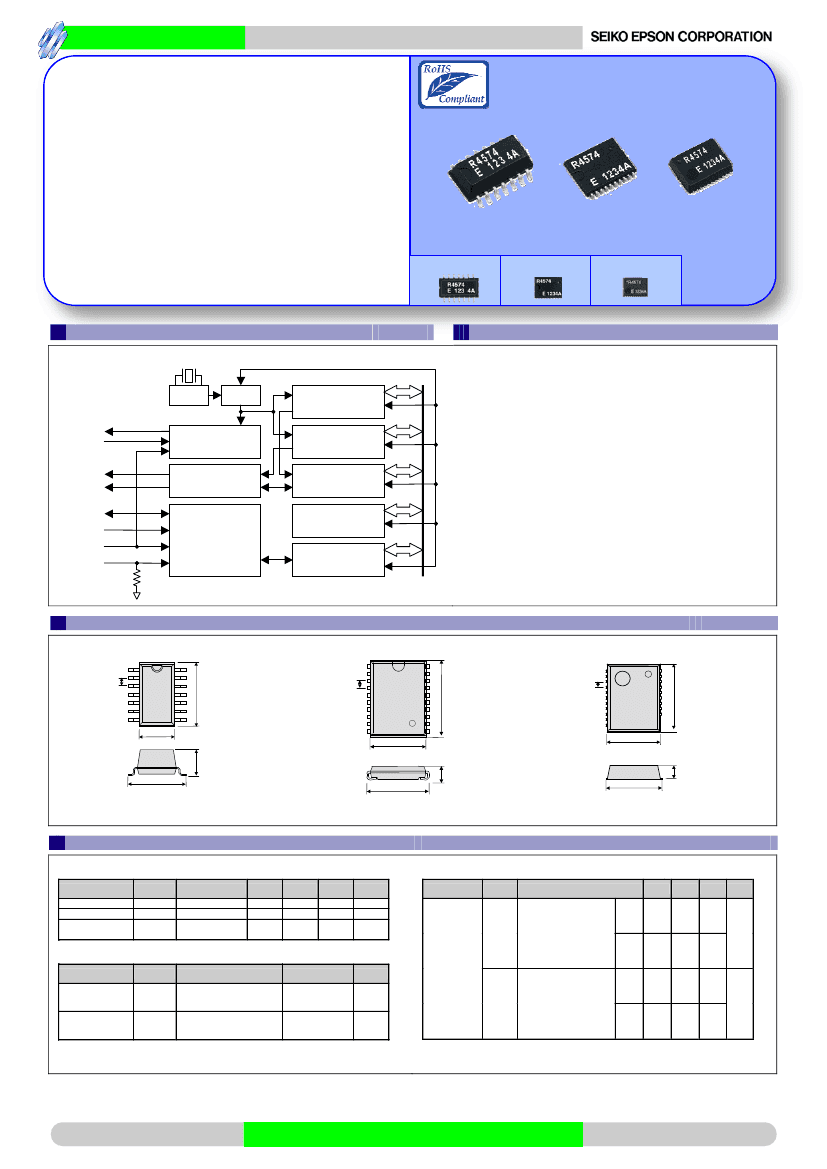

REAL TIME CLOCK MODULE (SPI-Bus)
RTC - 4574SA
/
JE
/
NB
Built
in frequency adjusted 32.768 kHz crystal unit.
Interface
Type
:
3-wire serial interface
Operating
voltage range
:
1.6Vto5.5V
Wide
Timekeeper voltage range
:
1.6Vto5.5V
Low
backup current
:
0.5A/3V(Typ.)
32.768
kHz frequency output function
:
C-MOS output With Control Pin
The
various functions include full calendar, alarm, timer.
Actual size
RTC-4574SA
RTC-4574JE
RTC-4574NB
Block diagram
32.768 kHz
CONTROL LINE
Overview
32.768
kHz frequency output function
• FOUT pin output (C-MOS output ), CL=30 pF
• Output frequency selectable from1/30Hz to 32.768kHz
(32 Values)
OSC
DIVIDER
CLOCK and
CALENDAR
FOUT
FCON
/ TIRQ
/ AIRQ
DATA
CLK
CE 1
CE 0
Timer
function
OUTPUT
CONTROLLER
INTERRUPTS
CONTROLLER
ALARM
REGISTER
CONTROL
REGISTER
INTERFACE
CIRCUIT
SHIFT REGISTER
TIMER
REGISTER
• Timer function can be set up between 1/4096 second and
255 minutes.
• It is recorded automatically to TF-bit at the time of event
occurrence, and it’s possible to output with /TIRQ pin output
(open-drain output).
• Selectable one time mode or repeat mode.
Alarm
function
BUS
• Alarm function can be set to any combination of day of week,
hour, or minute.
• It is recorded automatically to AF-bit at the time of event
occurrence, and it’s possible to output with /AIRQ pin
output (open-drain output).
Functions are compatible with RX-4574LC.
Terminal connection/External dimensions
RTC4574SA
1.27
(Unit:mm)
RTC4574NB
20.
19.
7.0
0.3
RTC4574JE
14.
10.1
 0.2
2.
13.
12.
11.
CE1
DATA
CLK
/TIRQ
/AIRQ
CE0
3.
4.
5.
6.
10.
7.
8.
9.
10.
FOUT
CE0
/AIRQ
/TIRQ
CLK
DATA
CE1
FCON
GND
N.C.
N.C.
N.C.
N.C.
N.C.
N.C.
N.C.
N.C.
N.C.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
FCON
N.C.
CE1
DATA
CLK
/TIRQ
/AIRQ
CE0
FOUT
V
DD
0.5
1.
2.
3.
4.
5.
6.
7.
GND
FOUT
N.C.
N.C.
FCON
0.65
1.
V
DD
N.C.
1.
GND
6.3
Max.
22.
21.
20.
19.
18.
17.
4.8
1.3
0.1
N.C.
N.C.
N.C.
N.C.
N.C.
N.C.
N.C.
N.C.
N.C.


18.
17.
16.
15.
5.0
N.C.
3.2
0.1
5.4
14.
1.5
Max.
13.
16.
15.
14.
13.
12.
N.C.
V
DD
7.4
0.2
9.
8.
12.
6.0
0.2
11.
5.0
0.2
SOP14
pin
VSOJ20
pin
SON22
pin
The metal case inside of the molding compound may be exposed on the top or bottom of this product. This purely cosmetic and does not have any effect on quality, reliability or electrical specs.
Specifications (characteristics)
Recommended Operating Conditions
Item
Power voltage
Clock voltage
Operating
temperature
Symbol
V
DD
V
CLK
T
OPR
Conditions
-
-
-
Min.
1.6
1.6
-40
Typ.
3.0
3.0
+25
Max.
5.5
5.5
+85
Unit
V
V
°C
I
BK
Item
Symbol
Refer
to application manual for details.
Current consumption characteristics
Conditions
V
DD
=5V
V
DD
=3V
V
DD
=5V
V
DD
=3V
Min.
-
T
a
=-40Cto+85C
Typ.
1.0
Max.
2.0
Unit
CE0,CE1=GND
FOUT;output OFF
(Hi-z)
µA
-
0.5
1.0
Frequency characteristics
Item
Frequency
tolerance
Oscillation
start-up time
Symbol
f/f
Conditions
T
a
=+25°C
V
DD
=3.0V
T
a
=+25°C
V
DD
=1.6V
Rating
B:
523
3Max.
Unit
10
6
s
Current
Consumption
CE0=GND
CE1=V
DD
I
32k
FOUT;
32.768kHzoutput ON
CL=30pF
-
8.0
20.0
µA
t
STA
-
5.0
12.0

Please ask for tighter tolerance.(Equivalent
to 1 minute of monthly deviation)
