MSK5820-1.5HRHGW datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> MSK5820-1.5HRHGW

MSK5820-1.5HRHGW: DescriptionFixed Positive LDO Regulator, 1.5V, 0.4V Dropout, CSSO5, HERMETIC SEALED, SIP-5; CategoryPower/power management The power supply circuit; File Size927KB，8 Pages; ManufacturerM.S. Kennedy Corporation ( Anaren ); Websitehttps://www.anaren.com/capabilities/multi-chip-modules

Download Datasheet Parametric View All

MSK5820-1.5HRHGW Overview

Fixed Positive LDO Regulator, 1.5V, 0.4V Dropout, CSSO5, HERMETIC SEALED, SIP-5

MSK5820-1.5HRHGW Parametric

Parameter Name	Attribute value
Maker	M.S. Kennedy Corporation ( Anaren )
Parts packaging code	SIP
package instruction	,
Contacts	5
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum drop-back voltage 1	0.4 V
Maximum input voltage	6.5 V
Minimum input voltage	2.9 V
JESD-30 code	R-CSSO-G5
length	17.526 mm
Number of functions	1
Number of terminals	5
Working temperatureTJ-Max	150 °C
Maximum output voltage 1	1.5375 V
Minimum output voltage 1	1.4625 V
Nominal output voltage 1	1.5 V
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Filter level	MIL-PRF-38534 Class H
Maximum seat height	6.477 mm
surface mount	YES
Terminal form	GULL WING
Terminal pitch	2.54 mm
Terminal location	SINGLE
total dose	450k Rad(Si) V

MSK5820-1.5HRHGW Preview

MIL-PRF-38534 CERTIFIED FACILITY

M.S.KENNEDY CORP.

FEATURES:

RAD HARD

ULTRA LOW DROPOUT

POSITIVE LINEAR REGULATOR

5820RH

SERIES

4707 Dey Road Liverpool, N.Y. 13088

Manufactured using

Space Qualified RH1573 Die

New "Harder" Version of MSK 5920RH

Total Dose Hardened to 300 Krads(Si) (Method 1019.7 Condition A)

Ultra Low Dropout for Reduced Power Consumption

External Shutdown Function

Latching Overload Protection

Available in 1.5V,1.8V,1.9V,2.5V,2.8V,3.3V and 5.0V Output Voltages

Alternate Output Voltages Available

Output Current Limit

Available in 4 Lead Form Options: Straight, Up, Down and Gull Wing

Replaces IR OMR9601 and IRUH33PXXXB/IRUH50PXXXB

ELDRS Tested to 100 Krads(Si) (Method 1019.7 Condition D)

Neutron Tested to 1.0x10¹² n/cm² (Method 1017.2)

Available to DLA SMD 5962F09216

(315) 701-6751

DESCRIPTION:

The MSK 5820RH is a rad hard fixed linear regulator capable of delivering 5.0 amps of output current. Typical

dropout is only 0.22 volts with a 2.5 amp load. An external shutdown function is ideal for power supply sequencing.

This device also has internal latching overload protection. The MSK 5820RH is radiation hard and specifically de-

signed for space/satellite applications. The device is packaged in a hermetically sealed space efficient 5 pin SIP that

is electrically isolated from the internal circuitry allowing for direct heat sinking.

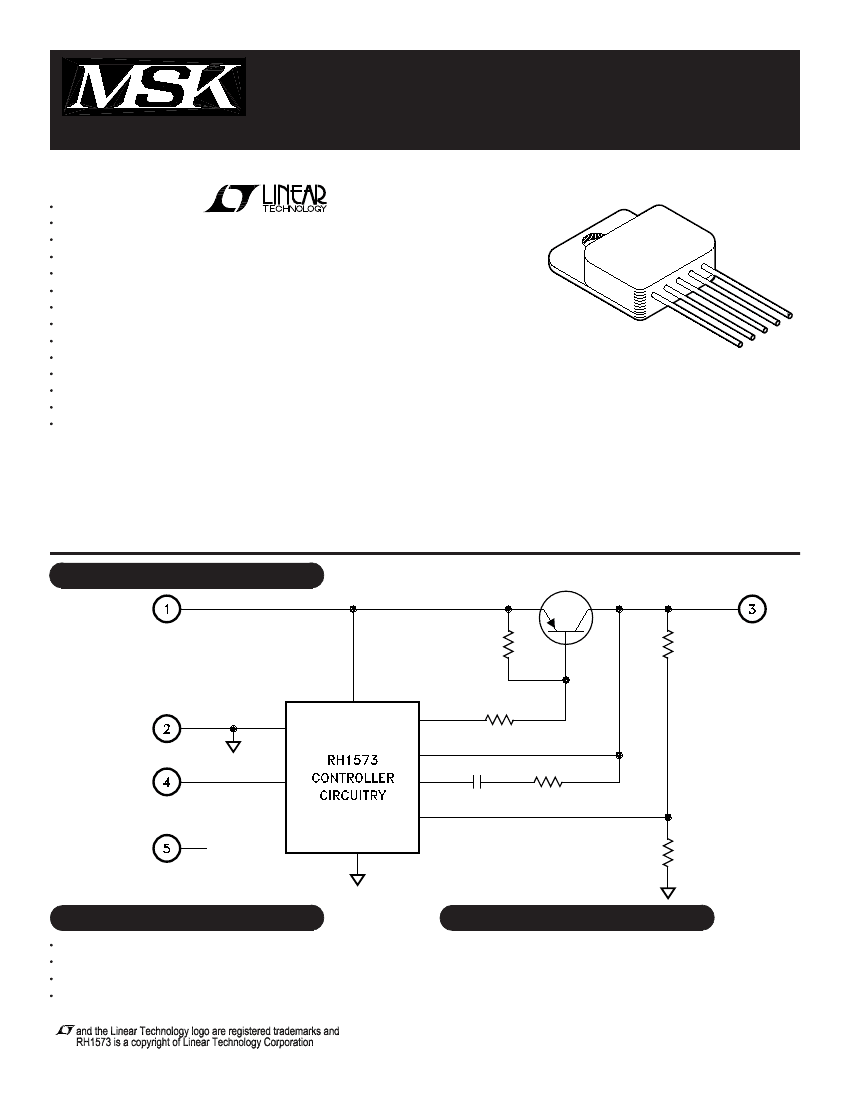

EQUIVALENT SCHEMATIC

TYPICAL APPLICATIONS

Satellite System Power Supplies

Switching Power Supply Post Regulators

Constant Voltage/Current Regulators

Microprocessor Power Supplies

PIN-OUT INFORMATION

1 VIN

2 GND

3 VOUT

4 SHUTDOWN

5 N/C

CASE=ISOLATED

8548-14 Rev. H 1/12

ABSOLUTE MAXIMUM RATINGS

VIN

OUT

Supply Voltage

+10V

Output Current

Case Operating Temperature Range

MSK5820K/H RH

-55°C to +125°C

MSK5820RH

-40°C to +85°C

Storage Temperature Range -65°C to +150°C

Lead Temperature Range

300°C

(10 Seconds)

Power Dissipation

See SOA Curve

Junction Temperature

150°C

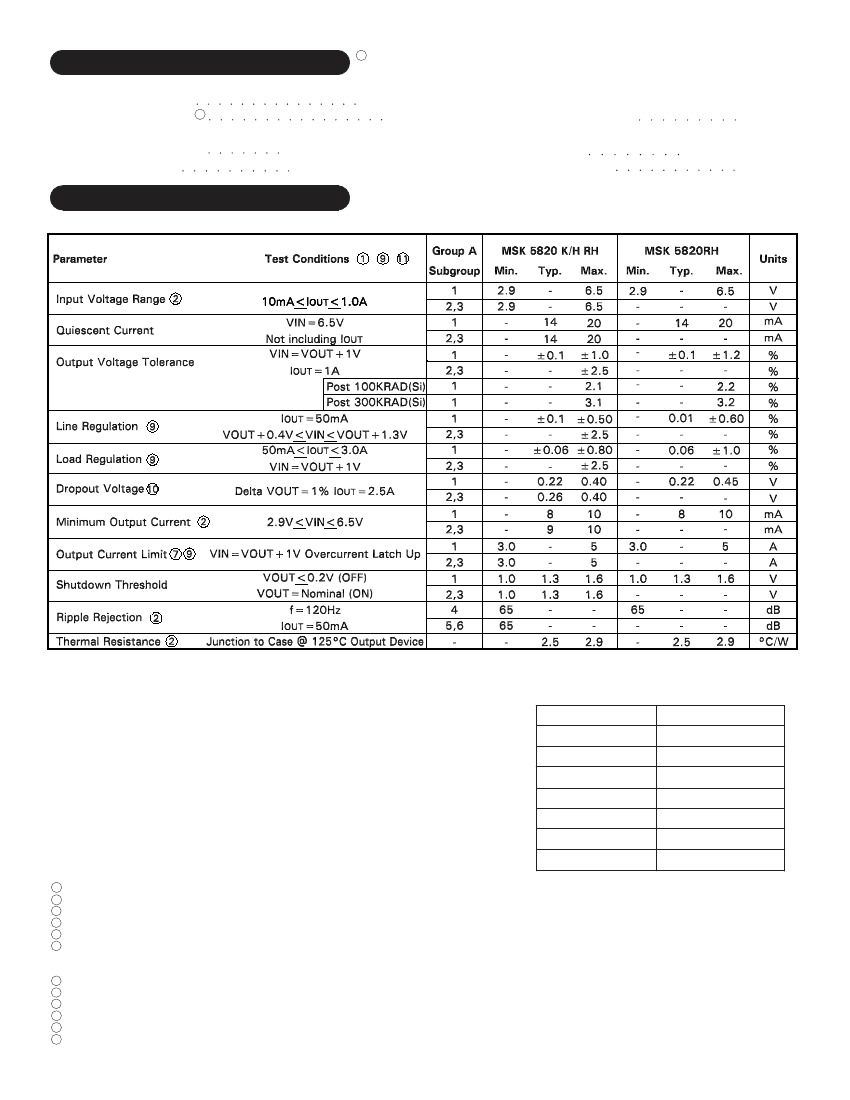

ELECTRICAL SPECIFICATIONS

PART NUMBER

MSK5820-1.5

MSK5820-1.8

MSK5820-1.9

MSK5820-2.5

MSK5820-2.8

OUTPUT VOLTAGE

+1.5V

+1.8V

+1.9V

+2.5V

+2.8V

+3.3V

+5.0V

NOTES:

MSK5820-3.3

MSK5820-5.0

Unless otherwise specified, VIN=VOUT+1V, V

SHUTDOWN

=0V and I

OUT

=10mA. See figure 2 for typical test circuit.

Guaranteed by design but not tested. Typical parameters are representative of actual device performance but are for reference only.

Industrial grade devices shall be tested to subgroups 1 and 4 unless otherwise requested.

Military grade devices ("H" and "K" suffix) shall be 100% tested to subgroups 1,2,3 and 4.

Subgroup 5 and 6 testing available upon request.

Subgroup 1,4 T

=+25°C

Subgroup 2,5 T

=+125°C

Subgroup 3,6 T

=-55°C

Output current limit is dependent upon the values of VIN and VOUT. See Figure 1 and typical performance curves.

Continuous operation at or above absolute maximum ratings may adversely effect the device performance and/or life cycle.

shall be as specified or VIN min., whichever is greater.

Not applicable to versions where VIN=VIN Min.

Pre and post irradiation limits at 25°C, up to 300Krad TID, are identical unless otherwise specified.

Reference DLA SMD 5962F09216 for electrical specification for devices purchased as such.

8548-14 Rev. H 1/12

APPLICATION NOTES

PIN FUNCTIONS

VIN-

This pin provides power to all internal circuitry in-

cluding bias, start-up, thermal limit and overcurrent latch.

Input voltage range is 2.9V to 6.5V.

GND -

Internally connected to ground, this pin should be

connected externally by the user to the circuit ground.

SHUTDOWN -

There are two functions to the SHUTDOWN

pin. It may be used to disable the output voltage or to

reset a current latch condition. To activate the shutdown/

reset functions the user must apply a voltage greater than

1.6V to the SHUTDOWN pin. The output voltage will turn

on when the SHUTDOWN pin is pulled below the thresh-

old voltage. If the SHUTDOWN pin is not used, it should

be connected to ground. It should be noted that with the

shutdown pin tied to ground, a current latch condition

can only be reset by cycling power off, then on.

VOUT -

This is the output pin for the device.

OVERCURRENT LATCH

Overcurrent protection is provided by the MSK 5820RH

series through the use of a timed latch off circuit. The

internal latch timeout is triggered by an overcurrent con-

dition. To allow for start up surge currents, the timeout is

approximately 5.5mS at 25°C. If the overcurrent condi-

tion remains at the end of the timeout cycle, the regulator

will latch off until the latch is reset. Reset the latch by

pulling the shutdown pin high or cycling VIN off then back

on. A thermal limit condition will trigger the latch with no

time out delay.

FIGURE 1

CURRENT LIMIT AND SOA

The MSK 5820RH current limit function is directly af-

fected by the input and output voltages. Figure 1 illus-

trates the relationship between VIN and I

for various

output voltages. It is very important for the user to con-

sult the SOA curve when using input voltages which re-

sult in current limit conditions beyond 4.5 Amps. When

using input voltages which result in current limit above

4.5 Amps, the user must maintain output current within

the SOA curve to avoid damage to the device. Note that 5

Amp maximum is due to current carrying capability of the

internal wirebonds.

INPUT POWER SUPPLY BYPASSING

To maximize transient response and minimize power sup-

ply transients it is recommended that two 47 F tantalum

capacitors are connected between VIN and ground. A

0.1 F ceramic capacitor should also be used for high fre-

quency bypassing. See typical application circuit.

REPLACING THE OMR9601/IRUH33P253AIM

When the MSK 5820-2.5RH is used as a replacement

for the IR OMR9601 or IRUH33P253B, the user should

recognize that the MSK 5820-2.5RH does not contain in-

ternal tantalum capacitors on the input and output.

OUTPUT CAPACITOR SELECTION

Low ESR output capacitors are required to maintain regu-

lation and stability. Four CWR29FB227 (AVX PN

TAZH227K010L) tantalum capacitors in parallel with ce-

ramic decoupling capacitors (0.1 F typical) provides suf-

ficient gain and phase margin for most applications. The

maximum ESR specification for the CWR29FB227 capaci-

tor is 180mΩ at 100kHz and is sufficient for many appli-

cations. MSK has found through full WCCA that screen-

ing for a maximum ESR of 57mΩ ensures EOL stability

criteria to be met for many applications with the most

stringent requirements. The typical ESR of the

TAZH227K010L from AVX is 49mΩ . Analysis of the fi-

nal design is recommended to ensure stability require-

ments are met.

START UP CURRENT

The MSK 5820RH sinks increased current during startup

to bring up the output voltage. Reference the "Saturated

Drive Current vs. Input Voltage" graph in the typical per-

formance curves of this data sheet and the "Understand-

ing Startup Surge Current With MS Kennedy's RH1573

Based Rad Hard LDO Regulators" application note in the

application notes section of the MS Kennedy Web site for

more information.

http://www.mskennedy.com/

8548-14 Rev. H 1/12

APPLICATION NOTES CONT.

THERMAL LIMITING

The MSK 5820RH control circuitry has a thermal shut-

down temperature of approximately 150°C. This ther-

mal shutdown can be used as a protection feature, but

for continuous operation, the junction temperature of the

pass transistor must be maintained below 150°C. Proper

heat sink selection is essential to maintain these condi-

tions. Exceeding the thermal limit activates the latch fea-

ture of the MSK 5820RH. Toggle the shutdown pin high

them low or cycle power to reset the latch. See shut-

down pin description and overcurrent latch description

for more information.

TYPICAL APPLICATIONS CIRCUIT

HEAT SINK SELECTION

To select a heat sink for the MSK 5820RH, the follow-

ing formula for convective heat flow may be used.

Governing Equation:

X (R

θJC

+ R

θCS

+ R

θSA

) + T

Where

θJC

θCS

θSA

Junction Temperature

Total Power Dissipation

Junction to Case Thermal Resistance

Case to Heat Sink Thermal Resistance

Heat Sink to Ambient Thermal Resistance

Ambient Temperature

FIGURE 2

Power Dissipation=(VIN-VOUT) x I

OUT

Next, the user must select a maximum junction tem-

perature. The absolute maximum allowable junction tem-

perature is 150°C. The equation may now be rearranged

to solve for the required heat sink to ambient thermal

resistance (R

θSA

TOTAL DOSE RADIATION TEST

PERFORMANCE

Radiation performance curves for TID testing have been

generated for all radiation testing performed by MS

Kennedy. These curves show performance trends

throughout the TID test process and can be located in

the MSK 5810RH radiation test report. The complete

radiation test report is available in the RAD HARD PROD-

UCTS section on the MSK website.

Example:

An MSK 5820-2.5RH is connected for VIN=+3.3V

and VOUT=+2.5V. I

OUT

is a continuous 3A DC level.

The ambient temperature is +25°C. The maximum de-

sired junction temperature is +125°C.

θJC

=4.0°C/W and R

θCS

=0.15°C/W for most thermal

greases

Power Dissipation=(3.3V-2.5V) x (3A)

=2.4 Watts

Solve for R

θSA:

θSA

125°C - 25°C

-2.9°C/W - 0.15°C/W

2.4W

http://www.mskennedy.com/store.asp?pid=9951&catid=19680

Reference the MSK 5826RH RAD REPORT for ELDRS

and Neutron results.

= 38.6°C/W

In this example, a heat sink with a thermal resistance

of no more than 38.6°C/W must be used to maintain a

junction temperature of no more than 125°C.

8548-14 Rev. H 1/12

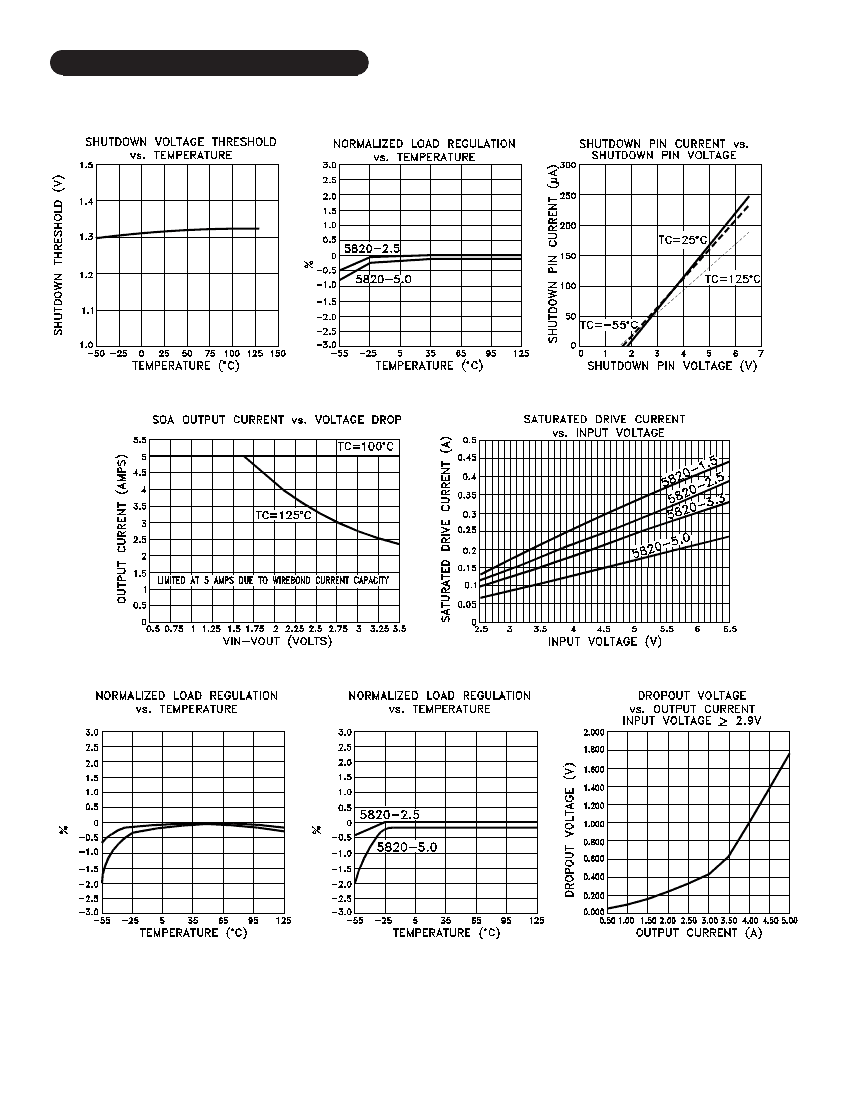

TYPICAL PERFORMANCE CURVES

8548-14 Rev. H 1/12

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

Photoresistor time delay power-saving switching circuit

Interface circuit between power supply coupler and PLC

Boiler water level alarm circuit 2

JS88 holiday lights catch yo integrated circuit

EOCR motor protection circuit

555 humidity measurement control circuit

Show the process of WEBENCH design + portable 12W charger for electric vehicle power supply: The 48V battery of an electric bicycle is used for power supply, and the output is 5.2V/2.4A. The input parameters of the IC selected are from the Simple Switcher series as followsThere are only two r...; tianshuihu Analogue and Mixed Signal

nRF24AP2: nRF24AP2 message protocol and usage, you can take a look if you need it...; zjli_dghm RF/Wirelessly

Use stm32f103 to make infrared remote control program: I want to change the 32-key NEC encoded remote control to LD3320 voice recognition control and use STM32F103RCT6 for infrared remote control decoding. What should I do specifically: What software (met...; cchuyun stm32/stm8

The total technical score on EEworld has finally broken through 2000 points, so I’m giving away 200 points to celebrate. Anyone who sees it will get a point!: The total technical score on EEworld has finally broken through 2000 points, so I’m giving away 200 points to celebrate. Anyone who sees it will get a point!...; lizengmao Embedded System

Want to sell wince USB printer manufacturers: Does anyone know which manufacturer sells wince USB printers?...; ytkfxc Embedded System

[I contribute to the Xilinx Resource Center] Use of XPS interrupt controller in EDK: Use of XPS interrupt controller in EDKIn embedded applications, multiple interrupts are often needed to improve the timeliness of system response, while the MICROBLAZE processor only provides one inte...; wanghongyang FPGA/CPLD

Shortcut: L0 L1 L2 L3 L4 L5 L6 L7 L8 L9 LA LB LC LD LE LF LG LH LI LJ LK LL LM LN LO LP LQ LR LS LT LU LV LW LX LY LZ M0 M1 M2 M3 M4 M5 M6 M7 M8 M9 MA MB MC MD ME MF MG MH MI MJ MK ML MM MN MO MP MQ MR MS MT MU MV MW MX MY MZ N0 N1 N2 N3 N4 N5 N6 N7 N8 NA NB NC ND NE NF NG NH NI NJ NK NL NM NN NO NP NQ NR NS NT NU NV NX NZ O0 O1 O2 O3 OA OB OC OD OE OF OG OH OI OJ OK OL OM ON OP OQ OR OS OT OV OX OY OZ P0 P1 P2 P3 P4 P5 P6 P7 P8 P9 PA PB PC PD PE PF PG PH PI PJ PK PL PM PN PO PP PQ PR PS PT PU PV PW PX PY PZ Q1 Q2 Q3 Q4 Q5 Q6 Q8 Q9 QA QB QC QE QF QG QH QK QL QM QP QR QS QT QV QW QX QY R0 R1 R2 R3 R4 R5 R6 R7 R8 R9 RA RB RC RD RE RF RG RH RI RJ RK RL RM RN RO RP RQ RR RS RT RU RV RW RX RY RZ

Popular Components
