MC74VHCT126ADTRG datasheet, PDF

Datasheet> All Categories > logic> logic> MC74VHCT126ADTRG

MC74VHCT126ADTRG: DescriptionQuad Bus Buffer with 3âState Control Inputs; Categorylogic logic; File Size145KB，7 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn; Environmental Compliance

Download Datasheet Parametric Compare View All

MC74VHCT126ADTRG Overview

Quad Bus Buffer with 3âState Control Inputs

MC74VHCT126ADTRG Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ON Semiconductor
Parts packaging code	TSSOP
package instruction	TSSOP, TSSOP14,.25
Contacts	14
Reach Compliance Code	compli
Control type	ENABLE HIGH
series	AHCT/VHCT/VT
JESD-30 code	R-PDSO-G14
length	5 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.008 A
Number of digits	1
Number of functions	4
Number of ports	2
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSSOP14,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
method of packing	TAPE AND REEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Prop。Delay @ Nom-Su	8.5 ns
propagation delay (tpd)	13 ns
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	4.4 mm
Base Number Matches	1

Preview

Download Datasheet

View All

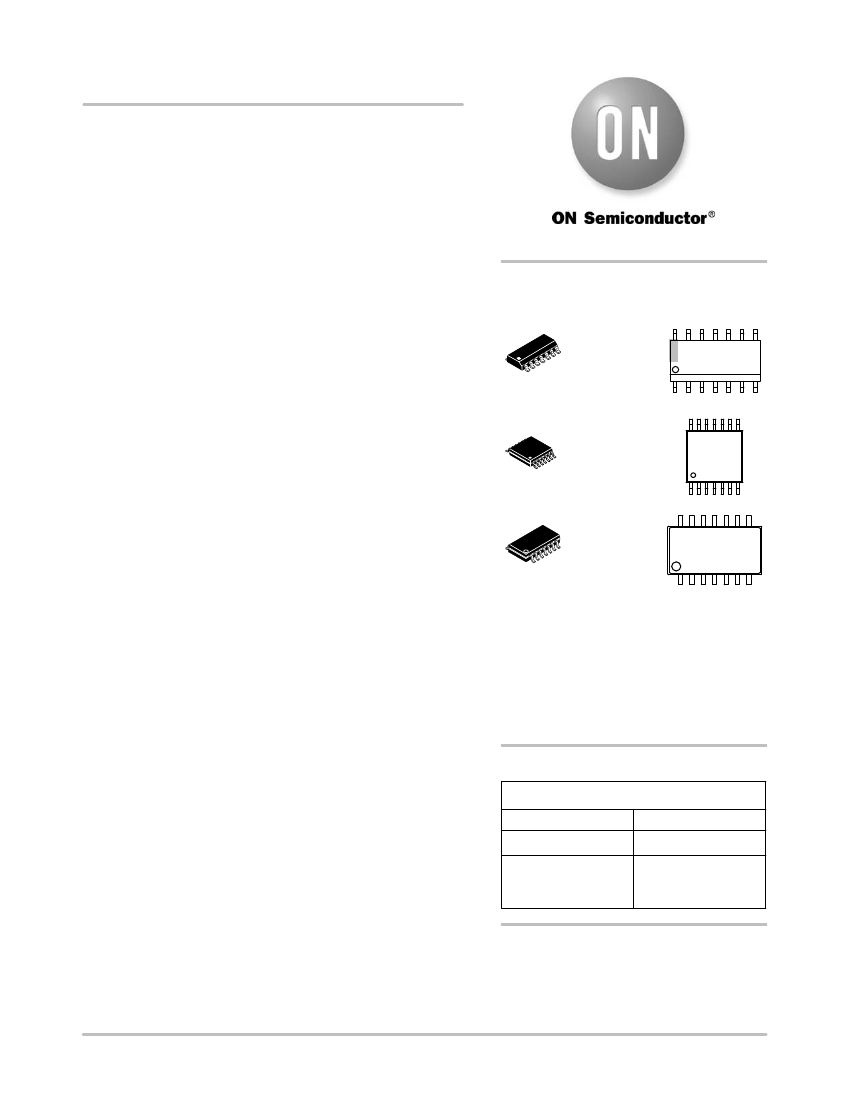

MC74VHCT126A

Quad Bus Buffer

with 3−State Control Inputs

The MC74VHCT126A is a high speed CMOS quad bus buffer

fabricated with silicon gate CMOS technology. It achieves

noninverting high speed operation similar to equivalent Bipolar

Schottky TTL while maintaining CMOS low power dissipation.

The MC74VHCT126A requires the 3−state control input (OE) to be

set Low to place the output into high impedance.

The VHCT inputs are compatible with TTL levels. This device can

be used as a level converter for interfacing 3.3 V to 5.0 V, because it

has full 5.0 V CMOS level output swings.

The VHCT126A input structures provide protection when voltages

between 0 V and 5.5 V are applied, regardless of the supply voltage.

The output structures also provide protection when V

= 0 V. These

input and output structures help prevent device destruction caused by

supply voltage

−

input/output voltage mismatch, battery backup, hot

insertion, etc.

The internal circuit is composed of three stages, including a buffer

output which provides high noise immunity and stable output. The

inputs tolerate voltages up to 7.0 V, allowing the interface of 5.0 V

systems to 3.0 V systems.

Features

http://onsemi.com

MARKING

DIAGRAMS

SOIC−14

D SUFFIX

CASE 751A

TSSOP−14

DT SUFFIX

CASE 948G

SOEIAJ−14

M SUFFIX

CASE 965

VHCT126

ALYWG

VHCT

126A

ALYWG

VHCT126AG

AWLYWW

•

High Speed: t

= 3.8 ns (Typ) at V

= 5.0 V

Low Power Dissipation: I

= 4.0

(Max) at T

= 25°C

TTL−Compatible Inputs: V

= 0.8 V; V

= 2.0 V

Power Down Protection Provided on Inputs

Balanced Propagation Delays

Designed for 2.0 V to 5.5 V Operating Range

Low Noise: V

OLP

= 0.8 V (Max)

Pin and Function Compatible with Other Standard Logic Families

Latchup Performance Exceeds 300 mA

ESD Performance: HBM > 2000 V; Machine Model > 200 V

Chip Complexity: 72 FETs or 18 Equivalent Gates

These Devices are Pb−Free and are RoHS Compliant

WL, L

WW, W

G or

= Assembly Location

= Wafer Lot

= Year

= Work Week

= Pb−Free Package

See Applications Note #AND8004/D for

date code and traceability information.

FUNCTION TABLE

VHCT126A

Inputs

Outputs

ORDERING INFORMATION

See detailed ordering and shipping information in the package

dimensions section on page 4 of this data sheet.

Semiconductor Components Industries, LLC, 2011

May, 2011

−

Rev. 7

Publication Order Number:

MC74VHCT126A/D
