BA582T1 datasheet, PDF - EEWORLD Datasheet

BA582T1: Description35V, SILICON, PIN DIODE; CategoryDiscrete semiconductor diode; File Size46KB，2 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

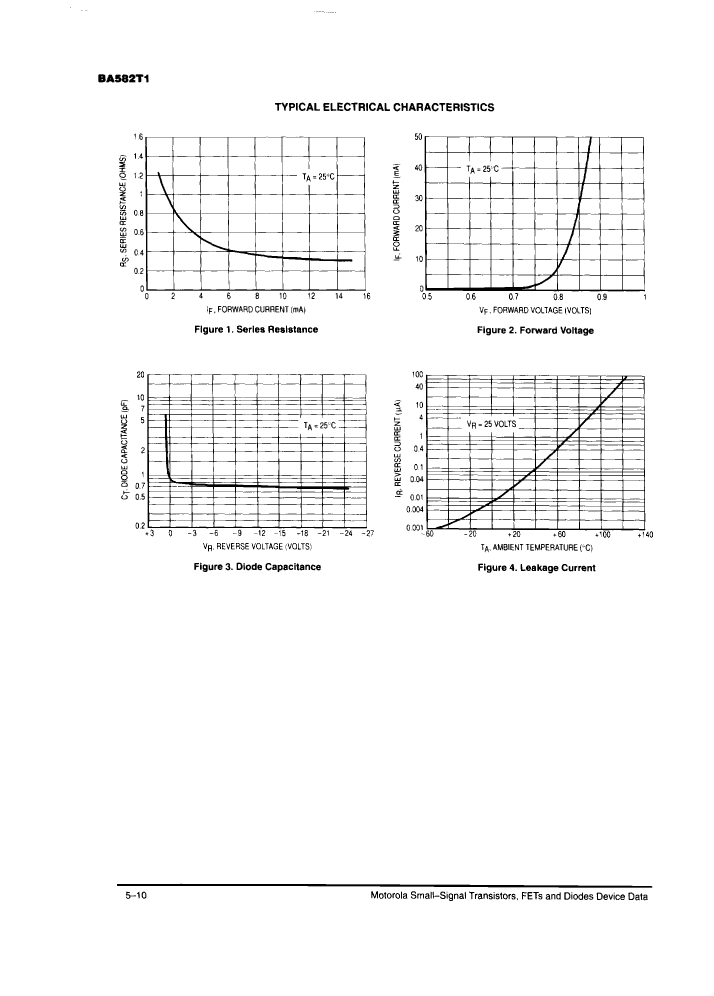

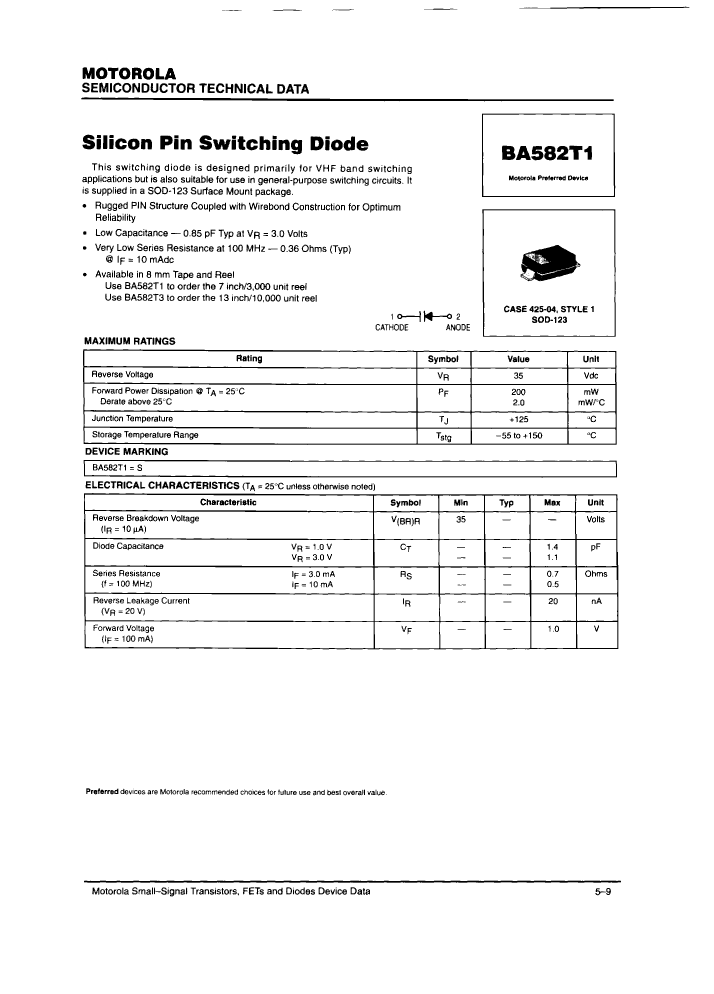

BA582T1 Overview

35V, SILICON, PIN DIODE

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
package instruction	R-PDSO-G2
Reach Compliance Code	unknown
ECCN code	EAR99
application	SWITCHING
Minimum breakdown voltage	35 V
Configuration	SINGLE
Maximum diode capacitance	1.4 pF
Nominal diode capacitance	1.4 pF
Diode component materials	SILICON
Maximum diode forward resistance	0.5 Ω
Diode resistance test current	3 mA
Diode resistance test frequency	100 MHz
Diode type	PIN DIODE
frequency band	VERY HIGH FREQUENCY
JESD-30 code	R-PDSO-G2
JESD-609 code	e0
Number of components	1
Number of terminals	2
Maximum operating temperature	125 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum power dissipation	0.2 W
Certification status	Not Qualified
Reverse test voltage	20 V
surface mount	YES
technology	POSITIVE-INTRINSIC-NEGATIVE
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

	BA582T1	BA582T3
Description	35V, SILICON, PIN DIODE	35V, SILICON, PIN DIODE
Is it Rohs certified?	incompatible	incompatible
Maker	Motorola ( NXP )	Motorola ( NXP )
package instruction	R-PDSO-G2	R-PDSO-G2
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
application	SWITCHING	SWITCHING
Minimum breakdown voltage	35 V	35 V
Configuration	SINGLE	SINGLE
Maximum diode capacitance	1.4 pF	1.4 pF
Nominal diode capacitance	1.4 pF	1.4 pF
Diode component materials	SILICON	SILICON
Maximum diode forward resistance	0.5 Ω	0.5 Ω
Diode resistance test current	3 mA	3 mA
Diode resistance test frequency	100 MHz	100 MHz
Diode type	PIN DIODE	PIN DIODE
frequency band	VERY HIGH FREQUENCY	VERY HIGH FREQUENCY
JESD-30 code	R-PDSO-G2	R-PDSO-G2
JESD-609 code	e0	e0
Number of components	1	1
Number of terminals	2	2
Maximum operating temperature	125 °C	125 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Maximum power dissipation	0.2 W	0.2 W
Certification status	Not Qualified	Not Qualified
Reverse test voltage	20 V	20 V
surface mount	YES	YES
technology	POSITIVE-INTRINSIC-NEGATIVE	POSITIVE-INTRINSIC-NEGATIVE
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	1	1
