MCR221-7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > accessories> MCR221-7

MCR221-7: DescriptionSILICON CONTROLLED RECTIFIER,600V V(DRM),5A I(T),TO-220; Categoryaccessories; File Size146KB，1 Pages; ManufacturerNew Jersey Semiconductor; Websitehttp://www.njsemi.com

Download Datasheet Parametric Compare View All

MCR221-7 Overview

SILICON CONTROLLED RECTIFIER,600V V(DRM),5A I(T),TO-220

MCR221-7 Parametric

Parameter Name	Attribute value
Maximum DC trigger current	60 mA
state	Active-Unconfirmed
Trigger type	SCR
dc_gate_trigger_voltage_max	2.5 V
holding_current_max	60 mA
Maximum leakage current	2 mA
Non-repetitive peak current	160 A
_state_current_max	5000 mA
_state_voltage_max	1.7 V
Minimum operating temperature	-40 Cel
Maximum operating temperature	125 Cel
Off-state repetitive peak voltage	600 V
sub_category	Silicon Controlled Rectifiers
surface mount	NO

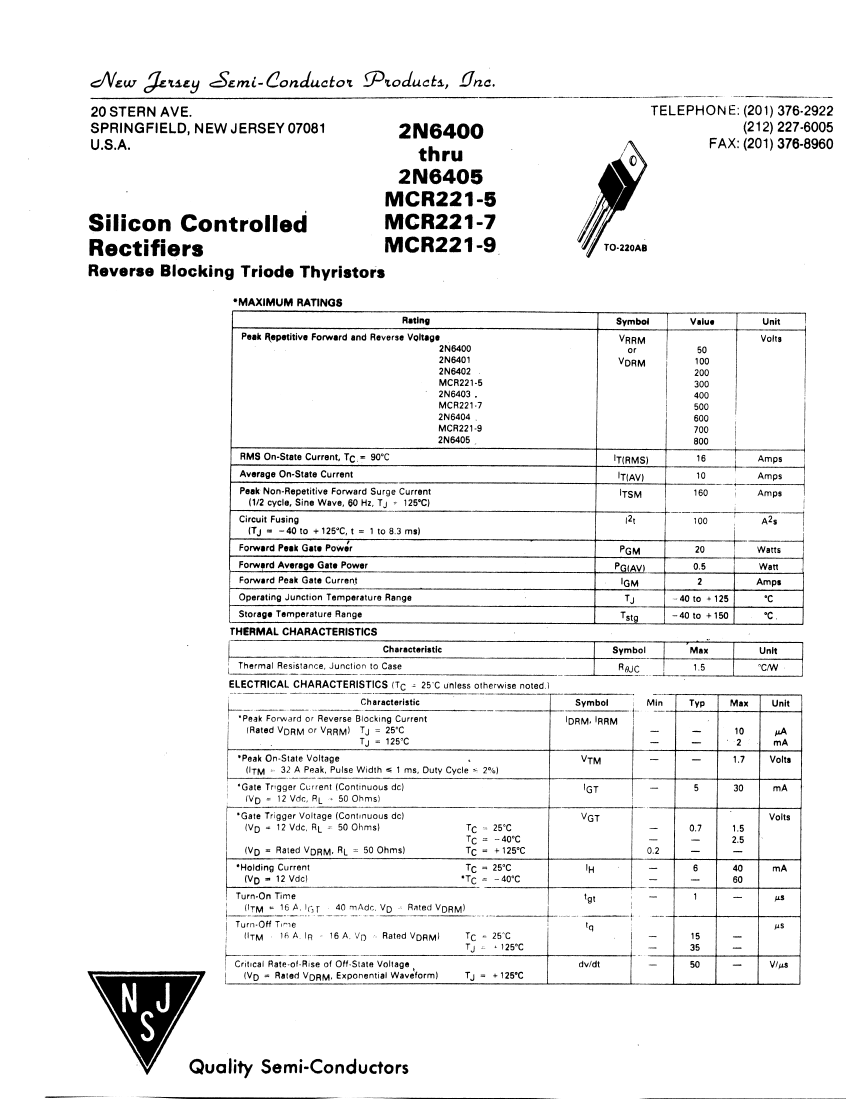

Preview

Download Datasheet

View All

MCR221-7 Related Products

	MCR221-7	MCR221-5	MCR221-9	2N6400	2N6401	2N6402	2N6403	2N6404	2N6405
Description	SILICON CONTROLLED RECTIFIER,600V V(DRM),5A I(T),TO-220	SILICON CONTROLLED RECTIFIER,600V V(DRM),5A I(T),TO-220	SILICON CONTROLLED RECTIFIER,600V V(DRM),5A I(T),TO-220	SILICON CONTROLLED RECTIFIER,600V V(DRM),5A I(T),TO-220	SILICON CONTROLLED RECTIFIER,600V V(DRM),5A I(T),TO-220	SILICON CONTROLLED RECTIFIER,600V V(DRM),5A I(T),TO-220	SILICON CONTROLLED RECTIFIER,600V V(DRM),5A I(T),TO-220	SILICON CONTROLLED RECTIFIER,600V V(DRM),5A I(T),TO-220	SILICON CONTROLLED RECTIFIER,600V V(DRM),5A I(T),TO-220
Maximum DC trigger current	60 mA	60 mA	60 mA	60 mA	60 mA	60 mA	60 mA	60 mA	60 mA
state	Active-Unconfirmed	Active-Unconfirmed	Active-Unconfirmed	Active-Unconfirmed	Active-Unconfirmed	Active-Unconfirmed	Active-Unconfirmed	Active-Unconfirmed	Active-Unconfirmed
Trigger type	SCR	SCR	SCR	SCR	SCR	SCR	SCR	SCR	SCR
dc_gate_trigger_voltage_max	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V
holding_current_max	60 mA	60 mA	60 mA	60 mA	60 mA	60 mA	60 mA	60 mA	60 mA
Maximum leakage current	2 mA	2 mA	2 mA	2 mA	2 mA	2 mA	2 mA	2 mA	2 mA
Non-repetitive peak current	160 A	160 A	160 A	160 A	160 A	160 A	160 A	160 A	160 A
_state_current_max	5000 mA	5000 mA	5000 mA	5000 mA	5000 mA	5000 mA	5000 mA	5000 mA	5000 mA
_state_voltage_max	1.7 V	1.7 V	1.7 V	1.7 V	1.7 V	1.7 V	1.7 V	1.7 V	1.7 V
Minimum operating temperature	-40 Cel	-40 Cel	-40 Cel	-40 Cel	-40 Cel	-40 Cel	-40 Cel	-40 Cel	-40 Cel
Maximum operating temperature	125 Cel	125 Cel	125 Cel	125 Cel	125 Cel	125 Cel	125 Cel	125 Cel	125 Cel
Off-state repetitive peak voltage	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V
sub_category	Silicon Controlled Rectifiers	Silicon Controlled Rectifiers	Silicon Controlled Rectifiers	Silicon Controlled Rectifiers	Silicon Controlled Rectifiers	Silicon Controlled Rectifiers	Silicon Controlled Rectifiers	Silicon Controlled Rectifiers	Silicon Controlled Rectifiers
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
