OEM PRESSURE TRANSDUCER

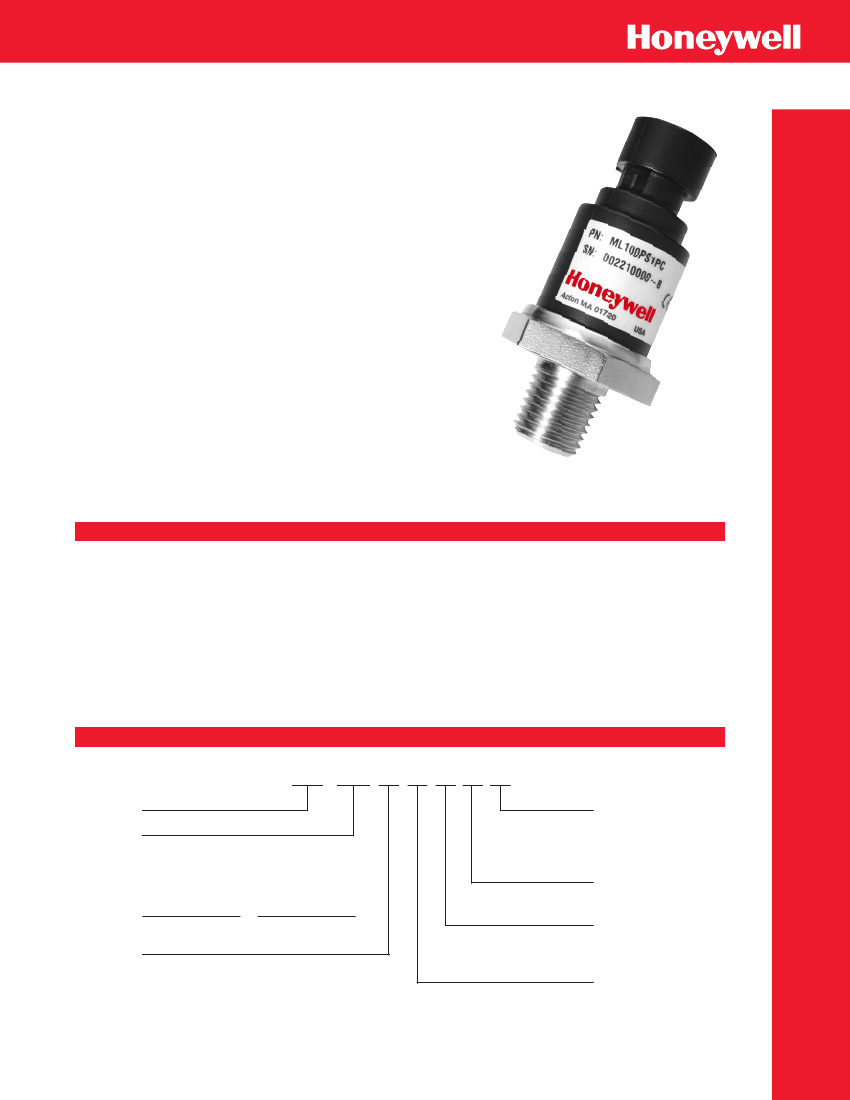

The model ML pressure transducer combines
the latest in ASIC technology with our proven
stainless steel design. This digitally compensated
transducer offers an unparalleled value and
performance combination making it the ideal
pressure sensing solution for demanding
automotive and industrial applications. Fully
temperature compensated, calibrated, and
amplified, the ML is available in 100 to 5000
PSIS pressure ranges.
The ML has three standard output options:
a 0.50 to 4.50 Vdc ratiometric output from
5 Vdc excitation, a 1.0 to 6.0 Vdc regulated out-
put from 7-35 Vdc excitation, and a 4-20 mA
current from 9-35 Vdc excitation. The ML
transducer delivers
±0.25%
full scale accuracy
(BFSL) over a wide temperature range of -40°C
to 105°C and utilizes a proven industry standard
connector for high reliability and user flexibility.
ML S
ERIES
FEATURES
BENEFITS
•
•
•
•
•
•
•
High value and outstanding performance
No internal elastomeric seals
Amplified outputs
Reverse polarity protection
Less than 500 microseconds response time
Designed to meet IP65 standards*
Exceeds CE Heavy Industrial EMC
•
•
•
•
•
•
Excellent OEM value
Eliminates O-Ring compatability issues
Eliminates cost of external amplifiers
Not damaged by reversed excitation
Accurate high speed measurements
Protected from harsh environments
PRESSURE TRANSDUCER
* With appropriate mating connector, Packard #12065287.
HOW TO ORDER
ML
Model
Range
15
25
50
100
200
300
500
PSI
Unit
P = PSI
B = BAR
01K
02K
03K
05K
001
004
006
010
016
025
040
060
BAR
100
P
S
1
P
G
Output
C = 0.5-4.5 VDC
G = 4-20 mA
R5 = 1-6 VDC
Termination
P = Packard
Pressure Connection
100
160
250
350
1 = 1/8-27 NPT
2 = 1/4-18 NPT
Reference
G = Gage (only on < 100 PSI)
S = Sealed
Note: Not all combinations are available. Minimum quantity orders apply. Contact the factory for more details.
ML S
ERIES
TECHNICAL SPECIFICATIONS
RANGES
•
PRESSURE TRANSDUCER
DIMENSIONS
xx.xx = inches
(xx.x) = mm
15, 25, 50 PSIG; 100, 200, 300, 500, 1000, 2000, 3000, 5000 PSIS
6, 10, 16, 25, 40, 60, 100,160, 250 BAR
PHYSICAL
Proof Pressure
Burst Pressure
Material in Contact
with Media
Weight
< 500 psi
2 X rated range
< 500 psi
10 X rated range
≥
500 psi
1.5 X rated range
≥
500 psi (30K psi max)
10 X rated range
1.58
[40] *
Not Intended for
Customer use
0.73
[19]
0.85
[22]
0.60
[15] **
300 series SS,
braze compound
2.0 oz (57 gm)
c
1.06
[27]
ENVIRONMENTAL
Shock
Vibration
50 g’s peak (5 ms), 100 g’s peak (11 ms)
Figure 514.2-5, Curve AK, Table 514.2-V
Random Vibration Test (Overall g rms = 20.7 minimum)
b
a
1-1/16 [27] HEX
1/8-27 NPT or 1/4-18 NPT
* Maximum
** 0.75 [19] for 1/4-18 NPT
ELECTRICAL
Zero Output
Ratiometric Voltage Regulated
0.5 Vdc
4.0 Vdc
(0.50-4.50 Vdc)
5 Vdc
±250
mV
(7.0 V max)
5 mA typical
(7 mA max)
2.0 mA
20
µA
@ zero output
1.0 Vdc
5.0 Vdc
(1.0-6.0 Vdc)
7-35 Vdc
5 mA typical
(7 mA max)
2.0 mA
20
µA
@ zero output
90 db
25 W max.
Current
4.0 mA
16 mA
(4-20 mA)
9.5-35 Vdc
Full Scale Output*
Excitation
Supply Current
Source (nominal)
Sink (nominal)
PIN AND WIRE CODES
N/A
N/A
N/A
90 db
N/A
Pins
A
B
C
Voltage
+ Excitation
Output
Common
Current
+ Excitation
- Excitation
NC
Supply Rejection Ratio 90 db
Output Impedance
25 W max.
PERFORMANCE
Response Time
EMI/RFI
< 500 microseconds
Exceeds CE heavy industrial (30v/m radiated 150kHz-1gHz)
Packard Metri-Pack™ connector requires
Packard #12065287 mating connector
±0.25%
F.S.O. best fit straight line.
Includes: non-linearity, hysteresis, non-repeatability.
Thermal errors not included. 0.5% < 100 PSI **
Electrical
Connection
Accuracy
Total Error Band
±2%
Typical (±3% Max.) F.S.O.
Includes: zero offset error, span error, thermal effect on zero
and thermal effect on span, non-linearity, hysteresis, non-repeatability
Compensated Operating and
Storage Temperature Range
-40° to 105°C
(-40° to 221°F)
WARRANTY/REMEDY
Honeywell warrants goods of its manufacture as being free of defective materials and faulty workmanship. Contact your local
sales office for warranty information. If warranted goods are returned to Honeywell during the period of coverage, Honeywell
will repair or replace without charge those items it finds defective. The foregoing is Buyer’s sole remedy and is in lieu of all other
warranties, expressed or implied, including those of merchantability and fitness for a particular purpose.
Specifications may change without notice. The information we supply is believed to be accurate and reliable as of this printing.
However, we assume no responsibility for its use.
While we provide application assistance personally, through our literature and the Honeywell web site, it is up to the customer
to determine the suitability of the product in the application.
* PSIG vented thru vent hole protected by Gortex
®
filter
NOTE: All specifications are measured at 25
°
C (77
°
F) and at rated excitation unless
otherwise specified.
NOTE: Meets IEC-68-2 or MIL-STD 810C.
NOTE: Contact the factory to discuss other pressure ranges.
Item # 1121700 M.G. 3/01 Rev. A
