24CE/924CE
Miniature Safety Electromechanical Switch

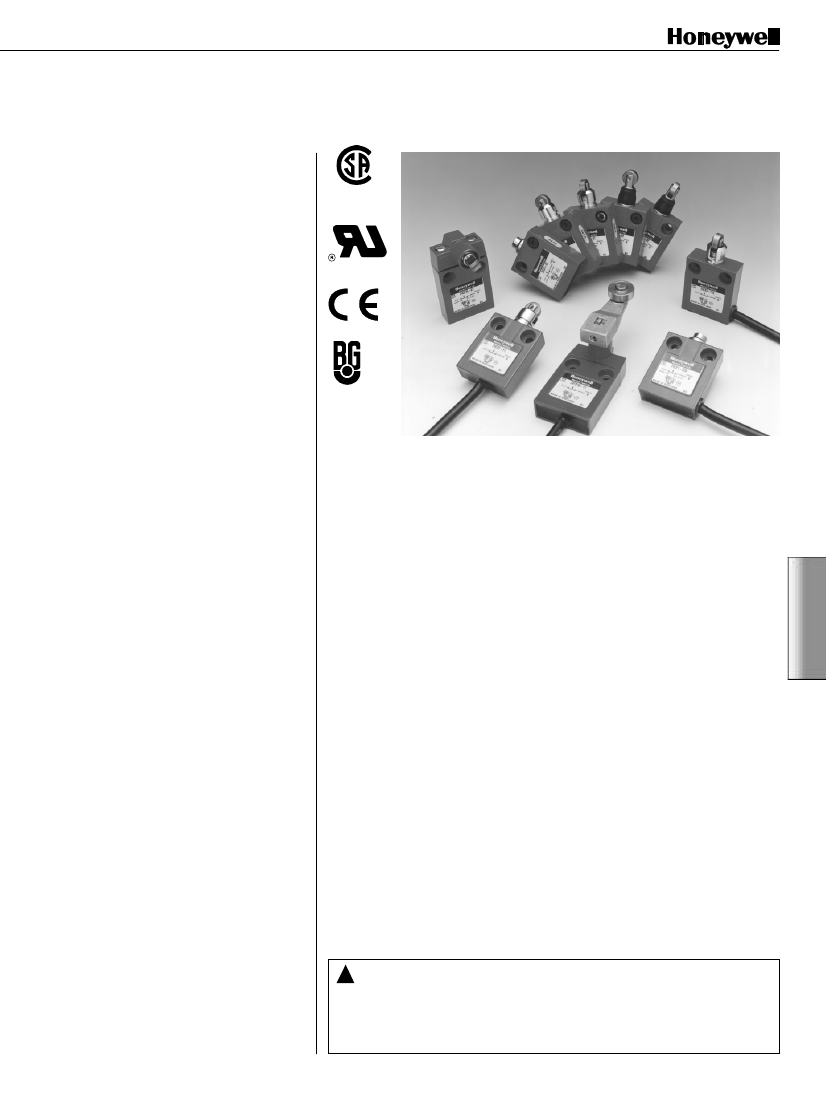

FEATURES
• Positive opening operation of Normally
Closed contacts conforming to
IEC/EN 60947-5-1-3
• Compact construction
• Pre-wired
• Die-cast Zinc housing
• Wide selection of actuators
• Cable length variations
• Side and bottom exit cable
• Simple two-screw mounting
• IP 65/66/67
• UL recognised; CSA certified (924CE), CE
compliant, BG approved (24CE)
BENEFITS
• Suitable for applications where space is
at a premium
• Fast and easy to install
• Suitable for difficult operating
environments
• Application flexibility
• Enhanced choice for application
• Multiple plunger capability
(924CE
Series Only)
(24CE Series
Only)
It is possible for the end user to enhance the safety level of these switches from
Category 1 per EN 954-1 on their own to Categories 2, 3 or 4 per EN 954-1when the
switches are used in conjunction with our wide range of FF-SR safety control mod-
ules to form a safety system.
Typical applications for these switches would use the roller plunger 24CE18 style in
conjunction with cams on doors with hinges. Also available are a range of panel
mounting or top mounting versions to ensure that small space or difficult mounting
can be simply achieved.
Several contact arrangements are available.
!
WARNING
MISUSE OF DOCUMENTATION
• The information presented in this product sheet (or catalogue) is for reference only. DO NOT USE this document as system
installation information.
• Complete installation, operation and maintenance information is provided in the instructions supplied with each product.
Failure to comply with these instructions could result in death or serious injury.
24CE/924CE Series
•
Industrial Safety Products
•
215
24CE/924CE
The ranges 24CE and 924CE have been tested and approved to meet the require-
ments of the Low Voltage directive and positive opening safety contacts per IEC/
EN 60947-5-1-3. The devices are CE marked. The red colour clearly differentiates
this safety component in the application. The 924CE range also has UL and CSA
approval.

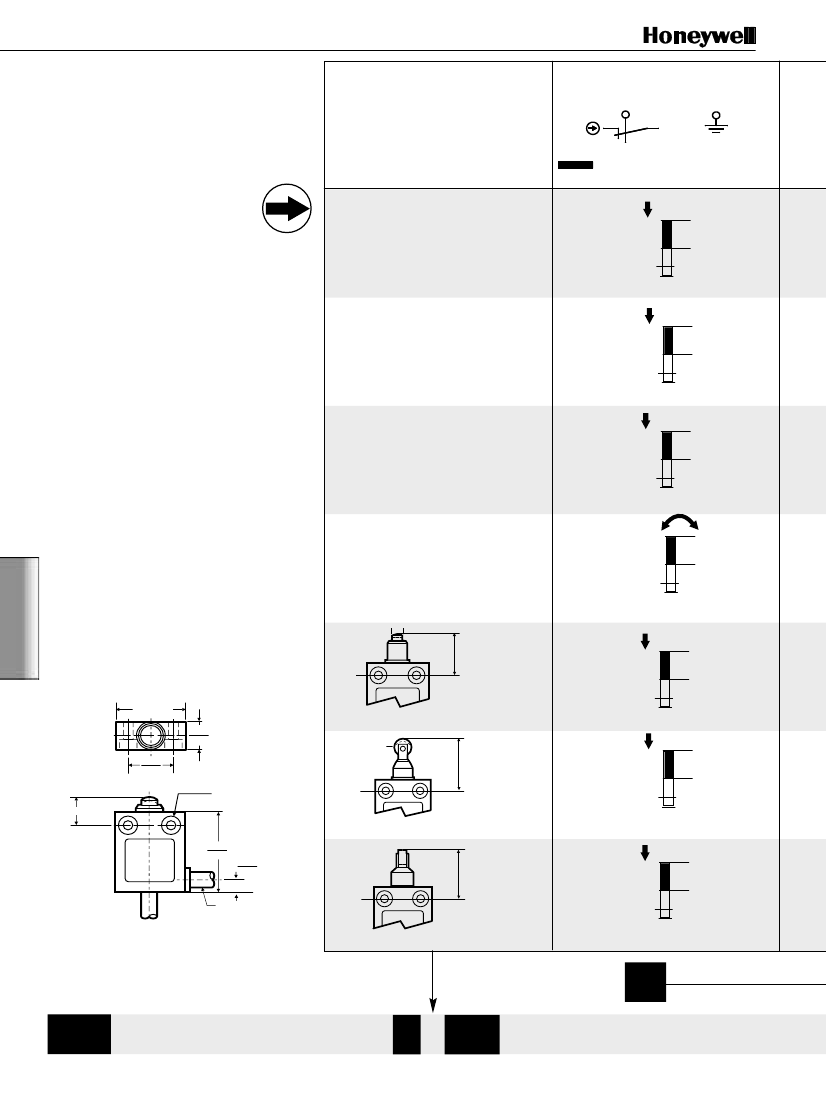

24CE Series
Miniature Safety
Electromechanical
Switch
Actuator Types
Slow Action Contacts
1 Normally Closed
blue
brown
green/yellow
Circuit closed
* Positive opening to IEC/EN 60947-5-1-3
17,1 +/- 0,4
P.T = 2,2 max.
O.P
13,1
*
O.F (max.) = 22,5 Newtons / 2300 GMF
Technical Data
Mechanical
life
Degree
of protection
10 million operations.
24CE
Standard type: IP 66
With boot seal type: IP 67
29,9 +/- 0,4
P.T = 2,2 max.
O.P
25,9
*
O.F (max.) = 22,5 Newtons / 2300 GMF
Temperature
range
Approvals*
Operating:
0 °C to +70 °C /
32 °F to +160 °F
IEC 60947-5-1
EN 60947-5-1
ac15 B300
dc13 R300
According to IEC/EN 60947-5-1.
Rated insulation voltage Ui = 500 V.
Rated impulse withstand voltage
Uimp = 2,5 kV.
Not suitable for isolation.
SCPD, Quick blow fuse to IEC 127
suitable for rated current.
ø7,1
24,3
max.
29,9 +/- 0,4
P.T = 2,2 max.
O.P
25,9
*
O.F (max.) = 22,5 Newtons / 2300 GMF
Electrical
0 Degrees
O.P
50 Deg.
*
P.T = 30 Degrees
max.
24CE/924CE
216
O.F (max.) = 7,85 Newtons / 800 GMF
* See Standards (page 179)
23,9 +/- 0,4
Dimensions in mm / in
40 /
max.
1.58
16 /
max.
0.63
ø12,4
18
Pin Plunger (Boot Sealed)
36,1
max.
P.T = 2,2 max.
O.P
19,9
*
O.F (max.) = 22,5 Newtons / 2300 GMF
25 /
0.98
35,7 +/- 0,4
2 Holes 5,1 dia
Counter Bored 10,2 dia x 6 deep
(both sides - option 'A' only)
31
Roller Plunger Parallel (Boot Sealed)
ø12,4
36,1
max.
P.T = 2,2 max.
O.P
31,7
*
O.F (max.) = 22,5 Newtons / 2300 GMF
Free position
49 /
max.
1.93
8/
0.32
35,7 +/- 0,4
Side exit cable
(Option 'A')
55
P.T = 2,2 max.
O.P
31,7
*
O.F (max.) = 22,5 Newtons / 2300 GMF
Cable Type
3 or 5 x 0,75 mm
2
harmonised CENELEC cable.
Roller Plunger Perpendicular (Boot Sealed)
Ordering:
Y
X
Example:
24CE18-Y1A
24CE
OR
XX
24CE/924CE Series
•
Industrial Safety Products
•
Slow Action Contacts
1 Normally Closed/
1 Normally Open
Break before make
O.P. 1
blue
brown
Slow Action Contacts
1 Normally Closed/
1 Normally Open
Make before break
O.P. 1
blue
brown
Cable Length
(in metres)
Option Codes
Available
Zb
black
green/yellow
O.P. 2
black
black
Zb
green/yellow
O.P. 2
black
17,1 +/- 0,4
P.T = 2,2 max.
O.P -1
O.P -2
13,1
*
(2 +/- 0,5)
17,1 +/- 0,4
P.T = 4 max.
O.P -2
O.P -1
(0,7 +/- 0,5)
Specify cable length in 1
metre increments e.g.
1 = 1 metre
2 = 2 metre etc.
A: Side Exit Cable.
O.F (max.) = 22,5 Newtons / 2300 GMF
(O.P1 + 0,9 mm)
*
O.F (max.) = 22,5 Newtons / 2300 GMF
29,9 +/- 0,4
P.T = 2,2 max.
O.P -1
O.P -2
25,9
*
O.F (max.) = 22,5 Newtons / 2300 GMF
2 +/- 0,5
29,9 +/- 0,4
P.T = 4 max.
O.P - 2
O.P -1
(0,7 +/- 0,5)
(O.P1 + 0,9 mm)
*
O.F (max.) = 22,5 Newtons / 2300 GMF
29,9 +/- 0,4
P.T = 2,2 max.
O.P -1
O.P -2
25,9
*
O.F (max.) = 22,5 Newtons / 2300 GMF
2 +/- 0,5
29,9 +/- 0,4
P.T = 4 max.
O.P -2
O.P -1
0,7 +/- 0,5
(O.P1 + 0,9 mm)
*
O.F (max.) = 22,5 Newtons / 2300 GMF
0 Degrees
P.T = 26 Deg. max.
O.P -1
O.P -2
50 Deg.
*
25 Deg. +/- 7
0 Degrees
P.T = 48 Deg. max.
O.P -2
O.P -1
65
*
O.F (max.) = 7,85 Newtons / 800 GMF
7˚ Deg. ± 6˚
O.F (max.) = 7,85 Newtons / 800 GMF
23,9 +/- 0,4
P.T = 2,2 max.
O.P -1
O.P -2
19,9
*
2 +/- 0,5
26 +/- 0,4
P.T = 4 max.
O.P -2
O.P -1
0,7 +/- 0,5
O.F (max.) = 22,5 Newtons / 2300 GMF
(O.P1 + 0,9 mm)
*
O.F (max.) = 22,5 Newtons / 2300 GMF
35,7 +/- 0,4
P.T = 2,2 max.
O.P -1
O.P -2
31,7
*
O.F (max.) = 22,5 Newtons / 2300 GMF
2 +/- 0,5
35,7 +/- 0,4
P.T = 4 max.
O.P -2
O.P -1
(O.P1 + 0,9 mm)
*
O.F (max.) = 22,5 Newtons / 2300 GMF
0,7 +/- 0,5
35,7 +/- 0,4
P.T = 2,2 max.
O.P -1
O.P -2
31,7
*
O.F (max.) = 22,5 Newtons / 2300 GMF
2 +/- 0,5
35,7 +/- 0,4
P.T = 4 max.
O.P -2
O.P -1
0,7 +/- 0,5
(O.P1 + 0,9 mm)
*
O.F (max.) = 22,5 Newtons / 2300 GMF
S
X
24CE/924CE Series
T
X
•
Industrial Safety Products
•
X
217
24CE/924CE

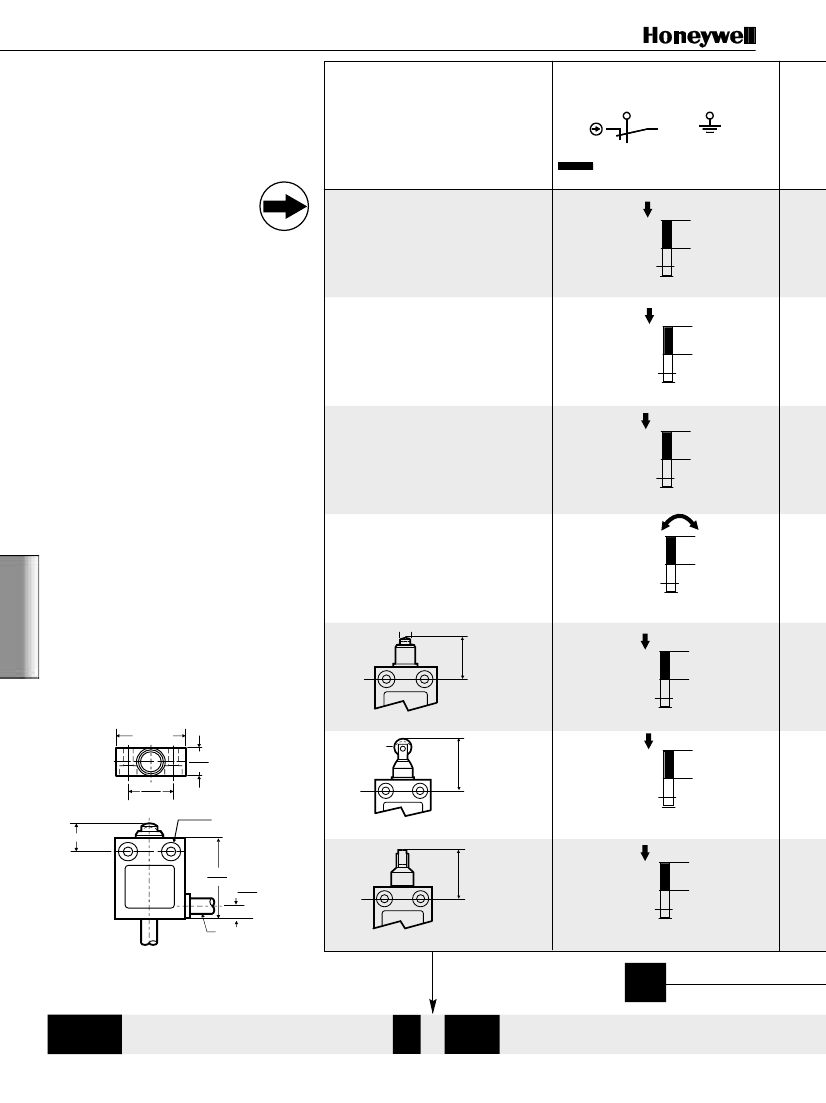

924CE Series
Miniature Safety
Electromechanical
Switch
Technical Data
Mechanical life
Degree of
protection
10 million operations.
924CE
Standard type: IP 66
With boot seal type:IP 67
Actuator Types
Slow Action Contacts
1 Normally Closed
black
red
green
Circuit closed
*Positive opening to IEC/EN 60947-5-1-3
17,1 +/- 0,4
P.T = 2,2 max.
O.P
13,1
*
O.F (max.) = 22,5 Newtons / 2300 GMF
29,9 +/- 0,4
P.T = 2,2 max.
O.P
25,9
*
O.F (max.) = 22,5 Newtons / 2300 GMF
Temperature
range
Approvals*
Operating:
0 °C to +105 °C /
32 °F to +221 °F
IEC 60947-5-1
EN 60947-5-1
ac15 B300
dc13 R300
UL, CSA
According to IEC/EN 60947-5-1.
Rated insulation voltage
Ui = 500 V.
Rated impulse withstand voltage
Uimp = 2,5 kV.
Not suitable for isolation.
SCPD, Quick blow fuse to IEC
127 suitable for rated current.
ø7,1
24,3
max.
29,9 +/- 0,4
P.T = 2,2 max.
O.P
25,9
*
O.F (max.) = 22,5 Newtons / 2300 GMF
Electrical
0 Degrees
O.P
50 Deg.
*
P.T = 30 Degrees
max.
24CE/924CE
218
O.F (max.) = 7,85 Newtons / 800 GMF
* See Standards (page 179)
23,9 +/- 0,4
Dimensions in mm / in
18
Pin Plunger (Boot Sealed)
ø12,4
P.T = 2,2 max.
O.P
19,9
*
O.F (max.) = 22,5 Newtons / 2300 GMF
40 /
max.
1.58
16 /
max.
0.63
25 /
0.98
35,7 +/- 0,4
36,1
max.
31
Roller Plunger Parallel (Boot Sealed)
ø12,4
36,1
max.
P.T = 2,2 max.
O.P
31,7
*
O.F (max.) = 22,5 Newtons / 2300 GMF
2 Holes 5,1 dia
Counter Bored 10,2 dia x 6 deep
(both sides - option 'A' only)
Free position
49 /
max.
1.93
8/
0.32
35,7 +/- 0,4
55
P.T = 2,2 max.
O.P
31,7
*
O.F (max.) = 22,5 Newtons / 2300 GMF
Side exit cable
(Option 'A')
Roller Plunger Perpendicular (Boot Sealed)
Cable Type
3 or 5 x 18 AWG SJTO CABLE
Ordering:
Y
X
OR
924CE
Example:
924CE18-Y3A
XX
24CE/924CE Series
•
Industrial Safety Products
•
Slow Action Contacts
1 Normally Closed/
Break before make
O.P. 1
black
red
green
O.P. 2
white
Slow Action Contacts
1 Normally Closed/
Make before break
O.P. 1
black
red
green
O.P. 2
white
Cable Length
(in feet)
Option Codes
Zb
white
Zb
white
17,1 +/- 0,4
P.T = 2,2 max.
O.P -1
O.P -2
13,1
*
(2 +/- 0,5)
17,1 +/- 0,4
P.T = 4 max.
O.P -2
O.P -1
(0,7 +/- 0,5)
Specify cable length in 3
feet increments e.g.
3 = 3 feet
6 = 6 feet etc.
A: Side Exit Cable
O.F (max.) = 22,5 Newtons / 2300 GMF
(O.P1 + 0,9 mm)
*
O.F (max.) = 22,5 Newtons / 2300 GMF
29,9 +/- 0,4
P.T = 2,2 max.
O.P -1
O.P -2
25,9
*
O.F (max.) = 22,5 Newtons / 2300 GMF
2 +/- 0,5
29,9 +/- 0,4
P.T = 4 max.
O.P - 2
O.P -1
(0,7 +/- 0,5)
(O.P1 + 0,9 mm)
*
O.F (max.) = 22,5 Newtons / 2300 GMF
29,9 +/- 0,4
P.T = 2,2 max.
O.P -1
O.P -2
25,9
*
O.F (max.) = 22,5 Newtons / 2300 GMF
2 +/- 0,5
29,9 +/- 0,4
P.T = 4 max.
O.P -2
O.P -1
0,7 +/- 0,5
(O.P1 + 0,9 mm)
*
O.F (max.) = 22,5 Newtons / 2300 GMF
0 Degrees
P.T = 26 Deg. max.
O.P -1
O.P -2
50 Deg.
*
25 Deg. +/- 7
0 Degrees
P.T = 48 Deg. max.
O.P -2
O.P -1
65
*
O.F (max.) = 7,85 Newtons / 800 GMF
7˚ Deg. ± 6˚
O.F (max.) = 7,85 Newtons / 800 GMF
23,9 +/- 0,4
P.T = 2,2 max.
O.P -1
O.P -2
19,9
*
2 +/- 0,5
26 +/- 0,4
P.T = 4 max.
O.P -2
O.P -1
0,7 +/- 0,5
O.F (max.) = 22,5 Newtons / 2300 GMF
(O.P1 + 0,9 mm)
*
O.F (max.) = 22,5 Newtons / 2300 GMF
35,7 +/- 0,4
P.T = 2,2 max.
O.P -1
O.P -2
31,7
*
O.F (max.) = 22,5 Newtons / 2300 GMF
2 +/- 0,5
35,7 +/- 0,4
P.T = 4 max.
O.P -2
O.P -1
(O.P1 + 0,9 mm)
*
O.F (max.) = 22,5 Newtons / 2300 GMF
0,7 +/- 0,5
35,7 +/- 0,4
P.T = 2,2 max.
O.P -1
O.P -2
31,7
*
O.F (max.) = 22,5 Newtons / 2300 GMF
2 +/- 0,5
35,7 +/- 0,4
P.T = 4 max.
O.P -2
O.P -1
0,7 +/- 0,5
(O.P1 + 0,9 mm)
*
O.F (max.) = 22,5 Newtons / 2300 GMF
S
X
24CE/924CE Series
T
X
•
Industrial Safety Products
•
X
219
24CE/924CE
