2005 POWER INDUCTORS
High-Reliability Power Inductors
ML319PZA
■
High temperature material allows operation in ambient
temperatures up to 155°C
■
Lowest profile, ultra-miniature, magnetically shielded
power inductor; only 0.5 mm high, 2 mm × 2 mm footprint
■
Soft saturation makes them ideal for VRM/VRD applications.
■
Special construction allows it to pass vibration testing to
80 G and shock testing to 1000 G.
Core material
Composite
Terminations
Tin-silver-copper (96.5/3/0.5) over tin over nickel over
silver-platinum.
Weight
8.4 mg
Ambient temperature
–55°C to +105°C with
Irms
current, +105°C
to +155°C with derated current
Storage temperature
Component: –55°C to +155°C.
Tape and reel packaging: –55°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Enhanced crush-resistant packaging
2000/7″reel
Plastic tape: 8 mm wide, 0.28 mm thick, 4 mm pocket spacing,
0.76 mm pocket depth
Inductance
2
±20% (µH)
0.15
0.22
0.33
0.47
0.68
DCR (Ohms)
3
nom
max
0.085
0.098
0.111
0.128
0.144
0.166
0.177
0.204
0.215
0.247
SRF typ
4
(MHz)
590
480
380
275
220
Isat
(A)
5
20% drop 30% drop
1.55
1.90
1.20
1.50
1.05
1.30
0.97
1.20
0.75
0.95
Irms
(A)
6
20°C rise 40°C rise
1.25
1.60
1.13
1.48
1.00
1.30
0.95
1.25
0.80
1.05
Part number
1
ML319PZA151MSZ
ML319PZA221MSZ
ML319PZA331MSZ
ML319PZA471MSZ
ML319PZA681MSZ
10% drop
1.05
0.72
0.65
0.60
0.50
1. When ordering, please specify
testing
code:
ML319PZA681MSZ
Testing:
Z
= COTS
H
= Screening per Coilcraft CP-SA-10001
N
= Screening per Coilcraft CP-SA-10004
2. Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc.
3. DCR measured on a micro-ohmmeter.
4. SRF measured using Agilent/HP 4395A or equivalent.
5. DC current at which the inductance drops the specified amount from its
value without current.
6. Current that causes the specified temperature rise from 25°C ambient.
7. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.

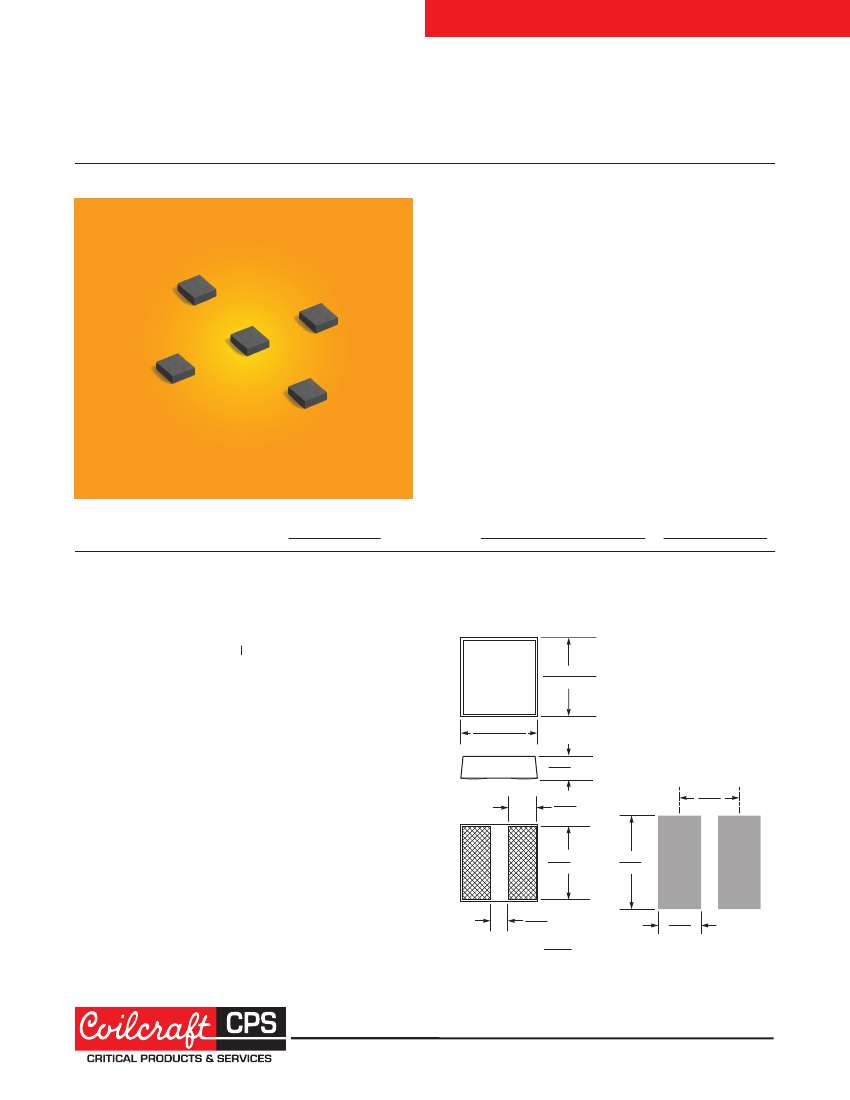

0.079 ±0.008
2,0 ±0,2
0.075 ±0.008
1,9 ±0,2
0.020
max
0,50
0.030 max
0,75
Recommended
Suggested
Land Pattern
0.057
1,45
0.069
max
1,75
0.087
2,2
0.014
min
0,35
0.041
1,04
Dimensions are in
inches
mm
®
Specifications subject to change without notice.
Please check our website for latest information.
Document ML779-1
Revised 04/18/12
1102 Silver Lake Road
Cary IL 60013
© Coilcraft, Inc. 2012
Phone 800-981-0363
Fax 847-639-1508
E-mail cps@coilcraft.com
Web www.coilcraft-cps.com
