51730-130GLF: DescriptionBoard Connector, 16 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size223KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

51730-130GLF Overview

Board Connector, 16 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Receptacle, LEAD FREE

51730-130GLF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1732165757
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	9.1
Other features	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM
Board mount options	HOLE .138-.163
body width	0.574 inch
subject depth	0.93 inch
body length	2.05 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S16P4
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	HYBRID
DIN compliance	NO
Dielectric withstand voltage	2500VDC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.973 N
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED POLYETHYLENE
MIL compliance	NO
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	4
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Guideline	UL
Terminal length	0.135 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	16
UL Flammability Code	94V-0
Evacuation force-minimum value	.1668 N

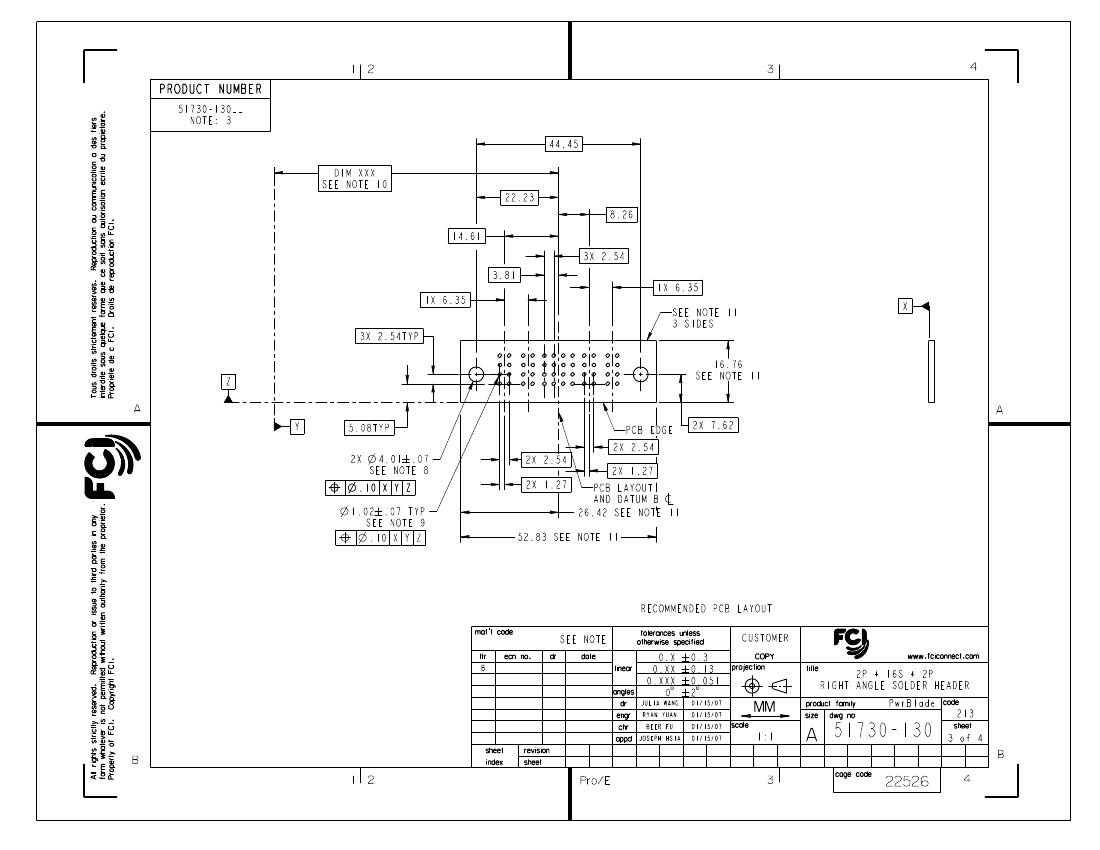

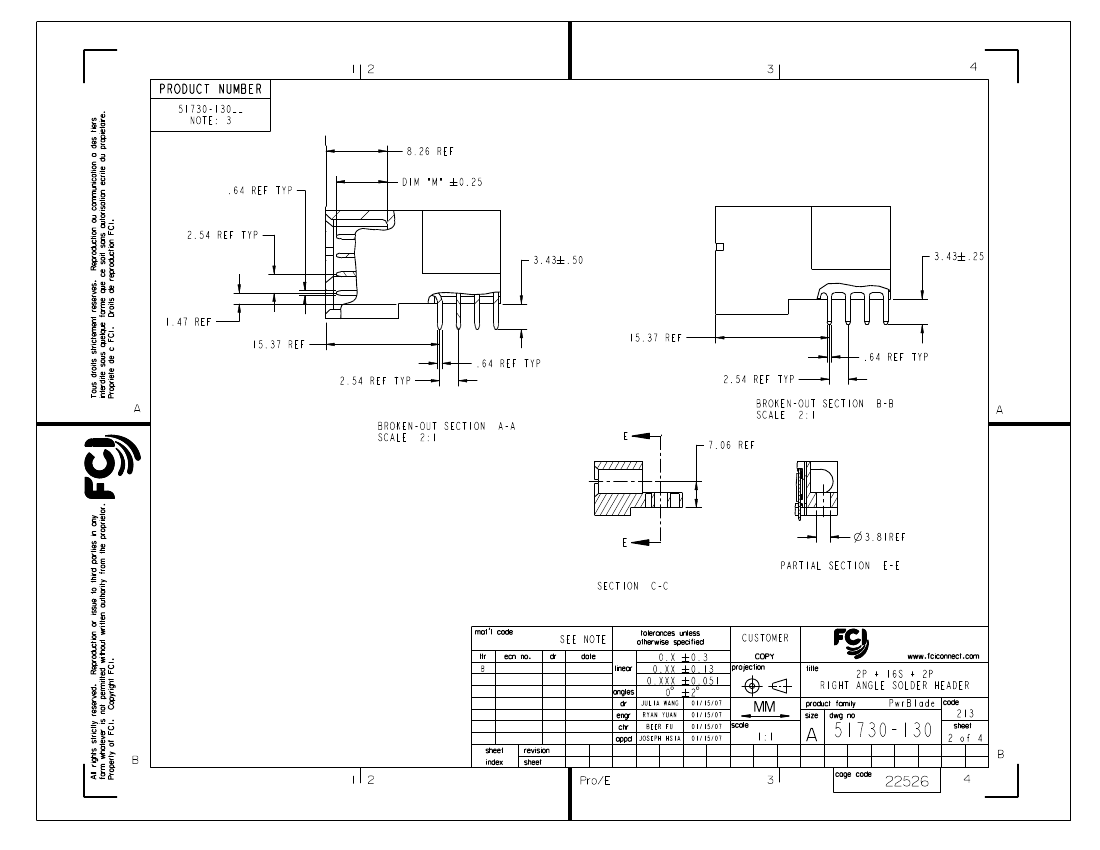

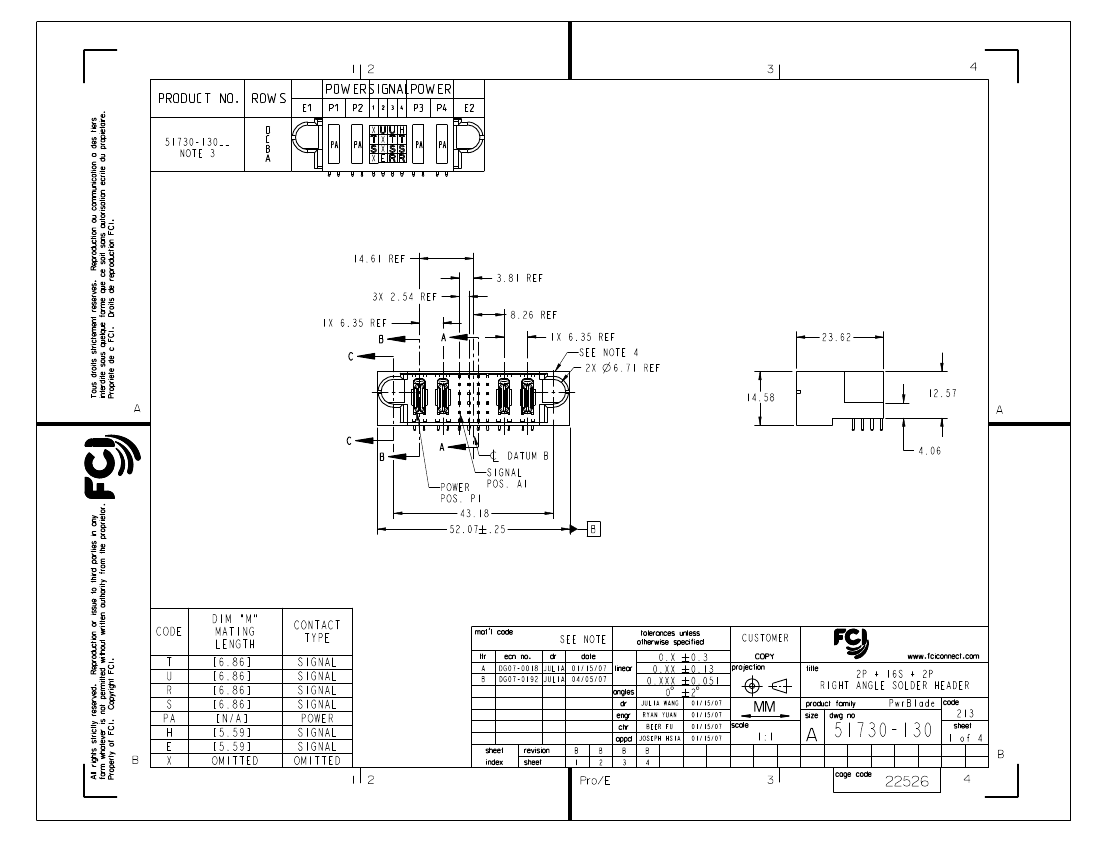

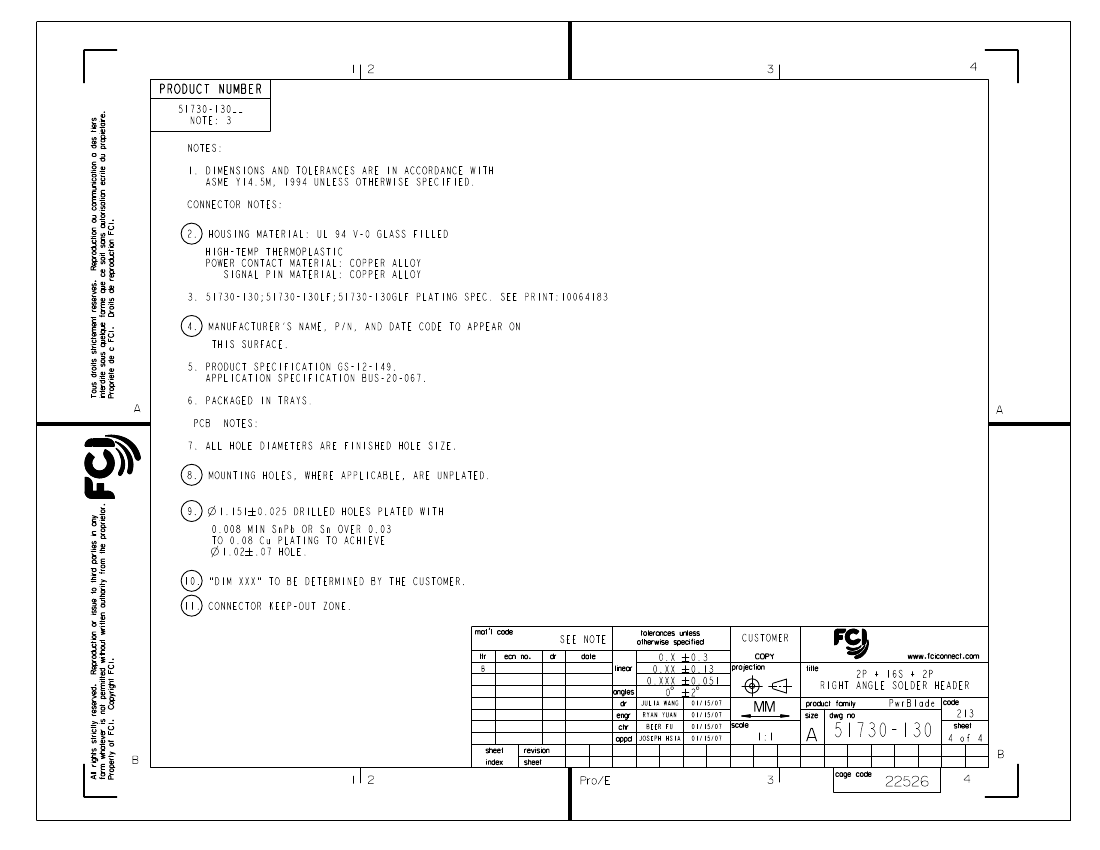

Preview

Download Datasheet

View All

PDM: Rev:B

STATUS:

Released

Printed: Dec 20, 2010

.

51730-130GLF Related Products

	51730-130GLF	51730-130LF	51730-130
Description	Board Connector, 16 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Receptacle, LEAD FREE	PwrBlade®, Power Supply Connectors, 2P 16S 2P Right Angle Header.	PWRBLADE R/A LF HDR
Is it Rohs certified?	conform to	conform to	incompatible
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Other features	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM
Board mount options	HOLE .138-.163	HOLE .138-.163	HOLE .138-.163
body width	0.574 inch	0.574 inch	0.574 inch
subject depth	0.93 inch	0.93 inch	0.93 inch
body length	2.05 inch	2.05 inch	2.05 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact arrangement	S16P4	S16P4	S16P4
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact resistance	20 mΩ	20 mΩ	20 mΩ
Contact style	HYBRID	HYBRID	HYBRID
DIN compliance	NO	NO	NO
Dielectric withstand voltage	2500VDC V	2500VDC V	2500VDC V
Durability	200 Cycles	200 Cycles	200 Cycles
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
maximum insertion force	.973 N	.973 N	.973 N
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω
insulator material	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYETHYLENE	GLASS FILLED THERMOPLASTIC
MIL compliance	NO	NO	NO
Mixed contacts	YES	YES	YES
Installation option 1	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
Number of rows loaded	4	4	4
Maximum operating temperature	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Guideline	UL	UL	UL
Terminal length	0.135 inch	0.135 inch	0.135 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	16	16	16
UL Flammability Code	94V-0	94V-0	94V-0
Evacuation force-minimum value	.1668 N	.1668 N	.1668 N
Objectid	1732165757	1732165758	-
package instruction	LEAD FREE	LEAD FREE	-
YTEOL	9.1	9.1	-
