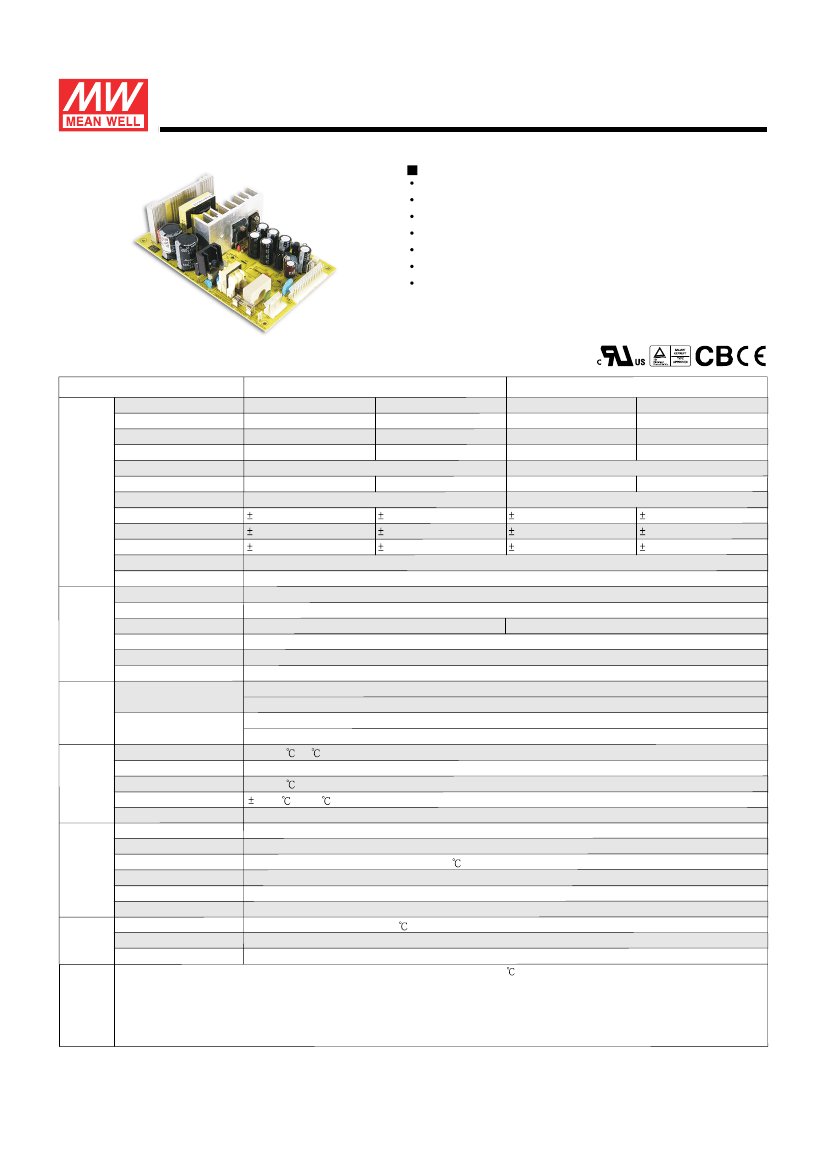

110W Dual Output Switching Power Supply

Features :

Universal AC input / Full range

P D - 11 0

series

Protections: Short circuit / Overload / Over voltage

Cooling by free air convection

With power good signal output(Optional)

100% full load burn-in test

Fixed switching frequency at 45KHz

2 years warranty

SPECIFICATION

MODEL

OUTPUT NUMBER

DC VOLTAGE

RATED CURRENT

CURRENT RANGE

RATED POWER

OUTPUT

VOLTAGE ADJ. RANGE

VOLTAGE TOLERANCE

Note.3

LINE REGULATION

LOAD REGULATION

SETUP, RISE TIME

HOLD UP TIME (Typ.)

VOLTAGE RANGE

FREQUENCY RANGE

INPUT

EFFICIENCY(Typ.)

AC CURRENT (Typ.)

INRUSH CURRENT (Typ.)

LEAKAGE CURRENT

OVERLOAD

PROTECTION

OVER VOLTAGE

WORKING TEMP.

WORKING HUMIDITY

ENVIRONMENT STORAGE TEMP., HUMIDITY

TEMP. COEFFICIENT

VIBRATION

SAFETY STANDARDS

WITHSTAND VOLTAGE

SAFETY &

ISOLATION RESISTANCE

EMC

EMI CONDUCTION & RADIATION

(Note 4)

HARMONIC CURRENT

EMS IMMUNITY

MTBF

OTHERS

DIMENSION

PACKING

NOTE

PD-110A

CH1

0.5 ~ 5A

103W

150mVp-p

6.0%

2.0%

5.0%

CH1:4.75 ~ 5.5V

2.0%

1.0%

1200ms, 50ms at full load

80ms at full load

100 ~ 264VAC

47 ~ 63Hz

75%

3A/115VAC

1.5A/230VAC

COLD START 40A

<1mA /240VAC

141 ~370VDC (90 ~ 100VAC 90% load max.)

CH2

12V

6.5A

0.5 ~ 6.5A

PD-110B

CH1

0.5 ~ 5A

109W

100mVp-p

CH1:4.75 ~ 5.5V

2.0%

1.0%

200mVp-p

6.0%

2.0%

5.0%

CH2

24V

3.5A

0.5 ~ 3.5A

RIPPLE & NOISE (max.)

Note.2

100mVp-p

78%

105% ~ 135%

rated output power

Protection type : Hiccup mode, recovers automatically after fault condition is removed

CH1: 5.75 ~ 6.75VDC

Protection type : Hiccup mode, recovers automatically after fault condition is removed

-10 ~ +50 ,60 with cooling fan(Refer to output load derating curve)

20 ~ 90% RH non-condensing

-20 ~ +85

, 10 ~ 95% RH

0.03%/ (0 ~ 50 )

10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

UL60950-1, TUV EN60950-1 approved

I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25

Compliance to EN55022 (CISPR22) Class B

/ 70% RH

Compliance to EN61000-3-2,-3

Compliance to EN61000-4-2,3,4,5,6,11; ENV50204, light industry level, criteria A

323K hrs min. MIL-HDBK-217F (25

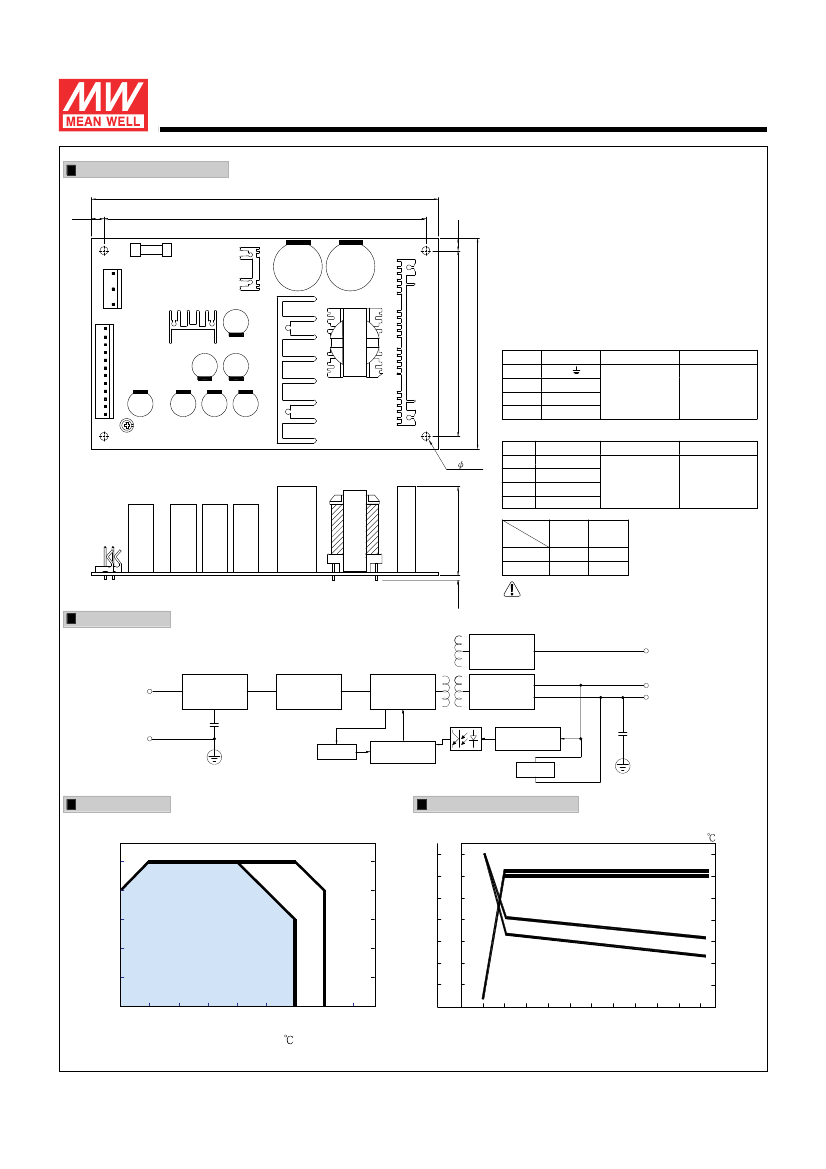

177.8*107.95*46mm (L*W*H)

0.51Kg; 24pcs/13.1Kg/1.19CUFT

)

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.

4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets

EMC directives. For guidance on how to perform these EMC tests, please refer to EMI testing of component power supplies.

(as available on http://www.meanwell.com)

5. Heat Sink HS1,HS2 can not be shorted.

File Name:PD-110-SPEC 2011-03-31
