MATERIAL AND FINISH:
Insulator: PC (Polycarbonate), UL-94V-0 rated, color white
Contacts: Brass, Nickel plated
D
ELECTRICAL SPECIFICATIONS:
Rated current: 10A
Rated voltage: 250VAC
Insulation resistance: 100 Mohm min. at 500VDC
Dielectric withstanding voltage: 2000VAC for one minute
APPROVAL:
NSW OFFICE
OF
FAIR TRADING
AUSTRALIA
D
Ø38.0±0.2
7.9
Ø4.4
C
C
10.9 14.0
10.3
3X 6.9
RECOMMENDED
PANEL CUTOUT
B
Ø33.3
3X 2.0
B
CHNG CHCK APPR
(28.8)
PB
REVISIONS
TOLERANCE
UPDATED
CHANGE
A
UNLESS OTHERWISE SPECIFIED
X ± 1
X.X ± 0.4
X.XX ± 0.20
Phone: 973 560-0019
Whippany, New Jersey
Fax: 973 560-0076

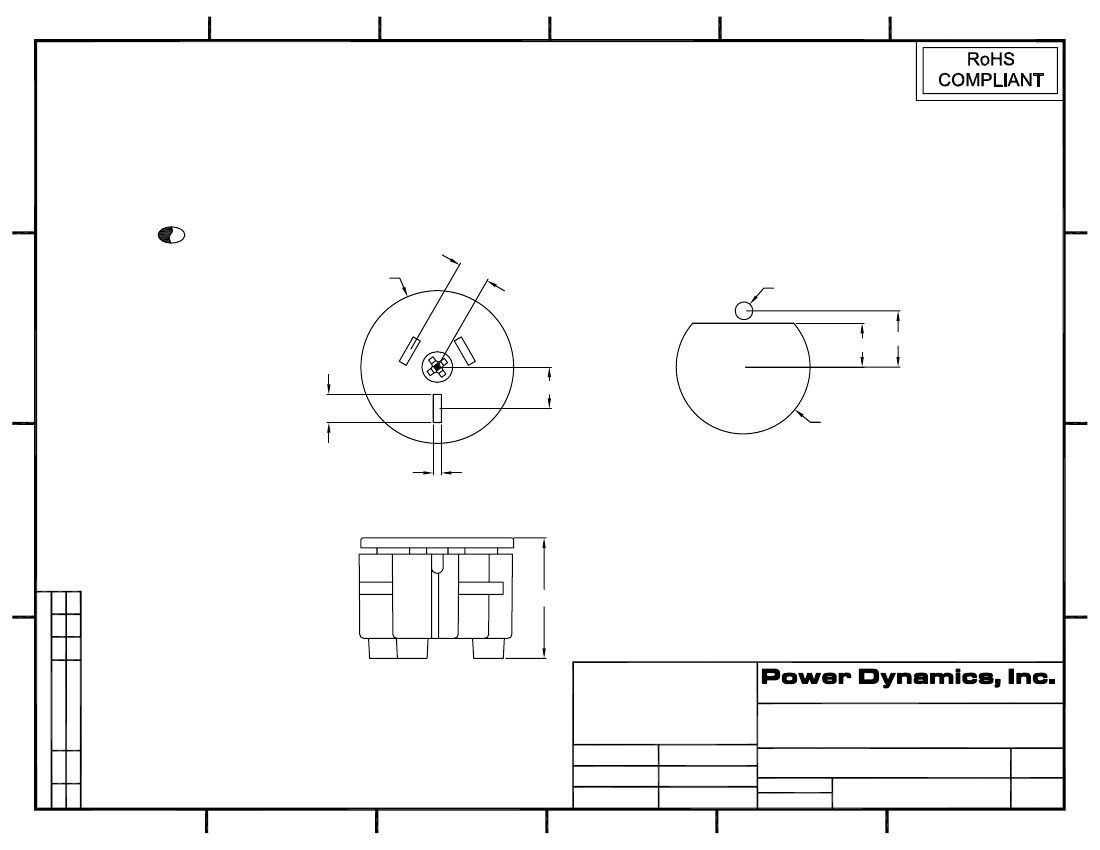

PART: AS 3112 AUSTRALIAN / NEW ZEALAND
ROUND RECEPTACLE
PART #:
A
DRAWN
BY
CHECK
BY
APPR
BY
8/3/10
DATE
GQ
TD
PB
DATE:
DATE:
DATE:
11/06/01
11/13/01
11/13/01
SIZE:
SCALE:
PD-16AU-1
A
NTS
ALL DIMENSIONS FOR REFERENCE ONLY
DIMENSIONS ARE IN MILLIMETERS
SHEET
1 of 1
REV:
