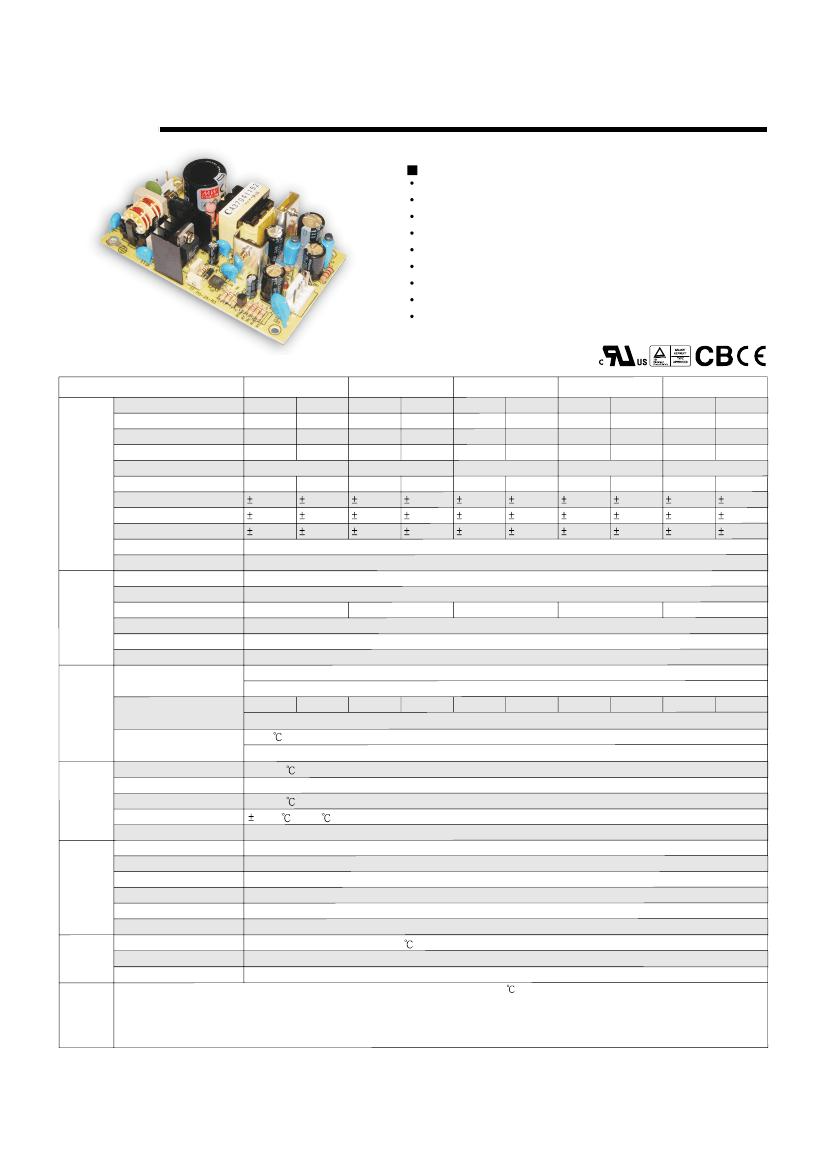

25W Dual Output Switching Power Supply
Features :
PD-25
series
Universal AC input / Full range
Low leakage current<0.5mA
Protections:Short circuit/Over load/Over voltage/Over temperature
Cooling by free air convection
100% full load burn-in test
Fixed switching frequency at 100KHz
Low cost
High reliability
2 years warranty
SPECIFICATION
MODEL
OUTPUT NUMBER
DC VOLTAGE
RATED CURRENT
CURRENT RANGE
RATED POWER
OUTPUT
VOLTAGE TOLERANCE
Note.3
LINE REGULATION
LOAD REGULATION
SETUP, RISE TIME
HOLD TIME (Typ.)
VOLTAGE RANGE
FREQUENCY RANGE
INPUT
EFFICIENCY(Typ.)
AC CURRENT (Typ.)
INRUSH CURRENT (Typ.)
LEAKAGE CURRENT
OVER LOAD
PROTECTION OVER VOLTAGE
OVER TEMPERATURE
WORKING TEMP.
WORKING HUMIDITY
ENVIRONMENT STORAGE TEMP., HUMIDITY
TEMP. COEFFICIENT
VIBRATION
SAFETY STANDARDS
WITHSTAND VOLTAGE
SAFETY & ISOLATION RESISTANCE
EMI CONDUCTION & RADIATION
EMC
(Note 4)
HARMONIC CURRENT
EMS IMMUNITY
MTBF
OTHERS
NOTE
DIMENSION
PACKING
PD-25A
CH1
5V
2.1A
0.2 ~ 2.5A
25W
150mVp-p
6.0%
2.0%
4.0%
2.0%
0.5%
1.0%
CH2
12V
1.2A
0.1 ~ 1.5A
PD-25B
CH1
5V
1.2A
0.2 ~ 2A
25.2W
50mVp-p
2.0%
0.5%
1.0%
200mVp-p
6.0%
2.0%
4.0%
CH2
24V
0.8A
0.1 ~ 1A
PD-2505
CH1
5V
2.5A
0.1 ~ 3A
25W
50mVp-p
6.0%
1.0%
4.0%
50mVp-p
6.0%
1.0%
4.0%
CH2
-5V
2.5A
0.1 ~ 2.5A
PD-2512
CH1
12V
1A
0.1 ~ 1.2A
24W
50mVp-p
4.0%
0.5%
3.0%
50mVp-p
4.0%
0.5%
3.0%
CH2
-12V
1A
0.1 ~ 1.2A
PD-2515
CH1
15V
0.8A
0.1 ~ 1A
24W
50mVp-p
4.0%
0.5%
3.0%
50mVp-p
4.0%
0.5%
3.0%
CH2
-15V
0.8A
0.1 ~ 1A
RIPPLE & NOISE (max.)
Note.2
50mVp-p
250ms, 50ms/230VAC
100ms/230VAC
85 ~ 264VAC
47 ~ 63Hz
71%
0.65A/115VAC
COLD START 32A
<0.5mA / 240VAC
250ms, 30ms/115VAC at full load
16ms/115VAC at full load
120 ~ 370VDC
77%
0.4A/230VAC
73%
74%
75%
Above 105%
rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
5.75 ~ 6.75V 13.8 ~ 16.2V 5.75 ~ 6.75V 27.6 ~ 32.4V 5.75 ~ 6.75V -5.75 ~ -6.75V 13.8 ~ 16.2V -13.8 ~ -16.2V 17.3 ~ 20.3V -17.3 ~ -20.3V
Protection type : Shut down o/p voltage, re-power on to recover
Tj 135 typically (U1) Detect on main control IC
Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
-10 ~ +60 (Refer to output load derating curve)
20 ~ 90% RH non-condensing
-20 ~ +85
, 10 ~ 95% RH
0.03%/ (0 ~ 50 ) ON CH1 output
10 ~ 500Hz, 2G 10min./1cycle, Period for 60min.each along X, Y, Z axes
UL60950-1, TUV EN60950-1 Approved
I/P-O/P:3KVAC
I/P-FG:1.5KVAC
O/P-FG:0.5KVAC
I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
Compliance to EN55022 (CISPR22) Class B
Compliance to EN61000-3-2,-3
Compliance to EN61000-4-2,3,4,5, Light industry level, criteria A
507.9Khrs min. MIL-HDBK-217F (25 )
107*61*28mm (L*W*H)
0.15Kg; 96pcs/15.9Kg/1.3CUFT
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets
EMC directives.
File Name:PD-25-SPEC 2005-10-03

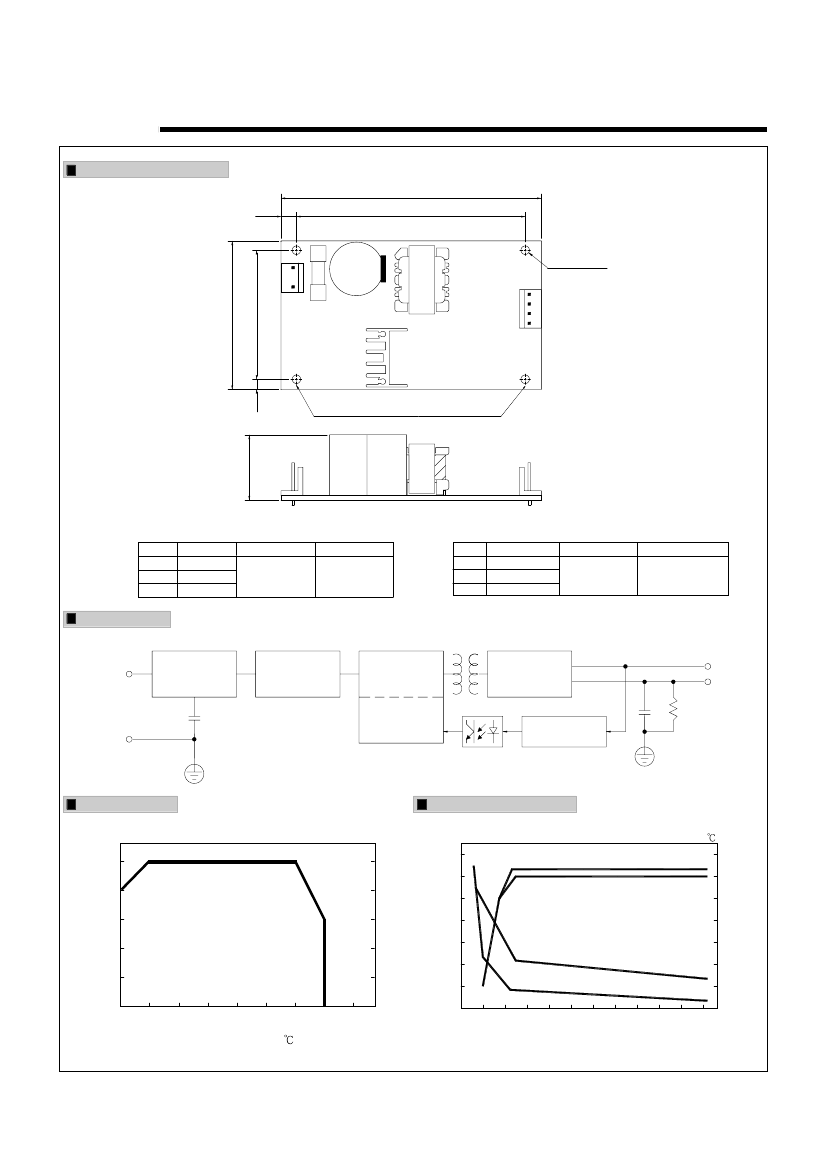

25W Dual Output Switching Power Supply
Mechanical Specification
107
6.35
94
PD-25
series
Unit:mm
1
2
3
CN1
4-3.5 Dia
Mounting Holes
AC FUSE
2.5A/250V
1
2
3
4
CN2
61
3.81
53
To Chassis Grounding
AC Input Connector (CN1) : Molex 41791-03 or equivalent
Pin No.
1
2
3
Assignment
AC/L
No Pin
AC/N
Mating Housing
Molex 2139
or equivalent
Terminal
Molex 2478
or equivalent
28
DC Output Connector (CN2) : Molex 41791-04 or equivalent
Pin No.
1
2,3
4
Assignment
V1
COM
V2
Mating Housing
Molex 2139
or equivalent
Terminal
Molex 2478
or equivalent
Block Diagram
RECTIFIERS
&
FILTER
POWER
SWITCH-
ING
PWM
CONTROL
FG
RECTIFIERS
&
FILTER
fosc : 100KHz
I/P
EMI
FILTER
+V
COM
DETECTION
CIRCUIT
Output Derating
Static Characteristics (A)
Ta=25
100
5.2
5.0
+12V
+5V
350
300
250
200
150
80
4.8
4.6
4.4
4.2
4.0
60
40
+12V
+5V
60
80
100
120
140
160
180
200
220
240
260
100
50
20
-10
-10
0
0
10
20
30
40
50
45
60
55
(HORIZONTAL)
(VERTICAL)
AMBIENT TEMPERATURE ( )
File Name:PD-25-SPEC 2005-10-03
