GTXO-560T/KPFREQ1 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> GTXO-560T/KPFREQ1

GTXO-560T/KPFREQ1: DescriptionClipped Sine Output Oscillator, 10MHz Min, 22MHz Max; CategoryPassive components oscillator; File Size66KB，1 Pages; ManufacturerGolledge Electronics; Websitehttp://www.golledge.com/; Environmental Compliance

Download Datasheet Parametric View All

GTXO-560T/KPFREQ1 Overview

Clipped Sine Output Oscillator, 10MHz Min, 22MHz Max

GTXO-560T/KPFREQ1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Golledge Electronics
Reach Compliance Code	compliant
Other features	TAPE AND REEL
Ageing	1 PPM/FIRST YEAR
Frequency Adjustment - Mechanical	YES
frequency stability	2.5%
Manufacturer's serial number	GTXO-560
Installation features	SURFACE MOUNT
Maximum operating frequency	22 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	CLIPPED SINE
Output impedance	10000 Ω
Output level	0.8 V
physical size	11.8mm x 9.9mm x 2.0mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES

Preview

Download Datasheet

View All

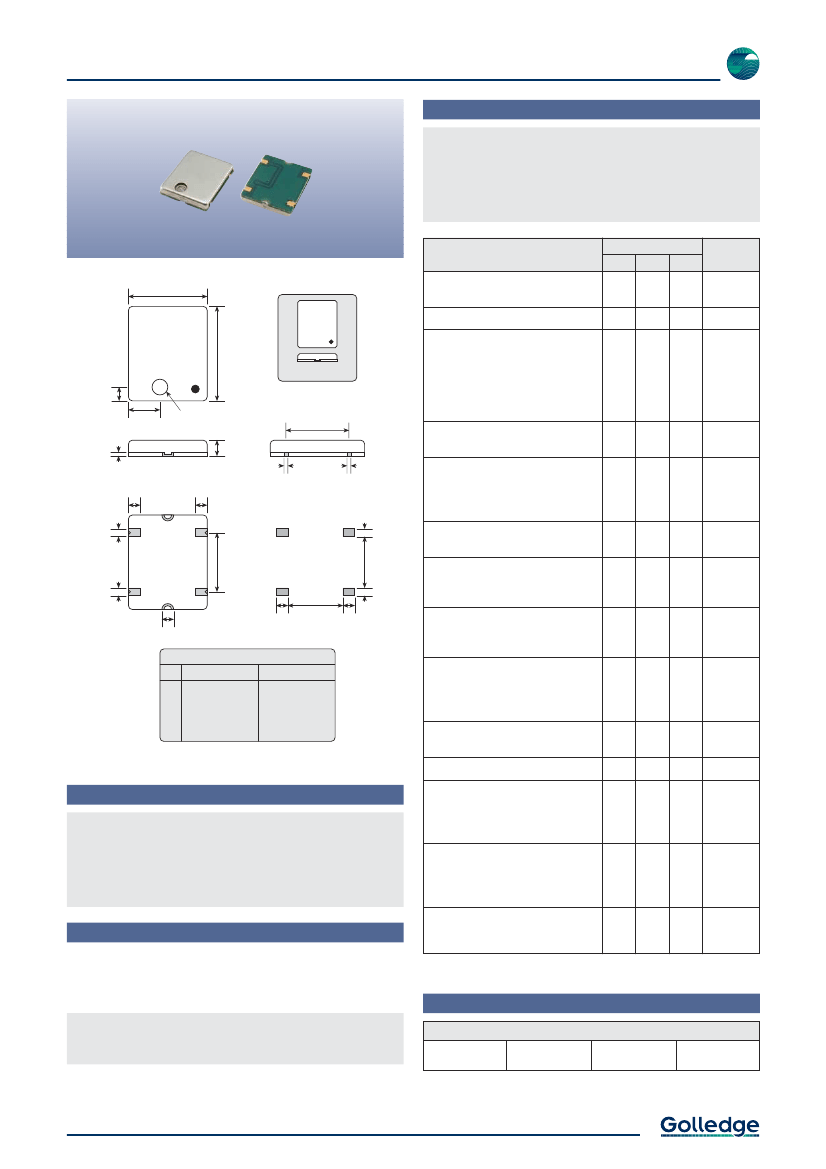

3V & 5V SM TCXO Clipped Sine

Specifications

GTXO-560

GTXO-560T: Internal trimmer

GTXO-560V: Voltage adjustment + trimmer

GTXO-560N: Voltage adjustment, no trimmer

Parameters

9.90

(max)

Variant

Option

Codes

Package style:

with trimmer

without trimmer

Frequency range:

10.0 ~ 40.0MHz

11.80

(max)

ACTUAL SIZE

1.75

(typ)

3.55

(typ)

0.50

Trimmer access hole 2.20Ø

(T and V variants)

2.00

(max)

0.70

1.30

1.00

7.62

1.00

1.90

1.40

CONNECTION

PAD

Variant T

Not connected

Ground

Output

Supply

Variants V & N

Freq adjustment

Ground

Output

Supply

6.50

TOP VIEW

1.40

1.90

6.22

1.30

0.70

7.62

Frequency stability:

±2.5ppm over -40 to +85°C

±2.5ppm over -30 to +75°C

±2.0ppm over -30 to +75°C

±1.5ppm over -20 to +70°C

±1.0ppm over -20 to +70°C

Storage temperature range:

-40 to +85°C

Frequency vs supply voltage:

±0.3ppm (<22.0MHz)

±0.5ppm (<28.0MHz)

±1.0ppm (<40.0MHz)

Frequency vs load change:

±0.3ppm (10k ±10%//10pF±10%)

Ageing (1st yr):

±1.0ppm (<22.0MHz)

±1.5ppm (<28.0MHz)

±2.0ppm (<40.0MHz)

Supply voltage (V

+3.0V (±5%)

+3.3V (±5%)

+5.0V (±5%)

Supply current:

2.0mA max (<22.0MHz)

3.0mA max (<28.0MHz)

4.0mA max (<40.0MHz)

Output waveform:

Clipped sine, 0.8V p-p typ

Scale 2:1

Test load:

10k

// 10pF

SOLDER PAD LAYOUT

1.40

Features

3.0V to 5.0V supply, low power consumption

Stabilities down to ±1.0ppm

Industrial temperature range option

Frequency adjustment:

±3ppm min by internal trimmer

±5.0 ~ ±10.0ppm

±8.0 ~ ±14.0ppm

Control voltage range:

+1.5V ±1.0V (3.0V supply)

+1.65V ±1.35V (3.3V supply)

+2.5V ±2.0V (5.0V supply)

Preset frequency:

±0.5ppm / +25°C ±2°C

±2.0ppm / +25°C ±2°C

Standard.

Optional - Please specify required code(s) when ordering

Ordering Information

Product name + variant + option codes (if any) + frequency

eg:

GTXO-560V 13.0MHz

±2.5ppm -30+75°C, 3V supply (standard)

GTXO-560V/GP 13.0MHz

±1.5ppm-20+70°C, 5V supply

Option code X (eg GTXO-560V/X) denotes a custom spec.

Available on T&R - 2k pcs per reel.

Refer to our website for T&R and soldering details.

Trimmer tool available. Ask for our part number MA06805.

Standard Frequencies

Frequencies in MHz

10.00000

12.80000

13.00000

14.40000

15.36000

16.00000

19.20000

20.00000

Tel:

+44 1460 256 100

19 Aug 2003

Fax:

+44 1460 256 101

E-mail:

sales@golledge.com

Web:

www.golledge.com
