PD-L620C-B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> PD-L620C-B

PD-L620C-B: DescriptionNEMA L6-20R CORD CONNECTOR 20A 250VAC; ASSEMBLY TYPE; CategoryThe connector The connector; File Size104KB，1 Pages; ManufacturerPower Dynamics, Inc.; Websitehttp://www.powerdynamics.com/

Download Datasheet Parametric View All

PD-L620C-B Overview

NEMA L6-20R CORD CONNECTOR 20A 250VAC; ASSEMBLY TYPE

PD-L620C-B Parametric

Parameter Name	Attribute value
Maker	Power Dynamics, Inc.
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Other features	UL
Connector type	MAINS POWER CONNECTOR
Contact material	BRASS
Coupling type	SNAP
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Power Connector Ratings	20A, 250VAC
Manufacturer's serial number	PD-L620C-B
Options	GENERAL PURPOSE
Shell material	POLYAMIDE
Total number of contacts	3

Preview

Download Datasheet

View All

MATERIAL:

Housing & Cord Clamp: Nylon, color black

Contact Holder & Terminal Retainer: Polycarbonate

Contacts: Brass

ELECTRICAL SPECIFICATIONS:

Rated current: 20A

Rated voltage: 250VAC

APPROVALS:

LISTED

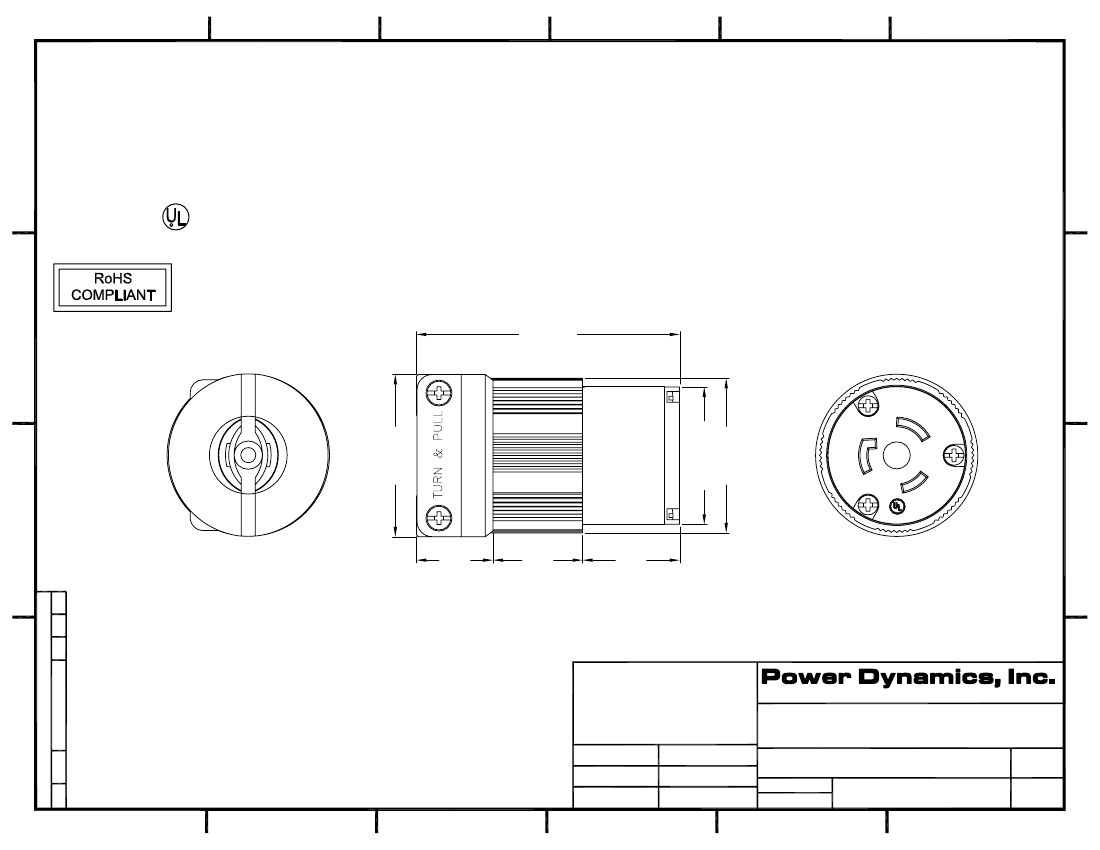

87.3±1.0

Ø45.6±1.0

53.9±1.0

51.3±1.0

LISTED

25.4

CHNG CHCK APPR

29.7

32.2

REVISIONS

TOLERANCE

CHANGE

UNLESS OTHERWISE SPECIFIED

X ± 1

X.X ± 0.4

X.XX ± 0.13

Phone: 973 560-0019

Whippany, New Jersey

Fax: 973 560-0076

PART: NEMA L6-20R CORD CONNECTOR

20A 250VAC; ASSEMBLY TYPE

PART #:

DRAWN

CHECK

APPR

DATE

DATE:

5/7/10

SIZE:

SCALE:

PD-L620C-B

NTS

ALL DIMENSIONS FOR REFERENCE ONLY

DIMENSIONS ARE IN MILLIMETERS

SHEET

1 of 1

REV:

REV
