PD-L630R-B datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> PD-L630R-B

Preview

PD-L630R-B: DescriptionNEMA L6-30R LOCKING RECEPTACLE; CategoryThe connector The connector; File Size52KB，1 Pages; ManufacturerPower Dynamics, Inc.; Websitehttp://www.powerdynamics.com/

Download Datasheet Parametric View All

PD-L630R-B Overview

NEMA L6-30R LOCKING RECEPTACLE

PD-L630R-B Parametric

Parameter Name	Attribute value
Maker	Power Dynamics, Inc.
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Other features	UL
Body/casing type	RECEPTACLE
Connector type	MAINS POWER CONNECTOR
Contact point gender	FEMALE
Contact material	BRASS
Coupling type	SNAP
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Power Connector Ratings	30A, 250VAC
Manufacturer's serial number	PD-L630R-B
Options	GENERAL PURPOSE
Shell material	POLYBUTYLENE TEREPHTHALATE
Total number of contacts	3

Preview

Download Datasheet

View All

6

5

4

3

2

1

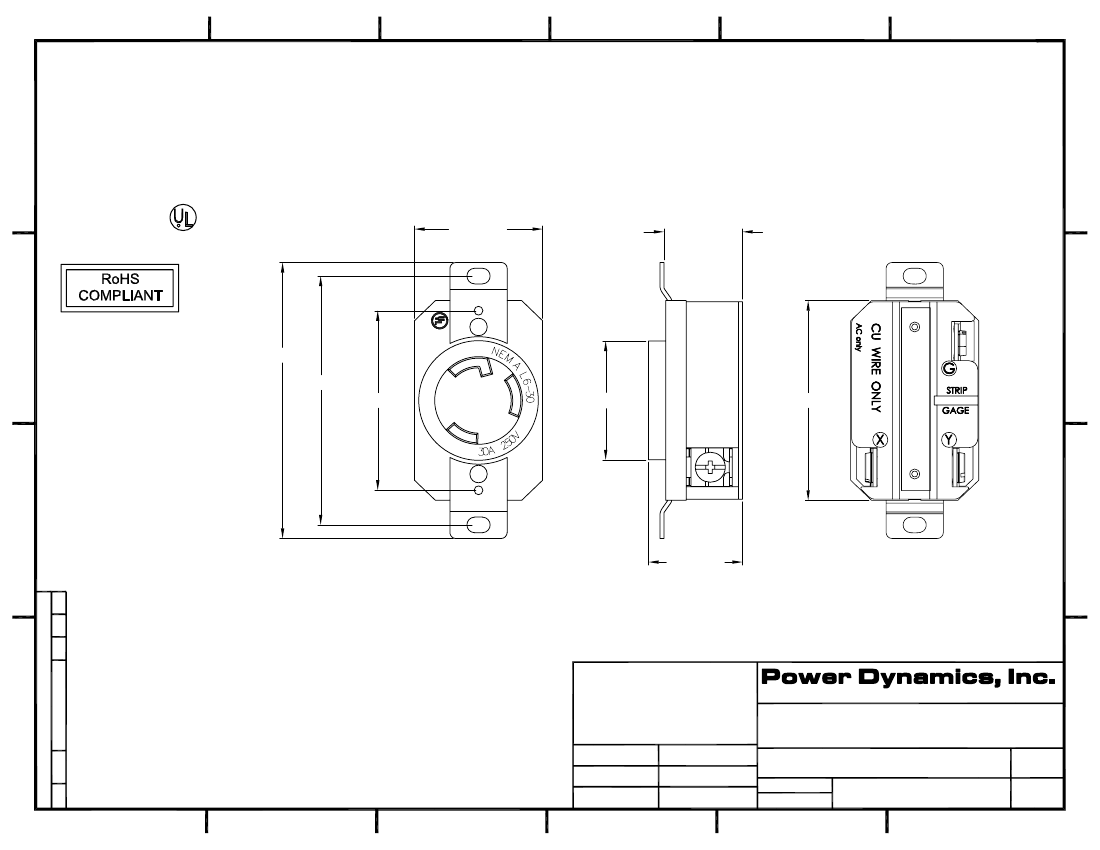

MATERIAL:

Housing: PBT, color black

Bracket: Brass

Contacts: Brass

D

ELECTRICAL SPECIFICATIONS:

Rated current: 30A

Rated voltage: 250VAC

APPROVALS:

C

US

LISTED

R

42.5±0.5

26.1±1.0

C

US

LISTED

Receptacle

9M77

91.5±1.0

83.5±0.5

60.5±0.4

Ø39.5±0.5

66.3±1.0

B

31.2±1.0

CHNG CHCK APPR

REVISIONS

TOLERANCE

CHANGE

A

UNLESS OTHERWISE SPECIFIED

X ± 1

X.X ± 0.4

X.XX ± 0.13

Phone: 973 560-0019

Whippany, New Jersey

Fax: 973 560-0076

PART: NEMA L6-30R LOCKING RECEPTACLE

-

PART #:

A

DRAWN

BY

CHECK

BY

APPR

BY

DATE

PB

DATE:

12/13/10

SIZE:

SCALE:

PD-L630R-B

A

NTS

ALL DIMENSIONS FOR REFERENCE ONLY

DIMENSIONS ARE IN MILLIMETERS

SHEET

1 of 1

REV:

REV

6

5

4

3

2

1
