PD Series
CHASSIS MOUNT, SINGLE AND DOUBLE STAGE EMI/RFI LINE FILTER.

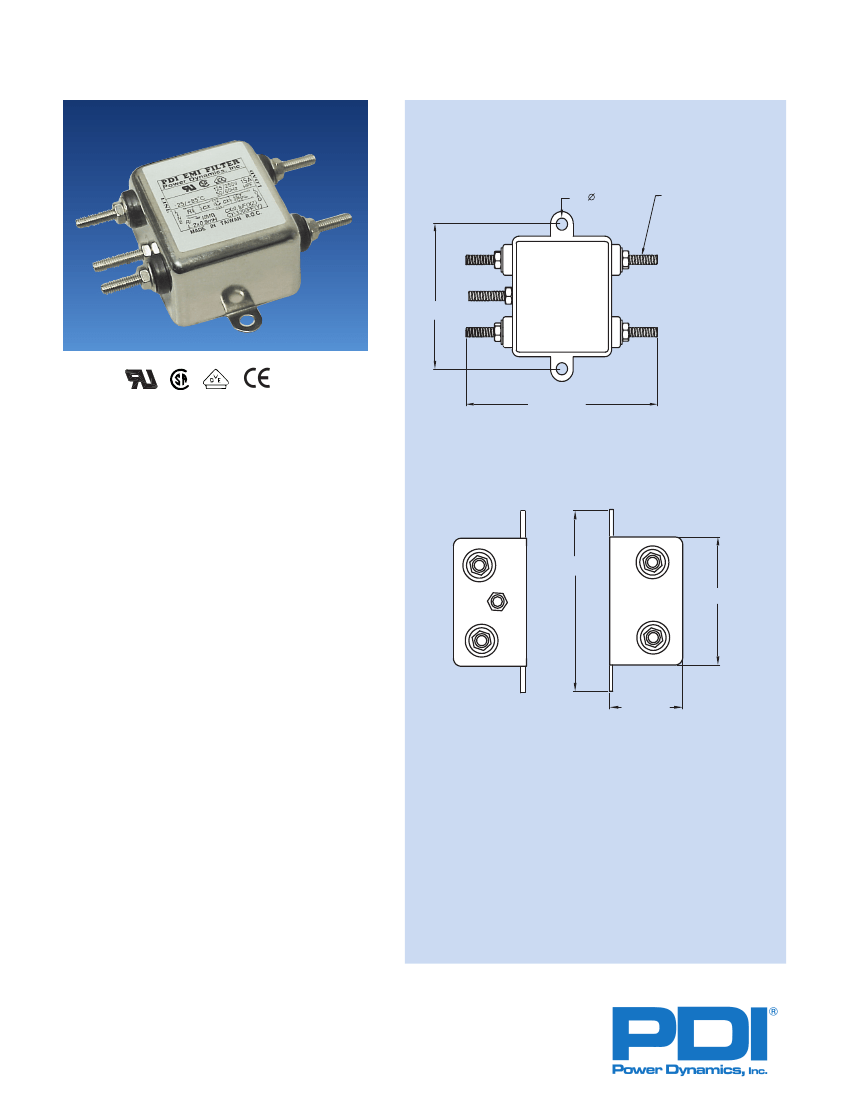

MECHANICAL DIMENSIONS
(Unit: mm)
2X
5.00
M4 THREAD TYP.
L
G
60.0
N
L'
N'
85.3 MAX.
FEATURES
The PD series offers single and double stage filters in the
same package particularly for high impedance loads.
Designed for easy mounting, this low profile chassis mount
filter offers current ratings up to 20 Amps at 250VAC. One
size package offers both single and double stage filtering.
(See PC series for Quick Connect Terminals)
APPLICATIONS
Computer & networking equipment, Measuring & control
equipment, Data processing equipment, laboratory instruments,
Switching power supplies, other electronic equipment.
70.5
- 1.0
50.0
+
TECHNICAL DATA
•
•
•
•
•
Rated Voltage: 250VAC
Rated Current: 1A, 3A, 5A, 6A, 10A, 15A, 20A
Power Line Frequency: 60Hz
Leakage Current: 0.8mA, 250VAC
Hipot Rating (one minute)
Line to Ground: 2250VDC
Line to Line: 1450VDC
•
Temperature Range: -25C to +85C
-
28.5
+ 0.5
Specifications subject to change without notice. Dimensions (mm).
145 Algonquin Parkway, Whippany, NJ 07981 • 973-560-0019 • FAX: 973-560-0076
e-mail: filtersales@powerdynamics.com •
www.powerdynamics.com
29
PD Series Example & Ordering Code
PD
05
CURRENT RATING (A):
PS - 1
=
=
=
=
=
=
=
01
)
03
)
05
"
06
)
10
¦
15
"
20
"
TERMINAL:
SCREW
= PS
SCHEMATIC:
(ONE STAGE)
(TWO STAGE)
=1
=2
PD Series Attenuation Tables
Non-Medical Applications
Insertion loss in dB (50 Ohm circuit)
ONE STAGE
Current
Rating
5A
10A
15A
20A
TWO STAGE
Comm. Mode(L-G) MHz
Diff. mode(L-L) MHz
.15 .5 1 5 10 30 .15 .5 1 5 10 30
17
16
14
7
27
24
19
17
31
28
22
22
42
34
32
32
46
36
33
34
42
40
41
50
7
9
10
7
37
36
32
27
37
35
28
28
46
40
37
36
42
42
38
39
37
38
40
46
Inductance
in mH
1.7
1.2
0.9
0.5
Current
Rating
1A
3A
6A
10A
Inductance
in mH
3.7
1.8
0.7
0.3
Comm. Mode(L-G) MHz
Diff. mode(L-L) MHz
.15 .5 1 5 10 30 .15 .5 1 5 10 30
46
38
21
4
74
68
51
32
73
80
62
50
58
58
66
66
51
53
69
58
27
48
51
48
7
5
15
6
52
53
30
18
46
62
75
54
54
51
55
55
47
44
49
48
32
38
41
41
SCHEMATICS
ONE STAGE
L mH
Cx
0.1 F
x2
L mH
Cx
Cy
2200pF
x2
L'
LOAD
TWO STAGE
L mH
Cy
3300pF
x2
L mH
10M
Cx
L mH
L'
Cx
N'
L mH
LOAD
L
LINE
L
G
N
Cx
0.3 F
x3
LINE
G
N
10M
N'
Single stage only
)
Double stage only
¦
Available in single & double stage
"
30
