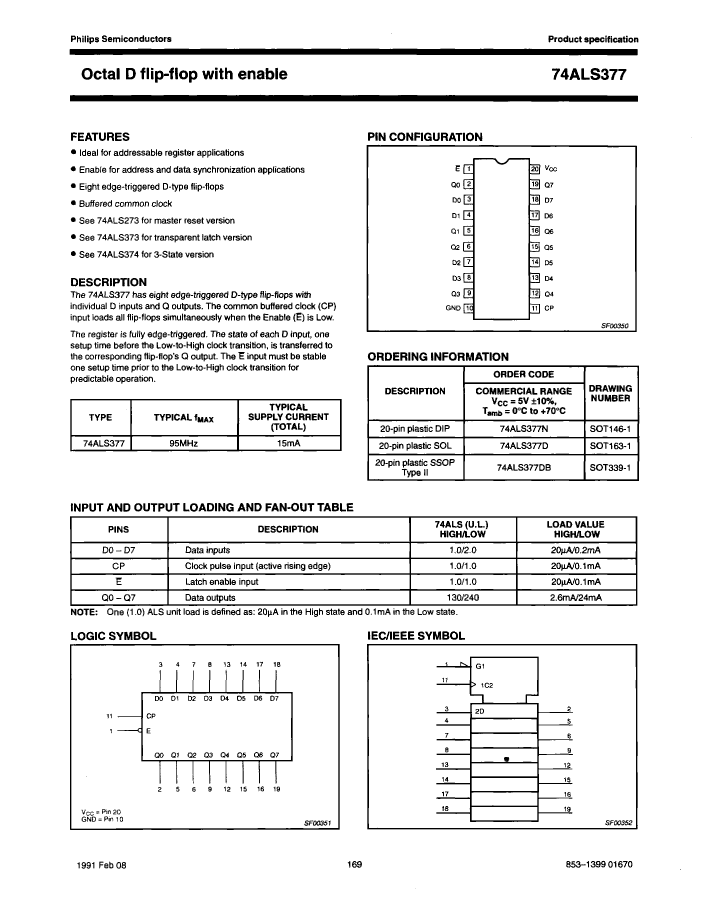

Preview

N74ALS377D: DescriptionIC ALS SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, PDSO20, PLASTIC, SOT163-1, SO-20, FF/Latch; Categorylogic logic; File Size114KB，5 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

N74ALS377D Overview

IC ALS SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, PDSO20, PLASTIC, SOT163-1, SO-20, FF/Latch

N74ALS377D Parametric

Parameter Name	Attribute value
Maker	NXP
Parts packaging code	SOIC
package instruction	SOP,
Contacts	20
Reach Compliance Code	unknown
Other features	WITH HOLD MODE
series	ALS
JESD-30 code	R-PDSO-G20
length	12.8 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	D FLIP-FLOP
Number of digits	8
Number of functions	1
Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum supply current (ICC)	29 mA
propagation delay (tpd)	11 ns
Certification status	Not Qualified
Maximum seat height	2.65 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
width	7.5 mm
minfmax	65 MHz

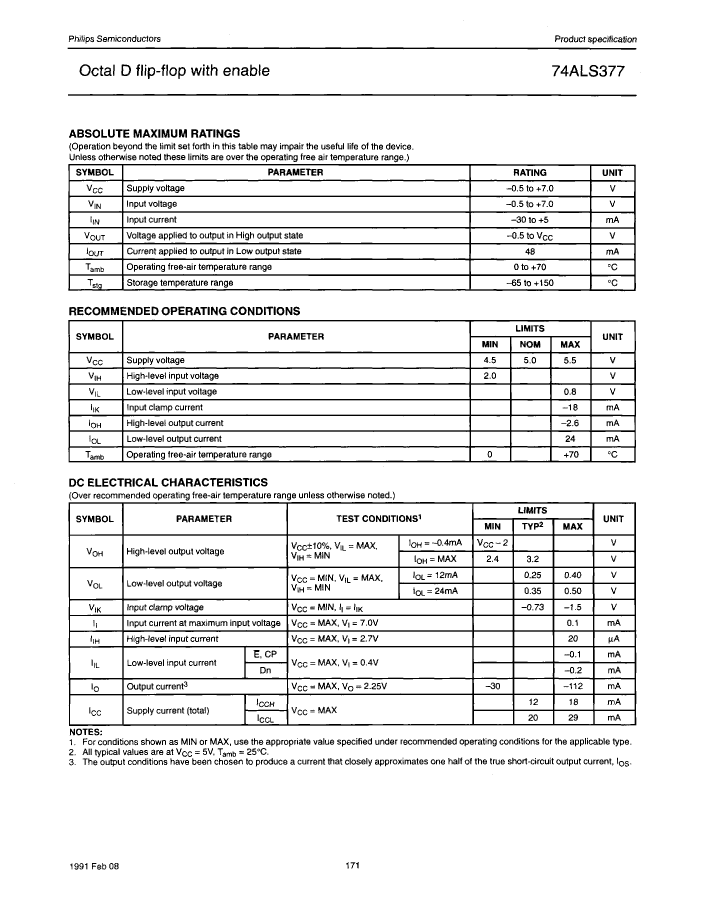

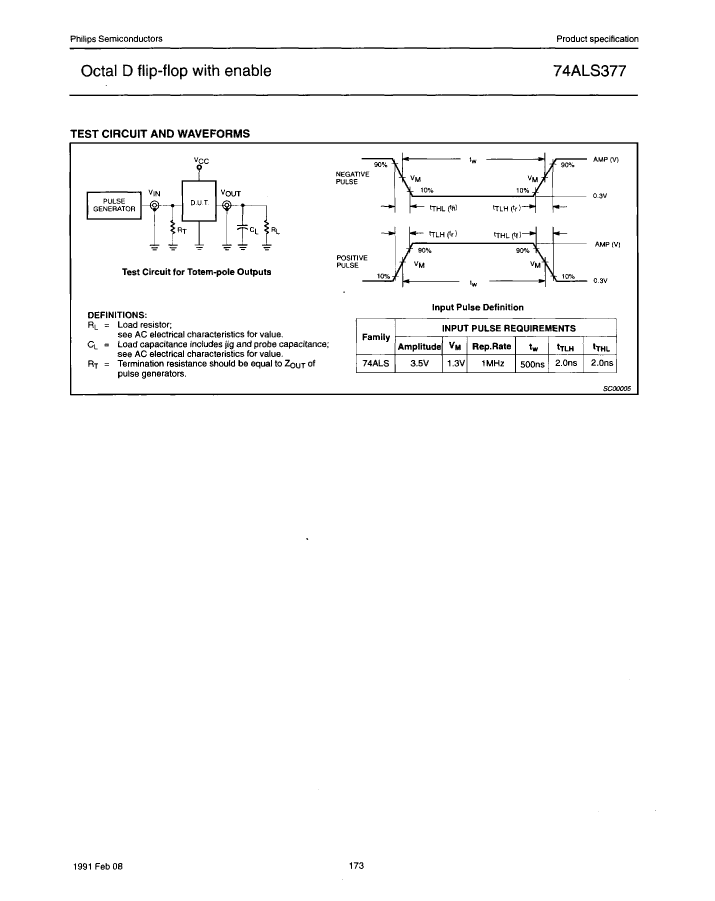

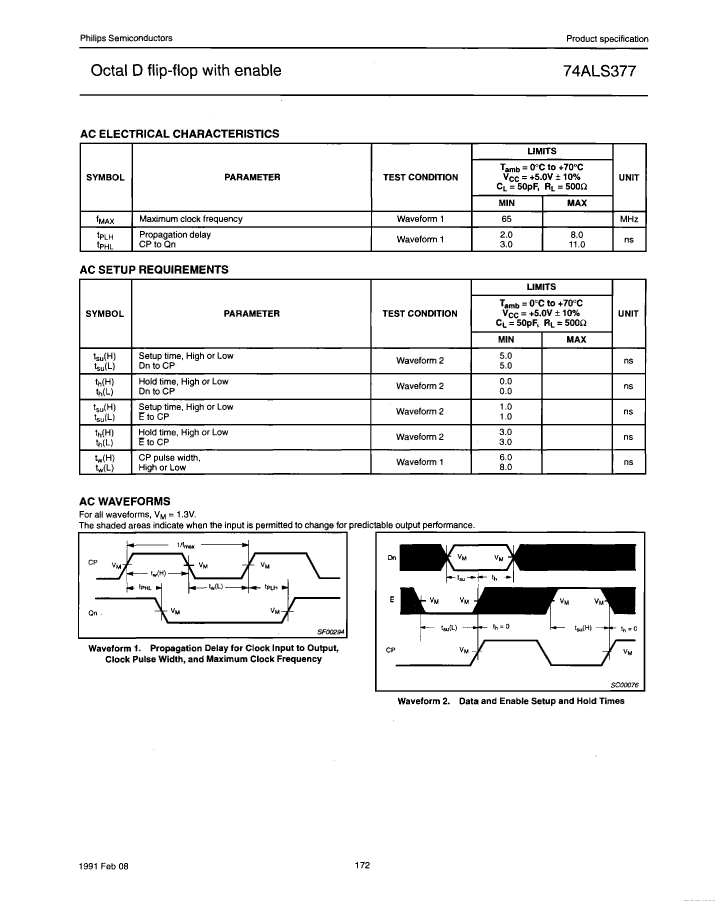

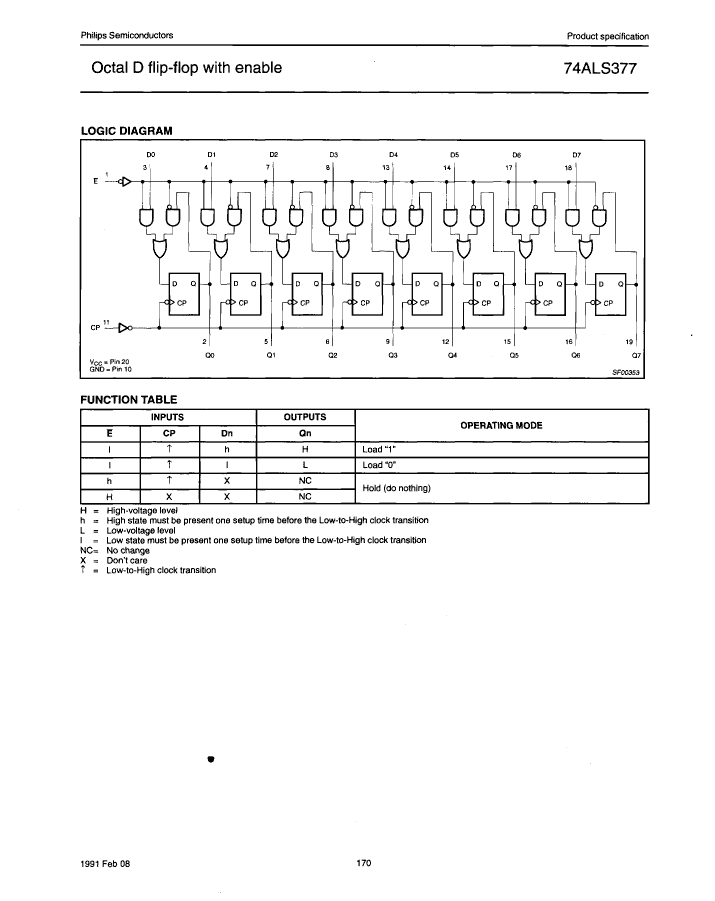

Preview

Download Datasheet

View All

N74ALS377D Related Products

	N74ALS377D	74ALS377DB	74ALS377DB-T	N74ALS377DB-T	N74ALS377DB	N74ALS377D-T	74ALS377D	74ALS377D-T	N74ALS377N
Description	IC ALS SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, PDSO20, PLASTIC, SOT163-1, SO-20, FF/Latch	IC ALS SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, PDSO20, PLASTIC, SSOP2-20, FF/Latch	IC ALS SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, PDSO20, PLASTIC, SSOP2-20, FF/Latch	IC ALS SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, PDSO20, FF/Latch	IC ALS SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, PDSO20, FF/Latch	IC ALS SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, PDSO20, PLASTIC, SOT163-1, SO-20, FF/Latch	IC ALS SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, PDSO20, PLASTIC, SO-20, FF/Latch	IC ALS SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, PDSO20, PLASTIC, SO-20, FF/Latch	IC ALS SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, PDIP20, PLASTIC, SOT146-1, DIP-20, FF/Latch
Maker	NXP	NXP	NXP	NXP	NXP	NXP	NXP	NXP	NXP
package instruction	SOP,	SSOP,	SSOP,	SSOP,	SSOP,	SOP,	SOP,	SOP,	PLASTIC, SOT146-1, DIP-20
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	WITH HOLD MODE	WITH HOLD MODE	WITH HOLD MODE	WITH HOLD MODE	WITH HOLD MODE	WITH HOLD MODE	WITH HOLD MODE	WITH HOLD MODE	WITH HOLD MODE
series	ALS	ALS	ALS	ALS	ALS	ALS	ALS	ALS	ALS
JESD-30 code	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDIP-T20
length	12.8 mm	7.2 mm	7.2 mm	7.2 mm	7.2 mm	12.8 mm	12.8 mm	12.8 mm	26.73 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP
Number of digits	8	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	20	20	20	20	20	20	20	20	20
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SSOP	SSOP	SSOP	SSOP	SOP	SOP	SOP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE
Maximum supply current (ICC)	29 mA	29 mA	29 mA	29 mA	29 mA	29 mA	29 mA	29 mA	29 mA
propagation delay (tpd)	11 ns	11 ns	11 ns	11 ns	11 ns	11 ns	11 ns	11 ns	11 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.65 mm	2 mm	2 mm	2 mm	2 mm	2.65 mm	2.65 mm	2.65 mm	4.2 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	NO
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	0.65 mm	0.65 mm	0.65 mm	0.65 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
width	7.5 mm	5.3 mm	5.3 mm	5.3 mm	5.3 mm	7.5 mm	7.5 mm	7.5 mm	7.62 mm
minfmax	65 MHz	65 MHz	65 MHz	65 MHz	65 MHz	65 MHz	65 MHz	65 MHz	65 MHz
Parts packaging code	SOIC	SSOP2	SSOP2	-	-	SOIC	SOIC	SOIC	DIP
Contacts	20	20	20	-	-	20	20	20	20
