DV74ALS175D datasheet, PDF - EEWORLD Datasheet

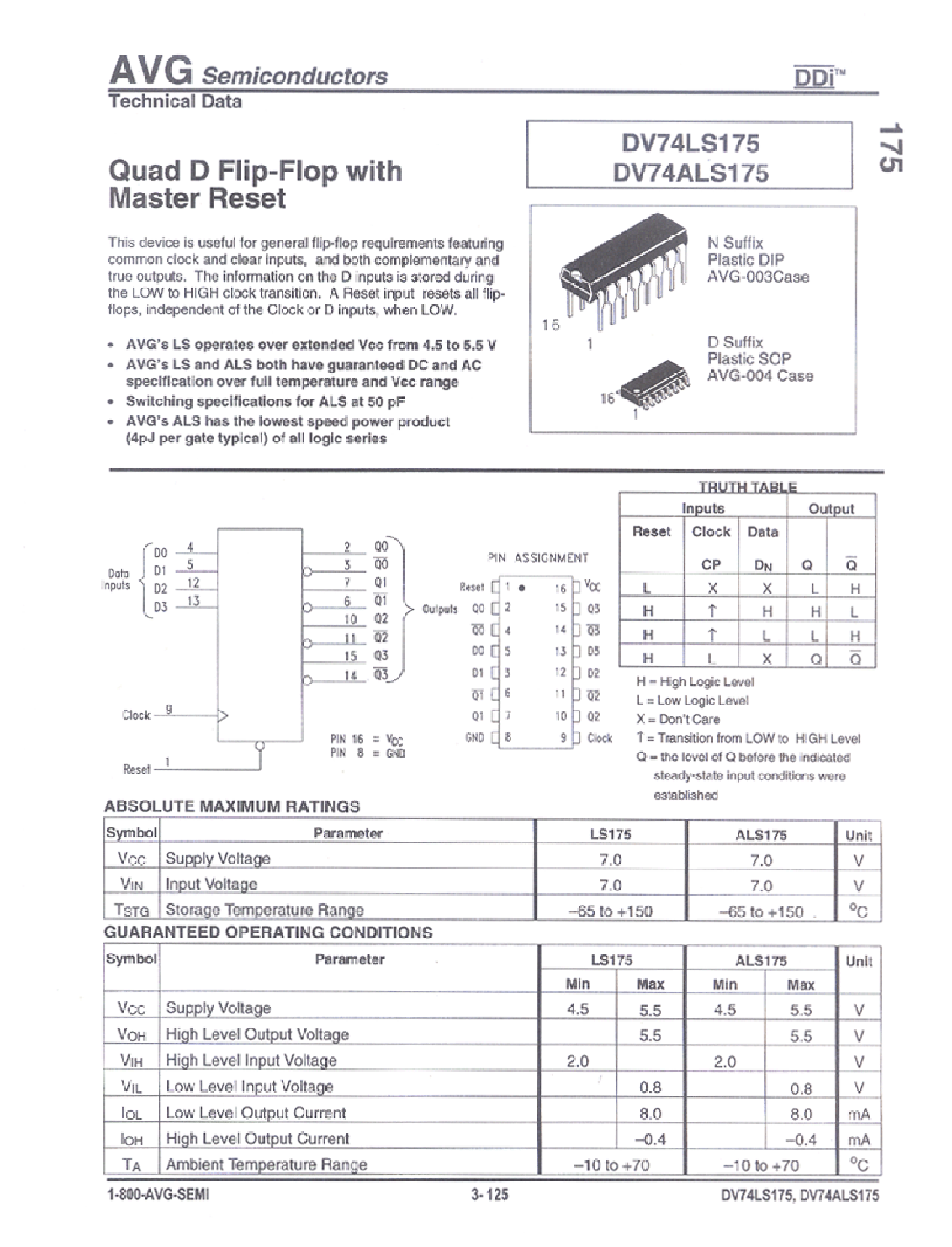

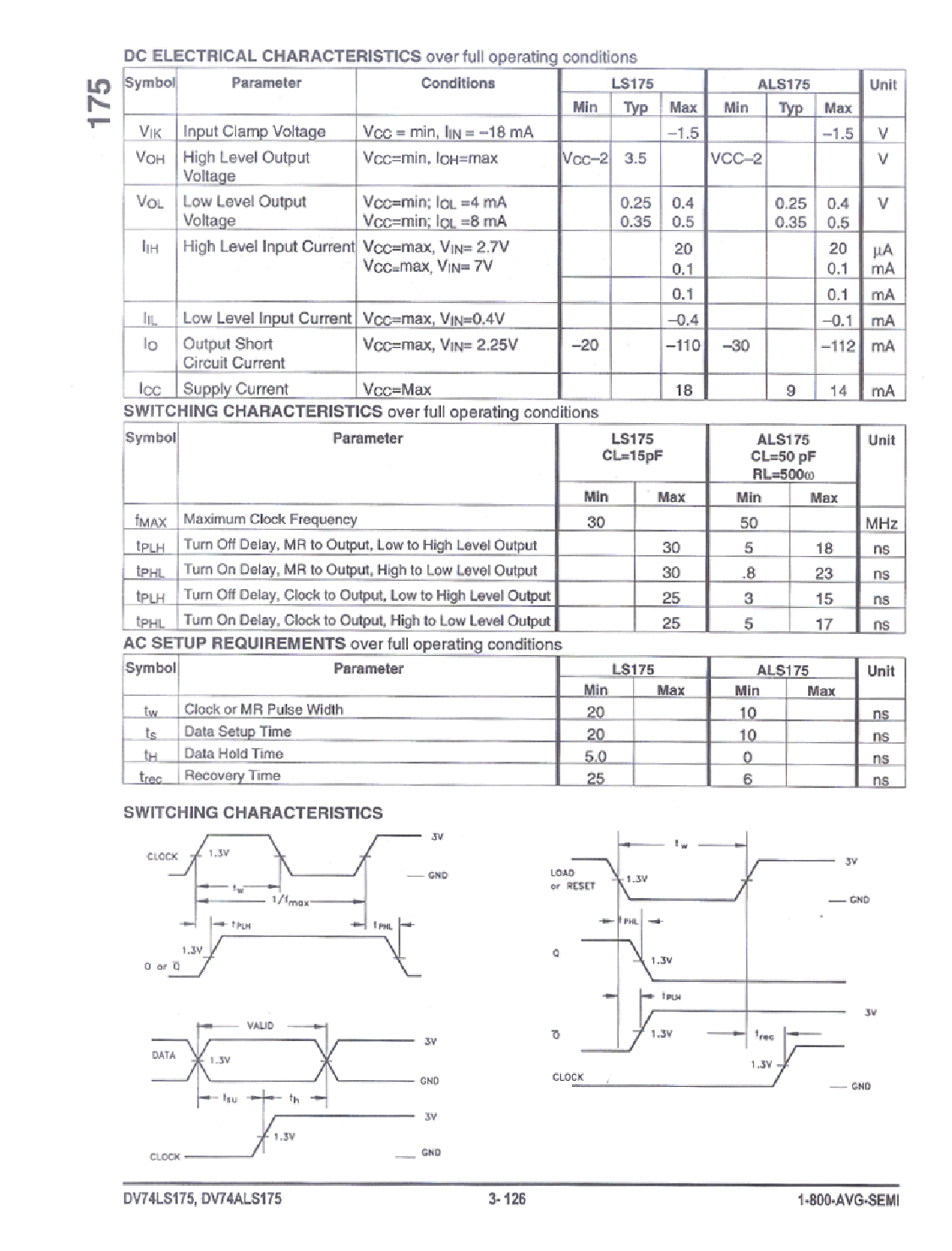

DV74ALS175D: DescriptionD Flip-Flop, ALS Series, 1-Func, Positive Edge Triggered, 4-Bit, Complementary Output, TTL, PDSO16, PLASTIC, SOP-16; Categorylogic logic; File Size352KB，2 Pages; ManufacturerAVG [AVG Semiconductors(HITEK)]

Download Datasheet Parametric Compare View All

DV74ALS175D Overview

D Flip-Flop, ALS Series, 1-Func, Positive Edge Triggered, 4-Bit, Complementary Output, TTL, PDSO16, PLASTIC, SOP-16

Parameter Name	Attribute value
Maker	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	SOIC
package instruction	PLASTIC, SOP-16
Contacts	16
Reach Compliance Code	unknown
series	ALS
JESD-30 code	R-PDSO-G16
length	9.9 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	D FLIP-FLOP
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Output polarity	COMPLEMENTARY
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum supply current (ICC)	14 mA
propagation delay (tpd)	17 ns
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
width	3.9 mm
minfmax	50 MHz

	DV74ALS175D	DV74LS175D
Description	D Flip-Flop, ALS Series, 1-Func, Positive Edge Triggered, 4-Bit, Complementary Output, TTL, PDSO16, PLASTIC, SOP-16	D Flip-Flop, LS Series, 1-Func, Positive Edge Triggered, 4-Bit, Complementary Output, TTL, PDSO16, PLASTIC, SOP-16
Maker	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	SOIC	SOIC
package instruction	PLASTIC, SOP-16	SOP,
Contacts	16	16
Reach Compliance Code	unknown	unknown
series	ALS	LS
JESD-30 code	R-PDSO-G16	R-PDSO-G16
length	9.9 mm	9.9 mm
Load capacitance (CL)	50 pF	15 pF
Logic integrated circuit type	D FLIP-FLOP	D FLIP-FLOP
Number of digits	4	4
Number of functions	1	1
Number of terminals	16	16
Maximum operating temperature	70 °C	70 °C
Minimum operating temperature	-10 °C	-10 °C
Output polarity	COMPLEMENTARY	COMPLEMENTARY
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Maximum supply current (ICC)	14 mA	18 mA
propagation delay (tpd)	17 ns	25 ns
Certification status	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	1.75 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE
width	3.9 mm	3.9 mm
minfmax	50 MHz	30 MHz
