V300C28C150A2N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> V300C28C150A2N

V300C28C150A2N: DescriptionDC-DC Regulated Power Supply Module, 1 Output, 150W, Hybrid; CategoryPower/power management The power supply circuit; File Size159KB，8 Pages; ManufacturerVICOR; Websitehttp://www.vicorpower.com/

Download Datasheet Parametric Compare View All

V300C28C150A2N Overview

DC-DC Regulated Power Supply Module, 1 Output, 150W, Hybrid

V300C28C150A2N Parametric

Parameter Name	Attribute value
Maker	VICOR
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	375 V
Minimum input voltage	180 V
Nominal input voltage	300 V
JESD-30 code	R-XUFM-P7
Maximum load regulation	0.3%
Number of functions	1
Output times	1
Number of terminals	7
Maximum operating temperature	100 °C
Minimum operating temperature	-20 °C
Maximum output voltage	30.8 V
Minimum output voltage	2.8 V
Nominal output voltage	28 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal form	PIN/PEG
Terminal location	UPPER
Maximum total power output	150 W
Fine-tuning/adjustable output	YES

Preview

Download Datasheet

View All

Features

•

300Vin / 28Vout / 150Watts

DC-DC Converter Module

Model Number V300C28C150A*

DC input range: 180 - 375V

Input surge withstand: 400V for 100ms

DC output: 28V

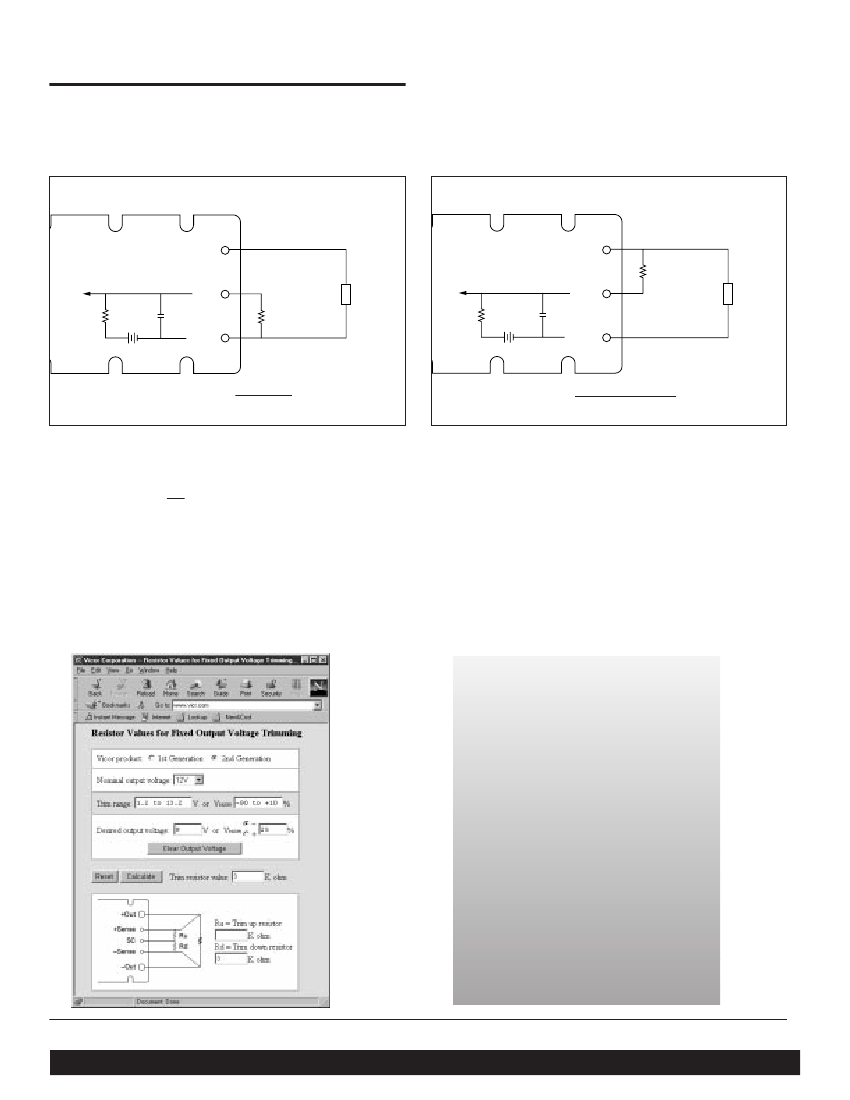

Programmable output: 10 to 110%

Regulation: ±0.3% no load to full load

Efficiency: 86.5%

Maximum operating temperature:

100°C at full load

Power density: 91W/cubic inch

Height above board: 0.43 in. (10,9 mm)

Parallelable, with N+M fault tolerance

Low noise ZCS/ZVS architecture

Typical Applications:

off-line systems,

distributed power and electric vehicles

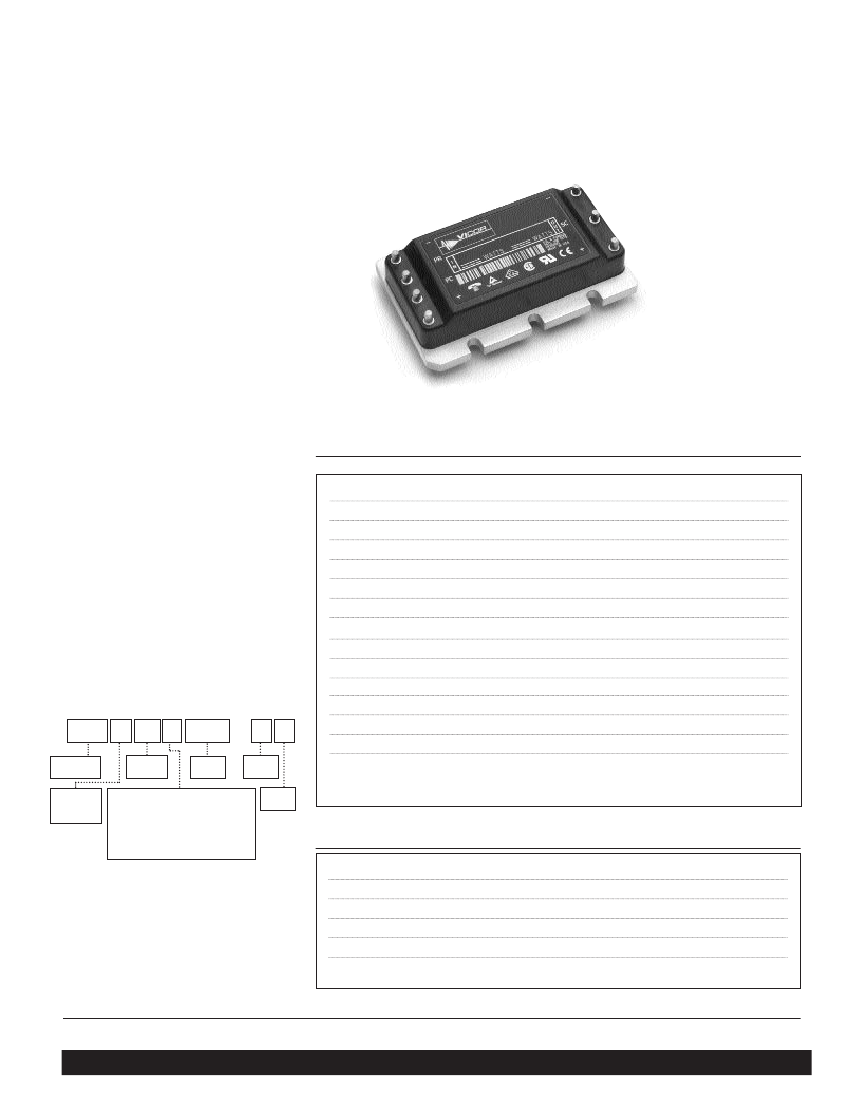

Shown actual size:

2.28 x 1.45 x 0.5 in

57,9 x 36,8 x 12,7 mm

Product Overview

This DC-DC converter module uses

second generation power processing, control

and packaging technologies to provide the

performance, flexibility and cost effectiveness

expected of a mature Power Component.

For example, a plated-cavity core transformer

couples widely separated primary and

secondary windings, resulting in low in-to-

out parasitic capacitance and noise.

High frequency ZCS/ZVS switching,

advanced power semiconductor packaging

and thermal management provide high

power density with low temperature

gradients. Extensive use of silicon

integration results in 1/3 the part count

of a first generation converter.

Absolute Maximum Ratings

Parameter

+In to –In voltage

PC to –In voltage

PR to –In voltage

+Out to –Out voltage

SC to –Out voltage

Isolation voltage (in to out)

Isolation voltage (in to base)

Isolation voltage (out to base)

Storage temperature (C-Grade)

Operating temperature (C-Grade)

Pin soldering temperature

Rating

-0.5 to +375

400

-0.5 to +7.0

-0.5 to +41.0

-0.5 to +1.5

3000

1550

500

-40 to +125

-20 to +100

500 (260)

750 (390)

5 (.57)

Unit

Vdc

Vrms

°C

°F (°C)

in-lbs (N-m)

See part numbering chart on this

page for other product grades.

Notes

<100ms

* Part Numbering

Baseplate

<5 sec; wave solder

<7 sec; hand solder

6 each, # 4-40 or M3

V 300 C 24 C 150 A

Input

Voltage

A = Maxi

B = Mini

C = Micro

Output

Voltage

Output

Power

Style

Base-

plate

Mounting torque

Product Grade Temperatures (°C)

Grade Storage

Operating

C =

40 to +125

20 to +100

T =

40 to +125

40 to +100

H =

55 to +125

40 to +100

M =

65 to +125

55 to +100

Thermal Resistance and Capacity

Parameter

Baseplate to sink; flat, greased surface

Baseplate to sink; thermal pad (P/N 20265)

Baseplate to ambient

Baseplate to ambient; 1000 LFM

Thermal capacity

Min

Typ

0.24

0.21

10.9

2.8

Max

Unit

°C/Watt

Watt-sec/°C

For pin styles see page 6. Slotted baseplate

(style 1) requires no designator. For

threaded baseplate add a “2” to the end of

the part number. For thru-hole, add a “3”.

See page 7 for dimensions.

Vicor Corporation

Tel: 800-735-6200 Fax: 978-475-6715 Data Sheet: V300C28C150A DC-DC Converter Date: 7-01 Rev. 3

Page 1 of 8

Set your site on VICOR at www.vicr.com

V300C28C150A2N Related Products

	V300C28C150A2N	V300C28C150A3L	V300C28C150A2L	V300C28C150A2S	V300C28C150A3S
Description	DC-DC Regulated Power Supply Module, 1 Output, 150W, Hybrid	DC-DC Regulated Power Supply Module, 1 Output, 150W, Hybrid	DC-DC Regulated Power Supply Module, 1 Output, 150W, Hybrid	DC-DC Regulated Power Supply Module, 1 Output, 150W, Hybrid	DC-DC Regulated Power Supply Module, 1 Output, 150W, Hybrid
Maker	VICOR	VICOR	VICOR	VICOR	VICOR
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	375 V	375 V	375 V	375 V	375 V
Minimum input voltage	180 V	180 V	180 V	180 V	180 V
Nominal input voltage	300 V	300 V	300 V	300 V	300 V
JESD-30 code	R-XUFM-P7	R-XUFM-P7	R-XUFM-P7	R-XUFM-P7	R-XUFM-P7
Maximum load regulation	0.3%	0.3%	0.3%	0.3%	0.3%
Number of functions	1	1	1	1	1
Output times	1	1	1	1	1
Number of terminals	7	7	7	7	7
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
Maximum output voltage	30.8 V	30.8 V	30.8 V	30.8 V	30.8 V
Minimum output voltage	2.8 V	2.8 V	2.8 V	2.8 V	2.8 V
Nominal output voltage	28 V	28 V	28 V	28 V	28 V
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	OTHER	OTHER	OTHER	OTHER	OTHER
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER
Maximum total power output	150 W	150 W	150 W	150 W	150 W
Fine-tuning/adjustable output	YES	YES	YES	YES	YES
