SB-218-38: DescriptionPerma-Sealâ¢ Ring Tongue Terminal for 14-16 AWG Wire, Stud Size 3/8; CategoryThe connector terminals; File Size100KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

SB-218-38 Overview

Perma-Sealâ¢ Ring Tongue Terminal for 14-16 AWG Wire, Stud Size 3/8

SB-218-38 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknow
ECCN code	EAR99
Terminal and terminal strip types	RING TERMINAL
Wire gauge	14 AWG

Preview

Download Datasheet

View All

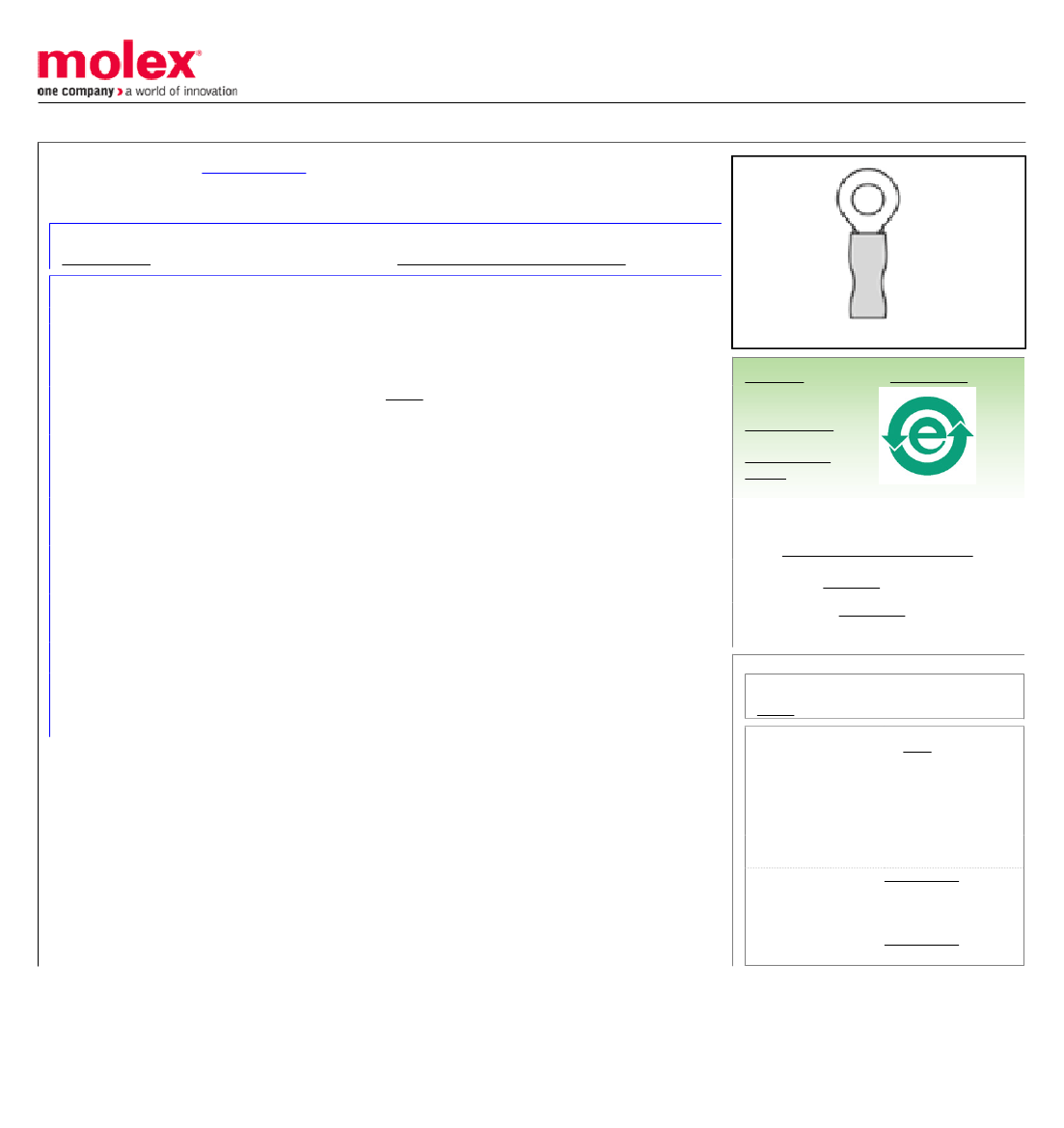

This document was generated on 04/12/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

Documents:

Drawing (PDF)

0191640020

Active

Perma-Seal™ Ring Tongue Terminal for 14-16 AWG Wire, Stud Size 3/8

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

LR18689

E32244

Series

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Crimp Quality Equipment

Mil-Spec

Product Name

Type

Ring and Spade Terminals

19164

Yes

N/A

Perma-Seal™

Ring

Physical

Barrel Type

Flammability

Insulation

Material - Plating Mating

Packaging Type

Stud Size

Wire Insulation Diameter

Wire Size AWG

Wire Size mm²

Closed

94V-2

NiAc™

Tin

Bag

3/8" (M9)

5.97mm (.235")

14, 16

1.23 - 1.94

Material Info

Old Part Number

SB-218-38

Search Parts in this Series

19164Series

SD-19164-026

Application Tooling

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Global

Description

Product #

Power Crimp Tool

0640057400

Head for Prema-

Seal™ Terminals

10-22 AWG

Hand Crimp Tool, UL 0640017400

Approved

Reference - Drawing Numbers

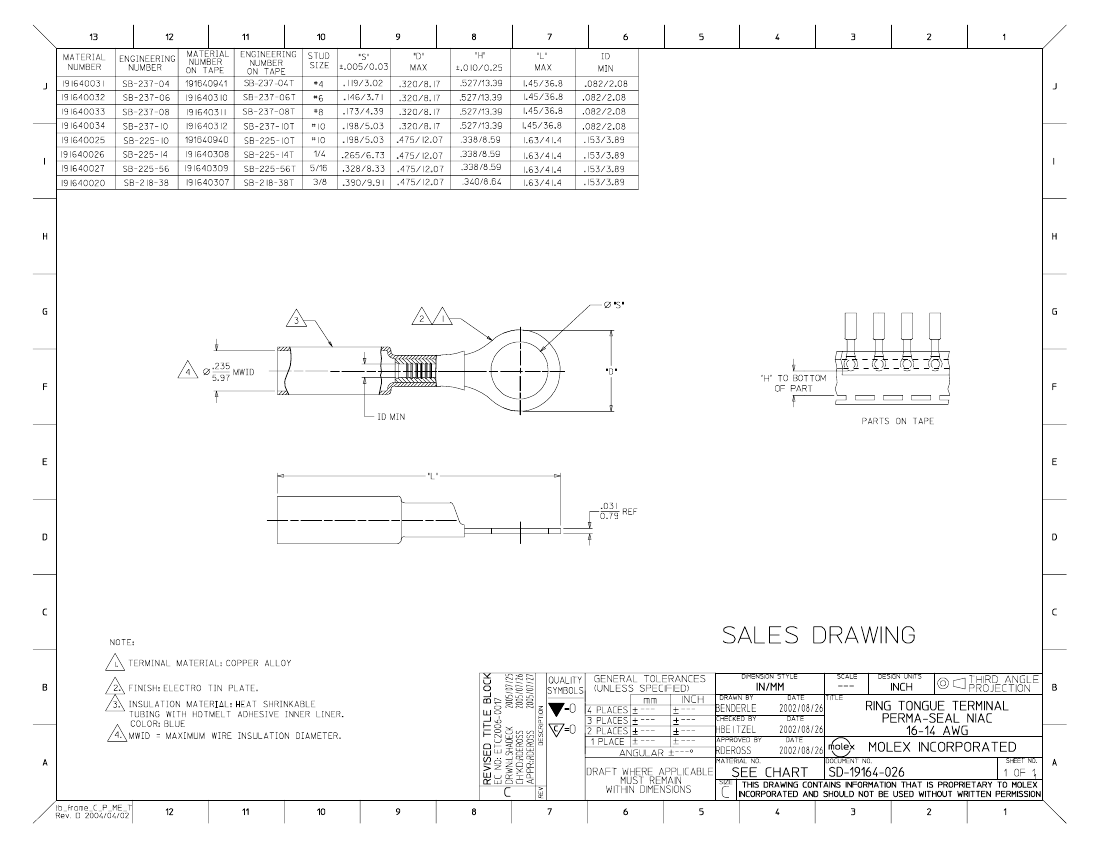

Sales Drawing

This document was generated on 04/12/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
