DD50S-OL2-A197 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DD50S-OL2-A197

DD50S-OL2-A197: DescriptionD Subminiature Connector, 50 Contact(s), Female, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size93KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/; Environmental Compliance

Download Datasheet Parametric View All

DD50S-OL2-A197 Overview

D Subminiature Connector, 50 Contact(s), Female, Solder Terminal, Receptacle,

DD50S-OL2-A197 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ITT
Reach Compliance Code	compliant
Other features	STANDARD: DIN 41652, PANEL MOUNT
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	YES
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	5/D
Termination type	SOLDER
Total number of contacts	50
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

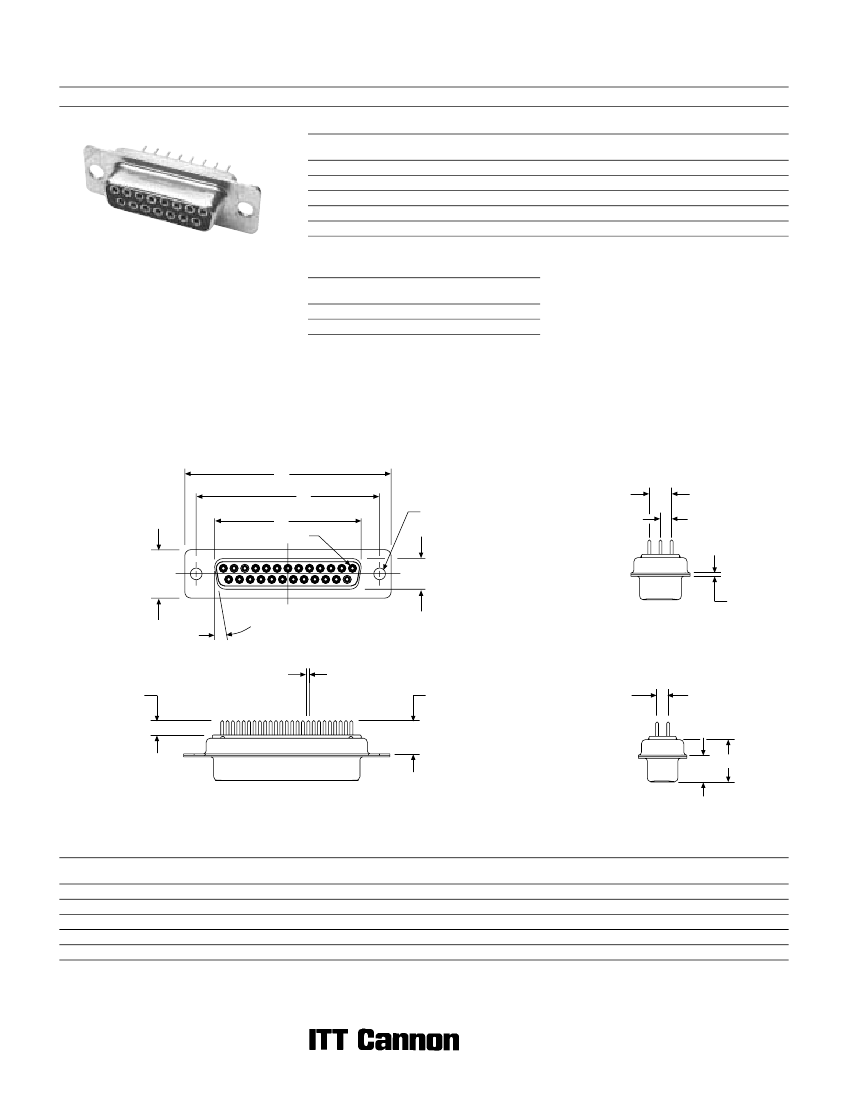

D Subminiature

Straight Solder Termination (Machined) — European PC Tails

Receptacle

Part Numbers

Shell Size

Layout

Through Hole

DE9S-0L2-A197

DA15S-0L2-A197

DB25S-0L2-A197

DC37S-0L2-A197

DD50S-0L2-A197

Standoff #4-40 UNC

With Pushfit/Boardlock

DEE9S-0L2-A197-146

DAE15S-0L2-A197-146

DBE25S-0L2-A197-146

DCE37S-0L2-A197-146

DDE50S-0L2-A197-146

Standoff M3 With

Pushfit/Boardlock

DEX9S-0L2-A197-146

DAX15S-0L2-A197-146

DBX25S-0L2-A197-146

DCX37S-0L2-A197-146

DDX50S-0L2-A197-146

Selection Guide

For Product Features, Specifications,

Materials and Finishes, see pages 2-3.

Reader’s Resource

For contact cavity arrangements,

see page 224.

For P.C. hole patterns, see page 274.

For panel cutouts, see page 221.

For hardware views (European),

see page 227.

Note: For performance class 2 add -A191. Example DA15S-0L2-A191-A197

PC Tail

Modifier

OL2

OL4

±0,30

(.012)

5,20 (.205)

6,75 (.266)

±0,30

(.012)

10,20 (.401)

11,80 (.465)

Engaging Face

DD Configuration

POSITION 1

Ø 3,05

(.120)

5,69 (.224)

2,84 (.112)

10°

Ø 0,60 (.024)

2,84 (.112)

Dimensions

Shell Size

±0,38

(.015)

30,81 (1.213)

39,14 (1.541)

53,04 (2.088)

69,32 (2.729)

66,93 (2.635)

±0,13

(.005)

16,33 (.643)

24,66 (.971)

38,38 (1.511)

54,84 (2.159)

52,42 (2.064)

±0,13

(.005)

24,99 (.984)

33,32 (1.312)

47,04 (1.852)

63,50 (2.500)

61,11 (2.406)

±0,13

(.005)

7,90 (.311)

10,74 (.423)

±0,38

(.015)

12,55 (.494)

15,37 (.605)

±0,25

(.010)

10,90 (.429)

±0,38

(.015)

6,94 (.273)

±0,25

(.010)

0,76 (.030)

Dimensions are shown in mm (inch)

Dimensions subject to change
