ZDD50SOL2

Description
D Subminiature Connector, 50 Contact(s), Female, Solder Terminal, Receptacle,
CategoryThe connector    The connector
File Size53KB,1 Pages
ManufacturerITT
Websitehttp://www.ittcannon.com/
Download Datasheet Parametric Compare View All

ZDD50SOL2 Overview

D Subminiature Connector, 50 Contact(s), Female, Solder Terminal, Receptacle,

ZDD50SOL2 Parametric

Parameter NameAttribute value
MakerITT
Reach Compliance Codecompliant
Other featuresPANEL MOUNTABLE
Body/casing typeRECEPTACLE
Connector typeD SUBMINIATURE CONNECTOR
Contact point genderFEMALE
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
insulator materialGLASS FILLED POLYETHYLENE
MIL complianceNO
Mixed contactsNO
Installation typeBOARD
OptionsGENERAL PURPOSE
Shell surfaceTIN
Shell materialSTEEL
Housing size5/D
Termination typeSOLDER
Total number of contacts50
UL Flammability Code94V-0

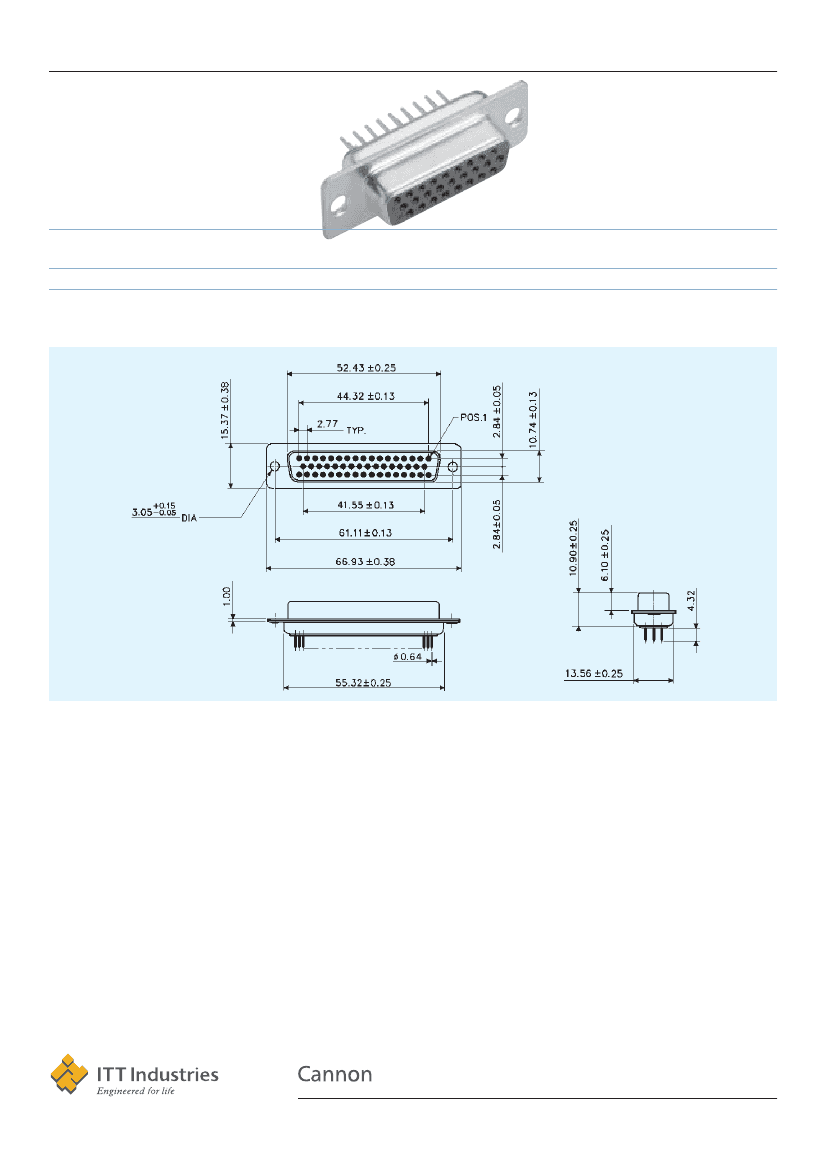

ZDD50SOL2 Preview

ZD Connectors
Receptacle 50 contacts
ZD* OL2 Staight PCB
Designation
Shell size /
Arrangement
D / 50
Through hole
ZDD50SOL2
Rivnut
thread 4 - 40
ZDDE50SOL2
Screwlock
thread 4 - 40
ZDDE50SOL2-AB
Boardlock and thread
4 - 40
ZDDE50SOL2-146
Boardlock and
screwlock 4 - 40
ZDDE50SOL2-AB-146
Note: Class 2 - Add suffix A191
Example: ZDD50SOL2-A191
Mounting options
PCB hole pattern
Panel cut outs
see page 44
see page 40
see page 45
Dimensions are shown in mm
Dimensions subject to change
25
www.ittcannon.com

ZDD50SOL2 Related Products

ZDD50SOL2 ZDDE50SOL2 ZDDE50SOL2-AB
Description D Subminiature Connector, 50 Contact(s), Female, Solder Terminal, Receptacle, D Subminiature Connector, 50 Contact(s), Female, Solder Terminal, Receptacle, D Subminiature Connector, 50 Contact(s), Female, Solder Terminal, Receptacle,
Maker ITT ITT ITT
Reach Compliance Code compliant compliant compliant
Other features PANEL MOUNTABLE PANEL MOUNTABLE PANEL MOUNTABLE
Body/casing type RECEPTACLE RECEPTACLE RECEPTACLE
Connector type D SUBMINIATURE CONNECTOR D SUBMINIATURE CONNECTOR D SUBMINIATURE CONNECTOR
Contact point gender FEMALE FEMALE FEMALE
DIN compliance NO NO NO
empty shell NO NO NO
Filter function NO NO NO
IEC compliance NO NO NO
insulator material GLASS FILLED POLYETHYLENE GLASS FILLED POLYETHYLENE GLASS FILLED POLYETHYLENE
MIL compliance NO NO NO
Mixed contacts NO NO NO
Installation type BOARD BOARD BOARD
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Shell surface TIN TIN TIN
Shell material STEEL STEEL STEEL
Housing size 5/D 5/D 5/D
Termination type SOLDER SOLDER SOLDER
Total number of contacts 50 50 50
UL Flammability Code 94V-0 94V-0 94V-0
Manufacturer's serial number - ZD ZD
