REVISION U
NOTES:
1.
REPRESENTS A CRITICAL DIMENSION.
2. MINIMUM PUSHOUT FORCE: .5 LB.
C
3. COPLANARITY: .004[0.10] = POS 05 THRU 26
.006[0.15] = POS 27 THRU 50
4. TUBE ALL POSITIONS. PARTS TO BE TUBED WITH
NOTCH GOING WITH ARROW.
5. PINS CAN BE ORIENTED IN ANY DIRECTION;
BOTH ROWS MUST FACE SAME WAY.
6. SEE NOTCH FOR PROPER ORIENTATION.
7. MAXIMUM PIN HEIGHT VARIATION: .003[0.08].
8. DUE TO HIGH AMOUNT OF INSERTION FORCE
NEEDED, THE -LC OPTION IS NOT COMPATIBLE WITH
AUTO PLACEMENT. SAMTEC RECOMMENDS MANUAL
PLACEMENT FOR ALL ASSEMBLIES WITH THE -LC OPTION.
C
SFC-1XX-XX-XX-D-XX
No OF POSITIONS
ALL POSITIONS AVAILABLE
-02 THRU -50
OPTIONS
(LEAVE BLANK FOR STANDARD
AND USE SFM-XX-D)
-A: ALIGNMENT PIN (USE SFM-XX-D-A)
(SEE FIG 4, SHT 2)
-LC: LOCKING CLIP (SEE FIG 6, SHT 3 & NOTE 8)
(USE SFM-XX-D-LC)
-TR: TAPE & REEL (SEE SHT 4)
-K: POLYIMIDE FILM PAD (.005[0.13] THICKNESS)
(SEE FIG 3, SHT 2) (USE K-DOT-.157-.250-.005)
DO NOT
SCALE FROM
THIS PRINT
LEAD STYLE
-T1: THROUGH HOLE
(SEE FIG. 1, SHT. 1)
-T2: SURFACE MOUNT
(SEE FIG. 2, SHT. 2)
.145 3.68 REF
.020 0.51 REF
.080 2.03 REF
.120 3.05 REF
.050 1.27 REF
BODY SPECIFICATION
-D: DOUBLE ROW
PLATING SPECIFICATION
-F: 3µ" FLASH SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-L: 10µ" LIGHT SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-FM: 3µ" FLASH SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-LM: 10µ" LIGHT SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
02
C
L
C
L
01
.050 1.27 REF
(NO. OF POS x .050[1.27]) + .015[0.38] REF
"A"
C
L
(NO. OF POS x .050[1.27]) + .155[3.94] REF
SFM-XX-D-XX
C-119-01-XX
(SEE NOTE 5)
.110 2.79 REF
.180 4.57 REF
C
.015 0.38 REF
.120 3.05
(SEE TABLE 1)
C
L
2 MAX SWAY (TYP)
.050 1.27
C
"A"
1 MAX
SWAY (TYP)
.020 0.51 REF
(NO. OF POS x .050[1.27]) - .050[1.27] REF
C
.005 0.13 REF
SECTION "A"-"A"

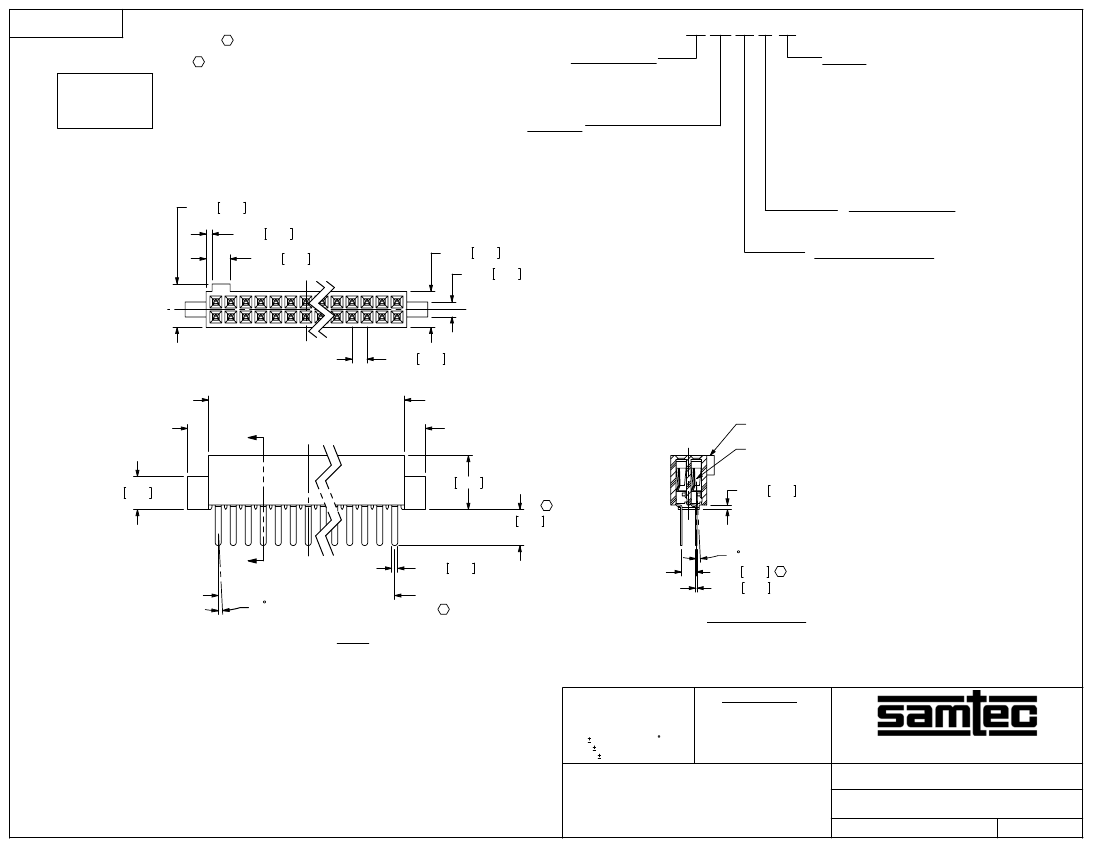

THROUGH HOLE/STRAIGHT MODIFIED
FIG 1
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 3:1
INSULATOR: LCP, COLOR: BLACK
CONTACT: PHOSPHOR BRONZE
.050 x .050 SOCKET STRIP DOUBLE ROW ASSEMBLY
F:\DWG\MISC\MKTG\SFC-1XX-XX-XX-D-XX-MKT.SLDDRW
BY:
BRATCHER 5/25/01
SFC-1XX-XX-XX-D-XX
SHEET
1
OF
3
REVISION U
C-119-02-XX
02
(NO. OF POS x .050[1.27]) - .050[1.27] REF
(TOL ACCUM ±.005[0.13] OVER 50 POS)
+.005
C
.190
- .002
4.83
- 0.05
+0.13
01
2 MAX SWAY (TYP)
C
IN-PROCESS
-T2
FOR HAND FILL ONLY
NOTE: DIMENSION APPLIES PRIOR
TO RE-PRESS, SEE SECTION "B-B"
FOR FINISHED DIMENSION
"B"
SFM-XX-D-XX
C
.185
- .005
4.70
- 0.127
(SEE NOTE 7)
+.002
+0.051
4°
SEE NOTE 3
2°
"B"

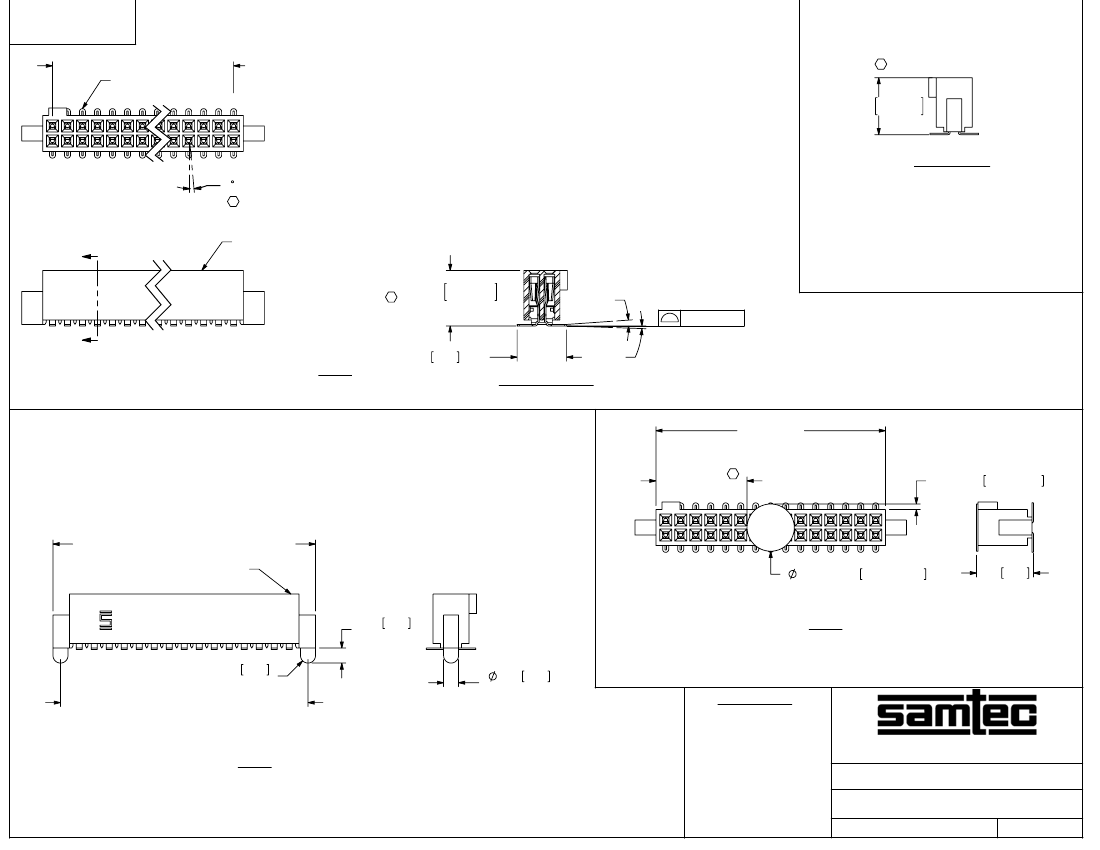

-T2: SURFACE MOUNT
(SAME AS FIG 1, DIFFERENT AS SHOWN)
FIG 2
.165 4.19 REF
SECTION "B"-"B"
"R"
(SEE NOTE)
C
"S"
(SEE NOTE)
.019±.010 0.48±0.254
(NO. OF POS x .050[1.27]) + .125[3.18] REF
SFM-XX-D-A
.1575±.0050 4.000±0.127
.190 4.83
.050 1.27
REF
R.025 0.64
REF
(NO. OF POS x .050[1.27]) + .075[1.91] REF
.050 1.27
REF
-K: POLYIMIDE FILM PAD
(SAME AS FIG 2, DIFFERENT AS SHOWN)
NOTE: "R" = USED MEASURED DIMENSION REF
"S" = {("R" - .1575[4.000])/2}±.020[0.51]
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
FIG 3
-A: ALIGNMENT PIN
(SAME AS FIG 2, DIFFERENT AS SHOWN)
FIG 4
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 3:1
.050 x .050 SOCKET STRIP DOUBLE ROW ASSEMBLY
F:\DWG\MISC\MKTG\SFC-1XX-XX-XX-D-XX-MKT.SLDDRW
BY:
BRATCHER 5/25/01
SFC-1XX-XX-XX-D-XX
SHEET
2
OF
3
REVISION U
SFM-XX-D-LC
.630 16.00
C
.065 1.65
.056 1.42 REF
(NO OF POS x .050[1.27] + .075[1.91] REF
.010 0.25 REF
LC-05-TM
-LC: LOCKING CLIP
(SAME AS FIG 2, DIFFERENT AS SHOWN)
FIG 6
2.205 56.00
"D"
"D"
PT-SFM004-X1-X3-D
UNWINDING DIRECTION
(SEE NOTE 6)
PT-SFM004-X1-X3-D
SECTION "D"-"D"
SCALE 2 : 1
PACKAGING VIEW

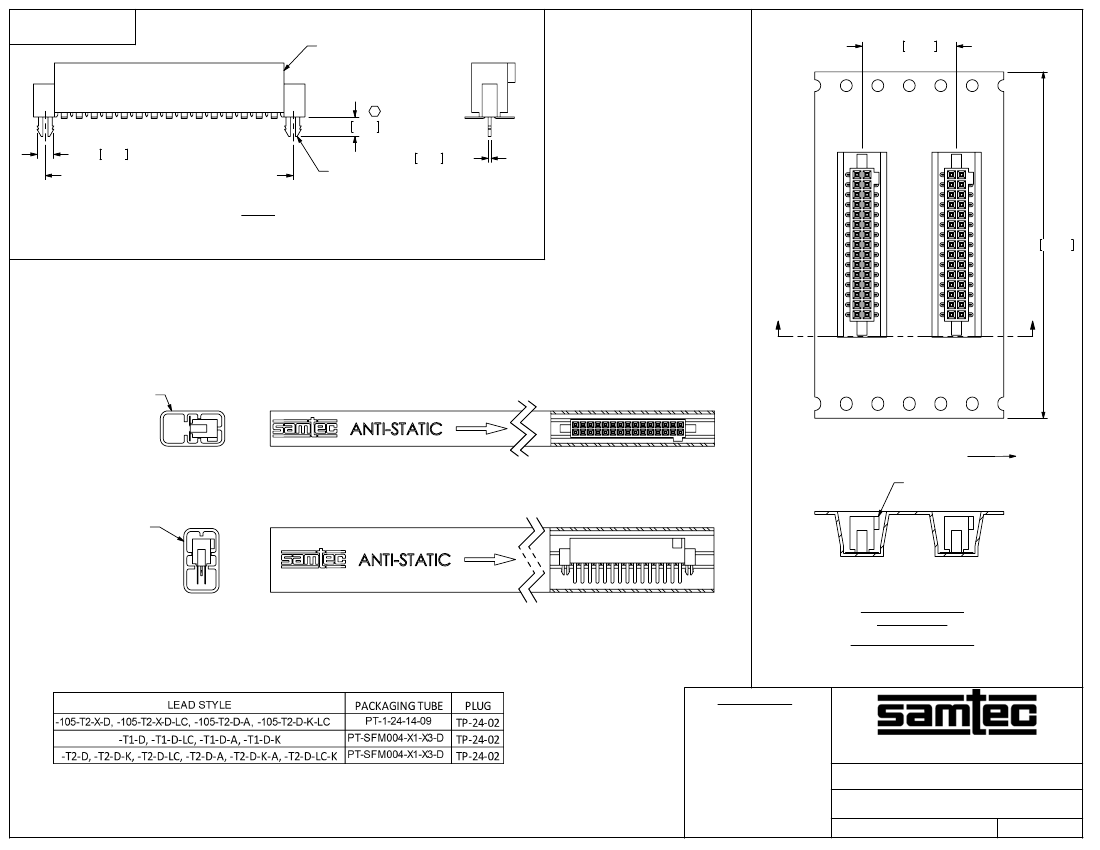

-TR: TAPE AND REEL
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 3:1
.050 x .050 SOCKET STRIP DOUBLE ROW ASSEMBLY
5 POS -T1 LEAD STYLE MAY BE TUBED USING
PT-1-24-15-09, TP-24-02
SFC-1XX-XX-XX-D-XX
SHEET
3
OF
3
F:\DWG\MISC\MKTG\SFC-1XX-XX-XX-D-XX-MKT.SLDDRW
BY:
BRATCHER 5/25/01
