DG188AL/883: DescriptionSPDT, 1 Func, 1 Channel, JFET, FP-14; CategoryAnalog mixed-signal IC The signal circuit; File Size330KB，7 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

DG188AL/883 Overview

SPDT, 1 Func, 1 Channel, JFET, FP-14

DG188AL/883 Parametric

Parameter Name	Attribute value
Maker	Vishay
Parts packaging code	DFP
package instruction	DFP,
Contacts	14
Reach Compliance Code	unknown
Other features	FAULT PROTECTED
Analog Integrated Circuits - Other Types	SPDT
JESD-30 code	R-XDFP-F14
length	8.89 mm
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	1
Number of functions	1
Number of terminals	14
Nominal off-state isolation	50 dB
Maximum on-state resistance (Ron)	75 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	UNSPECIFIED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
Certification status	Not Qualified
Maximum seat height	2.54 mm
Maximum supply current (Isup)	0.8 mA
Nominal supply voltage (Vsup)	15 V
surface mount	YES
Maximum disconnect time	130 ns
Maximum connection time	250 ns
technology	JFET
Temperature level	MILITARY
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
width	6.35 mm

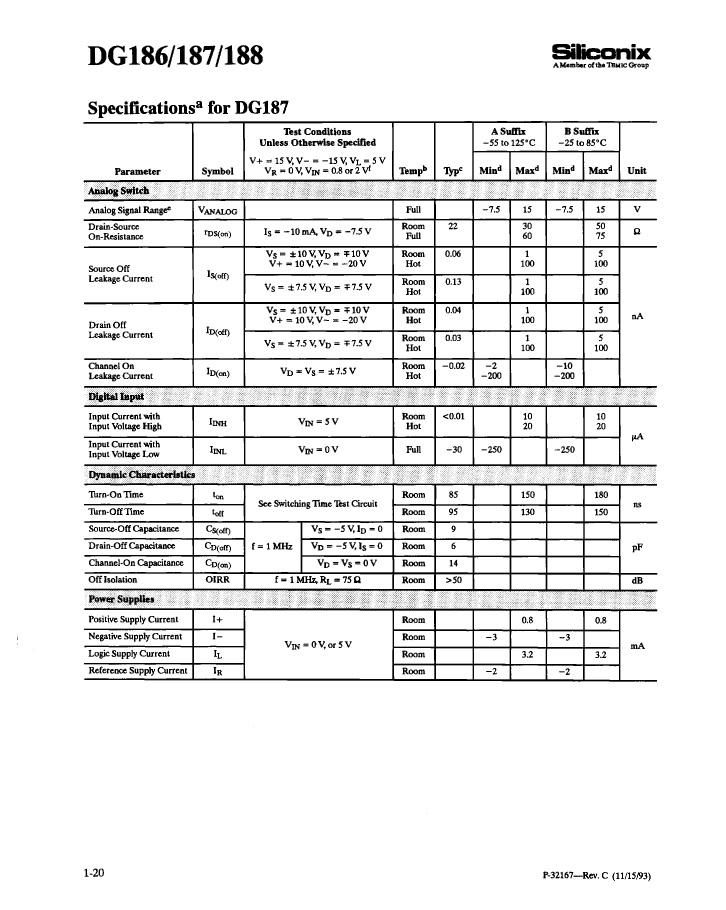

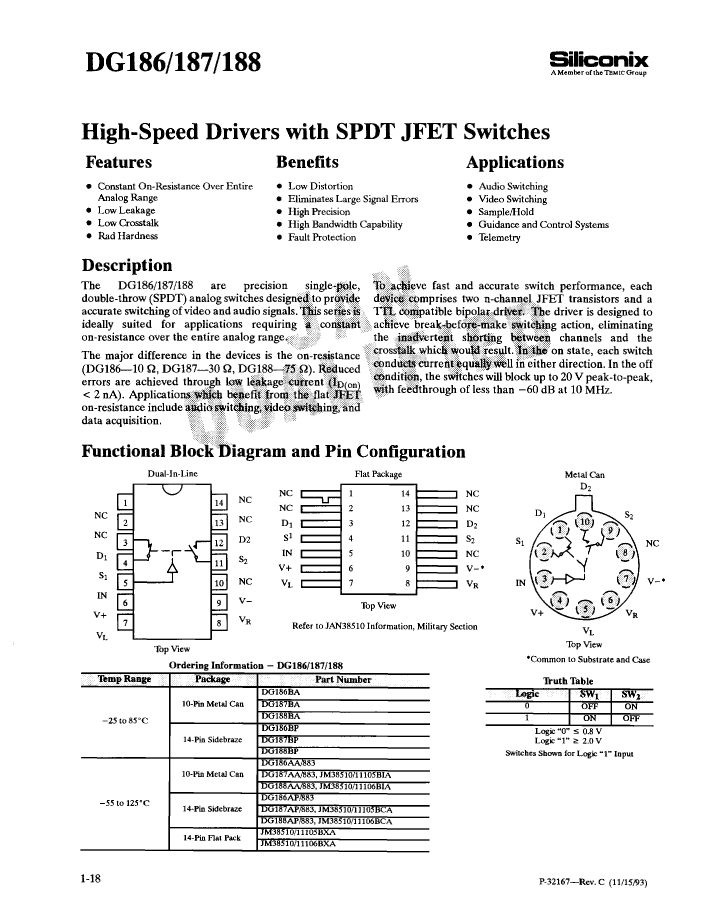

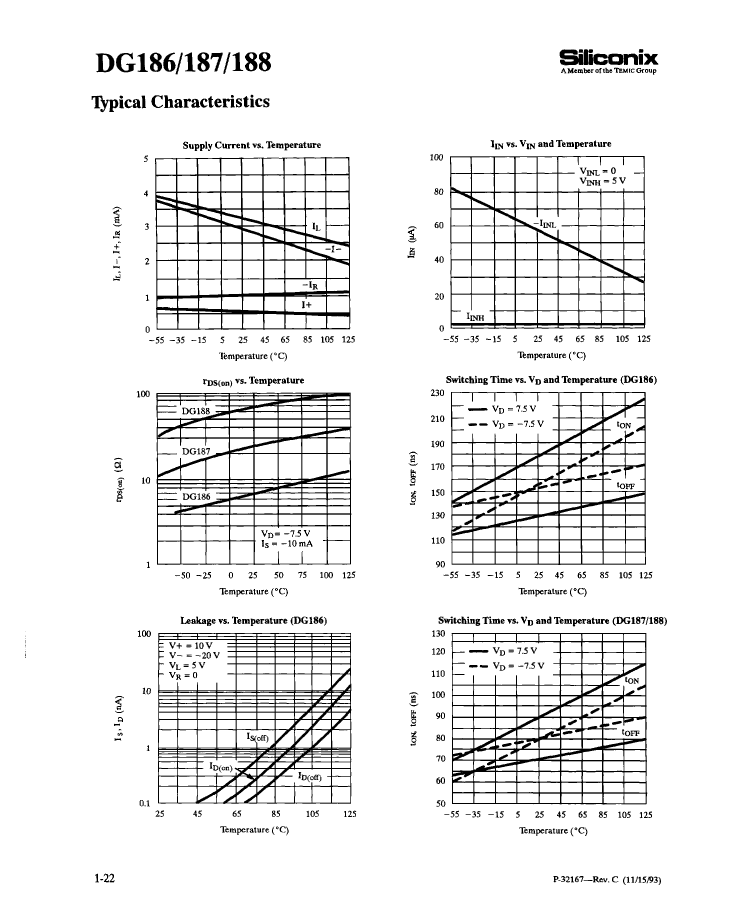

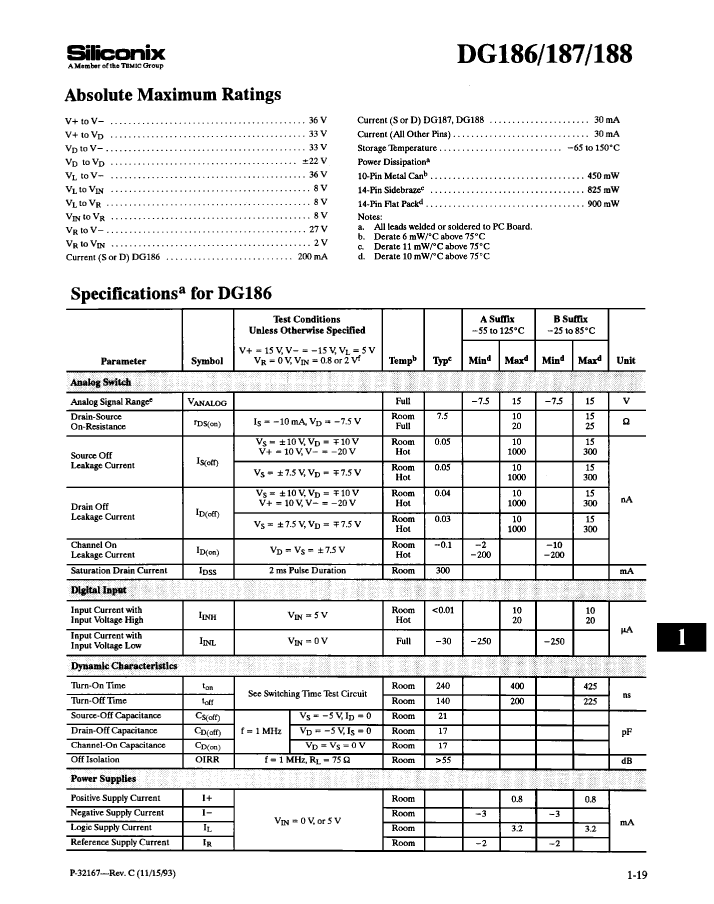

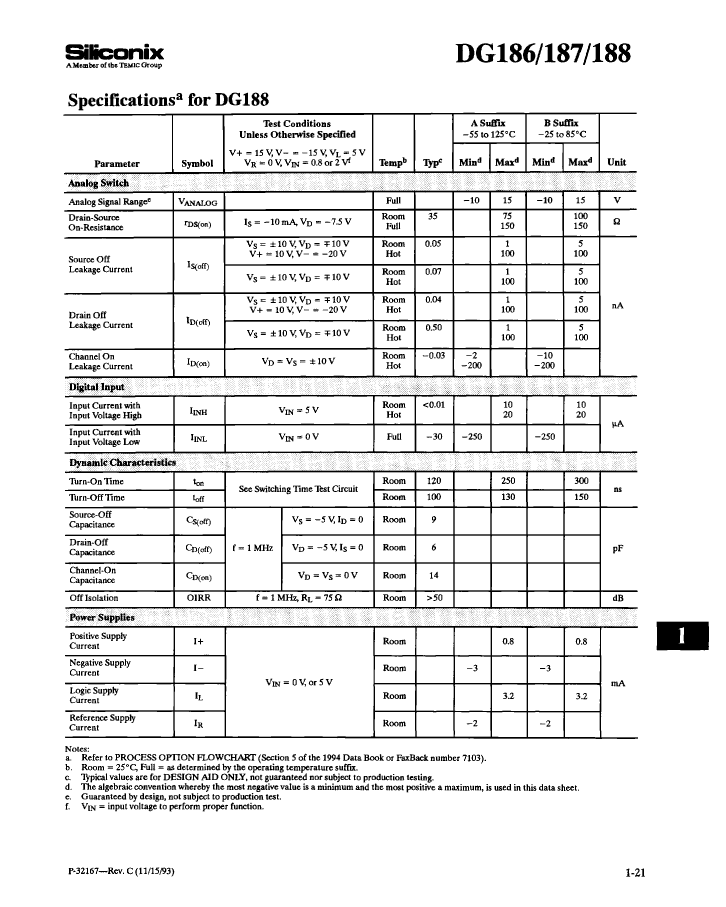

Preview

Download Datasheet

View All

DG188AL/883 Related Products

	DG188AL/883	DG187BA	DG186BP	DG187BP	DG188BA	DG186BA	DG187AL/883	DG188BP
Description	SPDT, 1 Func, 1 Channel, JFET, FP-14	SPDT, 1 Func, MBCY10,	SPDT, 1 Func, CDIP14,	SPDT, 1 Func, CDIP14,	SPDT, 1 Func, MBCY10,	SPDT, 1 Func, MBCY10,	SPDT, 1 Func, CDFP14	SPDT, 1 Func, CDIP14,
Parts packaging code	DFP	SMT	DIP	DIP	SMT	SMT	DFP	DIP
package instruction	DFP,	, CAN10,.23	DIP, DIP14,.3	DIP, DIP14,.3	, CAN10,.23	, CAN10,.23	DFP,	DIP, DIP14,.3
Contacts	14	10	14	14	10	10	14	14
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
Analog Integrated Circuits - Other Types	SPDT	SPDT	SPDT	SPDT	SPDT	SPDT	SPDT	SPDT
JESD-30 code	R-XDFP-F14	O-MBCY-W10	R-XDIP-T14	R-XDIP-T14	O-MBCY-W10	O-MBCY-W10	R-XDFP-F14	R-XDIP-T14
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	14	10	14	14	10	10	14	14
Maximum operating temperature	125 °C	85 °C	85 °C	85 °C	85 °C	85 °C	125 °C	85 °C
Minimum operating temperature	-55 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-55 °C	-20 °C
Package body material	UNSPECIFIED	METAL	CERAMIC	CERAMIC	METAL	METAL	UNSPECIFIED	CERAMIC
Package shape	RECTANGULAR	ROUND	RECTANGULAR	RECTANGULAR	ROUND	ROUND	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	CYLINDRICAL	IN-LINE	IN-LINE	CYLINDRICAL	CYLINDRICAL	FLATPACK	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Temperature level	MILITARY	OTHER	OTHER	OTHER	OTHER	OTHER	MILITARY	OTHER
Terminal form	FLAT	WIRE	THROUGH-HOLE	THROUGH-HOLE	WIRE	WIRE	FLAT	THROUGH-HOLE
Terminal location	DUAL	BOTTOM	DUAL	DUAL	BOTTOM	BOTTOM	DUAL	DUAL
Maker	Vishay	-	Vishay	-	-	Vishay	Vishay	Vishay
encapsulated code	DFP	-	DIP	DIP	-	-	DFP	DIP
surface mount	YES	-	NO	NO	-	-	YES	NO
Terminal pitch	1.27 mm	-	2.54 mm	2.54 mm	-	-	1.27 mm	2.54 mm
Is it lead-free?	-	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	-	Contains lead
Is it Rohs certified?	-	incompatible	incompatible	incompatible	incompatible	incompatible	-	incompatible
JESD-609 code	-	e0	e0	e0	e0	e0	-	e0
Encapsulate equivalent code	-	CAN10,.23	DIP14,.3	DIP14,.3	CAN10,.23	CAN10,.23	-	DIP14,.3
switch	-	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	-	BREAK-BEFORE-MAKE
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)
