SPECIFICATION FOR APPROVAL
REF :
PROD.
NAME
PAGE: 1
WOUND CHIP INDUCTOR
ABC'S DWG NO.
ABC'S ITEM NO.
SL1608□□□□L□-□□□

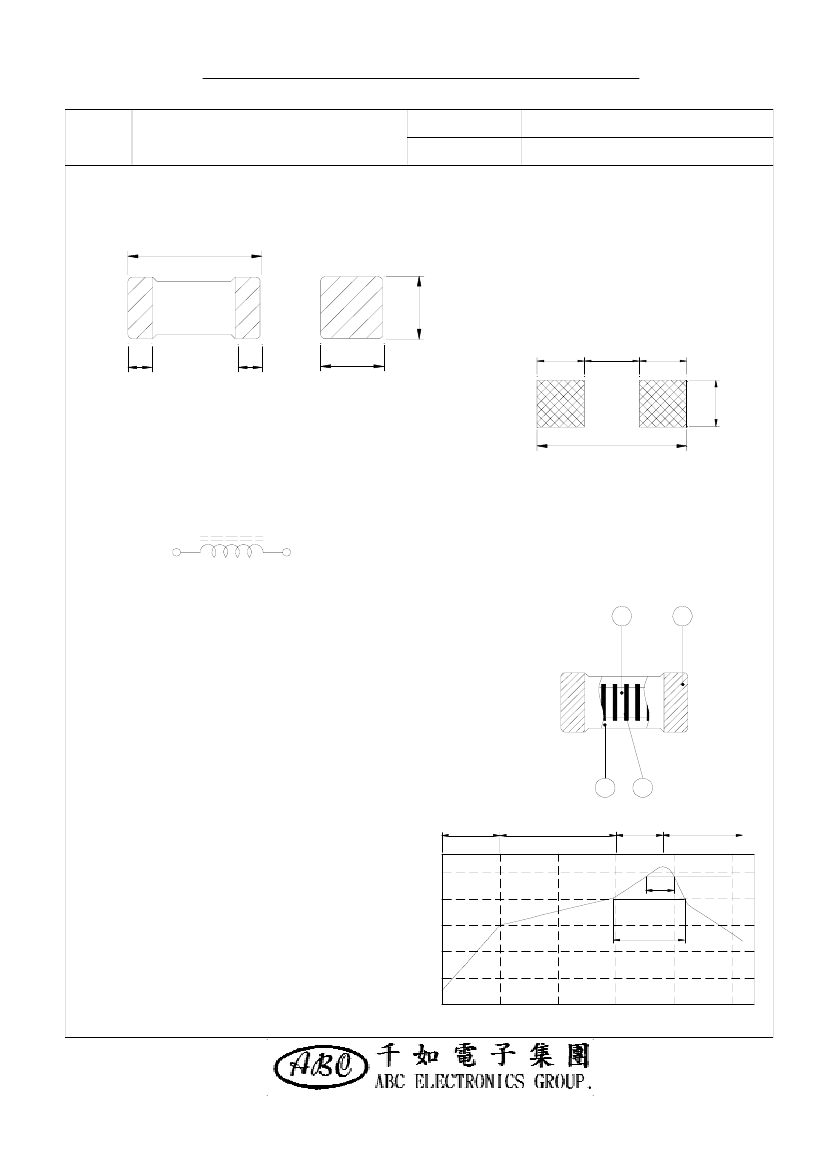

Ⅰ﹒CONFIGURATION
& DIMENSIONS：
A
B
C
D
C
:
:
:
:
0.9
A
1.6±0.2
0.8±0.2
0.8±0.2
0.4 typ.
0.9
0.9
m/m
m/m
m/m
m/m
D
D
B
2.7
( PCB Pattern )
Ⅱ﹒SCHEMATIC
DIAGRAM：
Ⅲ﹒MATERIALS：
a﹒Core：Ceramic
b﹒Wire
：Copper
c﹒Terminal：Solder coat over Ni plate (Lead content 100ppm max.)
d﹒Coating：Epoxy resin
e﹒Remark：Products comply with RoHS'
requirements
Peak Temp：260℃ max.
Max time above 230℃
：50sec
max.
Max time above 200℃
：70sec
max.
a
c
d
b
Reflow Area
+2.0 ~ 4.0
℃
/ sec max.
Forced Cooling Area
-(1.0 ~ 5.0)
℃
/ sec max.
Peak Temperature:
260
℃
50sec max.
230
℃
Ⅳ﹒GENERAL
SPECIFICATION：
a﹒Temp rise
：15℃
max
b﹒Rated current：Current cause inductance
c﹒Storage temp.：-40℃ ----+125℃
d﹒Operating temp.：-40℃----+105℃
e﹒Resistance to solder heat：260℃.10 secs.
Temperature (
℃
)
250
200
150
Temperature
Rising Area
+4.0
℃
/ sec max.
Preheat Area
150 ~ 200
℃
/ 60 ~ 120sec
drop within 10% max.
70sec max.
100
50
0
50
100
150
Time ( seconds )
200
0.9
250
AR-001A
SPECIFICATION FOR APPROVAL
REF :
PROD.
NAME
PAGE: 2
WOUND CHIP INDUCTOR
ABC'S DWG NO.
ABC'S ITEM NO.
SL1608□□□□L□-□□□
Ⅴ﹒ELECTRICAL
CHARACTERISTICS
：
DWG No.
SL16081N0ML□ -□□□
SL16081N2ML□ -□□□
SL16081N5ML□ -□□□
SL16081N8ML□ -□□□
SL16082N2ML□ -□□□
SL16082N7ML□ -□□□
SL16083N3ML□ -□□□
SL16083N9JL□ -□□□
SL16084N7JL□ -□□□
SL16085N6JL□ -□□□
SL16086N8JL□ -□□□
SL16088N2JL□ -□□□
SL160810NJL□ -□□□
SL160812NJL□ -□□□
SL160815NJL□ -□□□
SL160818NJL□ -□□□
SL160822NJL□ -□□□
SL160827NJL□ -□□□
SL160833NJL□ -□□□
SL160839NJL□ -□□□
SL160847NJL□ -□□□
SL160856NJL□ -□□□
SL160868NJL□ -□□□
SL160882NJL□ -□□□
SL1608R10JL□ -□□□
SL1608R12JL□ -□□□
SL1608R15JL□ -□□□
SL1608R18JL□ -□□□
SL1608R22JL□ -□□□
Inductance
( nH )
1.0±20%
1.2±20%
1.5±20%
1.8±20%
2.2±20%
2.7±20%
3.3±20%
3.9± 5%
4.7± 5%
5.6± 5%
6.8± 5%
8.2± 5%
10.0± 5%
12.0± 5%
15.0± 5%
18.0± 5%
22.0± 5%
27.0± 5%
33.0± 5%
39.0± 5%
47.0± 5%
56.0± 5%
68.0± 5%
82.0± 5%
100.0± 5%
120.0± 5%
150.0± 5%
180.0± 5%
220.0± 5%
Q
min
7
7
8
8
8
8
9
9
9
9
9
9
10
10
10
10
10
10
10
11
11
12
12
12
12
5
5
4
4
Test Freq. ( MHz )
L
Q
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
25.2
25.2
25.2
25.2
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
25.2
25.2
25.2
25.2
SRF
( MHz )
min
6000
6000
6000
6000
6000
6000
5500
5500
4800
4600
3550
3500
2800
2800
2500
2300
2000
2000
1800
1800
1800
1800
1500
1500
1300
1200
1100
1000
900
RDC
(
Ω
)
max
0.05
0.06
0.07
0.08
0.09
0.10
0.12
0.15
0.17
0.18
0.20
0.28
0.32
0.35
0.41
0.45
0.50
0.55
0.60
0.80
0.95
1.20
1.30
1.50
1.80
3.00
4.50
6.50
7.50
IDC
( mA )
max
500
500
500
500
500
500
500
450
450
430
430
400
400
400
350
350
300
300
300
300
250
250
250
250
200
130
100
80
70
1).
□：Packaging
Information… A：Bulk B：Taping Reel
2)."-
□□□
":Reference code
AR-001A
SPECIFICATION FOR APPROVAL
REF :
PROD.
NAME
PAGE: 3
WOUND CHIP INDUCTOR
ABC'S DWG NO.
ABC'S ITEM NO.
SL1608□□□□L□-□□□

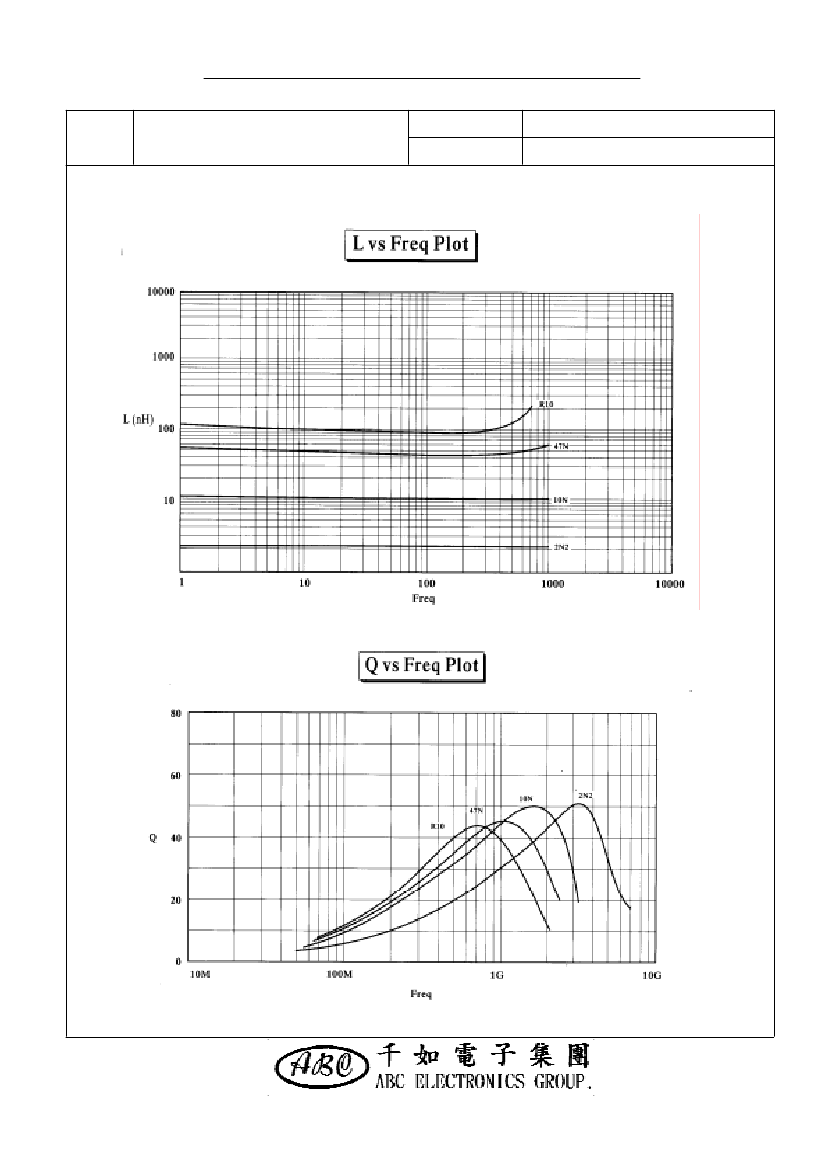

Ⅵ﹒CURVE：
AR-001A
SPECIFICATION FOR APPROVAL
REF :
PROD.
NAME
PAGE: 4
WOUND CHIP INDUCTOR
ABC'S DWG NO.
ABC'S ITEM NO.
SL1608□□□□L□-□□□
Ⅶ﹒PACKAGING
INFORMATION：

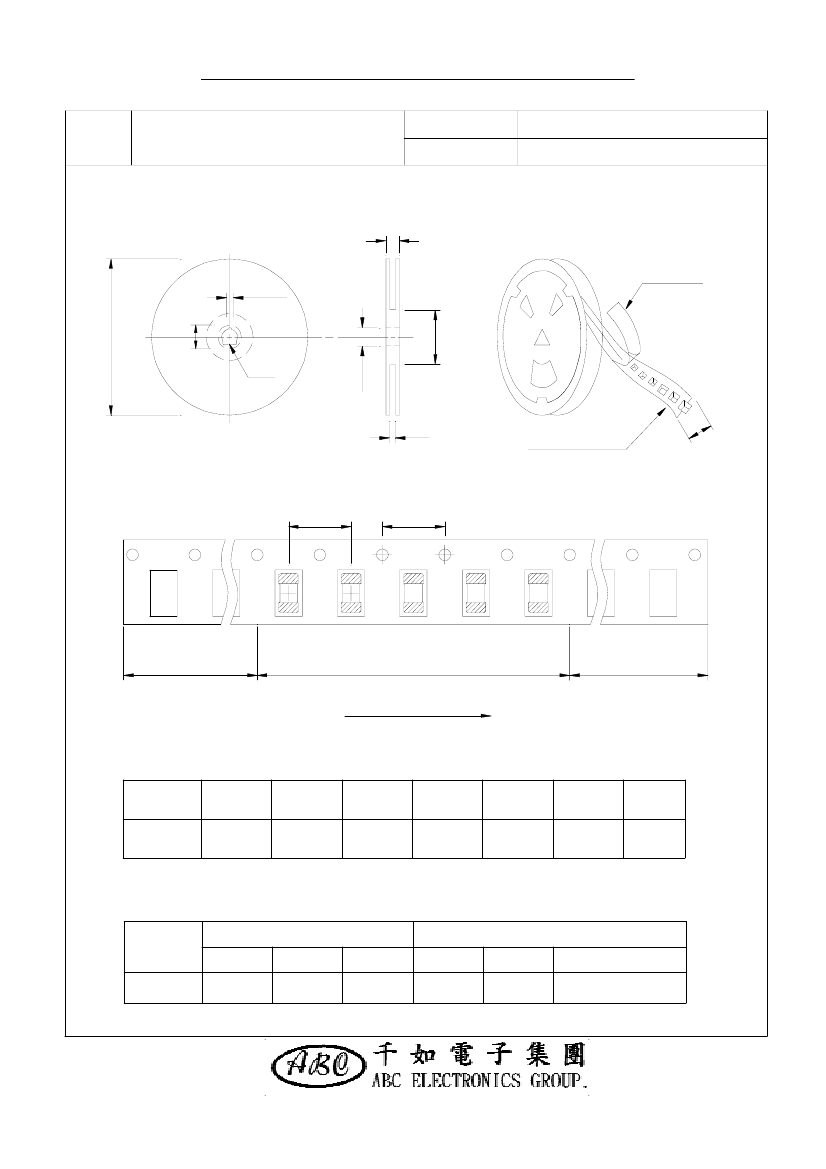

( 1 ) Configuration
T
Cover Tape
2.0±0.5
A
∮
C
∮
C
N
B
G
D
Emobossed Carrier
※
Carrier tape width : D
P:4 m/m
4 m/m
End
Start
Leader
no component
200 m/m min.
Components
User direction of feed
Trailer
no component
400 m/m min.
( 2 ) Dimensions
Style
07 - 08
A
178
B
21±0.8
C
13
D
8
G
10
+0
N
50
-0
Unit:m/m
T
12.5
( 3 ) Q'TY & G.W. Per package
Inner : Reel
Series
SL1608
Q'TY (pcs)
G.W. (gw)
Style
Q'TY (pcs)
Outer : Carton
G.W. (Kg)
Size (cm)
3,000
100
07 - 08
150,000
5.50
41 x 39 x 22
AR-001A
SPECIFICATION FOR APPROVAL
REF :
PROD.
NAME
PAGE: 5
WOUND CHIP INDUCTOR
ABC'S DWG NO.
ABC'S ITEM NO.
SL1608□□□□L□-□□□
Ⅷ﹒DWGING
NUMBER EXPRESSION：
S
L
1
6
0
8
Reference code
Appendix code 2 : Package
Appendix code 1 : Classification
Tolerance code
Electrical code
Dimension code
Type code
Appendix code 1：Product Classification
L：Lead Free Standard products comply with RoHS' requirements
1 ~ 9：Lead Free Special products comply with RoHS' requirements
Appendix code 2：Package Information
Code
A
B
Inner package
T.B.D.
T / R ( Reel package )
Inner package Q'TY
T.B.D.
3000
pcs
Remark
AR-001A
