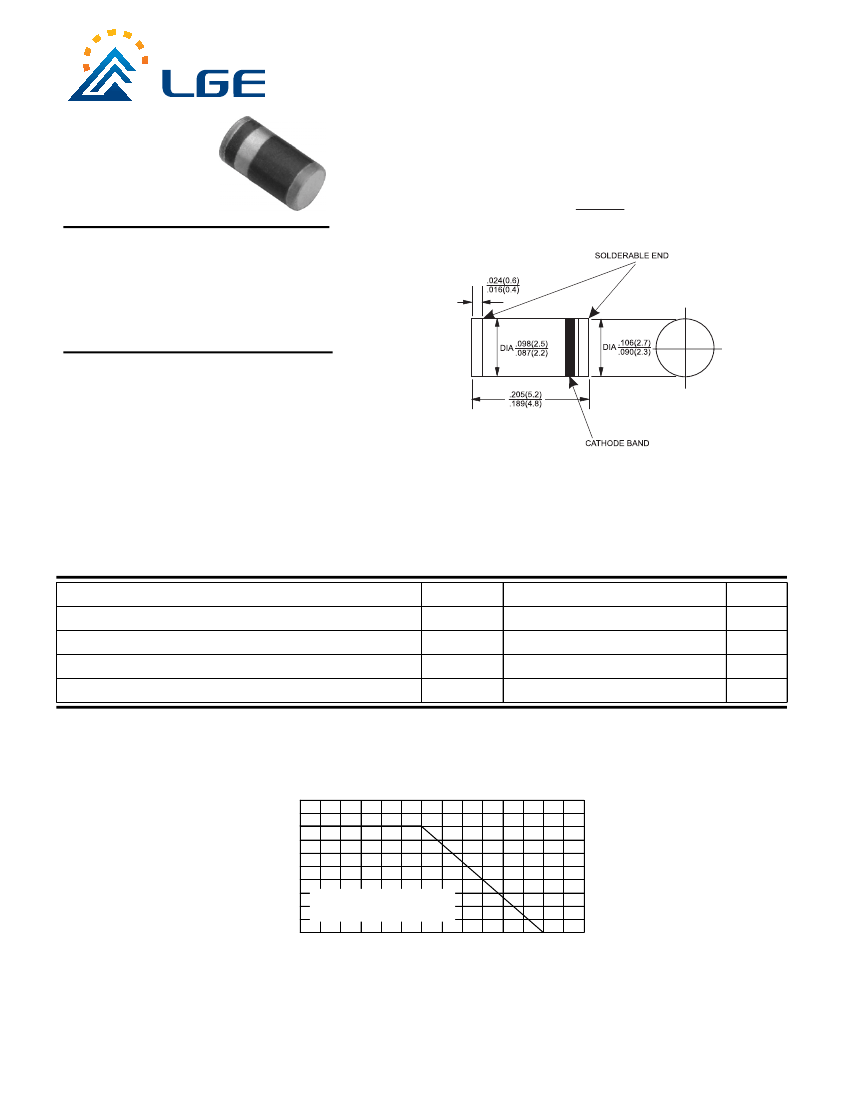

SMZ1-SMZ200
Surface mount Silicon-Zener Diodes
V
Z
: 1 - 200 Volts
P
D
: 2 Watts
Features
Complete Voltage Range 1 to 200 Volts
High peak reverse power dissipation
High reliability
Low leakage current
Pb / RoHS Free
MELF
Mechanical Data
Case : MELF Molded plastic
Epoxy : UL94V-O rate flame retardant
Lead : Lead formed for Surface mount
Polarity : Color band denotes cathode end
Mounting position : Any
Weight : 0.1296 grams
Dimensions in inches and (millimeters)
MAXIMUM RATINGS
Rating at 25
°
C ambient temperature unless otherwise specified
Rating
DC Power Dissipation at T
L
= 75
°C
(Note1)
Maximum Forward Voltage at I
F
= 200 mA
Junction Temperature Range
Storage Temperature Range
Symbol
P
D
V
F
T
J
Ts
Value
2.0
1.2
- 50 to + 150
- 50 to + 175
Unit
W
V
°C
°C
Note :
(1) T
L
= Lead temperature at 5.0 mm
2
( 0.013 mm thick ) copper land areas.
Fig. 1 POWER TEMPERATURE DERATING CURVE
P
D
, MAXIMUM DISSIPATION
(WATTS)
2.5
2.0
1.5
1.0
0.5
0
5.0 mm
2
( 0.013 mm thick )
copper land areas.
25
50
75
100
125
150
175
T
L,
LEAD TEMPERATURE (
°
C)
SMZ1-SMZ200
Surface mount Silicon-Zener Diodes
ELECTRICAL CHARACTERISTICS
Rating at 25
°
C ambient temperature unless otherwise specified
Type
Zener voltage
2
)
I
Z
= I
Ztest
V
zmin
[V] V
zmax
0.71
3.7
4.0
4.4
4.8
5.2
5.8
6.4
7.0
7.7
8.5
9.4
10.4
11.4
12.4
13.8
15.3
16.8
18.8
20.8
22.8
25.1
28
31
34
37
40
44
48
52
58
64
70
77
85
94
104
114
124
138
153
168
188
0.82
4.1
4.6
5.0
5.4
6.0
6.6
7.2
7.9
8.7
9.6
10.6
11.6
12.7
14.1
15.6
17.1
19.1
21.2
23.3
25.6
28.9
32
35
38
41
46
50
54
60
66
72
79
88
96
106
116
127
141
156
171
191
212
Test cur.
I
ztest
[mA]
100
100
100
100
100
100
100
100
100
100
50
50
50
50
50
50
25
25
25
25
25
25
25
25
10
10
10
10
10
10
10
10
10
10
5
5
5
5
5
5
5
5
5
Dyn. resistance
I
ztest
/ 1 kHz
r
zj
[Ω]
0.5 (<1)
4 (<7)
4 (<7)
4 (<7)
2 (<5)
1 (<3)
1 (<2)
1 (<2)
1 (<2)
1 (<2)
2 (<4)
2 (<4)
4 (<7)
4 (<7)
5 (<10)
5 (<10)
6 (<15)
6 (<15)
6 (<15)
6 (<15)
7 (<15)
7 (<15)
8 (<15)
8 (<15)
16 (<40)
20 (<40)
24 (<45)
24 (<45)
25 (<60)
25 (<60)
25 (<80)
25 (<80)
30 (<100)
30 (<100)
40 (<200)
60 (<200)
80 (<250)
80 (<250)
90 (<300)
100 (<300)
110 (<350)
120 (<350)
150 (<350)
Temp. Coeffiz.
of Z-voltage
α
VZ
[10
-4
/°C]
–26…–16
–7…+2
–7…+3
–7…+4
–6…+5
–3…+5
–1…+6
0…+7
0…+7
+3…+8
+3…+8
+5…+9
+5…+10
+5…+10
+5…+10
+5…+10
+6…+11
+6…+11
+6…+11
+6…+11
+6…+11
+6…+11
+6…+11
+6…+11
+6…+11
+6…+11
+7…+12
+7…+12
+7…+12
+7…+12
+8…+13
+8…+13
+8…+13
+8…+13
+9…+13
+9…+13
+9…+13
+9…+13
+9…+13
+9…+13
+9…+13
+9…+13
+9…+13
Reverse volt.
I
R
= 1 µA
V
R
[V]
–
–
–
–
–
> 1.5
> 1.5
>2
>2
> 3.5
> 3.5
>5
>5
>7
>7
> 10
> 10
> 10
> 10
> 12
> 12
> 14
> 14
> 17
> 17
> 20
> 20
> 24
> 24
> 28
> 28
> 34
> 34
> 41
> 41
> 50
> 50
> 60
> 60
> 75
> 75
> 90
> 90
Z-current
1
)
T
A
= 50°C
I
Zmax
[mA]
1000
488
435
400
370
333
303
278
253
230
208
189
172
157
142
128
117
105
94
86
78
69
63
57
53
49
43
40
37
33
30
28
25
23
21
19
17
16
14
13
12
10
9
SMZ 1
3
)
SMZ 3.9
SMZ 4.3
SMZ 4.7
SMZ 5.1
SMZ 5.6
SMZ 6.2
SMZ 6.8
SMZ 7.5
SMZ 8.2
SMZ 9.1
SMZ 10
SMZ 11
SMZ 12
SMZ 13
SMZ 15
SMZ 16
SMZ 18
SMZ 20
SMZ 22
SMZ 24
SMZ 27
SMZ 30
SMZ 33
SMZ 36
SMZ 39
SMZ 43
SMZ 47
SMZ 51
SMZ 56
SMZ 62
SMZ 68
SMZ 75
SMZ 82
SMZ 91
SMZ 100
SMZ 110
SMZ 120
SMZ 130
SMZ 150
SMZ 160
SMZ 180
SMZ 200
