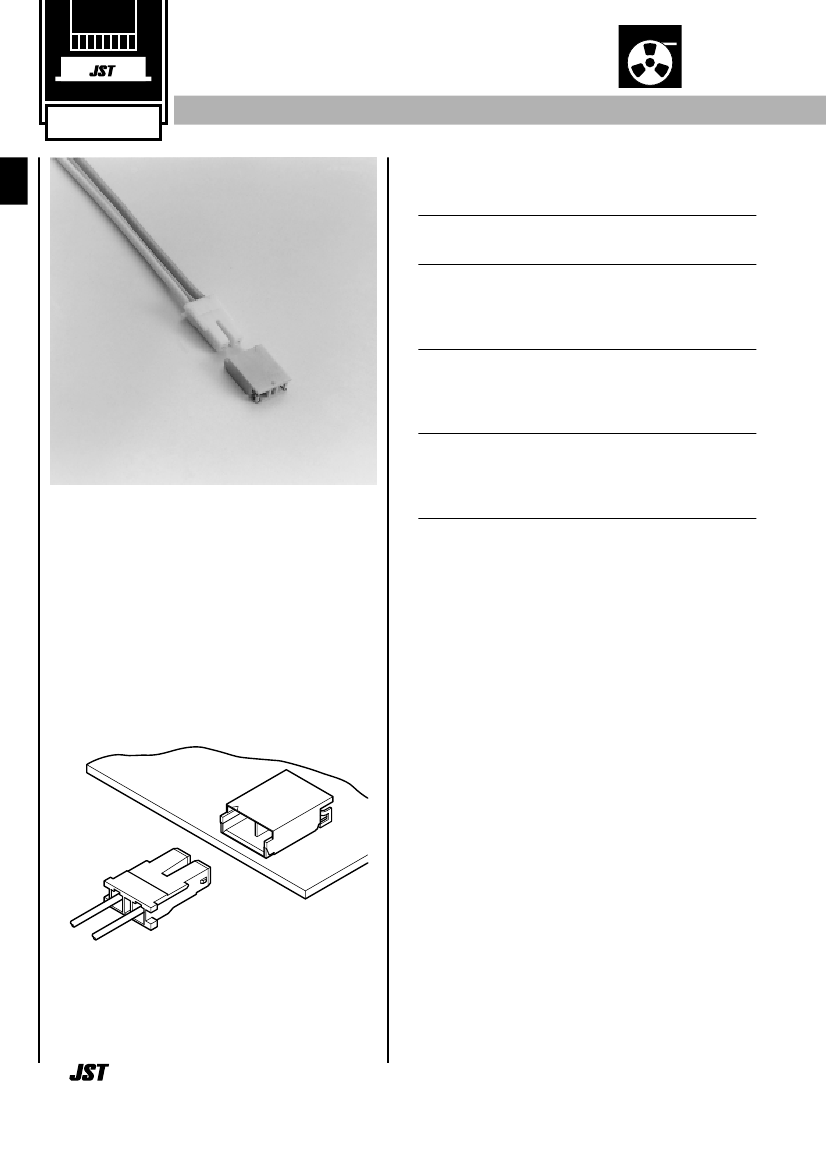

BHS
CONNECTOR
3.5mm
(.138") pitch
Emboss Tape
Disconnectable Crimp style connectors
Features ––––––––––––––––––––––––
• Low profile
Allows liquid crystal displays to be thinner, only 3.2mm (.126").
• SMT configuration
Shrouded headers are SMT style, suited for high density
mounting. The headers feature reinforcing solder tabs to
prevent lifting of the header during mating and unmating.
• Applicable to special wires
Its crimp style contact can be inserted into the housing with little
force, thus making them suitable for use with flexible wires such
as those insulated with silicone rubber.
• Housing lock also serves as polarizing device
The housing lock, which is also designed to be a polarizing
device, prevents both misinsertion and accidental
disengagement due to vibration or shock.
Low profile connectors with high
withstanding voltage, designed for
connecting liquid crystal display backlight
lamps to their starters.
• Two kinds of connections
The BHS connectors can be used for wire-to-wire or wire-to-
board connections.
Specifications –––––––––––––––––––
• Current rating: 1.0A AC, DC (AWG #24)
• Voltage rating: 1,400V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/10m Ω max.
After environmental testing/20m Ω max.
• Insulation resistance:
1,000M Ω min.
• Withstanding voltage: 3,800V AC/minute
• Applicable wire: AWG #28 to #24
Insulation O.D/0.9 to 1.7mm (.035" to .067")
* Contact JST for details.
Standards–––––––––––––––––––––––
104
0
1
Recognized E60389
Certified LR20812
BHS
CONNECTOR
Contact––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Model No.
8.05(.317)
0.9
1.3
(.035) (.051)
4.75(.187)
1.5(.059)
1.5(.059)
mm
2
Applicable wire
Insulation O.D. mm(in.)
AWG#
28 to 24
0.9 to 1.7(.035 to .067)
Q'ty / reel
10,000
SBHS-002T-P0.5
0.08 to 0.22
Material and Finish
Phosphor bronze, tin-plated
Housing –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Circuits
7.5(.295)
2.0(.079)
2
H JST
2
3.2(.126)
Model No.
BHSR-02VS-1
Material
Q'ty / bag
1,000
3.5(.138)
2.4(.094)
Shrouded header –––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Circuits
10.5(.413)
7.5(.295)
3.5(.138)
H JST
10.6(.417)
3.2(.126)
Taping specifications ––––––––––––––––––––––––––––––––––––––––––––––––––––––
Feeding direction
Carrier tape
100
(3.937)dia.
380±2.0(14.961±.079)dia.
Feeding direction
Cover tape leader area
+2.5
[13.0(.512)dia.] 17.5
-1.0
(.689
+.098
)
-.004
4.0±0.1
1.55±0.05
(.061±.002)dia. (.157±.004)
2.0±0.1
(.079±.004)
1.75±0.1
(.069±.004)
16.0±0.1
(.630±.004)
7.5±0.1
6.75
[
(.226)
]
(.295±.004)
0.3±0.05(.012±.002)
16.0±0.1(.630±.004)
Note:
1. Specifications conform to JIS C 0806. The tape width, connector recess dimensions,
etc. are determined by the number of circuits and external shape of the connector to be loaded.
2. Specifications are subject to change without prior notice.
1
Nyron 66, UL94V-0, natural (white)
2
Model No.
SM02B-BHSS-1-TB
Material and Finish
Post: Brass, copper-undercoated, tin/lead-plated
Wafer: Polyamide resin, UL-94V-0, natural (ivory)
Solder tab: Brass, copper-undercoated, tin/lead-plated
Q'ty / reel
1,000
8.7(.343) 1.5(.059)
1.5(.059)
Note: The products listed above are supplied on embossed tape.
Tail tape
(Unloaded area)
40.0(1.575)min.
Connector
loaded area
Lead tape
(Unloaded area)
20 vacancies min.
400(15.748)min.
2.0±0.5(.079±.020)
Cover tape
Carrier tape
105
