DAC347LPC-10-G: DescriptionD/A Converter, 1 Func, Parallel, Word Input Loading, CDIP18, HERMETIC SEALED, DIP-18; CategoryAnalog mixed-signal IC converter; File Size388KB，2 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

DAC347LPC-10-G Overview

D/A Converter, 1 Func, Parallel, Word Input Loading, CDIP18, HERMETIC SEALED, DIP-18

DAC347LPC-10-G Parametric

Parameter Name	Attribute value
Maker	Spectrum Microwave
Parts packaging code	DIP
package instruction	DIP, DIP18,.3
Contacts	18
Reach Compliance Code	unknown
Maximum analog output voltage	10 V
Minimum analog output voltage	-10 V
Converter type	D/A CONVERTER
Enter bit code	COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY
Input format	PARALLEL, WORD
JESD-30 code	R-CDIP-T18
length	25.197 mm
Maximum linear error (EL)	0.0488%
Nominal negative supply voltage	-15 V
Number of digits	10
Number of functions	1
Number of terminals	18
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP18,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	+-15 V
Certification status	Not Qualified
Maximum stabilization time	20 µs
Maximum slew rate	12 mA
Nominal supply voltage	15 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

Preview

Download Datasheet

View All

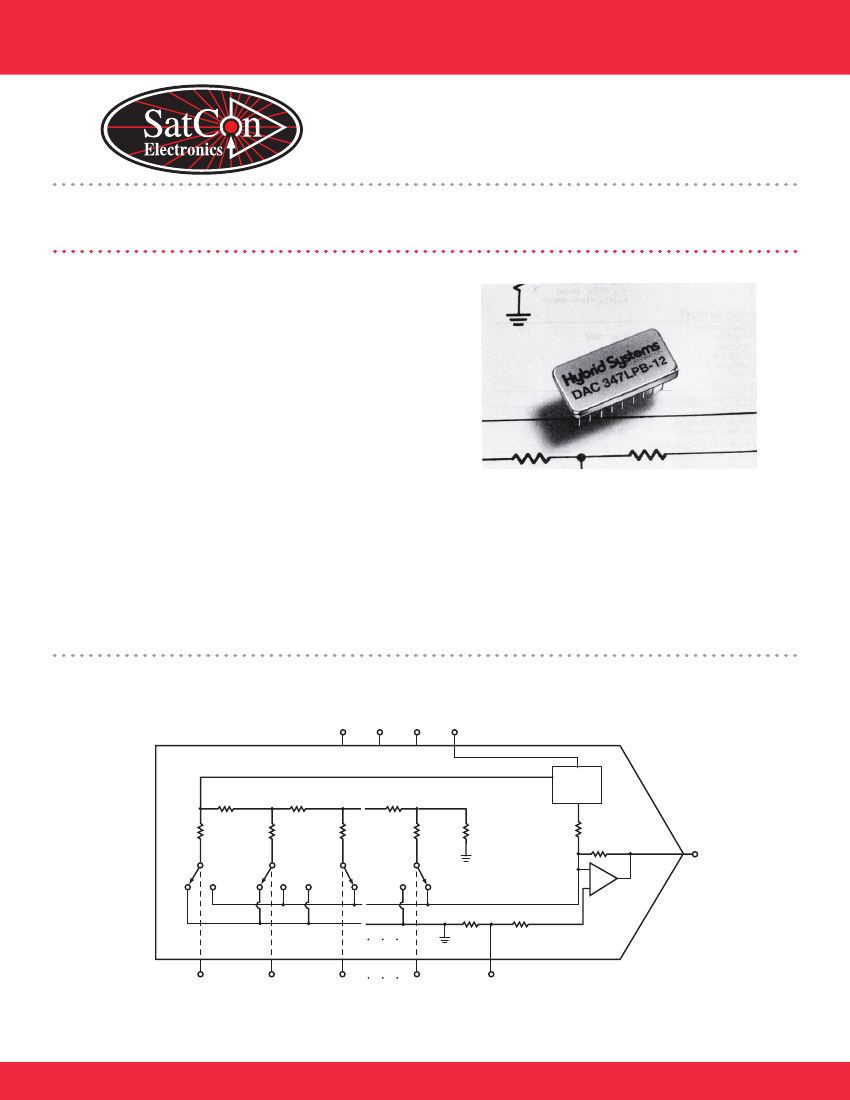

D AC347

Low Power, W ide

Temperature Range D ACs

FEA TURES

• 10- and 12-bit models

• V ery low power: less than 300 mW

• W ide operating temperature range:

-55 Cto+125 C

• M IL-STD-883 Rev. C, Level B or commercial

processing

• 18 pin hermetic package

DESCRIPTION

This Series is specifically designed and tested for low

power operation. The models feature low total

power dissipation of less than 300 mW . Each unit

incorporates a pretrimmed output amplifier and a

low power internal reference.

The DA C347 Series are high performance, general

purpose, digital-to'analog converters utilizing

matched CM OS current switches and ultra stable thin-

film nichrome resistor networks. A ll DA C347 Series

models provide optimum stability in performance

over the full –55ºC to + 125ºC temperature range.

Sipex D ata Converter Line

Unipolar models use complementary binary coding

and bipolar models use complementary offset binary

coding. Each DA C347 Series converter comes

packaged in a hermetically-sealed 18-pin package,

ideal for applications where maximum performance

in minimum space is required.

FUNCTIONA L DIA GRA M

+15V

9

– 15V

10

GND

11

GA IN

A DJ

7

R = 25k

R

V OLTA GE

REFERENCE

2R

FOR BIPOLA R

M ODELS

R

12

OUTPUT

“ 1”

“ 0”

–

+

S1

1

BIT 1

(M SB)

S2

2

BIT 2

S3

3

BIT 3

S 12

18

BIT 12

(LSB)

8

OFFSET

A DJ

165 Cedar Hill Street, Marlborough, MA 01752 Tel: 508.485.6350

www.satconelectronics.com

Fax: 508.485.5168

DAC347LPC-10-G Related Products

	DAC347LPC-10-G	DAC347LPC-12-U	DAC347LPC-12-G	DAC347LPB-12-U	DAC347LPC-10-B	DAC347LPC-10-U	DAC347LPC-12-B
Description	D/A Converter, 1 Func, Parallel, Word Input Loading, CDIP18, HERMETIC SEALED, DIP-18	D/A Converter, 1 Func, Parallel, Word Input Loading, CDIP18, HERMETIC SEALED, DIP-18	D/A Converter, 1 Func, Parallel, Word Input Loading, CDIP18, HERMETIC SEALED, DIP-18	D/A Converter, 1 Func, Parallel, Word Input Loading, CDIP18, HERMETIC SEALED, DIP-18	D/A Converter, 1 Func, Parallel, Word Input Loading, CDIP18, HERMETIC SEALED, DIP-18	D/A Converter, 1 Func, Parallel, Word Input Loading, CDIP18, HERMETIC SEALED, DIP-18	D/A Converter, 1 Func, Parallel, Word Input Loading, CDIP18, HERMETIC SEALED, DIP-18
Parts packaging code	DIP	DIP	DIP	DIP	DIP	DIP	DIP
package instruction	DIP, DIP18,.3	DIP, DIP18,.3	DIP, DIP18,.3	DIP, DIP18,.3	DIP, DIP18,.3	DIP, DIP18,.3	DIP, DIP18,.3
Contacts	18	18	18	18	18	18	18
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum analog output voltage	10 V	10 V	10 V	10 V	5 V	10 V	5 V
Minimum analog output voltage	-10 V	-	-10 V	-	-5 V	-	-5 V
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
Enter bit code	COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY	COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY	COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY	COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY	COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY	COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY	COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY
Input format	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD
JESD-30 code	R-CDIP-T18	R-CDIP-T18	R-CDIP-T18	R-CDIP-T18	R-CDIP-T18	R-CDIP-T18	R-CDIP-T18
length	25.197 mm	25.197 mm	25.197 mm	25.197 mm	25.197 mm	25.197 mm	25.197 mm
Maximum linear error (EL)	0.0488%	0.0122%	0.0122%	0.0122%	0.0488%	0.0488%	0.0122%
Nominal negative supply voltage	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of digits	10	12	12	12	10	10	12
Number of functions	1	1	1	1	1	1	1
Number of terminals	18	18	18	18	18	18	18
Maximum operating temperature	70 °C	70 °C	70 °C	125 °C	70 °C	70 °C	70 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP18,.3	DIP18,.3	DIP18,.3	DIP18,.3	DIP18,.3	DIP18,.3	DIP18,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum stabilization time	20 µs	20 µs	20 µs	20 µs	20 µs	20 µs	20 µs
Maximum slew rate	12 mA	12 mA	12 mA	12 mA	12 mA	12 mA	12 mA
Nominal supply voltage	15 V	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm
Maker	Spectrum Microwave	-	Spectrum Microwave	Spectrum Microwave	Spectrum Microwave	Spectrum Microwave	Spectrum Microwave
