DS1806SN-050 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> DS1806SN-050

DS1806SN-050: DescriptionDigital Potentiometer, 1 Func, 50000ohm, 3-wire Serial Control Interface, 64 Positions, PDSO20, 0.300 INCH, SOIC-20; CategoryAnalog mixed-signal IC converter; File Size225KB，7 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric Compare View All

DS1806SN-050 Overview

Digital Potentiometer, 1 Func, 50000ohm, 3-wire Serial Control Interface, 64 Positions, PDSO20, 0.300 INCH, SOIC-20

DS1806SN-050 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Maxim
Parts packaging code	SOIC
package instruction	SOP,
Contacts	20
Reach Compliance Code	compliant
ECCN code	EAR99
control interface	3-WIRE SERIAL
Converter type	DIGITAL POTENTIOMETER
JESD-30 code	R-PDSO-G20
JESD-609 code	e0
length	12.8 mm
Humidity sensitivity level	1
Number of functions	1
Number of positions	64
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	240
Certification status	Not Qualified
resistance law	LINEAR
Maximum seat height	2.65 mm
surface mount	YES
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Nominal total resistance	50000 Ω
width	7.5 mm

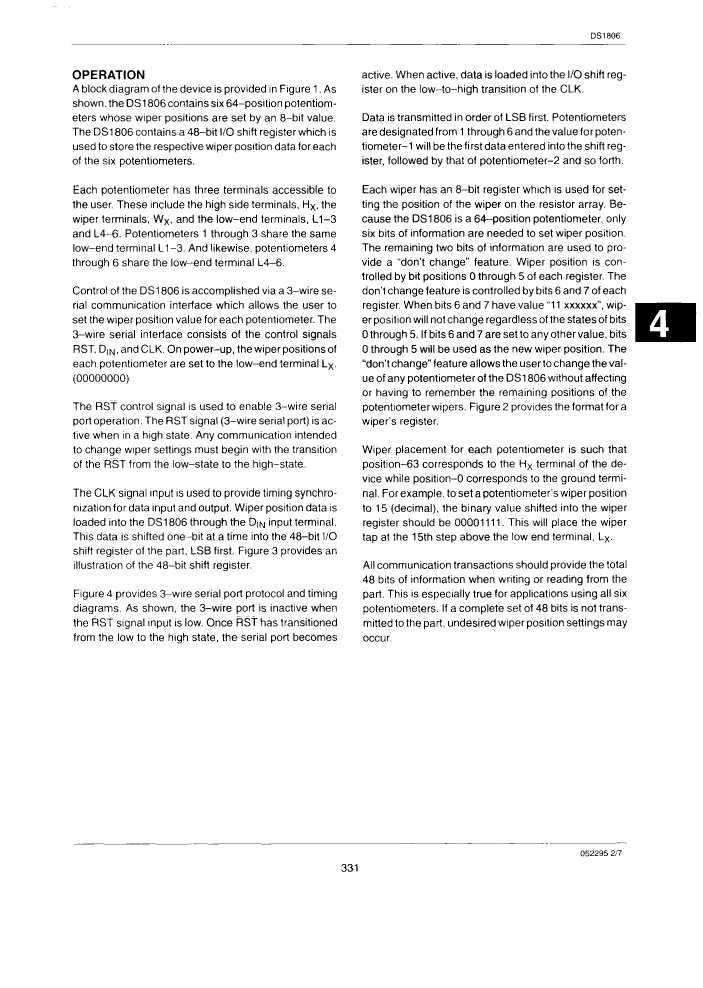

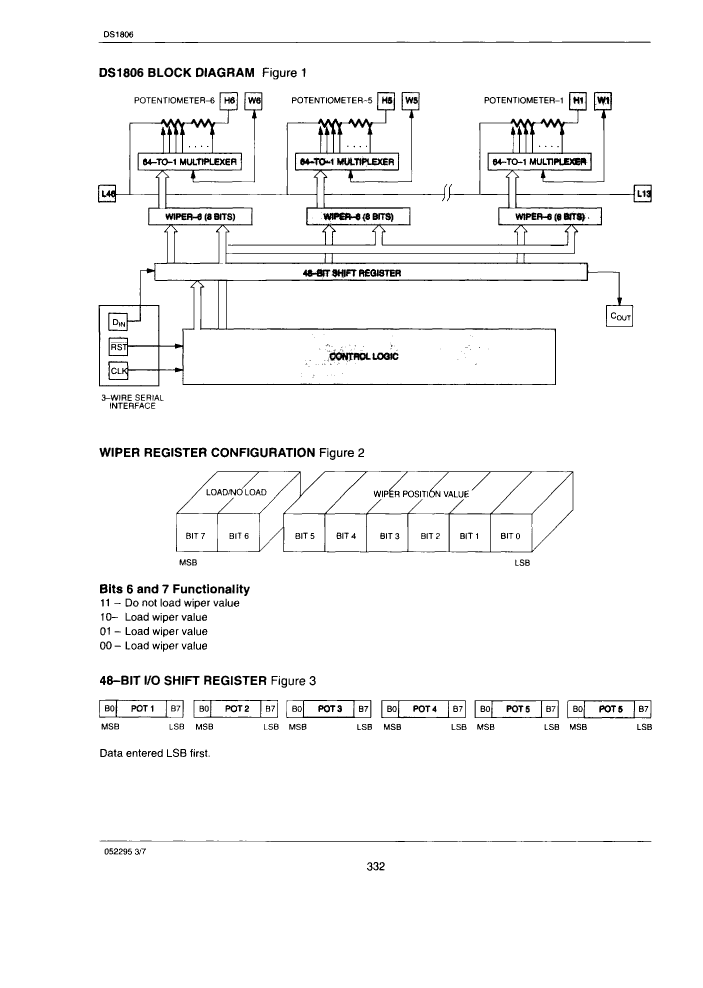

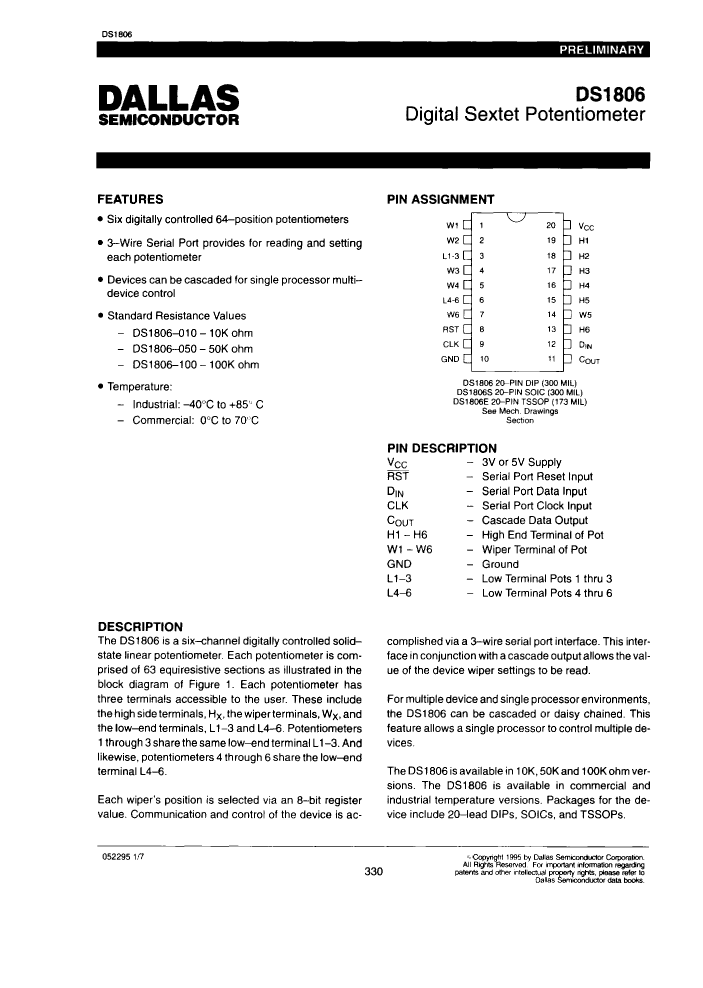

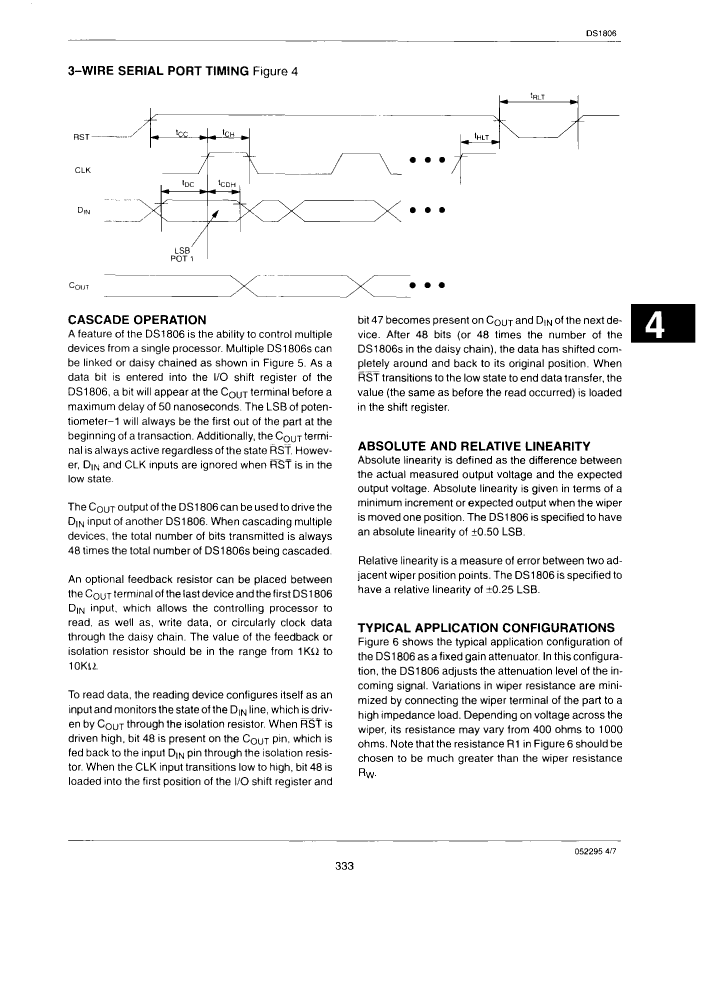

Preview

Download Datasheet

View All

DS1806SN-050 Related Products

	DS1806SN-050	DS1806N-010	DS1806EN-010	DS1806EN-100	DS1806N-050
Description	Digital Potentiometer, 1 Func, 50000ohm, 3-wire Serial Control Interface, 64 Positions, PDSO20, 0.300 INCH, SOIC-20	Digital Potentiometer, 1 Func, 10000ohm, 3-wire Serial Control Interface, 64 Positions, PDIP20, 0.300 INCH, DIP-20	Digital Potentiometer, 1 Func, 10000ohm, 3-wire Serial Control Interface, 64 Positions, PDSO20, 0.173 INCH, TSSOP-20	Digital Potentiometer, 1 Func, 100000ohm, 3-wire Serial Control Interface, 64 Positions, PDSO20, 0.173 INCH, TSSOP-20	Digital Potentiometer, 1 Func, 50000ohm, 3-wire Serial Control Interface, 64 Positions, PDIP20, 0.300 INCH, DIP-20
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Maxim	Maxim	Maxim	Maxim	Maxim
Parts packaging code	SOIC	DIP	SOIC	SOIC	DIP
package instruction	SOP,	DIP,	TSSOP,	TSSOP,	DIP,
Contacts	20	20	20	20	20
Reach Compliance Code	compliant	compli	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
control interface	3-WIRE SERIAL	3-WIRE SERIAL	3-WIRE SERIAL	3-WIRE SERIAL	3-WIRE SERIAL
Converter type	DIGITAL POTENTIOMETER	DIGITAL POTENTIOMETER	DIGITAL POTENTIOMETER	DIGITAL POTENTIOMETER	DIGITAL POTENTIOMETER
JESD-30 code	R-PDSO-G20	R-PDIP-T20	R-PDSO-G20	R-PDSO-G20	R-PDIP-T20
JESD-609 code	e0	e0	e0	e0	e0
length	12.8 mm	26.16 mm	6.5 mm	6.5 mm	26.16 mm
Number of functions	1	1	1	1	1
Number of positions	64	64	64	64	64
Number of terminals	20	20	20	20	20
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	TSSOP	TSSOP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	IN-LINE
Peak Reflow Temperature (Celsius)	240	NOT SPECIFIED	240	240	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
resistance law	LINEAR	LINEAR	LINEAR	LINEAR	LINEAR
Maximum seat height	2.65 mm	4.572 mm	1.1 mm	1.1 mm	4.572 mm
surface mount	YES	NO	YES	YES	NO
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	GULL WING	THROUGH-HOLE	GULL WING	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	0.65 mm	0.65 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Nominal total resistance	50000 Ω	10000 Ω	10000 Ω	100000 Ω	50000 Ω
width	7.5 mm	7.62 mm	4.4 mm	4.4 mm	7.62 mm
Humidity sensitivity level	1	-	1	1	-
