STR-4-H-I-26: DescriptionRF Coaxial Relay, SP4T, Failsafe, 0.6A (Coil), 12VDC (Coil), 7200mW (Coil), 26500MHz, 2W (RF Input), DC Input, DC Output, Panel Mount; CategoryMechanical and electronic products relay; File Size172KB，2 Pages; ManufacturerReliable Capacitors Inc

Download Datasheet Parametric View All

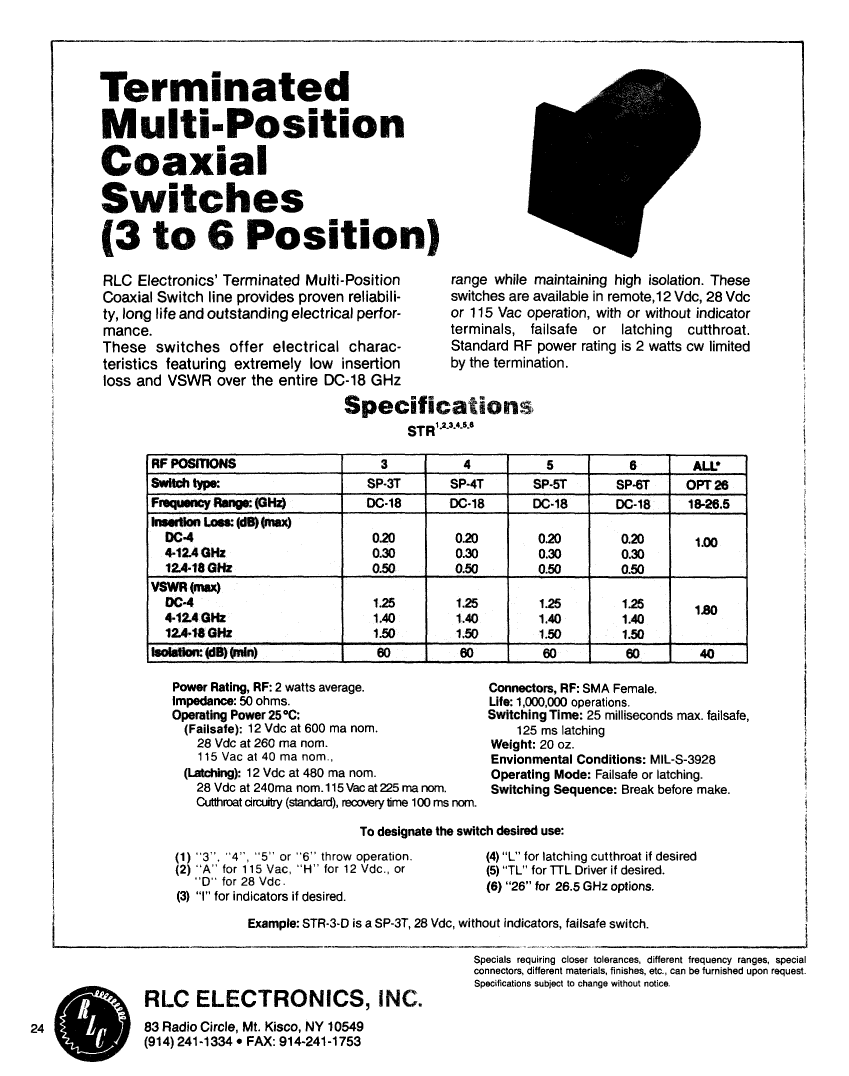

STR-4-H-I-26 Overview

RF Coaxial Relay, SP4T, Failsafe, 0.6A (Coil), 12VDC (Coil), 7200mW (Coil), 26500MHz, 2W (RF Input), DC Input, DC Output, Panel Mount

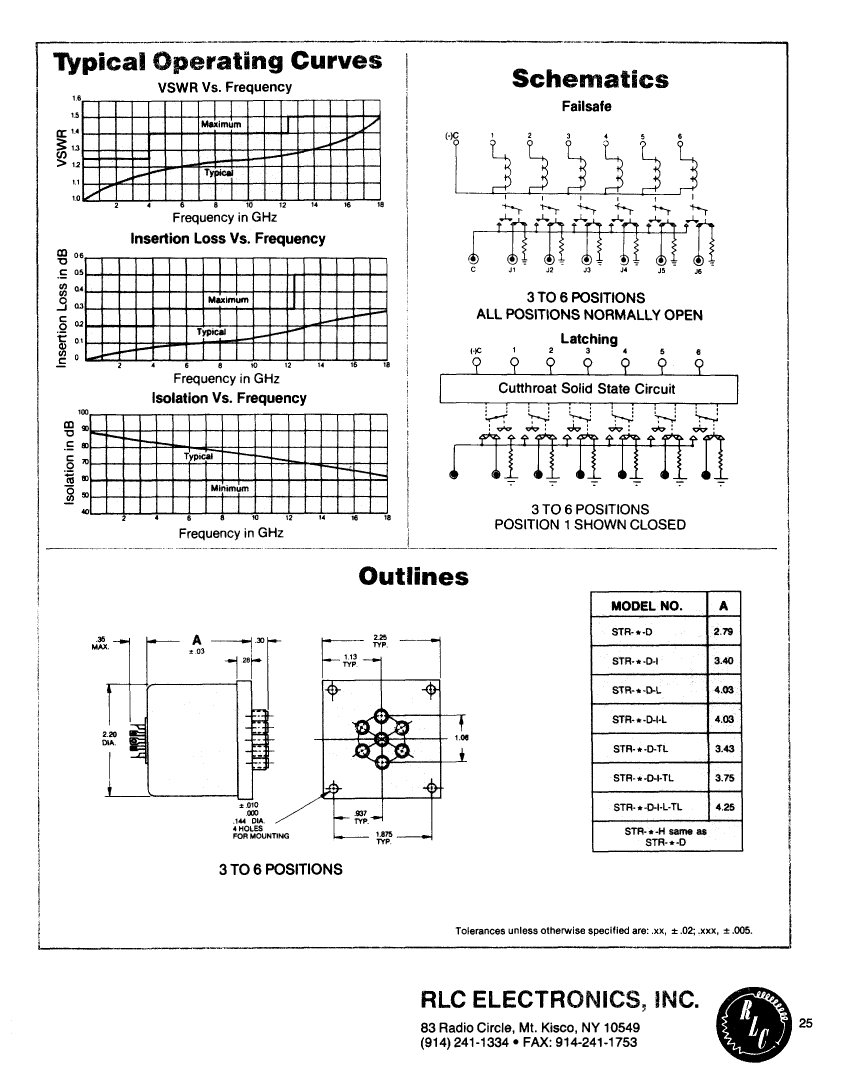

Parameter Name	Attribute value
Maker	Reliable Capacitors Inc
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	SMA, BUILT-IN INDICATOR
body height	86.36 mm
Body length or diameter	55.88 mm
Characteristic impedance	50 Ω
Maximum coil current (DC)	0.6 A
Coil power	7200 mW
Coil resistance	20 Ω
Maximum coil voltage (DC)	12 V
Coil/Input Power Type	DC
Contact/Output Power Type	DC
Electrical life	1000000 Cycle(s)
Maximum input power	2 W
Maximum insertion loss	1 dB
Maximum isolation	40 dB
Manufacturer's serial number	STR
Installation features	PANEL MOUNT
Maximum operating frequency	26500 MHz
Minimum operating frequency
Relay action	FAILSAFE
Relay function	SP4T
Relay type	RF COAXIAL RELAY
surface mount	NO
switching time	25 ms
Termination type	SOLDER/CONNECTOR
voltage standing wave ratio	1.8
