SMA6J26A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SMA6J26A

SMA6J26A: Description600 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-214AC; CategoryDiscrete semiconductor diode; File Size98KB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric View All

SMA6J26A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SMA6J26A	-	-	View	Buy Now

SMA6J26A Overview

600 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-214AC

SMA6J26A Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Vishay
Parts packaging code	DO-214AC
package instruction	R-PDSO-C2
Contacts	2
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum breakdown voltage	31.9 V
Minimum breakdown voltage	28.9 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-214AC
JESD-30 code	R-PDSO-C2
JESD-609 code	e0
Maximum non-repetitive peak reverse power dissipation	600 W
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	26 V
surface mount	YES
technology	ZENER
Terminal surface	TIN LEAD
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

New Product

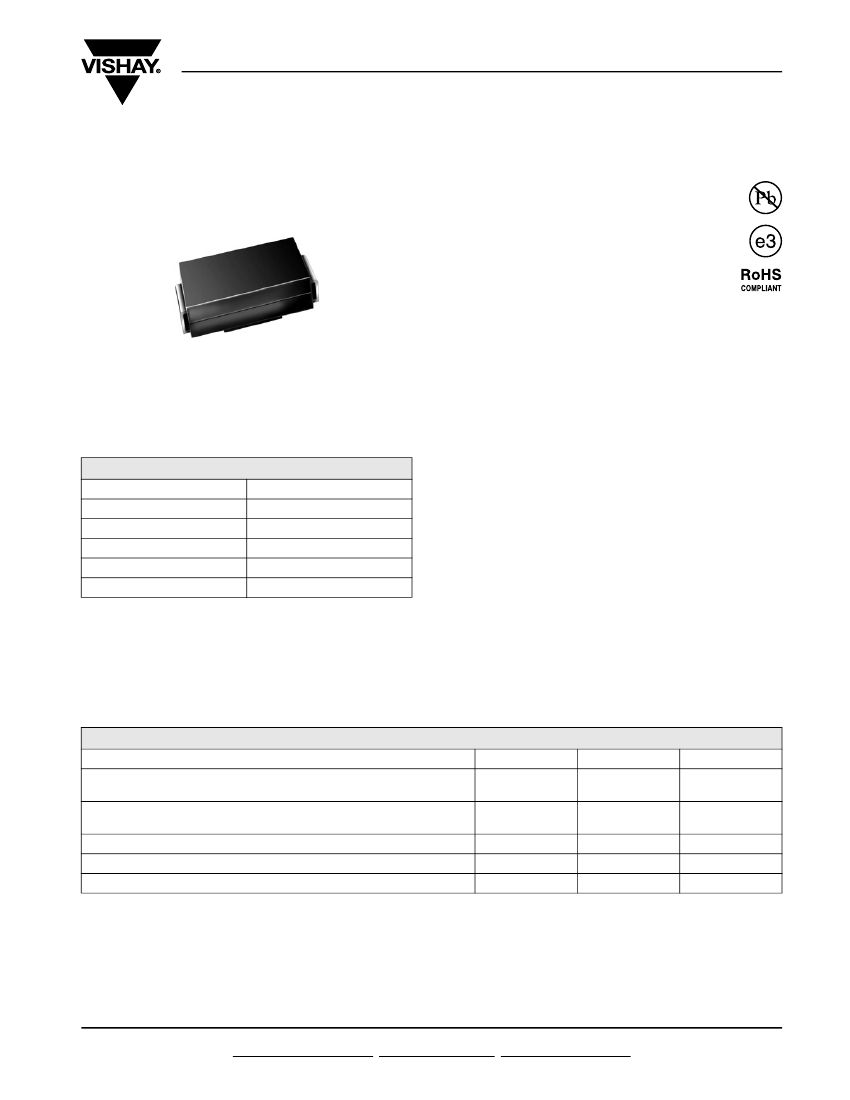

SMA6J5.0A thru SMA6J28A

Vishay General Semiconductor

Surface Mount Transient Voltage Suppressors

FEATURES

• Low profile package

• Ideal for automated placement

• Available in uni-directional polarity only

• Excellent clamping capability

• Meets MSL level 1, per J-STD-020,

LF maximum peak of 260 °C

• Solder dip 260 °C, 40 s

DO-214AC (SMA)

• Component in accordance to RoHS 2002/95/EC

and WEEE 2002/96/EC

TYPICAL APPLICATIONS

Use in sensitive electronics protection against voltage

transients induced by inductive load switching and

lighting on ICs, MOSFET, signal lines of sensor units

for consumer, computer, industrial, automotive and

telecommunication.

MECHANICAL DATA

Case:

DO-214AC (SMA)

Molding compound meets UL 94 V-0 flammability

rating

Base P/N-E3 - RoHS compliant, commercial grade

Terminals:

Matte tin plated leads, solderable per

J-STD-002 and JESD22-B102

E3 suffix meets JESD 201 class 1A whisker test

Polarity:

Color band denotes cathode end

PRIMARY CHARACTERISTICS

PPM

(10 x 1000 µs)

PPM

(8 x 20 µs)

at T

= 50 °C

FSM

max.

5.0 V to 28 V

600 W

4000 W

50 A

150 °C

MAXIMUM RATINGS

= 25 °C unless otherwise noted)

PARAMETER

Peak pulse power dissipation

Peak pulse current

with 10/1000 µs waveform

(1)(2)

with 8/20 µs waveform

with 10/1000 µs waveform

(1)(2)

with 8/20 µs waveform

SYMBOL

PPM

FSM

, T

STG

VALUE

600

4000

See next table

4.0

- 55 to + 150

UNIT

°C

Power dissipation on infinite heatsink, T

= 50 °C

Peak forward surge current 8.3 ms single half sine-wave

Operating junction and storage temperature range

Notes:

(1) Non-repetitive current pulse, per Fig. 1 and derated above T

= 25 °C per Fig. 2.

(2) Mounted on P.C.B. with 5.0 x 5.0 mm copper pads attached to each terminal

Document Number: 89115

Revision: 30-Oct-08

For technical questions within your region, please contact one of the following:

PDD-Americas@vishay.com, PDD-Asia@vishay.com, PDD-Europe@vishay.com

www.vishay.com

Legal Disclaimer Notice

Vishay

Disclaimer

ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE

RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.

Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,

“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other

disclosure relating to any product.

Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or

the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all

liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,

consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular

purpose, non-infringement and merchantability.

Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical

requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements

about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular

product with the properties described in the product specification is suitable for use in a particular application. Parameters

provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All

operating parameters, including typical parameters, must be validated for each customer application by the customer’s

technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,

including but not limited to the warranty expressed therein.

Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining

applications or for any other application in which the failure of the Vishay product could result in personal injury or death.

Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk and agree

to fully indemnify and hold Vishay and its distributors harmless from and against any and all claims, liabilities, expenses and

damages arising or resulting in connection with such use or sale, including attorneys fees, even if such claim alleges that Vishay

or its distributor was negligent regarding the design or manufacture of the part. Please contact authorized Vishay personnel to

obtain written terms and conditions regarding products designed for such applications.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by

any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.
