SF1/8YC1023A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> SF1/8YC1023A

SF1/8YC1023A: DescriptionRES,AXIAL,METAL FILM,102K OHMS,250WV,.05% +/-TOL,-5,5PPM TC; CategoryPassive components The resistor; File Size130KB，2 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/; Environmental Compliance

Download Datasheet Parametric View All

SF1/8YC1023A Overview

RES,AXIAL,METAL FILM,102K OHMS,250WV,.05% +/-TOL,-5,5PPM TC

SF1/8YC1023A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	KOA Speer
package instruction	Axial,
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Tubular
JESD-609 code	e2
Lead diameter	0.65 mm
Lead length	38 mm
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Package diameter	3.6 mm
Package length	10.5 mm
Package form	Axial
method of packing	Bulk
Rated power dissipation(P)	0.125 W
Rated temperature	70 °C
resistance	102000 Ω
Resistor type	FIXED RESISTOR
surface mount	NO
technology	METAL FILM
Temperature Coefficient	5 ppm/°C
Terminal surface	Tin/Copper (Sn/Cu)
Terminal shape	WIRE
Tolerance	0.05%
Operating Voltage	250 V

Preview

Download Datasheet

View All

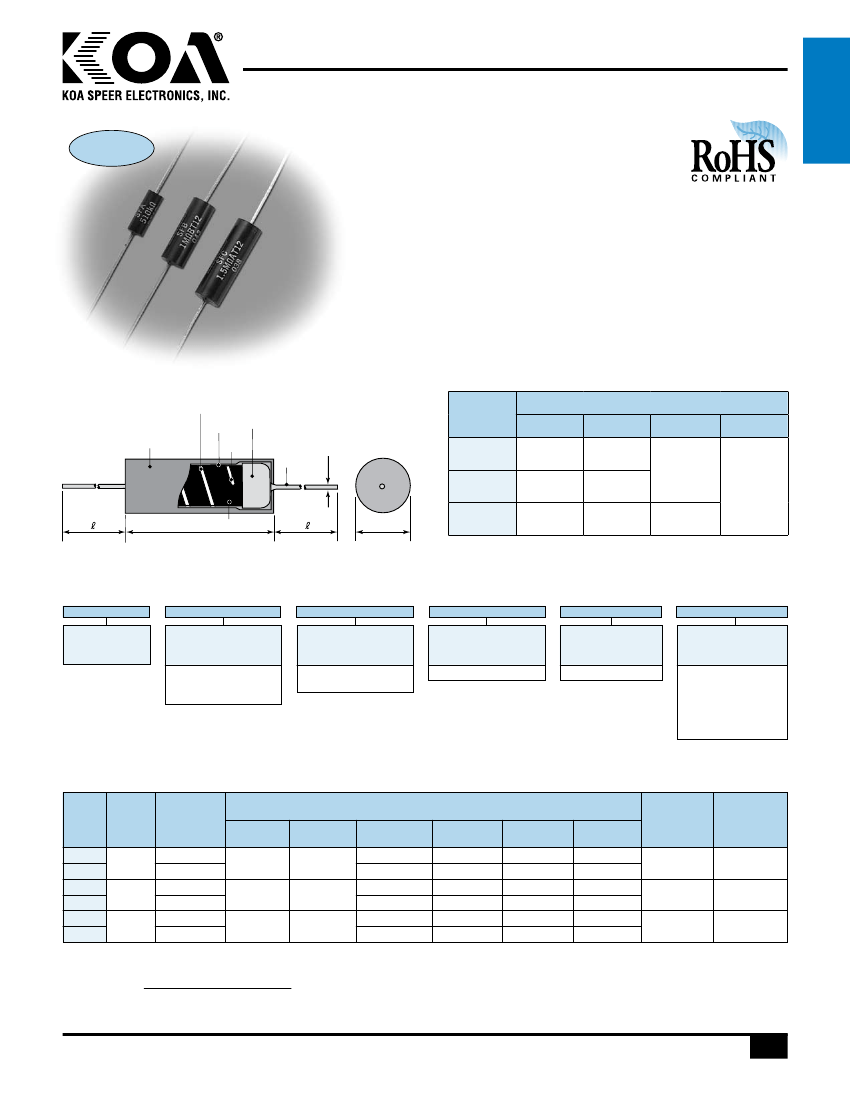

Super high precision resistors with

a wide resistance range of 100 – 5.11M

respond to tolerance ±0.01% and T.C.R. ±5×10

−6

Extremely stable resistors with less variation ±0.01%/year

Designated resistances (marking in 4-digit effective figures)

of tolerances ±0.01% – ±0.25% are available

Marking: black body color and alphanumeric marking

Products meet EU RoHS requirements

Outer Case

Trimming

Line

Electrode

Resin for Cap

Sealing

Ceramic

Core

Type

SF1/8

ød

SF1/4

Dimensions

inches

(mm)

.413±.016

(10.5±0.4)

.630±.016

(16.0±0.4)

.787±.020

(20.0±0.5)

.142±.016

(3.6±0.4)

.138±.020

(5.5±0.5)

.264±.020

(6.7±0.5)

d (Nominal)

.026

(0.65)

.031

(0.8)

Lead

Wire

1.50±.118

(38±3)

Resistive Film

SF1/2

Product

Code

1/8

Power

Rating

1/8: 0.125W

1/4: 0.25W

1/2: 0.5W

T.C.R.

(×10

-6

/K)

Y: ±5

T: ±10

Terminal

Surface Material

C: SnCu

1003

Nominal

Resistance

4 digits*

Resistance

Tolerance

T : ±0.01%

Q: ±0.02%

A: ±0.05%

B: ±0.1%

C: ±0.25%

D: ±0.5%

* It becomes a real number when a nominal resistance is 4 or more digits of significant figures.

Contact us when you have control request for environmental hazardous material other than the substance specified by EU RoHS.

Type

Power

Rating

T.C.R.

(×10

-6

/K)

Y: ±5

T: ±10

Y: ±5

T: ±10

Y: ±5

T: ±10

Resistance Range

T:±0.01%

E24, E96

100 - 200k

100 - 511k

100 - 1M

Q:±0.02%

E24, E96

100 - 200k

100 - 511k

100 - 1M

A:±0.05%

E24, E96

100 - 200k

100 - 511k

100 - 1M

100 - 3.57M

B:±0.1%

E24, E96

100 - 200k

100 - 511k

100 - 1M

100 - 5.11M

C:±0.25%

E24, E96

100 - 200k

100 - 511k

100 - 1M

100 - 5.11M

D:±0.5%

E24, E96

100 - 200k

100 - 511k

100 - 1M

100 - 5.11M

Max.

Working

Voltage

250V

300V

350V

Max.

Overload

Voltage

500V

600V

700V

SF1/8YC

0.125W

SF1/8TC

SF1/4YC

0.25W

SF1/4TC

SF1/2YC

0.5W

SF1/2TC

Rated Ambient Temperature: +70°C

Operating Temperature Range: −25°C – +85°C

Rated voltage = Power Rating×Resistance value or Max. working voltage, whichever is lower.

Speciﬁcations given herein may be changed at any time without prior notice. Please conﬁrm technical speciﬁcations before you order and/or use.

12/10/09

KOA Speer Electronics, Inc
