PA0803.016

Description
RF Transformer, 0.2MHz Min, 0.7MHz Max,
CategoryPower management    transformer
File Size158KB,3 Pages
ManufacturerPulse Electronics
Download Datasheet Parametric View All

PA0803.016 Overview

RF Transformer, 0.2MHz Min, 0.7MHz Max,

PA0803.016 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerPulse Electronics
Reach Compliance Codecompliant
ECCN codeEAR99
maximum cutoff frequency0.7 MHz
minimum cutoff frequency0.2 MHz
high8.6 mm
length23.37 mm
Installation featuresSURFACE MOUNT
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
method of packingTRAY
physical sizeL23.37XB21.6XH8.6 (mm)
Primary inductance240 µH
surface mountYES
Transformer typeRF TRANSFORMER
width21.6 mm

PA0803.016 Preview

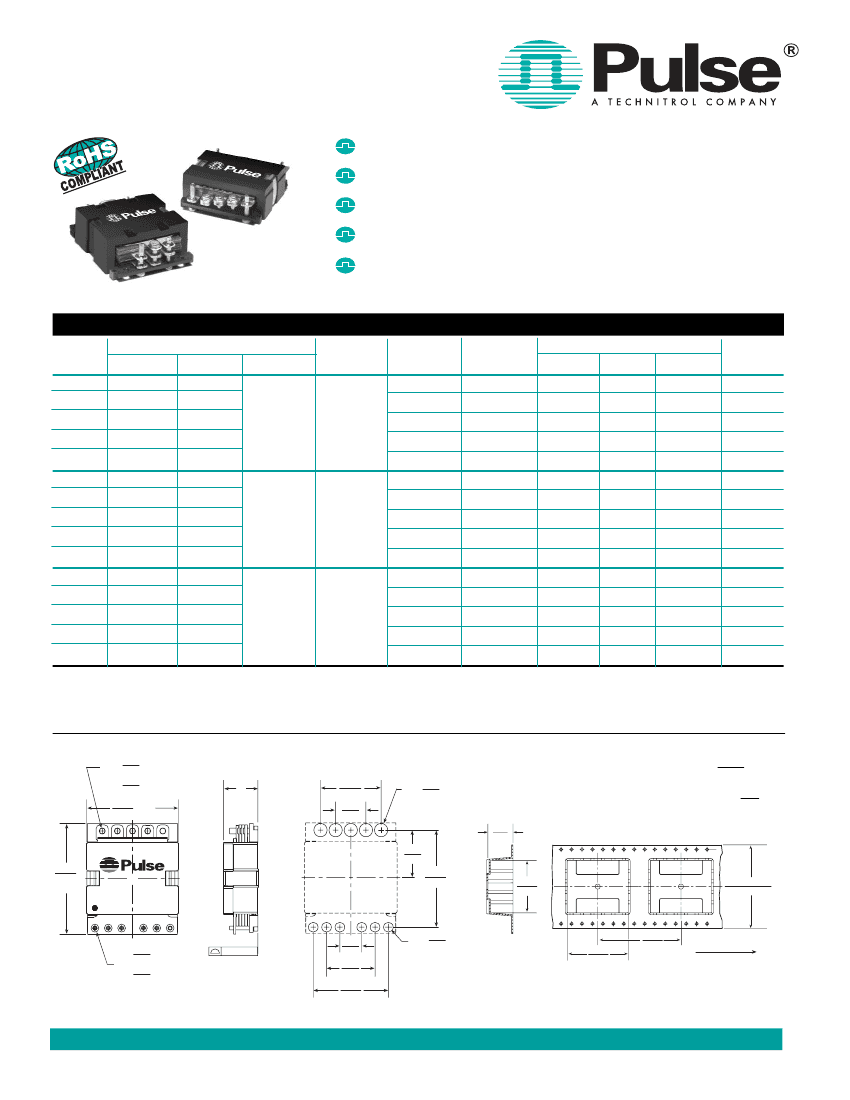

HIGH FREQUENCY PLANAR
TRANSFORMERS
PA08XX Series (up to 140W)
Power Rating:
up to 140W
Height:
8.6mm to 9.7mm Max
Footprint:
23.4mm x 21.6mm Max
Frequency Range:
200kHz to 700kHz
Isolation (Primary to Secondary
& Core):
1750V
DC
Basic Insulation
Electrical Specifications @ 25°C — Operating Temperature -40°C to +125°C
Part
Number
PA0801
PA0802
PA0803
PA0804
PA0805
PA0806
PA0807
PA0808
PA0809
PA0810
PA0811
PA0812
PA0813
PA0814
PA0815
3
Turns
Primary A
4T
4T
5T
5T
6T
4T
4T
5T
5T
6T
4T
4T
5T
5T
6T
Primary B
4T
5T
5T
6T
6T
4T
5T
5T
6T
6T
4T
5T
5T
6T
6T
2T & 1T
1T & 1T
4T
(1T:1T:1T:1T)
Secondary
Schematic
Primary
1
Inductance
(µH MIN)
153
194
Leakage
2
Inductance
(µH MAX)
0.45
0.45
0.55
0.60
0.65
0.45
0.45
0.55
0.60
0.65
0.45
0.45
0.45
0.50
0.55
DCR
(mΩ MAX)
Primary
Primary Secondary
A
B
17.5
17.5
7
17.5
20
20
25
17.5
17.5
20
20
25
17.5
17.5
20
20
25
20
20
25
25
17.5
20
20
25
25
17.5
20
20
25
25
7
7
7
7
.875 & .875
.875 & .875
.875 & .875
.875 & .875
.875 & .875
1.75 & 1.75
1.75 & 1.75
1.75 & 1.75
1.75 & 1.75
1.75 & 1.75
Maximum
Height
(mm)
8.6
8.6
8.6
8.6
8.6
8.6
8.6
8.6
8.6
8.6
8.6
8.6
8.6
9.7
9.7
A1
240
290
345
153
194
A2
240
290
345
153
194
A3
240
290
345
Notes: 1.
Inductance is measured with both primary windings connected in series (2 to 5, with 3 and 4 shorted).
2.
Leakage inductance is measured on wind-
ing (2-5) with (3,4) and (7, 8, 9, 10, 11) shorted.
3.
To order RoHS compliant part, add the suffix “NL” to the part number (i.e. PA0801 becomes PA0801
NL).
Mechanical
.047
5XØ 1,19 SHAFT
.080
5XØ 2,03 FOOT
11
.850 MAX
21,60
H*
11
SUGGESTED PAD LAYOUT
.500
12,70
.250
6,35
.110
5XØ 2,79
7
.390
9,91
Weight
..................11.0 grams
Tape & Reel...............180/reel
Tray
.............................40/tray
Dimensions:
Inches
mm
Unless otherwise specified,
all tolerances are ± .010
0,25
7
.378
9,60
Tape & Reel Layout for PA0801 thru PA0813
.920
23,37
MAX
Date Code
Country of Origin
PA0XXX
.800
20,32
.790
20,07
1.260
± .012
32,00
± 0,30
1
.032
6XØ 0,81 SHAFT
.050
6XØ 1,27 FOOT
6
1
.005/0,13
*H - Maximum Height
(see table above)
.180
4,57
.400
10,16
.620
15,75
6
.080
6XØ 2,03
.920
23,37
1.260
32,00
USER DIRECTION
OF FEED
NOTE:
The above is a universal footprint for a component that has all 11 pins
populated. For a given part number, it is only necessary to provide pads for the
terminations shown in the schematics on the next page.
USA 858 674 8100
UK 44 1483 401 700
France 33 3 84 35 04 04
Singapore 65 6287 8998
Shanghai
86 21 54643211 / 2
China 86 769 5538070
Taiwan 886 3 4641811
www.pulseeng.com
88
SPM2006 (3/06)
HIGH FREQUENCY PLANAR
TRANSFORMERS
PA08XX Series (up to 140W)

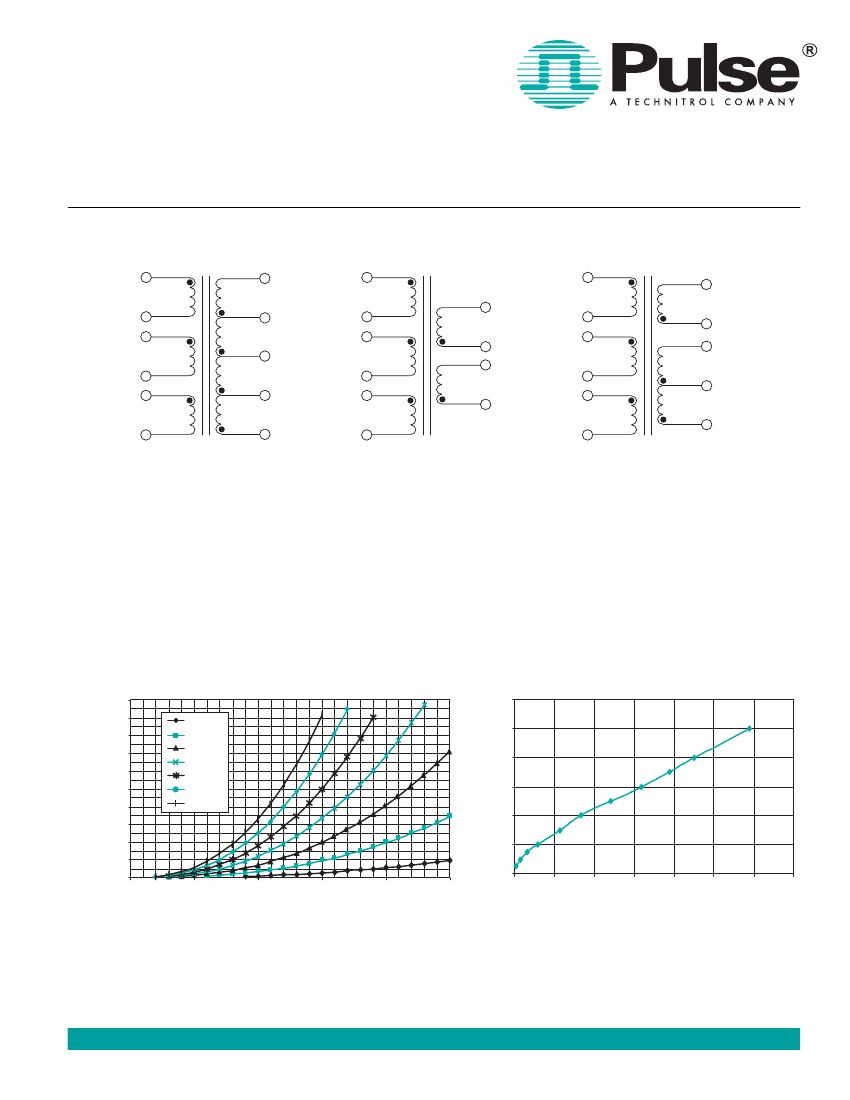

Schematics
A1
PA0801
/ 02 / 03 / 04 / 05
2
11
PRI A
1T
10
4
1T
3
9
PRI B
5
1T
8
1
PRI AUX
1T
(optional)
7
6
A2
PA0806
/ 07 / 08 / 09 /
10
2
PRI A
A3
PA0811
/
12
/
13
/
14
/
15
2
11
PRI A
4
3
5
1
6
1T
PRI B
11
10
8
7
4
3
5
1
6
1T
PRI B
1T
(optional)
1T
1T
10
9
8
7
PRI AUX
PRI AUX
(optional)
Notes
1. The above transformers have been tested and approved by
Pulse's IC partners and are cited in the appropriate datasheet
or evaluation board documentation at these companies. To
determine which IC and IC companies are matched with the
above transformers, please refer to the IC cross reference on
the Pulse web page. See the Spyglass transfomer matrix on the
next page for other winding configurations that can be made
available.
2. To determine if the transformer is suitable for your application,
it is necessary to ensure that the temperature rise of the
component (ambient plus temperature rise) does not exceed
its operating temperature. To determine the approximate
temperature rise of the transformer, refer to the graphs below.
CoreLoss = 1.59E-13*(DB)
2.5
*(Freq_kHz)
1.8
Core Loss vs. Flux Density
2.0
Temperature Rise vs. Power (W) Dissipation
120
Temperature Rise (°C)
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0.0
Core Loss (W)
100kHz
200kHz
300kHz
400kHz
500kHz
600kHz
700kHz
100
80
60
40
20
0
0
500
1000
DB
= 180E3 * Vin_min * Dutycycle_max / (Freq_kHz * Pri_Turns)
D
B (Gauss)
1500
2000
2500
0
1
2
3
4
5
6
7
Total Power (W) Dissipation
USA 858 674 8100
UK 44 1483 401 700
France 33 3 84 35 04 04
Singapore 65 6287 8998
Shanghai
86 21 54643211 / 2
China 86 769 5538070
Taiwan 886 3 4641811
www.pulseeng.com
89
SPM2006 (3/06)
HIGH FREQUENCY PLANAR
TRANSFORMERS
PA08XX Series (up to 140W)
PA08XX Transformer Winding Configuration Matrix
The following is a matrix of the winding configurations that are
possible with the Pulse PA08XX Planar Transformer Platform.
The package is typically capable of handling between 80-140W of
power depending on the application, ambient conditions and
available cooling. Once a configuration is selected, the formulae
and charts can be used to determine the approximate power
dissipation and temperature rise of the component in a given
application.
SECONDARY WINDINGS
Single Winding
Turns
DCR
Ω
(mΩ)
4T
5T
Single Winding
6T
8T
9T
10T
11T
12T
Dual Winding
4T/4T
4T/5T
5T/5T
5T/6T
6T/6T
NOTES:
1. The primary inductance for any configuration can be calculated as:
Primary Inductance (µH MIN) = 2.4 * (Primary_Turns)
2
2. The above base part numbers (PA08XX) are available from stock.
3. It is possible to add a small gap to the transformer. Gapped transformers are non-standard and can be made available upon
request, but are not typically available from stock. To request a gapped version of the transformer, add a suffix 'G' to the base
number (ie: PA0801G or PA0801.004G etc.). The nominal inductance with the a gap can be calculated as:
Primary Inductance (µH nominal) = 0.69 * (Primary Turns)
2
4. It is possible to add a primary side aux. winding to any of the above configurations as shown in the schematics. Transformers with
primary side aux. windings are non-standard and can be made available upon request, but are not typically available from stock.
The primary aux. winding can be between 2 and 16 turns. To add a primary aux. winding to a given base, use the extension
.0XX.
For example, to add a 4T aux. winding to the base part number
PA0801,
use the part number
PA0801.004.
To add a 16T aux.
winding, use the part number
PA0801.016.
5. Optional Tape & Reel packaging can be ordered by adding a "T" suffix to the complete part number (i.e. PA0801 becomes
PA0801T for no AUX - PA0801.009 becomes PA0801T.009T for 9T AUX). Pulse complies to industry standard tape and reel
specification EIA481.
10
12.5
15
40
45
50
55
60
20/20
20/25
25/25
25/30
30/30
1T
0.44
PA0806
PA0808
PA0810
PA0806
PA0807
PA0808
PA0809
PA0810
PA0806
PA0807
PA0808
PA0809
PA0810
2T
1.3
PA0806
PA0808
PA0810
PA0806
PA0807
PA0808
PA0809
PA0810
PA0806
PA0807
PA0808
PA0809
PA0810
3T
3.5
PA0811
PA0813
PA0815
PA0811
PA0812
PA0813
PA0814
PA0815
PA0811
PA0812
PA0813
PA0814
PA0815
4T
7
PA0801
PA0803
PA0805
PA0801
PA0802
PA0803
PA0804
PA0805
PA0801
PA0802
PA0803
PA0804
PA0805
1:1
1.3
PA0806
PA0808
PA0810
PA0806
PA0807
PA0808
PA0809
PA0810
PA0806
PA0807
PA0808
PA0809
PA0810
Tapped Winding
1:2
3.5
PA0811
PA0813
PA0815
PA0811
PA0812
PA0813
PA0814
PA0815
PA0811
PA0812
PA0813
PA0814
PA0815
1:3
7
PA0801
PA0803
PA0805
PA0801
PA0802
PA0803
PA0804
PA0805
PA0801
PA0802
PA0803
PA0804
PA0805
2:2
7
PA0801
PA0803
PA0805
PA0801
PA0802
PA0803
PA0804
PA0805
PA0801
PA0802
PA0803
PA0804
PA0805
Dual Winding
1T & 1T
1.3
PA0806
PA0808
PA0810
PA0806
PA0807
PA0808
PA0809
PA0810
PA0806
PA0807
PA0808
PA0809
PA0810
1T & 2T
3.5
PA0811
PA0813
PA0815
PA0811
PA0812
PA0813
PA0814
PA0815
PA0811
PA0812
PA0813
PA0814
PA0815
PRIMARY WINDINGS
