ACE9050
System Controller and Data Modem
Data Sheet
January 2007
Features
• Low Power, Low Voltage (3·6 to 5·0 V) Operation
• 3·0V Memory Interface
• Power Down and Emulation Modes
• 6303R-type Microcontroller
• AMPS or TACS Modem
• Watchdog and Power Control Logic
• SAT Detection, Generation and Loopback
• 6K bytes RAM
• Interface to FLASH and EEPROM Memories
• 512 byte ROM Boot Block
• I/O Ports for Keyboard Scanning
• I
2
C Controller
• Small Outline 100-pin package
Applications
• AMPS and ETACS Cellular Telephones
• Two-way Radio Systems
Related Products
The ACE9050 is part of Zarlink Semiconductor's ACE chipset,
together with the following:
ACE9020
Receiver and Transmitter interface
ACE9030
Radio Interface and Twin Synthesiser
ACE9040
Audio Processor
OUTP2 [6]
ICN
LATCH1
OUTP2 [7]
LATCH0
PWM2
DTFG
EMUL
IRQN
POFFN
VSS
VSS
VDD
EXRESN
C1008
MRN
A15
A14
CPUCL
R/W
BAR
DTMS
PWM1
ECLK
RXCD
75
76
LATC H3
SERV
SYNTHCLK
SYNTHDATA
INRQ0
INRQ1
KPI [3]
KPI [2]
KPI [1]
KPI [0]
VDD
VDD
TXDATA
TXSAT
TXPOW
AFC/RXDATA
KPO [4]
KPO [3]
KPO [2]
KPO [1]
KPO [0]
INP1[4]
INP1[3]
INP1[2]
RXSAT
51
50
The ACE9050 provides the control and interface functions
needed for AMPS or TACS analog cellular handsets. The
device has been designed using Zarlink Semiconductor sub-
micron CMOS technology for low power and high performance.
The ACE9050 contains an embedded microcontroller
and peripheral functions. The controller is of the 6303 type
with a Serial Communication Interface, Timer, ROM and
RAM. The peripheral functions are: Data Modem, SAT
Management, Serial Chip Interfaces, I
2
C Interface, two Pulse
Width Modulators, IFC Counter, Tone generator, I/O ports,
Watchdog and Crystal Oscillator.
Several power down modes are incorporated in the device
as is a processor emulation mode for software and system
development.
An index to this data sheet is given on pages 49 and 50.
Ordering Information
Industrial Temperature Range
LQFP 100-lead 14x14 mm, 0.5 mm pitch package (FP100)
ACE9050C/IW/FP1N 100 Pin LQFP* Trays, Bake & Drypack
ACE9050C/IW/FP8N 100 Pin LQFP
Trays, Bake & Drypack
ACE9050C/IW/FP8Q 100 Pin LQFP
Tape & Reel
ACE9050C/IW/FP1Q 100 Pin LQFP* Tape & Reel
ACE9050D/IG/GP1N 100 Pin LQFP
Trays, Bake & Drypack
ACE9050D/IG/GP2N 100 Pin LQFP* Trays, Bake & Drypack
ACE9050D/IG/GP1Q 100 Pin LQFP
Tape & Reel
ACE9050D/IG/GP2Q 100 Pin LQFP* Trays, Bake & Drypack
*Pb Free Matte Tin
ACE9050
100
1
26
25
BA17
BA16
BA15
BA14
A13
A12
A11
A10
A9
A8
A7
A6
VDDM
VSS
VSS
A5
A4
A3
A2
A1
A0
CSE2N
CSEPN
WEN
OEN
TESTN
XIN
XOUT
DFMS
AS
BAUDCLK
P1 [7]
P1 [6]
SCL/P1 [4]
VSS
VDD
P1 [5]
SDA/P1 [3]
P1 [2]
P1 [1]
P1 [0]
VSS
D7
D6
D5
D4
D3
D2
D1
D0
FP100
Figure 1 - Pin connections - top view. Pin 1 is identified by
moulded spot and by coding orientation. See Table 1 for
detailed pin descriptions.
Absolute Maximum Ratings
Supply voltages V
DD
, V
DDM
Storage temperature
Operating temperature
Voltage on any pin
20·5V
to
16V
255°C
to
1150°C
240°C
to
185°C
V
SS
20·5V
to V
DD
10·5V
CLOCK
&
BAUD
GENERATOR
MEMORY
INTERFACE
WATCHDOG
&
POWER
CONTROL
INTERRUPT
CONTROL
I/O
PORTS
KEYPAD
INTERFACE
ACEBus
INTERFACE
6303R
MICRO-
PROCESSOR
UART (SCI)
TIMER
I/O PORTS
0¥5K
ROM
6K
RAM
I2C BUS
INTERFACE
23PULSE
WIDTH
MODULATOR
AMPS / TACS
DATA MODEM
IFC
COUNTER
SAT
MANAGEMENT
TONE
GENERATOR
Figure 2 - ACE9050 simplified block diagram
ACE9050
SYNTHDATA
SYNTHCLK
DTFG
LATCH0
LATCH1
LATCH3
72
73
82
80
78
75
SYNTHDATA
SYNTHCLK
DTFG
LATCH0
ACE
SERIAL
INTERFACE
ONRAD
SINTSLEEP
C1008
IRQSEND
IRQREC
PORT3[6]
PORT4[7]
PULSE WIDTH MODULATOR
DAC1
DAC2
OUT2 [1]
CONTROL
PORT5 [0]
}
PORT5 [5:4]
OUT2 [2]
LATCH2
MUX #1
MUX CONTROL
98
}
INTERRUPTS
PWM #1
PWM #2
MRI IRW ID[7:0]
OUTP2 [1]/
PWM1
OUTP2 [2]/
PWM2/
LATCH2
LSICOM0
LSICOM1
LATCH1
LSICOM2
LSICOM3
LATCH3
LSICOM4
LSICOM5
LATCH2
LSICOM6
MRI IRW ID[7:0] STR_WIDTH
MUX #2
81
INTERNAL PORTS
EXTERNAL PORTS
OUT2 [7]
79
76
NOT BONDED
TO MUX #2
TO MUX #1
TO CPUCL PIN
POWERDET
SERV
3
54, 53, 52
TO
MUX #2
TO 6303
83
5
95
18-25
46-41
92,93
8
6
2
40,39,35-30
8
EMUL IP
EMUL IP
REFER TO TEXT
FOR INDIVIDUAL
BIT FUNCTIONS
O/P IN EMULATION
DATA
INTERNAL ADDRESS
PORT3 [7:0]
PORT4 [7:0]
PORT5 [7:0]
PORT3
PORT4
PORT5
PORT3
PORT4
PORT5
O/P PORT2
OUT_PORT2
OUT2 [6]
OUT2 [5:3]
OUT2 [2]
OUT2 [1]
OUT2 [0]
OUTP2 [7]
OUTP2 [6]
EMUL
AS
R/W
D [7:0]
A [7:0]
A [13:8]
A [15:14]
BA [17:14]
CSE2N
CSEPN
BUS INTERFACE
EMUL ONLY
EMUL IP
EMUL DATA/AD
IRW
ID7:0
AD15:0
MRI IRW ID[7:0] LVN1
I/P PORT1
IN_PORT1
ID [7:0]
INP1 [7]
INP1 [6]
INP1 [4:2]
INP1 [1:0]
INP1 [4:2]
RAM
6016 BYTES
(IRAM)
AD [12:0]
IRW
IRAM
IRQE
EXT. INTERRUPTS
IRQPRT4-RESET
IRQPRT5-MASK
IRQPRT6-READ
5
4
59-55
66-69
2
70, 71
INRQ [1:0]
50-47
29
28
4
MEMORY BANK
SWITCHING
EPROM
BANK_SEL
MRI IRW ID[4:0] AD[15:14]
ROM
512 BYTES
(IROM)
BOOT BLOCK
ID [7:0]
AD [8:0]
IRW
IROM
KEYPORT/CHIP ID
KEYP R/W TO PORT
KPOT O/P TRISTATE
MRI IRW ID[7:0]
ISDA ISCL
KPO [4:0]
KPI [3:0]
IN_PORT1
OUT_PORT2
26
OEN
IRQPRT4
DECODER
WEN
27
IRQPRT5
IRAM
EPROM
IROM
IROME
ACE9050
REGISTER
SELECTS
MEMORY
SELECTS
PORT4 [1]
PORT3 [1]
6303
MICROPROCESSOR
ID7:0
AND
IRW READ/WRITE
KERNEL
AD15:O
EMUL
ICN COUNTER I/P
RESET MRI CLOCK E
PORT1 [7:0]
PORT2 [4]
PORT2 [3]
BAUDCLK
8
7-9, 12-16
4
97
84
6
INTERRUPT IRQN
8
3
BAUD
P1 [7:0]
DFMS/P2 [4]
DTMS/P2 [3]
IRQN
BAUDCLK
BAUD RATE
CLOCK
PORT5 [2]
ENABLE RESET I2C
I2C_ADDR
I2C_DATA
I2C_CNTR
ISCL
P1 [4]
P1 [3]
I2C_INTERRUPT
IRQTX
IRQWS
IRQBISAT
IRQRX
IRQREQ
IRQSEND
8·064MHz
IRQTO
BRG
MRI IRW ID[7:0]
IRQN
2
I C INTERRUPT
IRQE (EXTERNAL INT.)
IRQPRT0-RESET
IRQPRT1-MASK
IRQPRT2-READ
MRI IRW AD[15:0] SLEEP
BEEP ALARM RING
GENERATOR (BAR)
BAR
96
BAR
BARENABLE
BARHIGH
BARLOW
MRI ID[7:0] CLKBUS
126kHz
I2C_STAT
I2C_CCR
I
2
C
ISDA
INT
TESTN
CLKBUS IRW ID[7:0]
INTERRUPT
CONTROL
INTERRUPT SOURCE
MRI IRW ID[7:0]
OUT2 [0]
94
90
99
2
3
1
TO WATCHDOG
AND I
2
C
63
62
51
89
TO 6303
ICN (EMUL)
AFC/RXDATA
77
60
ICN
IFC COUNTER
IFFREQ (2432/256)
STIFCN (START/RESET)
PORT3 [0]
PORT3 [5]
INTERRUPTS
PORT4 [4]
PORT3 [3]
PORT3 [7]
IRQRX
IRQBISAT
IRQWS
IRQTX
AFC/RXDATA
NOMPLL
MDMSLP
ENMOD
MODEM
MODPRT0
MODPRT1
MODPRT2
ID [7:0]
BARPORT
TEST ACCESS ONLY
TXDATA
IRW
MRI
C1008
PORT5 [6]
PORT4 [3]
PORT3 [2]
PORT5 P[1]
CLOCK GENERATOR
XOSC-PD
TURBO
ENSIS
CLKENAB
E (CPU CLOCK)
CLKBUS
C1008
LVN1
CPUCL
54kHz/450kHz
V
DD
V
DDM
V
SS
11, 64, 65, 68
38
10, 17, 36, 37, 86, 87
INP1 [6]
74
91
CPUCL/
OUTP2 [0]
C1008
ECLK
XIN
XOUT
TESTN
WATCHDOG AND ATO
REWD
MASTER RESET
WATCHDOG
AND
RESET LOGIC
RESATO
FILTER
ATO LOGIC
IRQTO
MRI
LVN1
SAT MANAGEMENT
PORT4 [2]
SELECT
SAT
GENERATOR
SAT
MUX
SERV
MRN
TXDATA
TXSAT
RXSAT
EXRESN
RXCD
TXPOW
100
61
85
POFFN
CLKBUS IRW TESTN
INP1 [7]
POWDET
PORT3 [4] UPOFFN

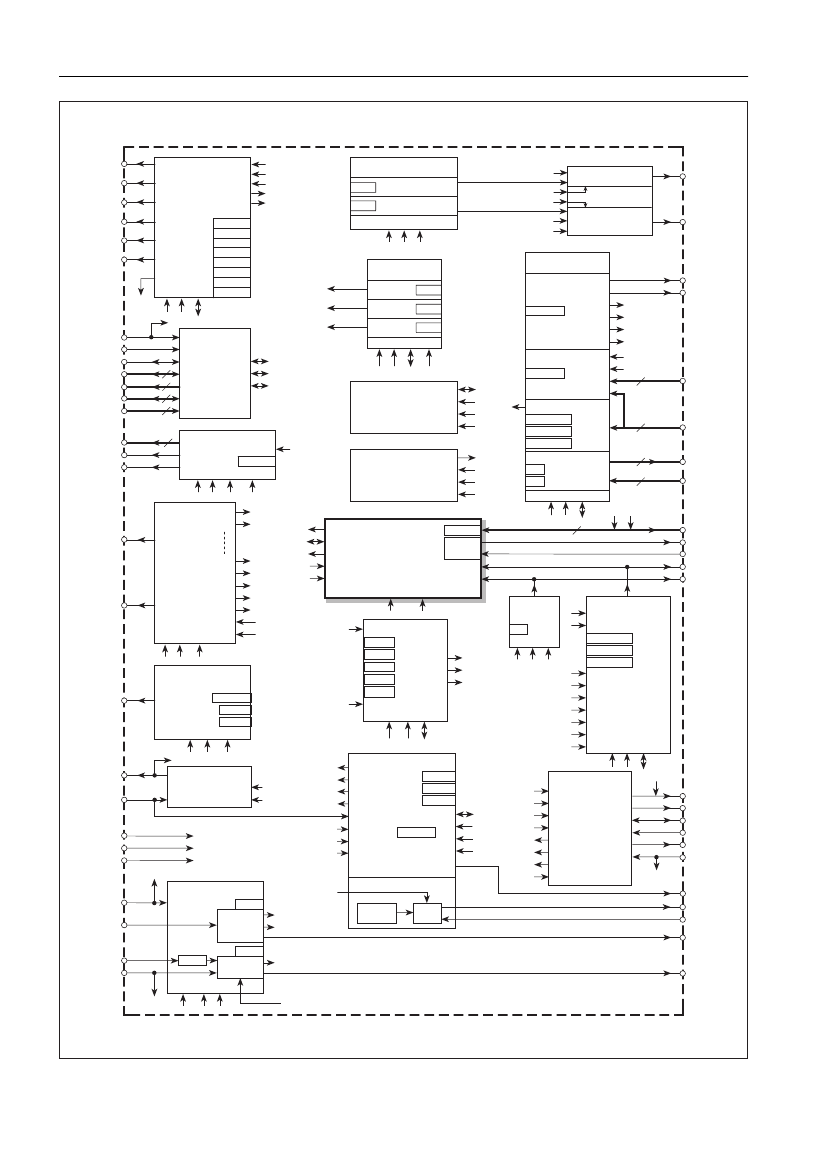

Figure 3 - Detailed block diagram of ACE9050
2
ACE9050
FUNCTIONAL OVERVIEW
MICROPROCESSOR UNIT
The processor unit is program compatible with the standard
6303R. It contains the following hardware:
8-bit CPU
Serial Communication Interface: SCI (UART)
16-bit timer/counter
8-bit l/O port (P1)
2-bit l/O port (P2)
The processor bus speed can be either 1·008 MHz or 2·016
MHz. An Emulation mode is provided whereby the internal 6303
is bypassed to allow software development on a standard 6303
In-Circuit Emulator (ICE).
MEMORY
The ACE9050 contains 512 bytes ofROM and 6144 bytes of
RAM internally.
The ROM code facilitates system initiation after a reset and
the programming of FLASH memory via the 6303 SCI (UART).
The Internal RAM area represents the total RAM requirement
anticipated for a cellular phone.
BUS INTERFACE and MEMORY BANK SWITCHING
These blocks create the Data, Address and Control lines for
the external memory. The external address bus is expanded
from the standard 16 bits up to 18 bits by a banked addressing
scheme. This increases the memory address space from 64K
to 256K. Two programmable Chip Selects (CSEPN and CSE2N)
are generated.
The Memory Interface will operate down to
13V,
allowing
the use of low voltage memory parts.
In Emulation mode the external processor controls the
ACE9050 via the Bus Interface block.
EXTERNAL PORTS
The ACE9050 contains two Keypad Interface ports, two
maskable external interrupts, and both Input and Output ports.
These are in addition to the 6303 bidirectional Port1 and Port2.
The Output port provides two high current outputs for driving
LEDs.
DECODER and INTERRUPT CONTROL
The Decoder block memory maps ACE9050 register
locations onto the processor’s address space.
The Interrupt Control block handles both internal and external
interrupt sources. These are fed into control logic allowing
individual masking and reset by software. The Interrupt control
logic output is internally connected to the 6303 IRQ and also
drives an external pin.
ACE SERIAL INTERFACE (SINT) and I
2
C
Three serial interface protocols are supported: UART, I
2
C
and ACEBus. The 6303 provides a UART interface via the SCI
block.
The ACE9050 I
2
C block provides an I
2
C interface with both
Master and Slave capability.
The ACEBus is designed for use with the ACE Chipset and
has a data rate of just over 1MBits/sec. Three Latch pulse are
available to target data at the relevant IC and control the
ACE9030 Synthesiser.
BEEP, ALARM and RING TONE GENERATOR (BAR)
The BAR Generator is intended to drive an acoustic tone
transducer. It has a programmable single digital pulse train output.
MODEM and SAT MANAGEMENT
The Modem provides two way data transfer and SAT
management over the radio link between a base station and
phone handset. AMPS and TACS data rates are supported .
The Modem block contains: Digital Discriminator, Data
Decoder and Word Synchronising hardware. Various modes
can be selected by software. A squelch level is also set by
software so that the quality of each data byte can be assessed.
SAT detection and generation at the standard three
frequencies 5970Hz, 6000Hz and 6030Hz is included.
WATCHDOG and POWER CONTROL (ATO)
The Watchdog function will provide an internal and external
Reset if the processor does not make a write access to a defined
address every 4 seconds.
An Autonomous Time Out circuit (ATO) will drive the POFFN
output low if Transmitter power is detected without Receiver
power, independent of any processor operation. POFFN must
be used in conjunction with external regulators to control power
to the mobile handset.
IF CONTROL COUNTER (IFC)
The Intermediate Frequency Control (IFC) Counter is used
as part of an AFC Loop. The IFC Counter provides a pulse after
a set number of IF input pulses. The IFC Counter output is
connected to the 6303 timer input and an external pin (ICN).
TWIN PULSE WIDTH MODULATORS
Two independently programmable Pulse Width Modulators
(PWMs) are available. These provide digital output pulse trains,
controllable by software. The output can be filtered externally to
provide a DAC function. Typical applications are battery charging
control and LCD contrast control.
CLOCK GENERATOR
The Clock Generator provides all the various internal and
external clocks from a single 8·064 MHz source. The source
can either be an external crystal or the ACE9030.
3
ACE9050
PIN DESCRIPTIONS
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
Name
TESTN
XIN
XOUT
DFMS/P2 [4]
AS
BAUDCLK
P1[7]
P1[6]
P1[4]/SCL
V
SS
V
DD
P1[5]
P1[3]/ SDA
P1[2]
P1[1]
P1[0]
V
SS
D7
D6
D5
D4
D3
D2
D1
D0
OEN
WEN
CSEPN
CSE2N
A0
A1
A2
A3
A4
A5
V
SS
V
SS
V
DDM
A6
A7
A8
A9
A10
A11
A12
A13
BA14
BA15
BA16
BA17
RXSAT
INP1 [2]
INP1 [3]
INP1 [4]
KPO [0]
KPO [1]
KPO [2]
KPO [3]
KPO [4]
AFC/RXDATA
TXPOW
TXSAT
TXDATA
V
DD
V
DD
Type
I
I
O
I/O
I
O
(I)
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
O
O
O
O
O
O
O
O
O
O
Block
CLK/WDATO
CLK
CLK
CPU
BINT
BAUD
CPU
CPU
CPU / I
2
C
CPU
CPU / I
2
C
CPU
CPU
CPU
BINT
BINT
BINT
BINT
BINT
BINT
BINT
BINT
DEC
DEC
MEMB
MEMB
BINT
BINT
BINT
BINT
BINT
BINT
Description
Connect to V
DD
Crystal connection CMOS input: 8·064 MHz
Crystal connection
CPU Port2 bit 4 or Serial interface (SCI) output
Address strobe (Latch Address during Emulation)
Baud Rate Gen. output for Emulation
(lnput in test mode)
PORT 1 of CPU
PORT 1 of CPU
PORT 1 of CPU/I
2
C SCL
Ground
Digital Supply
PORT 1 of CPU
PORT 1 of CPU/I
2
C SDA
PORT 1 of CPU
PORT 1 of CPU
PORT 1 of CPU
Ground
Data bus
(and Emulation Address A7 Input)
Data bus
(and Emulation Address A6 Input)
Data bus
(and Emulation Address A5 Input)
Data bus
(and Emulation Address A4 Input)
Data bus
(and Emulation Address A3 Input)
Data bus
(and Emulation Address A2 Input)
Data bus
(and Emulation Address A1 Input)
Data bus
(and Emulation Address A0 Input)
Output Enable
Write Enable
C/S External EPROM
C/S External EEPROM
Address bus
Address bus
Address bus
Address bus
Address bus
Address bus
Ground
Ground
Digital Supply for Memory Interface (pins18-35, 38-50)
Address bus
Address bus
Address bus
(Input during Emulation)
Address bus
(Input during Emulation)
Address bus
(Input during Emulation)
Address bus
(Input during Emulation)
Address bus
(Input during Emulation)
Address bus
(Input during Emulation)
Address bus (Extended Address: From Bank Select Register)
Address bus (Extended Address: From Bank Select Register)
Address bus (Extended Address: From Bank Select Register)
Address bus (Extended Address: From Bank Select Register)
Received SAT input
Bit 2 Input Port1
Bit 3 Input Port1
Bit 4 Input Port1
Keypad scan output/output port
Keypad scan output/output port
Keypad scan output/output pon
Keypad scan output/output port
Keypad scan output/output port
54/450kHz IF input fromACE9030
Power detect from transmitter
SAT Output
TACS / AMPS Modem Output
Digital Supply
Digital Supply
Table 1
Internal
PU
None
-
None
PU
PU
None
None
None
-
-
None
None
None
None
None
-
None
None
None
None
None
None
None
None
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
None
None
None
None
None
None
-
-
-
-
None
None
None
None
-
-
-
-
-
None
None
-
-
-
-
Cont…
O
O
O
(I)
O
(I)
O
(I)
O
(I)
O
(I)
O
(I)
O
O
O
O
I
I
I
I
O
O
O
O
O
I
I
O
O
BINT
BINT
BINT
BINT
BINT
BINT
BINT
BINT
MEMB
MEMB
MEMB
MEMB
MODEM
EPORT
EPORT
EPORT
EPORT
EPORT
EPORT
EPORT
EPORT
IFC/MODEM
WDATO
MODEM
MODEM
4
Advance Information
Pin
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
Name
KPI [3]
KPI [2]
KPI [1]
KPI [0]
INRQ1
INRQ0
SYNTHDATA
SYNTHCLK
SERV
LATCH3
OUTP2 [6]
ICN
LATCH1
OUTP2[7]
LATCH0
OUTP2[2]/PWM2/
LATCH2
DTFG
EMUL
IRQN
POFFN
V
SS
V
SS
V
DD
EXRESN
C1008
MRN
A15
A14
CPUCL/OUTP2 [0]
R/W
BAR
DTMS
OUTP2 [1]/PWM 1
ECLK
RXCD
Type
I
I
I
I
I
I
O
O
I
O
O
O
(I)
O
O
O
O
I/O
I
O
(I)
O
Block
EPORT
EPORT
EPORT
EPORT
EPORT
EPORT
SINT
SINT
WDATO
SINT
EPORT
IFC
SINT
EPORT
SINT
PWM
Description
ACE9050
Internal
PD
PD
PD
PD
PD
PD
-
-
None
-
-
PU
-
-
-
-
None
PD
-
-
-
-
-
-
-
None
PU
PU
-
None
-
None
-
None
None
O
O
I
I
I
O
O
(I)
O
I/O
O
O
(I)
I
Keypad scan input/input port
Keypad scan input/input port
Keypad scan input/input port
Keypad scan input/input port
External Interrupt (also Bit1 Input Port1)
External Interrupt (also Bit0 Input Port1)
SynthBus Data Line
SynthBus 126kHz Clock
1 = Service Mode
Latch, programmable length. (To ACE9030, LATCHC pin)
Output Port2 Bit 6: High Current Driver
IF Counter Output for Emulation
(input in Test mode)
Latch O/P (To ACE9030 receiver Interface, LATCHB pin)
Output Port2 Bit 7: High Current Driver
Latch O/P (To ACE9040, LEN )
Output Port2 Bit 2/Pulse Width Modulator #2 Output/
SynthBus Latch O/P.
SINT
Bidirectional serial inter-chip data, to/from the ACE9030
BINT/CPU
1 = CPU Emulation Mode
CPU
CPU Interrupt for Emulation
(input in Test mode)
WDATO
Power On/Off
Ground
Ground
Digital Supply
WDATO
External reset output
CLK
1·008MHz Clock for ACEBus, ACE9030 and ACE9040
WDATO
0 = Chip reset
BINT
Address input for Emulation only
BINT
Address input for Emulation only
CLK/EPORT 8.064MHz clock/Out Port 2 bit 0
BINT
Read/Write
(Input during Emulation)
BAR
Beep, Alarm, Ring Tone Output
CPU
CPU Port 2 bit 3 or Serial interface (SCI) input
PWM
Output Port 2 Bit 1/Pulse Width Modulator #1 Output
CLK
Processor Clock
(Input during Emulation)
WDATO
Carrier detect from RX
Table 1 (continued)
I
2
C
IFC
MODEM
PWM
SINT
WDATO
PU
PD
I
2
C interface
IF Control counter
AMPS/TACS Modem
Pulse Width Modulator and MUX
Serial Inter-chip interface
Watchdog/Autonomous Time Out
Internal Pullup resistor present
Internal Pulldown resistor present
ABBREVIATIONS
BAR
Beep, Alarm and Ring tone generator
BAUD
Baud Rate generator
BINT
Bus Interface
MEMB
Memory Bank switching
CLK
Clock generator
CPU
6303 microprocessor unit
DEC
Decoder
EPORT
External Port
UNUSED INPUTS
Input or bidirectional pins must have a suitable pullup or pulldown reststor if they are configured as inputs, with no external drive. Some
inputs have an internal pullup or pulldown resistor of the order of 100kΩ; this value is suitable if the pin is not subject to excessive
noise or residual current greater than 15µA. If the pins shown in Table 2 are not used in the system, an external resistor will be required.
Pin
4
7
8
9
12
13
14
DFMS
P1 [7]
P1 [6]
P1 [5]
P1 [4]
P1 [3]
P1 [2]
Name
Pin
15
16
51
52
53
54
60
Name
P1 [1]
P1 [0]
RXSAT
INP1 [2]
INP1 [3]
INP1 [4]
AFC_IN/RXDATA
Table 2
Pin
61
74
82
91
97
100
Name
TXPOW
SERV
DTFG (Requires
programming resistor)
MRN
DTMS
RXCD
NOTE: P1 [7:0], DFMS and DTMS are configured as inputs upon reset.
5
京公网安备 11010802033920号
EEWORLD
