AP2S2-FREQEJB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> AP2S2-FREQEJB

AP2S2-FREQEJB: DescriptionCRYSTAL OSCILLATOR, CLOCK, 1 MHz - 75 MHz, CMOS OUTPUT, ROHS COMPLIANT PACKAGE-4; CategoryPassive components oscillator; File Size124KB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

AP2S2-FREQEJB Overview

CRYSTAL OSCILLATOR, CLOCK, 1 MHz - 75 MHz, CMOS OUTPUT, ROHS COMPLIANT PACKAGE-4

AP2S2-FREQEJB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
Reach Compliance Code	compliant
Other features	BULK
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	20%
Manufacturer's serial number	AP2S
Installation features	SURFACE MOUNT
Maximum operating frequency	75 MHz
Minimum operating frequency	1 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	CMOS
Output load	15 pF
physical size	2.5mm x 2.0mm x 0.9mm
longest rise time	5 ns
Maximum supply voltage	1.89 V
Minimum supply voltage	1.71 V
Nominal supply voltage	1.8 V
surface mount	YES
maximum symmetry	55/45 %
Terminal surface	NOT SPECIFIED

Preview

Download Datasheet

View All

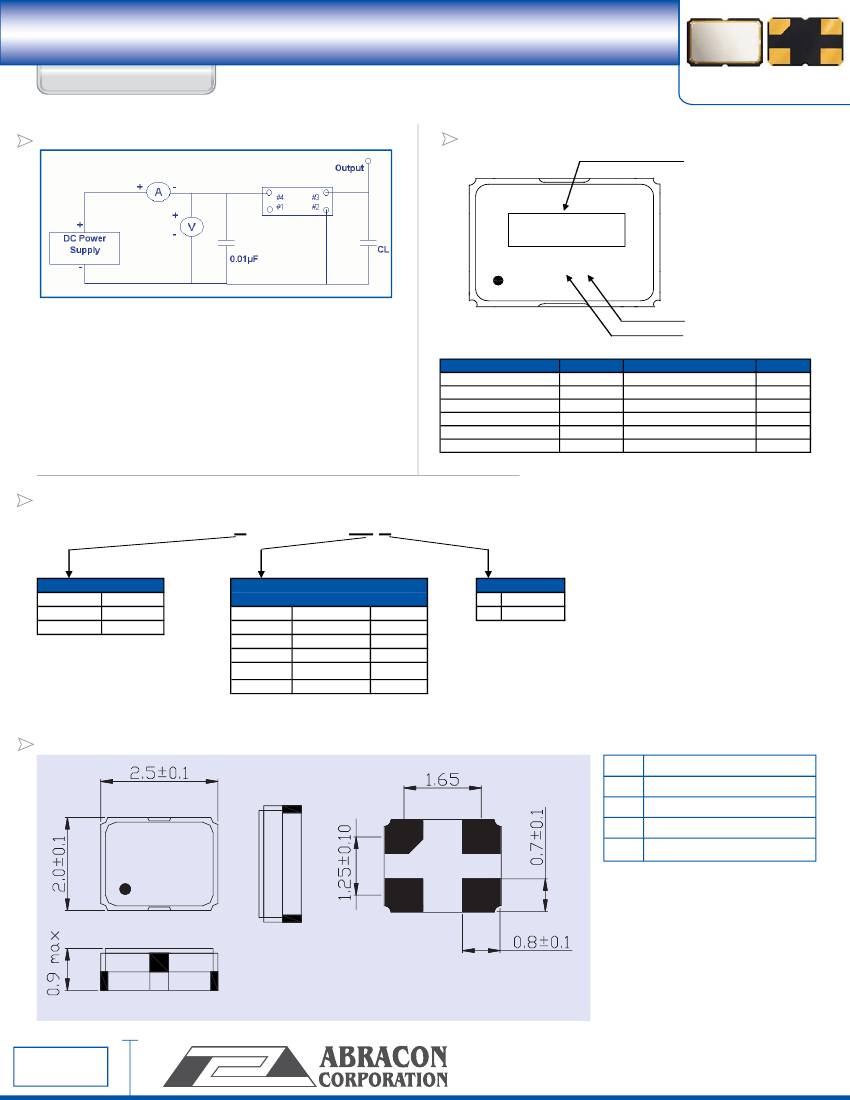

PROGRAMMABLE CRYSTAL OSCILLATOR

AP2S

*PB FREE & ROHS COMPLIANT

• Short lead time

• Suitable for mass production

• Alternative to long lead-time XO's

2.5 x 2.0 x 0.9mm

| | | | | | | | | | | | | | |

FEATURES:

• Performance equivalent to fixed frequency oscillator

• Lowest peak-to-peak jitter

• Low supply current

STANDARD SPECIFICATIONS:

3.3V OPERATION (STANDARD)

Characteristics

Center Frequency

Operation Temp. Range * (See Options)

Frequency Stabilty * (See Options)

Input Voltage (Operating Vdd)

Input Current

Output

Load

"0" level

"1" level

Symmetry

Rise Time (10%->90% Vdd)

Fall Time (90%->10% Vdd)

Enable/Disable Function

2.5V OPERATION

Characteristics

Center Frequency

Operation Temp. Range * (See Options)

Frequency Stabilty * (See Options)

Input Voltage (Operating Vdd)

Input Current

Output

Load

"0" level

"1" level

Symmetry

Rise Time (10%->90% Vdd)

Fall Time (90%->10% Vdd)

Enable/Disable Function

1.8V OPERATION

Characteristics

Center Frequency

Operation Temp. Range * (See Options)

Frequency Stabilty * (See Options)

Input Voltage (Operating Vdd)

Input Current

Output

Load

"0" level

"1" level

Symmetry

Rise Time (10%->90% Vdd)

Fall Time (90%->10% Vdd)

Enable/Disable Function

Unit

MHz

°C

ppm

VDC

nSec

Minimum

-10

-100

2.97

Typical

3.3 ± 5%

Maximum

110

100

0.33

pin 1 : High or Open , pin 3 : Enable

pin 1 : Low , pin 3 : Disable

Typical

2.5 ± 5%

Unit

MHz

°C

ppm

VDC

nSec

Minimum

-10

-100

2.25

Maximum

100

0.25

pin 1 : High or Open , pin 3 : Enable

pin 1 : Low , pin 3 : Disable

Typical

1.8 ± 5%

Unit

MHz

°C

ppm

VDC

nSec

Minimum

-10

-100

1.62

Maximum

100

0.18

pin 1 : High or Open , pin 3 : Enable

pin 1 : Low , pin 3 : Disable

* Freq. stability includes 25C tolerance, operation temp.rang, aging and voltage or load change.

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com

Revised: 1.1.07
