phototransistor is used to generate a control signal
that provides a servomechanism to the LED drive
current, thus compensating for the LEDs nonlinear
time and temperature characteristics. The other
(output) phototransistor provides an output signal that
is linear with respect to the servo LED current. The
product features wide bandwidth, high input to output
isolation and excellent servo linearity.
Applications
•
Modem Transformer Replacement With No
Insertion Loss
•
Digital Telephone Isolation
•
Power Supply Feedback Voltage/Current
•
Medical Sensor Isolation
•
Audio Signal Interfacing
•
Isolation of Process Control Transducers
Approvals
•
UL Recognized: File Number E76270
•
CSA Certified: File Number LR 43639-10
•
Certified to:
•
EN 60950
•
EN 41003
Pin Configuration
LOC211 Pinout
1
2
+ LED
3
+ V
cc
4
I
1
NC
NC
+V
cc
8
I
1
9
I
2
5
6
7
12
11
10
13
16
15
14
Ordering Information
Part #
LOC211P
LOC211PTR
NC
NC
+V
cc
I
2
– LED
+ LED
+V
cc
Description
16 Pin Flatpack (50/Tube)
16 Pin Flatpack (1000/Reel)
– LED
K3 Sorted Bins
Bin 1 = 0.733 - 0.886
Bin 2 = 0.887 - 1.072
Bin Matrix
Suffix
Bin
Top Pole
Bottom Pole
Optocoupler* Optocoupler**
1
1
1
2
2
1
2
2
K
L
M
N
*Top Pole Optocoupler: Pins 1,2,3,4,13, and 14
**Bottom Pole Optocouplers: Pins 7 through 12
•
Orders for the LOC211P product will be shipped using bins
available at the date of the order. Any bin can be shipped.
Part Number Information
The LOC211 are shipped in anti-static tubes (50
pieces each) or tape/reel (1,000 pieces each). Each
container has only 1 bin combination which will be
branded on each part with the appropriate bin letter
K, L, M, or N in the lower right hand corner. Suffix
representation is described in the “Bin Matrix”.
DS-LOC211P-R4.4
www.clare.com
1
LOC211P
Absolute Maximum Ratings (@ 25
o
C)
Parameter
Input Power Dissipation
Input Control Current
Input LED Reverse Voltage
Peak (10ms)
Total Package Dissipation
Isolation Voltage
Input to Output
Operational Temperature
Storage Temperature
Soldering Temperature
(10 Seconds Max)
1
2
Min
-
-
-
-
-
3750
-40
-40
-
Typ Max Units
-
-
-
-
-
-
-
-
150
1
100
5
1
800
2
mW
mA
V
A
mW
Absolute Maximum Ratings are stress ratings. Stresses in
excess of these ratings can cause permanent damage to
the device. Functional operation of the device at conditions
beyond those indicated in the operational sections of this
data sheet is not implied.
-
V
RMS
°
C
+85
+125
°
C
+220
°
C
Derate Linearly 1.33 mW/
°
C
Derate Linearly 6.67 mW/
°
C
Electrical Characteristics
Parameter
Conditions
Input Characteristics @ 25°C
LED Voltage Drop
I
F
=2-10mA
Reverse LED Current
V
R
=5V
Coupler/Detector Characteristics @ 25°C
Dark Current
I
F
=0mA, V
CC
=15V
K1, Servo Gain (I
1
/I
F
)
I
F
=2-10mA, V
CC
=15V
K2, Forward Gain (I
2
/I
F
)
I
F
=2-10mA, V
CC
=15V
K3, Transfer Gain (K
2
/K
1
)
I
F
=2-10mA, V
CC
=15V
∆K3,
Transfer Gain Linearity
I
F
=2-10mA
(non-servoed)
K3 Temperature Coefficient
I
F
=2-10mA, V
det
=-5V
Common Mode
V=20V
P-P
, R
L
=2KΩ,
Rejection Ratio
F=100Hz
Total Harmonic Distortion
F
O
=350Hz, 0dBm
Frequency Response
Photoconductive Operation
Photovoltaic Operation
Input/Output Capacitance
-
NOTE: All parameters above are for each optocoupler.
Symbol
V
F
I
R
I
D
K1
K2
K3
∆K3
∆K3/∆T
CMRR
THD
BW (-3dB)
BW (-3dB)
C
I/O
Min
0.9
-
-
0.008
0.006
0.733
-
-
-
-96
-
-
-
Typ
1.2
-
1
-
-
-
-
0.005
130
-87
200
-
3
Max
1.4
10
25
0.030
0.030
1.072
1.0
-
-
-80
-
40
-
Units
V
µA
nA
-
-
-
%
%/
°
C
dB
dB
kHz
kHz
pF
2
www.clare.com
Rev. 4.4
LOC211P
PERFORMANCE DATA*
LOC211
LED Current (I
F
) vs.
LED Forward Voltage (V
F
)
35
30
LED Current (mA)
LED Current (mA)
25
20
15
10
5
0
1
1.1
1.2
1.3
1.4
LED Forward Voltage (V)
0.1
1
100
LOC211
LED Current (I
F
) vs.
LED Forward Voltage (V
F
)
LOC211
Servo Gain vs.
LED Current & Temperature
0.014
0.012
Servo Gain
0°C
25°C
50°C
70°C
85°C
10
0.010
0.008
0.006
0.004
0.002
0
1.1
1.2
1.3
1.4
0
2
4
6
8
1
10
12
LED Forward Voltage (V)
LED Current (mA)
LOC211
Servo-Photocurrent vs.
LED Current & Temperature
Normalized Servo-Photocurrent
140
Servo-Photocurrent (µA)
120
100
80
60
40
20
0
0
2
4
6
8
10
12
LED Current (mA)
0°C
25°C
50°C
70°C
85°C
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
LOC211
Normalized Servo-Photocurrent vs.
LED Current & Temperature
0°C
25°C
50°C
70°C
85°C
LED Forward Voltage Drop (V)
1.7
1.6
1.5
1.4
1.3
1.2
LOC211
Typical LED Forward Voltage Drop vs.
Temperature
20mA
10mA
5mA
1.1
1.0
0.9
-40
-15
10
35
60
85
Temperature (°C)
0
2
4
6
8
10
12
LED Current (mA)
* The Performance data shown in the graphs above is typical of device performance. For guaranteed parameters not indicated in the written specifications, please contact our application
department.
Rev. 4.4
www.clare.com
3

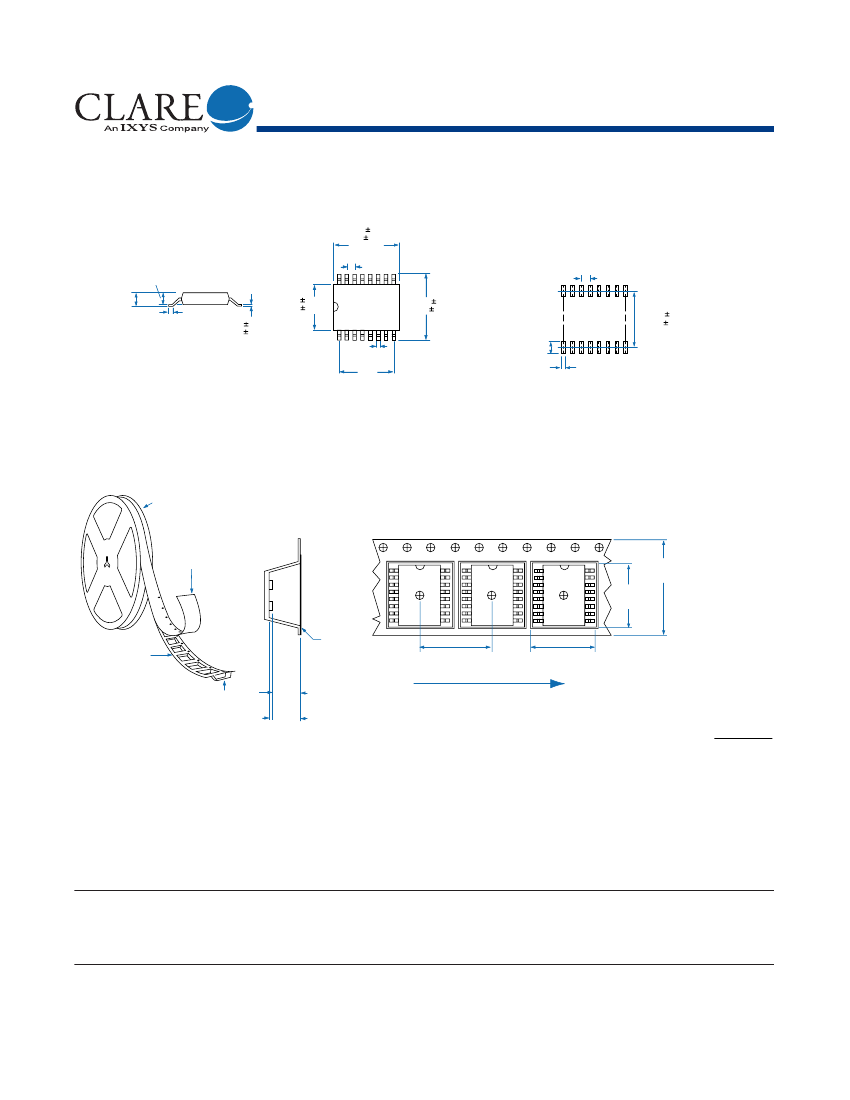

MECHANICAL DATA
16 Pin SOIC (“P” Suffix)
10.160 0.381
(0.400 0.015)
1.270 TYP.
(0.050 TYP.)
PC Board Pattern
(Top View)
1.270
(0.050)
1.981 TYP.
(0.078 TYP.)
2.108 MAX.
(0.083 MAX.)
1.016 TYP.
(0.040 TYP.)
0.254
(0.010
7.493
(0.295
0.0127
0.0005)
0.406 TYP.
(0.016) TYP.
8.890 TYP.
(0.350 TYP.)
1.193
(0.047)
0.127
0.005)
10.363 0.127
(0.408 0.005)
9.728 0.051
(0.383 0.002)
0.787
(0.031)
Tape and Reel Packaging for 16 Pin SOIC Package
330.2 DIA.
(13.00 DIA.)
Top Cover
Tape Thickness
0.102 MAX.
(0.004 MAX.)
1
16
16.30 MAX.
(0.642 MAX.)
10.70
(0.421)
Top Cover
Tape
Embossed Carrier
12.00
(0.172)
2.70
(0.106)
4.90
(0.193)
10.90
(0.430)
Embossment
User Direction of Feed
Dimensions
mm
(inches)
For additional information please visit our website at: www.clare.com
Clare, Inc. makes no representations or warranties with respect to the accuracy or completeness of the contents of this publication and reserves the right to make changes to specifications and product descriptions
at any time without notice. Neither circuit patent licenses nor indemnity are expressed or implied. Except as set forth in Clare’s Standard Terms and Conditions of Sale, Clare, Inc. assumes no liability whatsoever, and
disclaims any express or implied warranty, relating to its products including, but not limited to, the implied warranty of merchantability, fitness for a particular purpose, or infringement of any intellectual property right.
The products described in this document are not designed, intended, authorized or warranted for use as components in systems intended for surgical implant into the body, or in other applications intended to support
or sustain life, or where malfunction of Clare’s product may result in direct physical harm, injury, or death to a person or severe property or environmental damage. Clare, Inc. reserves the right to discontinue or make
changes to its products at any time without notice.
