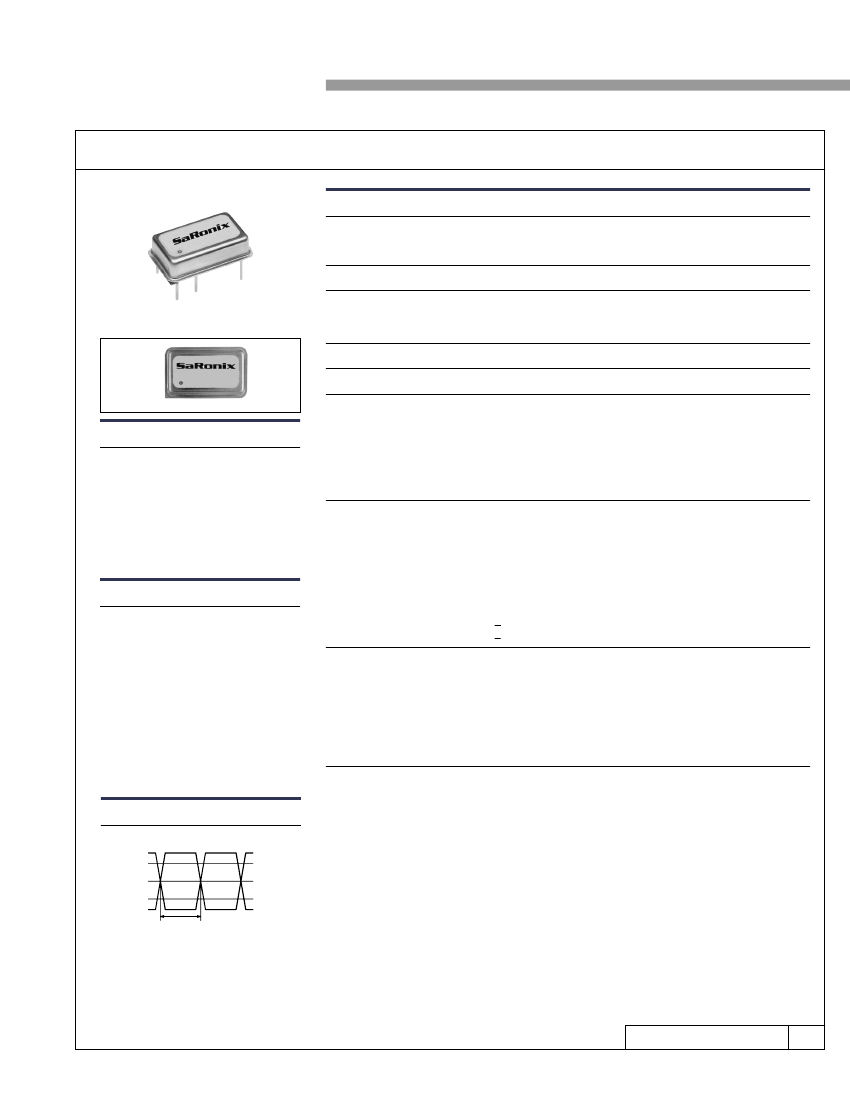

SaRonix
Voltage Controlled Crystal Oscillator
Technical Data
Frequency Range:
Frequency Stability:
77.76 MHz to 155.52 MHz
±20, ±25, or ±50 ppm over all conditions: operating temperature,
supply voltage change, load change, calibration tolerance, aging*
shock and vibration.
5 years @ 40°C average ambient operating temperature
3.3V PECL
S1562 / S1564 Series
*
Aging:
Temperature Range:
Operating:
Storage:
Supply Voltage (V
CC
):
Supply Current:
ACTUAL SIZE
0 to +70°C, 0 to +85°C, -40 to +85°C
-55°C to +105°C
3.3V ±10%
65mA typ, 100mA max
Output Drive:
Symmetry:
Rise & Fall Times:
Logic 0:
Logic 1:
Load:
Jitter:
Pull Characteristics:
Input Impedence (Pin 1):
Frequency Response (-3dB):
Pullability:
Control Voltage:
Center Control Voltage:
Transfer Function:
Linearity:
Output Enable Voltage (Pin 3):
Disable Voltage:
Mechanical:
Shock:
Solderability:
Terminal Strength:
Vibration:
Solvent Resistance:
Resistance to Soldering Heat:
Environmental:
Gross Leak Test:
Fine Leak Test:
Thermal Shock:
Moisture Resistance:
MIL-STD-202, Method 213, Condition F
MIL-STD-883, Method 2003
MIL-STD-202, Method 211, Conditions A & C
MIL-STD-883, Method 2007, Condition A
MIL-STD-202, Method 215
MIL-STD-202, Method 210, Condition A, B or C
(I or J for Gull-wing)
45/55% max @ outputs crossing
550 ps max, 20% to 80% of output waveform
V
CC
-1.620 max
V
CC
-1.025 min
50Ω to V
CC
-2V (all outputs require termination)
3.5ps max RMS period jitter
Description
A voltage controlled crystal oscillator
designed primarily for use in phase locked
loops, Sonet, ATM, SDH and network/
switch applications. Output is LVPECL
and Motorola 10KE compatible. Device
is packaged in a 14-pin DIP compatible,
resistance welded package. Case is
grounded to Pin 7 to reduce EMI.
Applications & Features
•
Enable/Disable standard
•
Positive supply voltage 3.3V ECL
(PECL), LVDS compatible
˜
Complementary outputs on S1564
•
Single output on S1562
•
Wide frequency range from 77.76 MHz
to 155.52 MHz using SaRonix funda-
mental crystals for exceptional jitter
performance
•
±50 ppm minimum APR**
•
Covers a wide range of telecommuni-
cation applications
Output Waveforms
Logic 1
80%
V
OH
Min
Outputs
Crossing
20%
Logic 0
SYMMETRY
45% Min, 55% Max
V
OL
Max
50KΩ min
10 kHz min
±50 ppm min APR**
0.3V min to 3.0V max
1.65V
Frequency increases when control voltage increases
10% max
< V
CC
- 1.475V or Open
> -1.165V (Q Output Disabled to a fixed level of Logic 0)
MIL-STD-883,
MIL-STD-883,
MIL-STD-883,
MIL-STD-883,
Method
Method
Method
Method
1014, Condition C
1014, Condition A2
1011, Condition A
1004
**
APR = (VCXO Pull relative to specified Output Frequency)
–
(VCXO Frequency Stability)
DS-189
REV C
SaRonix
141 Jefferson Drive • Menlo Park, CA 94025 • USA • 650-470-7700 • 800-227-8974 • Fax 650-462-9894
SaRonix
Voltage Controlled Crystal Oscillator
Technical Data
Package Details
21.0 max
.825
0.91
.036
max
7.49
.295
max
5.77±0.5
.227±.02
15.24±.13
.600±.005
Pin 1
Pin 3
Pin 7
0.46±.08
.018±.003
3.3V PECL
S1562 / S1564 Series
Part Numbering Guide
S 156 2 A A B
Model
PECL VCXO Series
Output
2 = Single w/ Enable
4 = Complementary w/ Enable
Stability Tolerance
AA = ±20 ppm, 0 to +70°C
A = ±25 ppm, 0 to +70°C
B = ±50 ppm, 0 to +70°C
E = ±50 ppm, -40 to +85°C
G = ±50 ppm, 0 to +85°C
- 77.7600
Frequency (MHz)
Package
Blank = 7.49mm high
K = 7.49mm high, gull wing
L = 5.08mm high
Linearity
B = 10% max
Pullability
(APR)
*
A = ±50 ppm min
7.75
.305
max
13.0
.510
max
Pin 14
5.08
.200
Pin 12
Pin 8
*
APR = (VCXO Pull relative to specified Output Frequency)
–
(VCXO Frequency Stability)
Gull Wing Package
1.78
typ
.070
Test Circuit
Q
13.46±.25
.530±.010
+2.0V
Pin 14
Pin 12
Pin 8
50Ω INTERNAL SCOPE
TERMINATION
TO GND
Q
Pin Functions:
S1562
Pin 1: Control Voltage
Pin 3: Enable
Pin 7: GND / Case
S1564
Pin 1: Control Voltage
Pin 3: Enable
Pin 7: GND / Case
Pin 8: Q Output
Pin 12: N/C
Pin 14: Supply Voltage
Pin 8: Q Output
Pin 12: Q Output
Pin 14: Supply Voltage
OSCILLATOR
50Ω INTERNAL SCOPE
TERMINATION
TO GND
Pin 7
-3.0V
Pin 1
CONTROL
VOLTAGE
Pin 3
Marking Format
**
Includes Date Code, Frequency & Model
ENABLE / DISABLE
SARONIX
VCXO
Denotes Pin 1
**
Exact location of items may vary
Scale: None (Dimensions in
mm
)
inches
All specifications are subject to change without notice.
DS-189
REV C
SaRonix
141 Jefferson Drive • Menlo Park, CA 94025 • USA • 650-470-7700 • 800-227-8974 • Fax 650-462-9894
