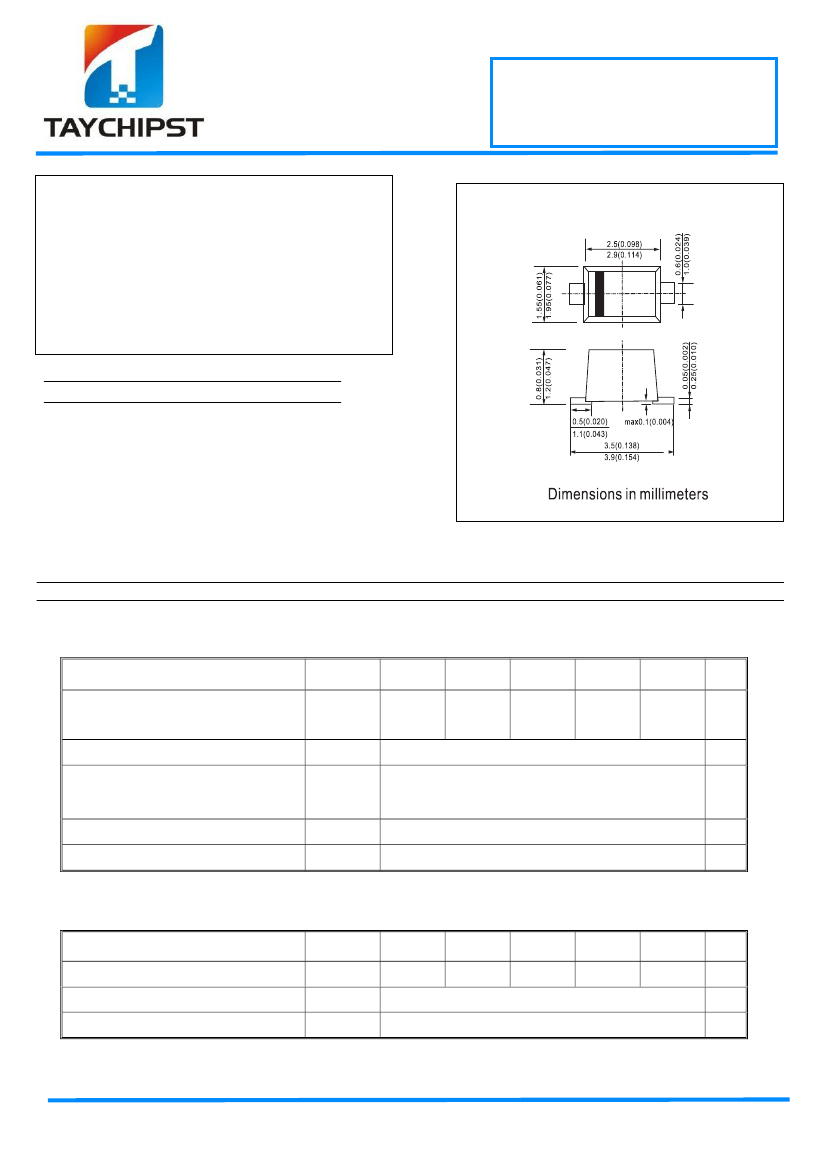

SS1020FL THRU SS10100FL
SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
20V -100V 1.0A
FEATURES
!
Low Turn-on Voltage
!
Fast Switching
!
PN Junction Guard Ring for Transient and
ESD Protection
!
Designed for Surface Mount Application
!
Classification 94V-O
SOD-123FL
Mechanical Data
!
!
!
!
!
Case: SOD-123FL, Molded Plastic
Terminals: Plated Leads Solderable per
MIL-STD-202, Method 208
Polarity: Cathode Band
Weight: 0.017 grams (approx.)
Marking: SS1020FL G2
SS1030FL G3
SS1040FL G4
SS1060FL G6
SS10100FL G10
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Maximum Ratings
@T
A
=25°C unless otherwise specified
Symbol
V
RRM
V
RWM
V
R
I
F
SS1020FL
SS1030FL
SS1040FL
SS1060FL SS10100FL
Unit
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Forward Continuous Current (Note 1)
Non-Repetitive Peak Forward Surge Current
8.3ms Single half sine-wave superimposed on
rated load (JEDEC Method)
Power Dissipation (Note 1)
Operating and Storage Temperature Range
20
30
40
1.0
60
100
V
A
I
FSM
25
A
P
d
T
j
, T
STG
450
-65 to +125
mW
°C
Electrical Characteristics
Characteristic
Forward Voltage Drop
@T
A
=25°C unless otherwise specified
Symbol
SS1020FL
0.45
SS1030FL
0.55
SS1040FL
0.55
500
50
SS1060FL SS10100FL
0.70
0.85
Unit
V
µA
pF
@I
F
= 1.0A
V
FM
I
RM
C
j
Peak Reverse Leakage Current @ V
RRM
Typical Junction Capacitance
Note: 1. Valid provided that terminals are kept at ambient temperature.
E-mail: sales@taychipst.com
1 of 2
Web Site: www.taychipst.com
SS1020FL THRU SS10100FL
SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
20V -100V 1.0A
SS1020FL THRU SS10100FL

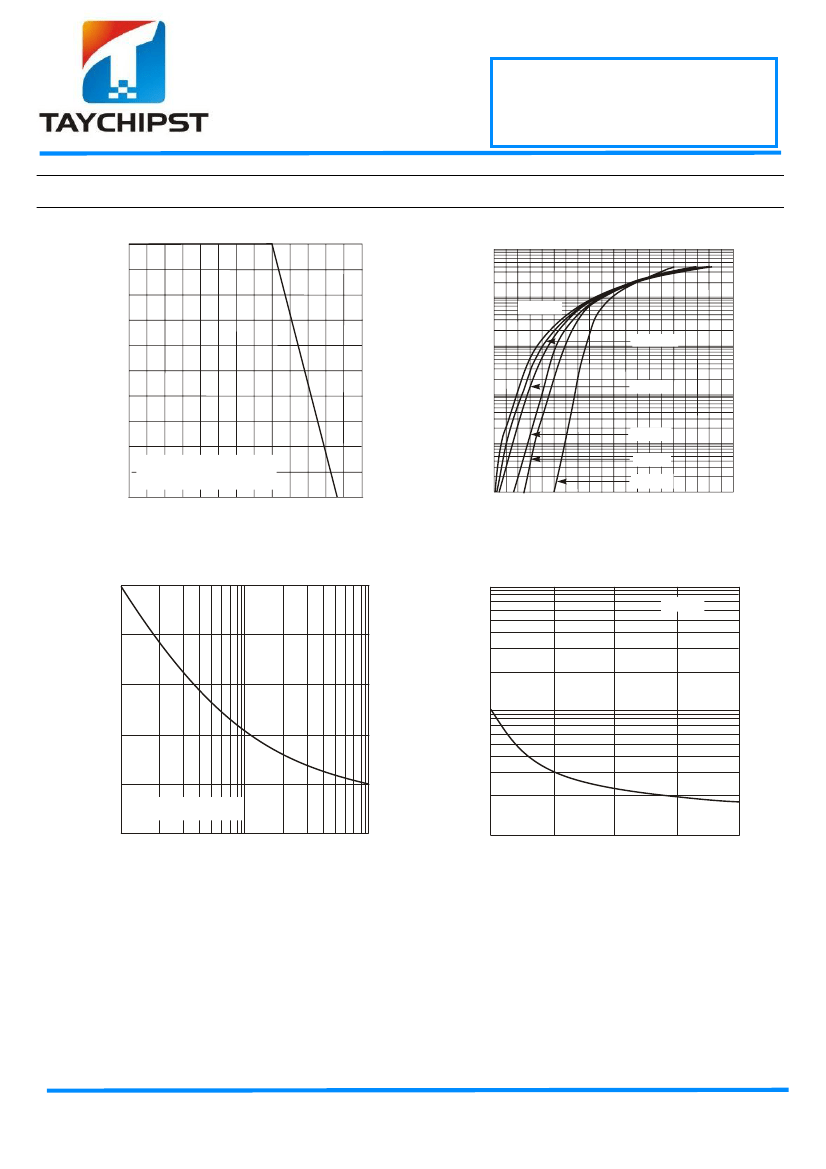

RATINGS AND CHARACTERISTIC CURVES
0.8
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
1.0
I
O
, AVERAGE OUTPUT CURRENT (A)
10
1
T
A
= 125ºC
0.6
0.1
T
A
= 100ºC
0.4
0.01
T
A
= 75ºC
0.2
Single Pulse Half-Wave
60 Hz Resistive or Inductive Load
0.001
T
A
= 25ºC
T
A
= 0ºC
T
A
= -65ºC
0
10
40
60
80
100
120
140
T
T
, TERMINAL TEMPERATURE (ºC)
Fig. 1 Forward Current Derating Curve
25
I
FSM
, PEAK FORWARD SURGE CURRENT (A)
0.0001
0
0.2
0.4
0.6
0.8
1.0
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Typical Forward Characteristics
1000
f = 1MHz
15
C
T
, TOTAL CAPACITANCE (pF)
8.3ms Single Half Sine-Wave
JEDEC Method
20
100
10
5
0
1
10
100
NUMBER OF CYCLES AT 60 Hz
Fig. 3 Maximum Non-Repetitive Peak Fwd Surge Current
10
0
10
20
30
40
V
R
, REVERSE VOLTAGE (V)
Fig. 4 Typical Total Capacitance
E-mail: sales@taychipst.com
2 of 2
Web Site: www.taychipst.com
