SS1T

Description
SINTERED GLASS JUNCTION SURFACE MOUNTED RECTIFIER VOLTAGE:1300V CURRENT: 1.0A
CategoryDiscrete semiconductor    diode
File Size163KB,2 Pages
ManufacturerGulf Semiconductor
Websitehttp://www.gulfsemi.com/
Download Datasheet Parametric View All

SS1T Overview

SINTERED GLASS JUNCTION SURFACE MOUNTED RECTIFIER VOLTAGE:1300V CURRENT: 1.0A

SS1T Parametric

Parameter NameAttribute value
MakerGulf Semiconductor
package instructionR-PDSO-C2
Reach Compliance Codeunknow
ECCN codeEAR99
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
JEDEC-95 codeDO-214BA
JESD-30 codeR-PDSO-C2
Number of components1
Number of terminals2
Maximum operating temperature175 °C
Minimum operating temperature-65 °C
Maximum output current1 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Maximum repetitive peak reverse voltage1300 V
surface mountYES
Terminal formC BEND
Terminal locationDUAL
SS1T
SS1
SINTERED GLASS JUNCTION
SURFACE MOUNTED RECTIFIER
VOLTAGE 1300V
VOLTAGE:1300V
CURRENT 1.0A
CURRENT: 1.0A
FEATURE
For surface mounted application
High temperature metallurgic ally bonded
Sintered glass junction
Capability of meeting environmental standard of
MIL-S-19500
High temperature soldering guaranteed
450℃/10sec/at terminal/complete device
Submersible temperature of 265℃ for 10sec

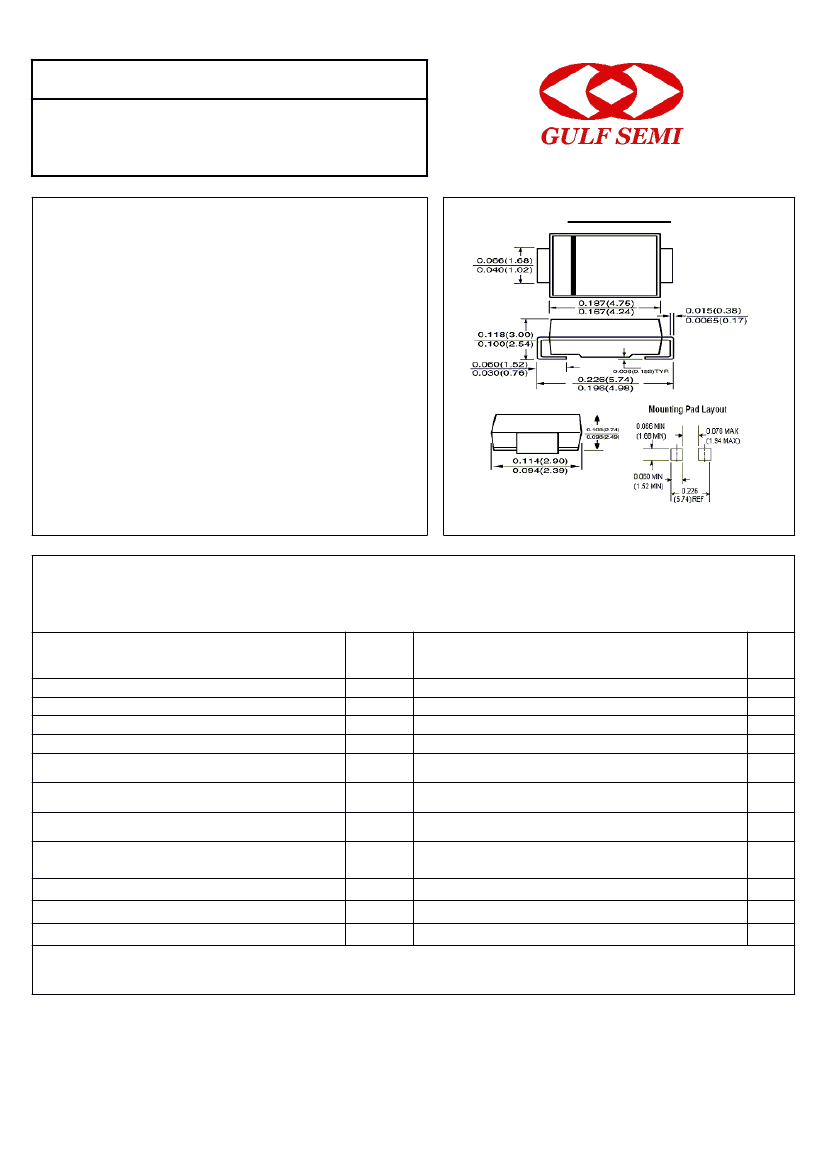

GF1/ DO-214BA
MECHANICAL DATA
Terminal:Plated Terminal, solderable per
MIL-STD 202, method 208C
Case:Molded with UL-94 class V-0 recognized
Flame Retardant Epoxy over Glass
Polarity:color band denotes cathode end
Dimensions in inches and (millimeters)

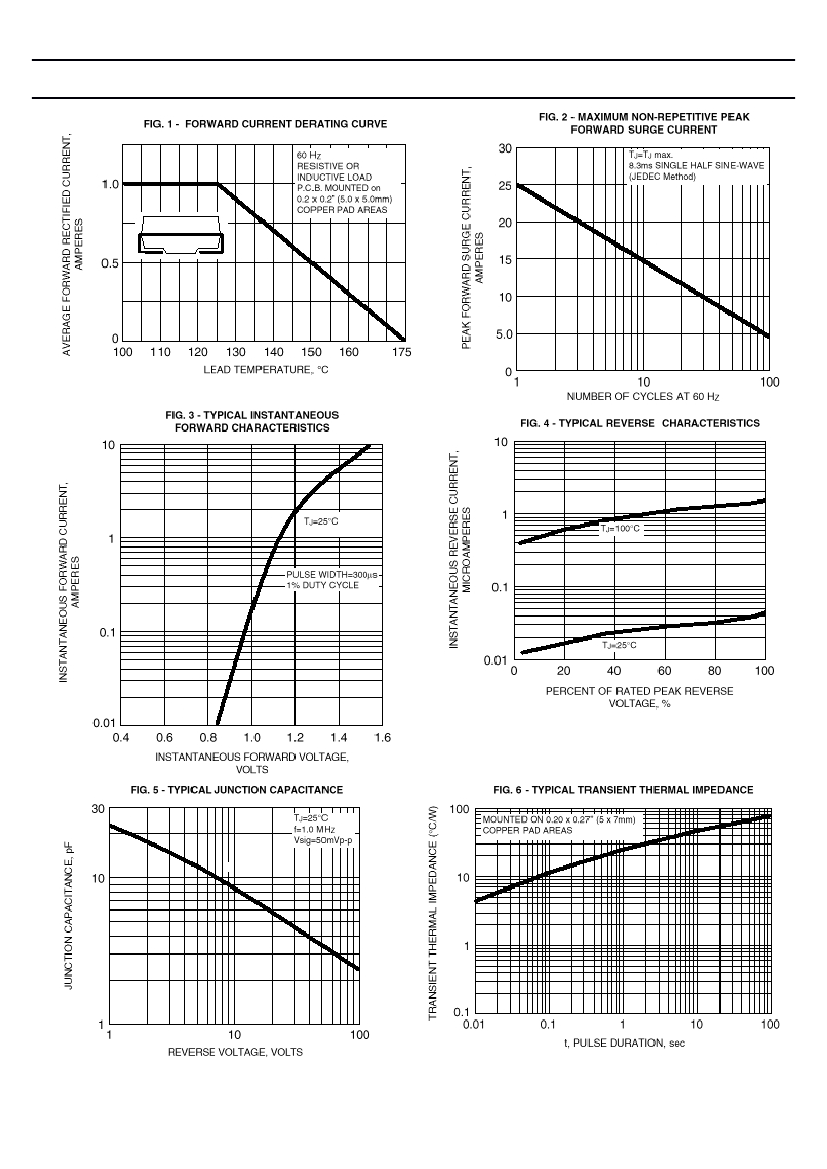

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(single—phase, half
—wave,
60HZ, resistive or inductive load rating at 25℃, unless otherwise stated,
for capacitive load, derate current by 20%)
SYMBOL
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC blocking Voltage
Maximum Average Forward Rectified Current
Peak Forward Surge Current 8.3ms single half
sine-wave superimposed on rated load
Maximum Forward Voltage at rated Forward
current
Maximum full load reverse current full cycle
average at 75℃ ambient
Maximum DC Reverse Current
Ta =25℃
at rated DC blocking voltage
Ta =125℃
Typical Junction Capacitance
Typical Thermal Resistance
(Note 1)
(Note 2)
Vrrm
Vrms
Vdc
If(av)
Ifsm
Vf
Ir(av)
Ir
Cj
Rth(ja)
Tst, Tj
SS1T
1300
910
1300
1.0
25.0
1.3
30.0
5.0
50.0
13.0
80.0
-65 to +175
units
V
V
V
A
A
V
μA
μA
pF
℃/W
Operating and Storage Temperature Range
Note:
1. Measured at 1.0 MHz and applied reverse voltage of 4.0Vdc
2. Thermal Resistance from Junction to Ambient 6.0mm
2
copper pad to each terminal
Rev.A1
www.gulfsemi.com
