RPS-D80FC,A,B+ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> RPS-D80FC,A,B+

RPS-D80FC,A,B+: DescriptionBoard Connector, 80 Contact(s), 2 Row(s), Female, IDC Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size66KB，1 Pages; ManufacturerHonda Tsushin Kogyo Co., Ltd.; Environmental Compliance

Download Datasheet Parametric Compare View All

RPS-D80FC,A,B+ Overview

Board Connector, 80 Contact(s), 2 Row(s), Female, IDC Terminal, ROHS COMPLIANT

RPS-D80FC,A,B+ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Honda Tsushin Kogyo Co., Ltd.
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	2
Options	GENERAL PURPOSE
Termination type	IDC
Total number of contacts	80

Preview

Download Datasheet

View All

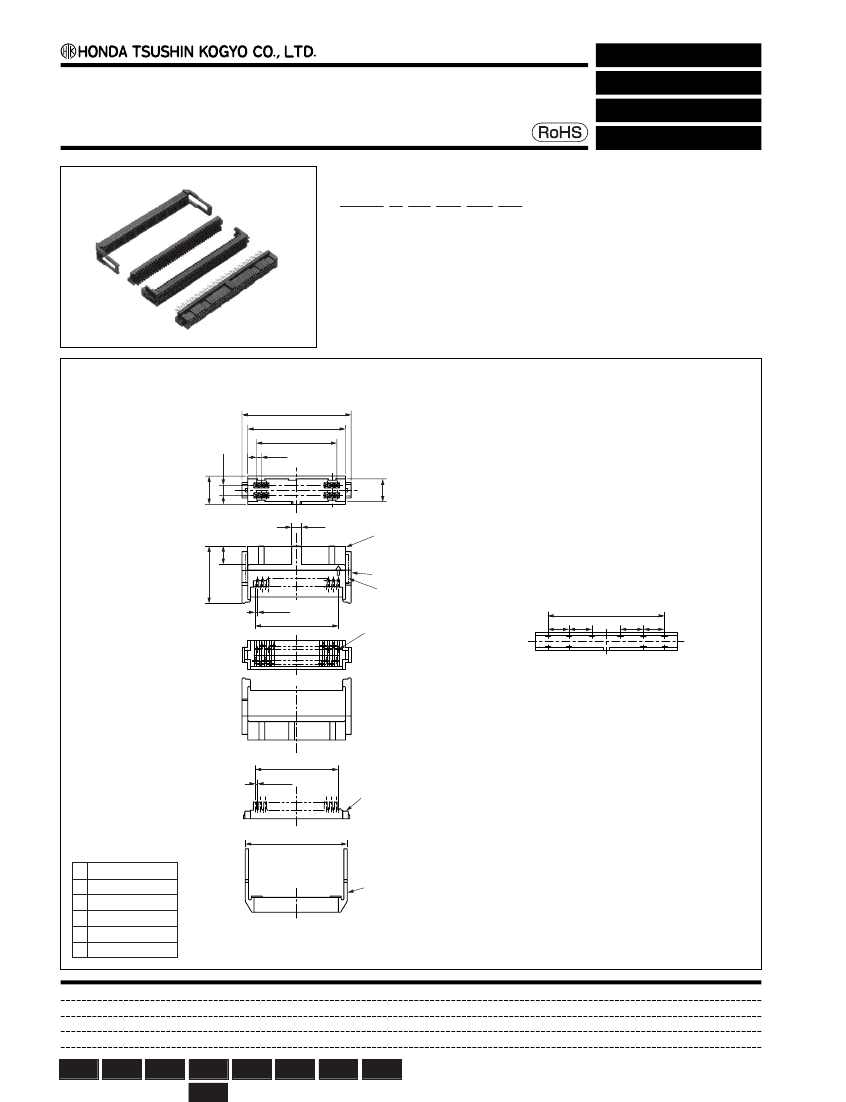

1.27 mm pitch connector

IDC type female connector for cable

RPS-D80( )FC( )+

●

Configuration of product Part No.

For cable

IDC (0.635 mm)

Daisy chain

RPS- D 80 ( ) FC ( )+

➀

➁

➂

∞

Compatible cable

➀

Series name

➁

For 0.635mm pitch flat cables (Daisy Chain) Blank:#32AWG (7/0.08)

(t=0.6mm)

➂

No. of contacts: 80

#30AWG (1/0.254)

➃

Strain relief

(t=0.6mm)

Blank: None

:#30AWG (7/0.102)

: Relief appending

(t=0.6mm)

∞

Type of contact

FC: Female, Close end type

7.2

2.54

56.67

53.77

49.53

1.27

5.5

2.5

14.5

4.5

™

0.635

50.165

46.99

8.89 8.89

For 80-contact

connector

(10 places)

8.89 8.89

Key-location symbols and key-groove dimensions

50.165

0.635

∞

(Appending)

56.67

●

Components

➀

Insulator

➁

Cable housings A

➂

Ground plate

➃

Contacts

➄

Cable housings B

Strain relief

(Appending)

Mating connectors:

RPS-80RM+, RPS-80RLM+

Accessories:

RPS-PK

Tool:

IDC locator: FLPT-0002A, Hand presser: RPS-K4 (Refer to page Tool-13)

Through

hole

SMT

Press-in

IDC

Wire

Soldering Crimping wrapping

Others

RPS-D80FC,A,B+ Related Products

	RPS-D80FC,A,B+	RPS-D80RFC,A,B+
Description	Board Connector, 80 Contact(s), 2 Row(s), Female, IDC Terminal, ROHS COMPLIANT	Board Connector, 80 Contact(s), 2 Row(s), Female, IDC Terminal, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	Honda Tsushin Kogyo Co., Ltd.	Honda Tsushin Kogyo Co., Ltd.
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	unknown
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
MIL compliance	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO
Installation type	CABLE	CABLE
Number of rows loaded	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	IDC	IDC
Total number of contacts	80	80
