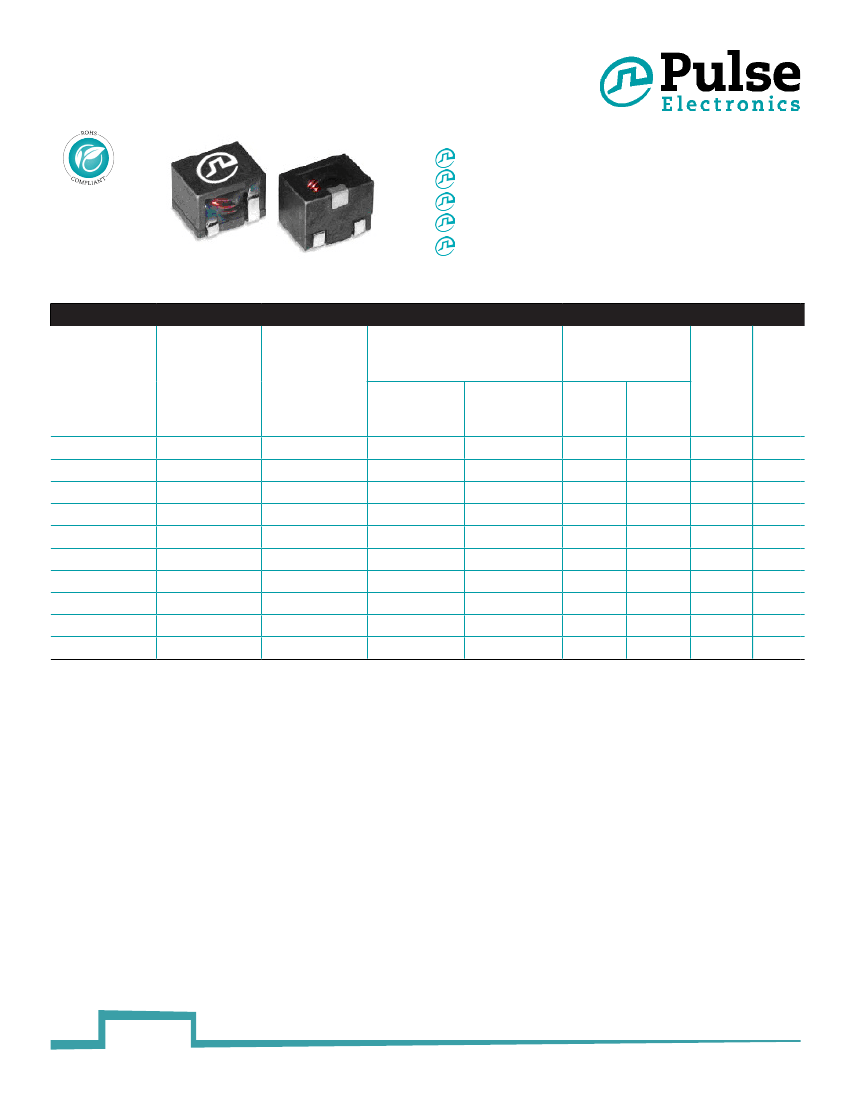

SMT Power Inductor
Round Wire Coils - PG0926NL series
Inductance Range:
0.46µH to 22.0µH
Current Rating:
up to 50Apk
Footprint:
13.4mm x 13.4mm Max
Height:
8.0mm Max
No Thermal Aging
Electrical Specifications @ 25°C - Operating Temperature -40°C to 130°C¹
Inductance
@ Irated²
µH
TYPICAL
Irated
³
(A)
CONTROLLED ELECTRICAL SPECS
DCR4
(mΩ)
±12%
44
30
22
19
14
12
11
9.5
8
7
0.55
1.2
2.2
2.9
4.1
7.0
8.0
12.0
12.5
21.0
INDUCTANCE
@0Adc
(µ
±20%)
0.46
1.00
1.80
2.80
5.60
7.20
8.70
11.50
15.00
22.00
SATURATION5
CURRENT Isat
(A TYP)
HEATING6 CORE LOSS7
CURRENT Idc FACTOR
(A TYP)
(K2)
Part Number
25°C
50
34
25
20
14
12.5
11.5
10.5
9
7.5
100°C
40
27
21
16
11.5
10
9
8
7
6
44
30
22
19
14.5
12
11
9.5
8
7
32.9
47.6
64.3
80.0
114.3
128.6
138.1
157.1
194.8
224.5
PG0926.461NL
PG0926.102NL
PG0926.182NL
PG0926.282NL
PG0926.562NL
PG0926.722NL
PG0926.872NL
PG0926.113NL
PG0926.153NL
PG0926.223NL
0.42
0.94
1.7
2.6
5.0
6.8
8.4
10.6
13.5
20
Notes:
1. Actual temperature of the component during system operation (ambient plus
temperature rise) must be within the standard operating range.
2. Inductance at Irated is a typical inductance value for the component taken at rated
current.
3. The rated current listed is either the saturation current (@ 25°C) or the heating cur-
rent depending on which value is lower.
4. The DCR of the part is measured at an ambient temperature of 20°C
± 3°C
from
point a to b as shown below on the mechanical drawing.
5. The saturation current, Isat, is the current at which the component inductance drop
by 20% (typical) at an ambient temperature. This current is determined by placing
the component in the specified ambient environment and applying a short duration
pulse current (to eliminate self-heating effect) to the component.
6. The heating current, Idc, is the DC current required to raise the component tempera-
ture by approximately 40°C. The heating current is determined by mounting the
component on a typical PCB and applying current for 30 minutes. The temperature is
measured by placing the thermocouple on top of the unit under test. Take note that
the components’ performance varires depending on the system condition. It is sug-
gested that the component be tested at the system level, to verify the temperature
7.
8.
9.
10.
rise of the component during system operation.
Core loss approximation is based on published core data:
Core Loss = K1 * (f)1.72 * (K2ΔI)2.41in mW
K1 = 8.68E - 10
f = switching frequency in KHz
K1 & K2 = core loss factors
ΔI
= delta I across the component in Ampere
K2ΔI = one half of the peak to peak flux density across the component in Gauss
Unless otherwise specified, all testing is made at 100KHz, 0.1Vac
Optional Tape and Reel packaging can be ordered by adding a “T” suffix to the part
number (i.e. PG0926.223NL becomes PG0926.223NLT). Pulse complies with industry
standard tape and reel specification EIA481. The tape and reel for this product has a
width (W=32.0mm), pitch (Po=20.0mm) and depth (Ko=8.35mm).
The core is a conductive material so care should be taken when mounting this com-
ponent over an exposed via or if the voltage across the terminals exceeds 24V. Trickle
current through the core material may generate additional losses and potential
overheating. Please contact Pulse to discuss an alternative solution if required.
USA 858 674 8100
1
Germany 49 2354 777 100
Singapore 65 6287 8998
Shanghai 86 21 62787060
China 86 755 33966678
Taiwan 886 3 4356768
P700.C (12/16)
pulseelectronics.com
SMT Power Inductor
Round Wire Coils - PG0926NL series

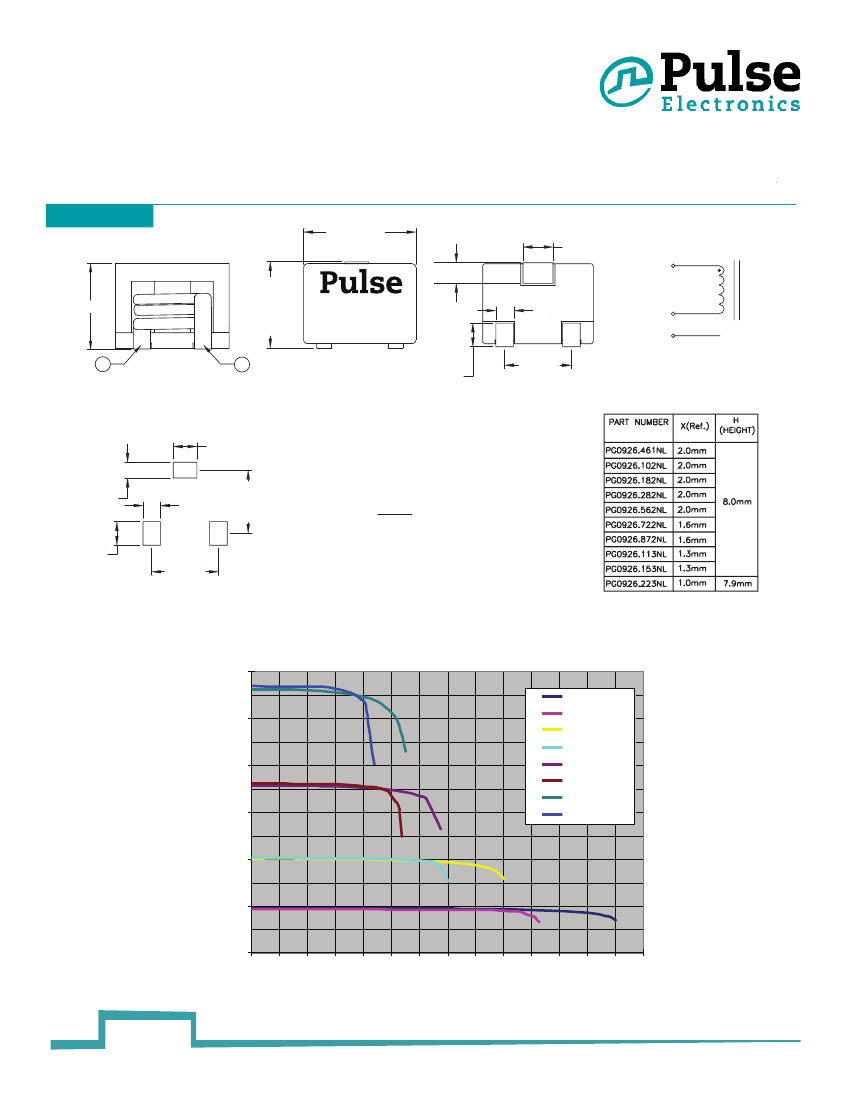

Mechanicals
PG0926.XXXNL
.528 MAX
[13.40 MAX]
3
.087
[2.20]
H MAX.
.528 MAX
[13.40 MAX]
.094
[2.40]
Schematics
1
PG0926.XXXNL
MFG. LOCATION
DATE
CODE
1
2
.079REF
[2.00]
X (refer to table below)
2
3
a
FRONT VIEW
b
.323REF
[8.20]
BOTTOM VIEW
*Pin 3 is for mechanical support only
and has no internal electrical connection
SCHEMATIC
TOP VIEW
.197REF
[5.00]
.138REF
[3.50]
Weight......................................................4.5 grams
Tape and Reel.............................................300/reel
.197REF
[5.00]
.394REF
[10.00]
Dimensions:
inched
mm
-0.25
Unless otherwise specified, all tolerance are
+.010
.157REF
[4.00]
.323REF
[8.20]
SUGGESTED LAND PATTERN
(REFERENCE ONLY)
Typical Inductance vs DC Bias
3
.461NL@25ºC
2.5
.461NL@100ºC
.102NL@25ºC
.102NL@100ºC
INDUCTANCE(uH)
2
.182NL@25ºC
.182NL@100ºC
.282NL@25ºC
1.5
.282NL@100ºC
1
0.5
0
0
4
8
12
16
20
24
28
32
36
40
44
48
52
56
DC Bias (A)
2
pulseelectronics.com
P700.C (12/16)
SMT Power Inductor
Round Wire Coils - PG0926NL series
Typical Inductance vs DC Bias
24
22
20
18
.562NL@25ºC
.562NL@100ºC
.722NL@25ºC
.722NL@100ºC
.872NL@25ºC
.872NL@100ºC
.113NL@25ºC
.113NL@100ºC
.153NL@25ºC
.153NL@100ºC
.223NL@25ºC
.223NL@100ºC
INDUCTANCE(uH)
16
14
12
10
8
6
4
2
0
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
DC Bias (A)
