VG95234R132-1P1X datasheet, PDF

Datasheet> All Categories > The connector> The connector> VG95234R132-1P1X

VG95234R132-1P1X: DescriptionMIL Series Connector, 5 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Plug; CategoryThe connector The connector; File Size110KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

VG95234R132-1P1X Overview

MIL Series Connector, 5 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Plug

VG95234R132-1P1X Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	compliant
Other features	STANDARD: MIL-DTL-5015, EMI SHIELDED, POLARIZED
Back shell type	SOLID
Body/casing type	PLUG
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	SILVER
Contact completed and terminated	SILVER
Contact point gender	MALE
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Environmental characteristics	ENVIRONMENT RESISTANT
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	YES
Manufacturer's serial number	VG95234
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	CADMIUM PLATED
Shell material	ALUMINUM ALLOY
Housing size	32
Termination type	CRIMP
Total number of contacts	5

Preview

Download Datasheet

View All

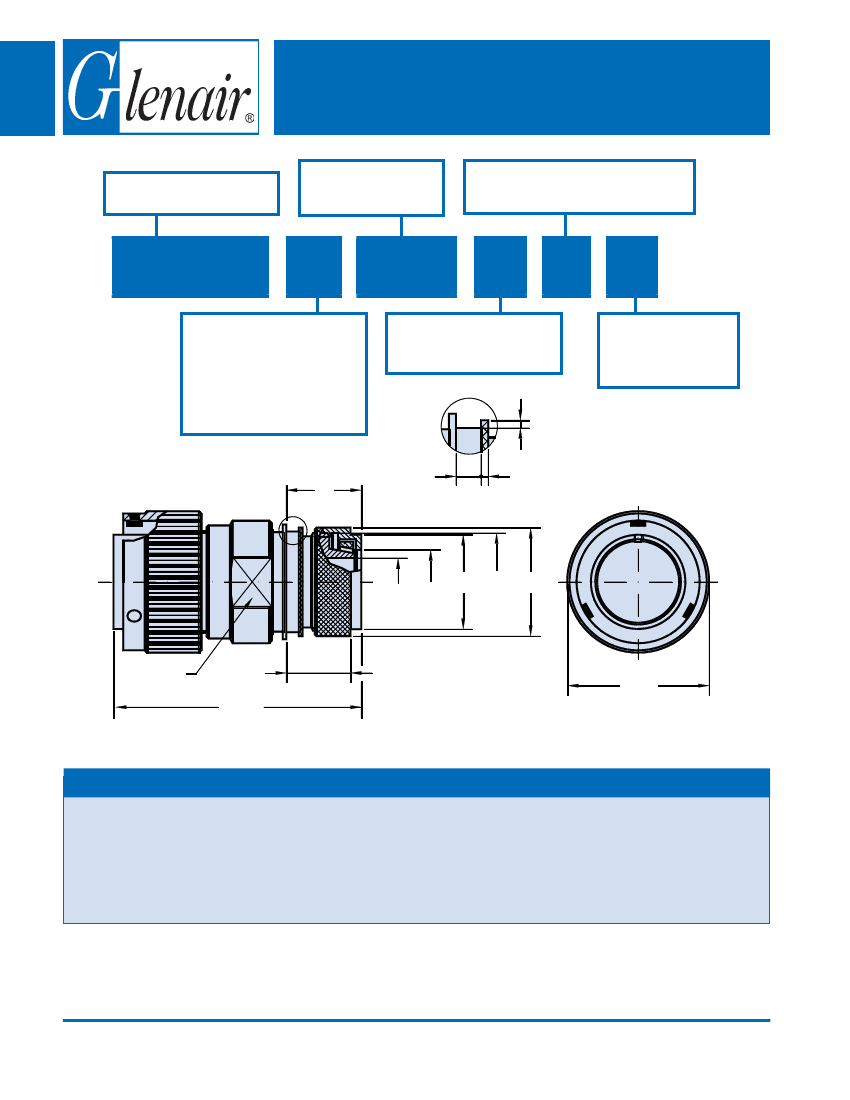

VG95234

Connectors

VG95234 R1

Straight Plug with Grounding Fingers,

EMI / RFI Backshell and Shrink Boot Adapter

Contact

Arrangement

- Standard AWG Contacts

(Omit for Metric)

Basic Part Number

VG95234

32-6

Alternate Insert

Positions

N-X-Y

- Straight Plug

with EMI Backshell/

Shrink Boot Adapter

and Grounding

Fingers

- Pin contacts

- Socket contacts

3.5

±0.2

18 max

APPLICATION NOTES

Straight plug connector with grounding

ﬁ

nger EMI/RFI

backshell and wire sealing grommet.

Standard crimp contact material consists of copper alloy with

silver plating. Please see pages 16-17 for additional contact

information.

Insert arrangements IAW VG95234. Please see pages 10-15.

Standard insert is synthetic rubber, oil and low temperature

resistant (-55°C to +125°C) IAW MIL-R-3065.

Stainless steel and marine bronze shells are available in Series

ITS products. Please consult factory.

All dimensions are metric unless otherwise noted.

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com
