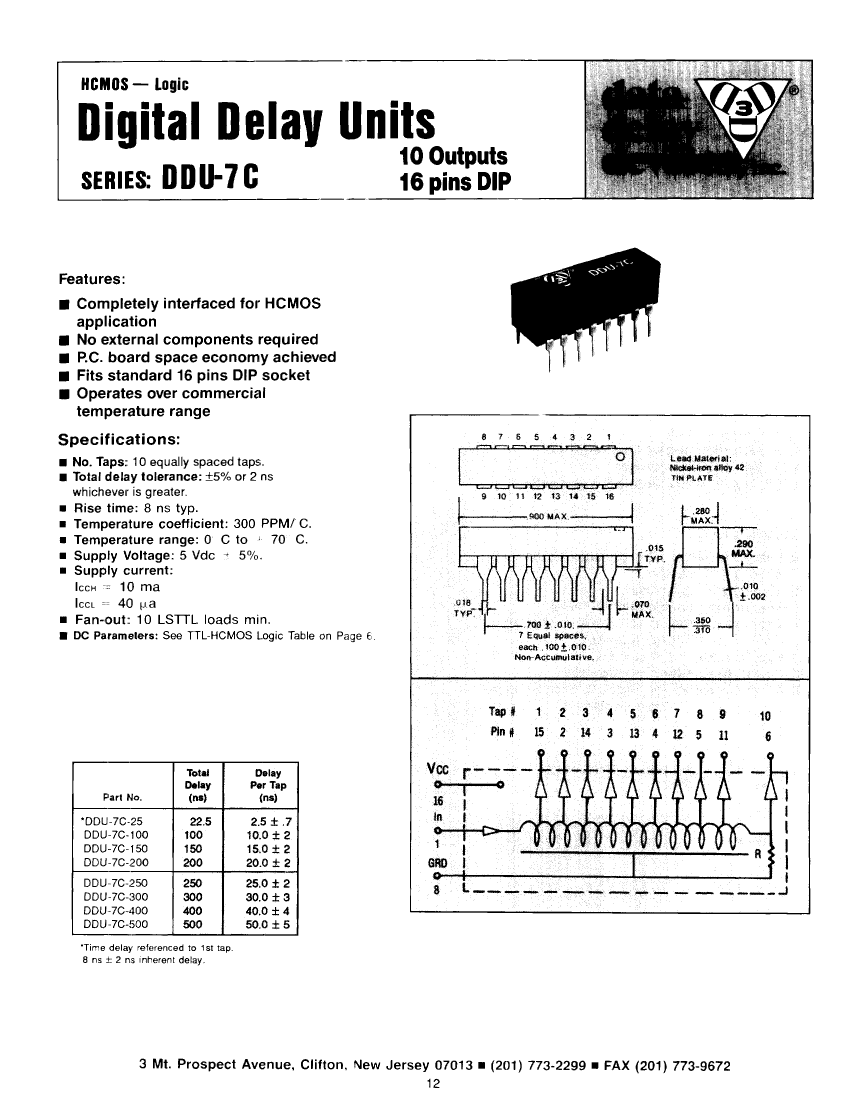

Active Delay Line, 1-Func, 10-Tap, True Output, CMOS, DIP-14
| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | Data Delay Devices |
| Parts packaging code | DIP |
| package instruction | DIP-14 |
| Contacts | 14 |
| Reach Compliance Code | compliant |
| Other features | MEETS MIL-D-23859; TEMP. COEFF. SPECIFIED OVER 0 TO 70 DEG. CEL. |
| series | HC/UH |
| JESD-30 code | R-XDIP-T14 |
| Logic integrated circuit type | ACTIVE DELAY LINE |
| Number of functions | 1 |
| Number of taps/steps | 10 |
| Number of terminals | 14 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output polarity | TRUE |
| Package body material | UNSPECIFIED |
| encapsulated code | DIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| programmable delay line | NO |
| Certification status | Not Qualified |
| Maximum seat height | 8.255 mm |
| Maximum supply voltage (Vsup) | 5.25 V |
| Minimum supply voltage (Vsup) | 4.75 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | CMOS |
| Temperature level | MILITARY |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Total delay nominal (td) | 300 ns |
| width | 7.62 mm |
| DDU-7C-300ME5 | DDU-7C-25ME5 | DDU-7C-150ME5 | DDU-7C-250ME5 | DDU-7C-400ME5 | DDU-7C-500ME5 | DDU-7C-100ME5 | DDU-7C-200ME5 | |
|---|---|---|---|---|---|---|---|---|
| Description | Active Delay Line, 1-Func, 10-Tap, True Output, CMOS, DIP-14 | Active Delay Line, 1-Func, 10-Tap, True Output, CMOS, DIP-14 | Active Delay Line, 1-Func, 10-Tap, True Output, CMOS, DIP-14 | Active Delay Line, 1-Func, 10-Tap, True Output, CMOS, DIP-14 | Active Delay Line, 1-Func, 10-Tap, True Output, CMOS, DIP-14 | Active Delay Line, 1-Func, 10-Tap, True Output, CMOS, DIP-14 | Active Delay Line, 1-Func, 10-Tap, True Output, CMOS, DIP-14 | Active Delay Line, 1-Func, 10-Tap, True Output, CMOS, DIP-14 |
| Is it lead-free? | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free |
| Is it Rohs certified? | conform to | conform to | conform to | conform to | conform to | conform to | conform to | conform to |
| Parts packaging code | DIP | DIP | DIP | DIP | DIP | DIP | DIP | DIP |
| package instruction | DIP-14 | DIP, | DIP-14 | DIP-14 | DIP, | DIP, | DIP, | DIP, |
| Contacts | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant | compliant | compliant | compliant |
| Other features | MEETS MIL-D-23859; TEMP. COEFF. SPECIFIED OVER 0 TO 70 DEG. CEL. | INPUT TO 1ST TAP DELAY = 8+-2NS; MEETS MIL-D-23859; IN-HOUSE BURN-IN AND THERMAL SHOCK | MEETS MIL-D-23859; TEMP. COEFF. SPECIFIED OVER 0 TO 70 DEG. CEL. | MEETS MIL-D-23859; TEMP. COEFF. SPECIFIED OVER 0 TO 70 DEG. CEL. | MEETS MIL-D-23859; TEMP. COEFF. SPECIFIED OVER 0 TO 70 DEG. CEL. | MEETS MIL-D-23859; TEMP. COEFF. SPECIFIED OVER 0 TO 70 DEG. CEL. | MEETS MIL-D-23859; TEMP. COEFF. SPECIFIED OVER 0 TO 70 DEG. CEL. | MEETS MIL-D-23859; TEMP. COEFF. SPECIFIED OVER 0 TO 70 DEG. CEL. |
| series | HC/UH | HC/UH | HC/UH | HC/UH | HC/UH | HC/UH | HC/UH | HC/UH |
| JESD-30 code | R-XDIP-T14 | R-XDIP-T14 | R-XDIP-T14 | R-XDIP-T14 | R-XDIP-T14 | R-XDIP-T14 | R-XDIP-T14 | R-XDIP-T14 |
| Logic integrated circuit type | ACTIVE DELAY LINE | ACTIVE DELAY LINE | ACTIVE DELAY LINE | ACTIVE DELAY LINE | ACTIVE DELAY LINE | ACTIVE DELAY LINE | ACTIVE DELAY LINE | ACTIVE DELAY LINE |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of taps/steps | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| Number of terminals | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Output polarity | TRUE | TRUE | TRUE | TRUE | TRUE | TRUE | TRUE | TRUE |
| Package body material | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED |
| encapsulated code | DIP | DIP | DIP | DIP | DIP | DIP | DIP | DIP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| programmable delay line | NO | NO | NO | NO | NO | NO | NO | NO |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 8.255 mm | 8.255 mm | 8.255 mm | 8.255 mm | 8.255 mm | 8.255 mm | 8.255 mm | 8.255 mm |
| Maximum supply voltage (Vsup) | 5.25 V | 5.25 V | 5.25 V | 5.25 V | 5.25 V | 5.25 V | 5.25 V | 5.25 V |
| Minimum supply voltage (Vsup) | 4.75 V | 4.75 V | 4.75 V | 4.75 V | 4.75 V | 4.75 V | 4.75 V | 4.75 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | NO | NO | NO | NO | NO | NO | NO |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Total delay nominal (td) | 300 ns | 30.5 ns | 150 ns | 250 ns | 400 ns | 500 ns | 100 ns | 200 ns |
| width | 7.62 mm | 7.62 mm | 7.62 mm | 7.62 mm | 7.62 mm | 7.62 mm | 7.62 mm | 7.62 mm |
| Maker | Data Delay Devices | Data Delay Devices | Data Delay Devices | Data Delay Devices | - | - | - | Data Delay Devices |
| Base Number Matches | - | 1 | 1 | 1 | 1 | 1 | 1 | - |
